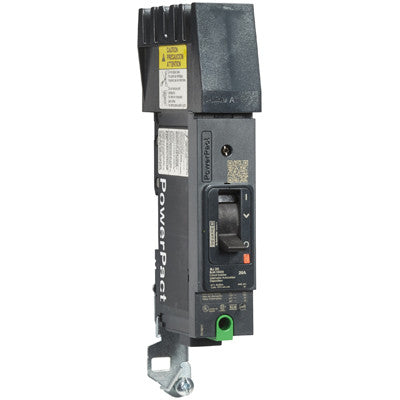

Square D BDA140301 Circuit Breaker | 480V 30A 1P 25kA@240V I-Line Style Plug-In Powerpact

Product Description:
The Square D BDA140301 is a Molded Case Circuit Breaker from the Powerpact family. It features a 1-pole design with a 480V, 30A rating and an AIC rating of 25kA@240V. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: BDA140301
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 480
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 25kA@240V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: A
✔ UPC: 785901011569
✔ GTIN: 03606481151551
✔ Country of Origin: Mexico
✔ Dimensions: 1.06 in x 5.39 in
✔ Weight: 1
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CCC, CSA Certified, EAC, IEC, NOM, UL Listed
✔ Certification: CCC, CSA Certified, EAC, IEC, NOM, UL Listed
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
