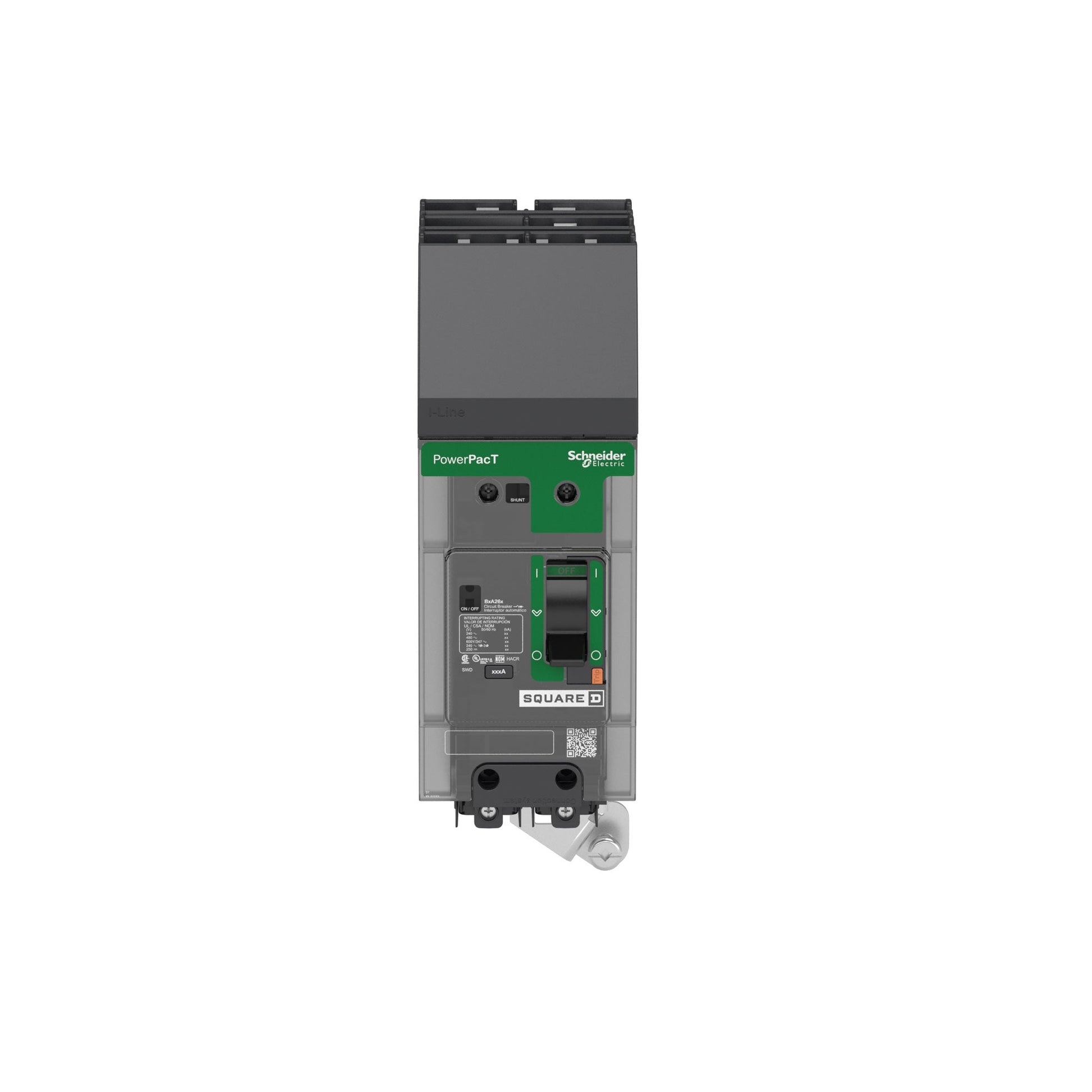

Square D BDA260702 Circuit Breaker | 600V 70A 2P 18kA@480V I-Line Powerpact

Product Description:
The Square D BDA260702 is a Molded Case Circuit Breaker from the Powerpact family. It features 2 poles, 600V voltage, and 70A amperage with an 18kA@480V AIC rating. This breaker uses I-Line connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: BDA260702
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 70
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: D
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: AC
✔ UPC: 060648115225
✔ GTIN: 03606481152251
✔ Country of Origin: Mexico
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 1.42
✔ Standards: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Certification: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
