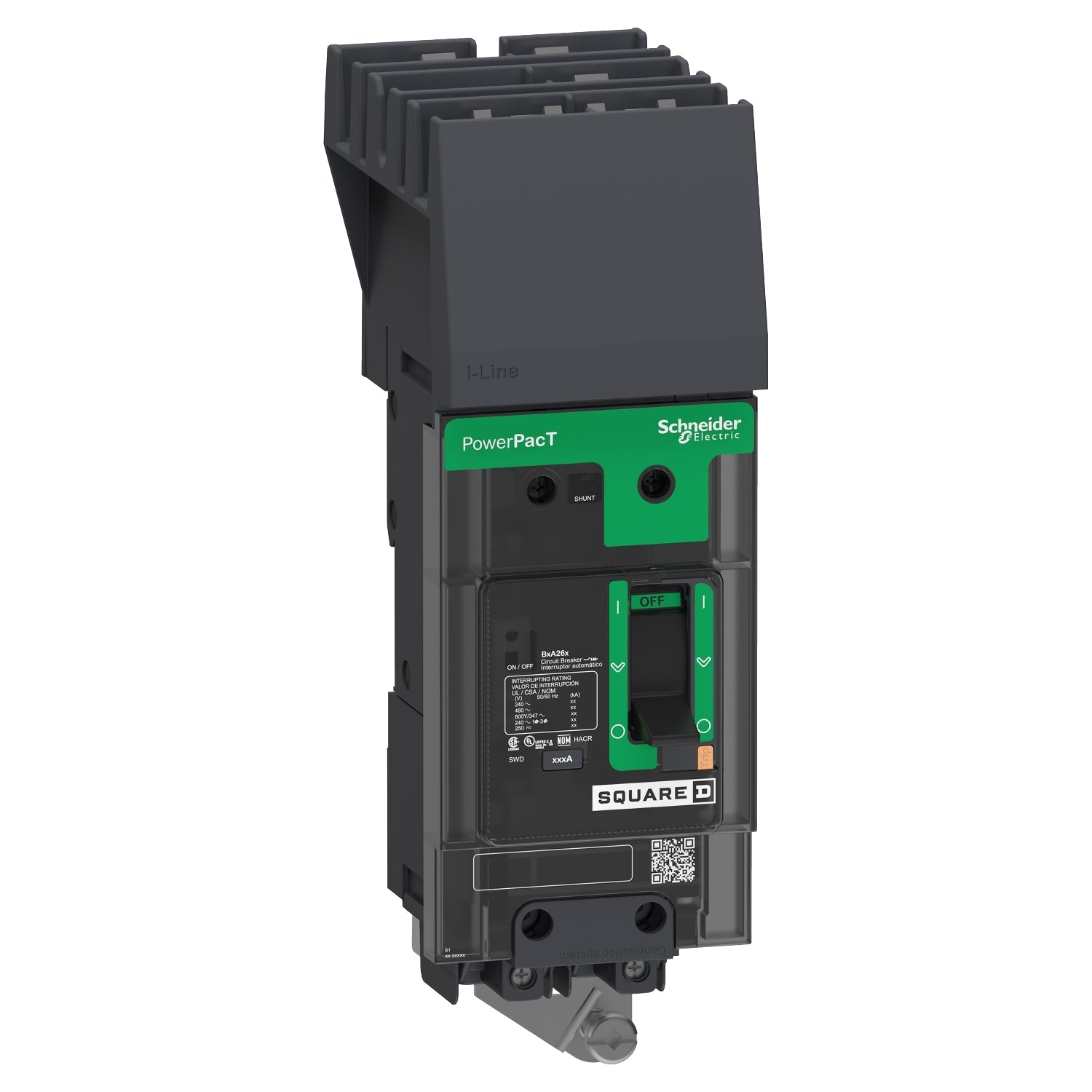

Schneider Electric BDA260904 Circuit Breaker | 600V 90A 2P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Schneider Electric BDA260904 is a Molded Case Circuit Breaker from the Powerpact family. It features 2 poles, 600V voltage, and 90A amperage with an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection.

Key Features:
✔ Part Number: BDA260904
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: B Frame
✔ Protection: Thermal Magnetic
✔ Dimensions: Height 5.39 in (137 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Certification: UL, IEC, CCC, EAC, CSA, NOM
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
