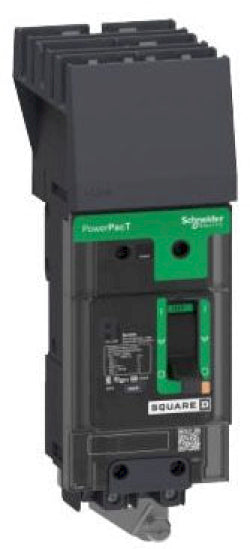

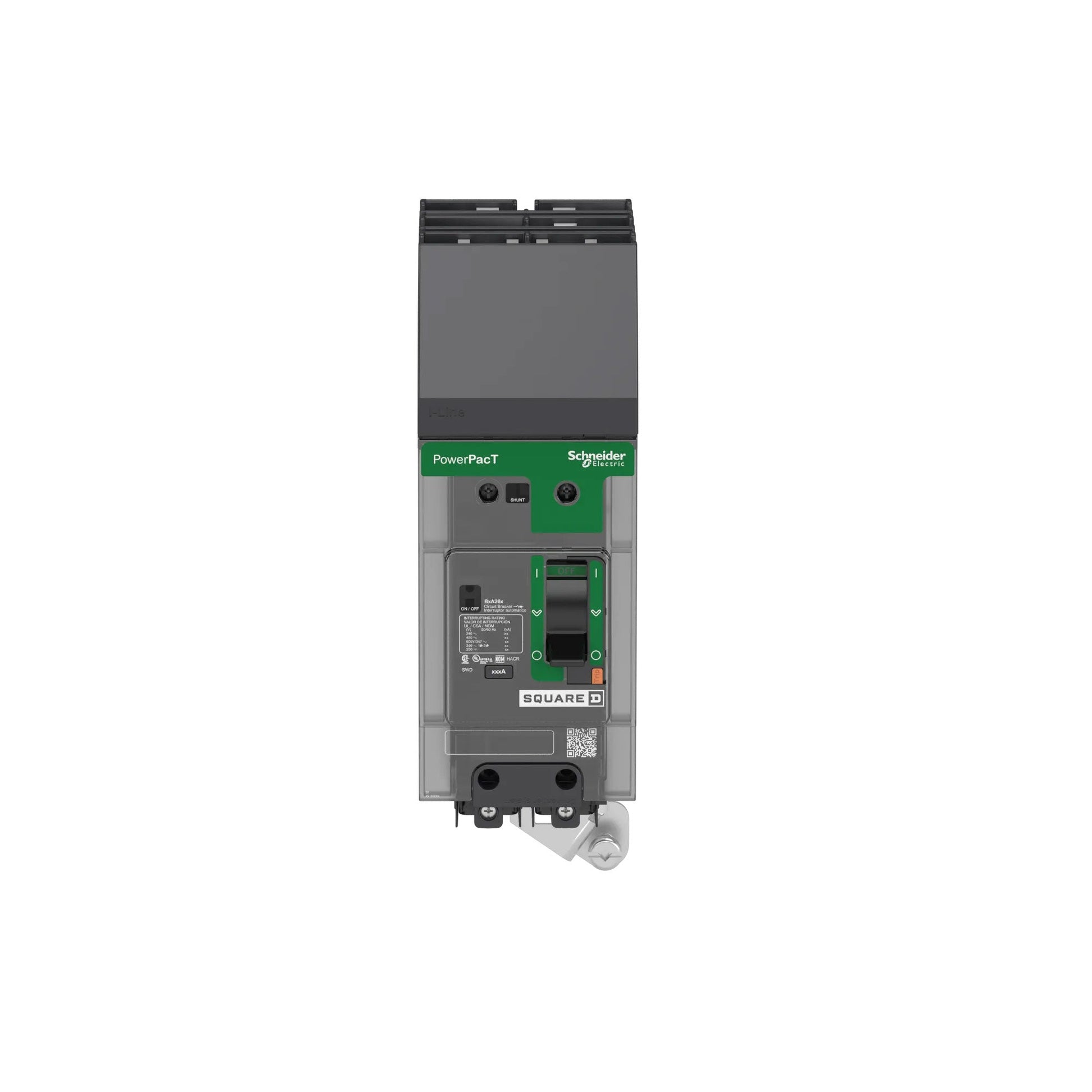

Square D BDA261001 Circuit Breaker | 600V 100A 2P 18kA@480V I-Line Plug-In Powerpact
Square D BDA261001 Circuit Breaker | 600V 100A 2P 18kA@480V I-Line Plug-In Powerpact
Price:
Sale
Sold out
Regular price
$542.71 USD
Regular price
$980.00 USD
Sale price
$542.71 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D BDA261001 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 100 amp breaker rated for 600 Volts with an 18kA@480V AIC rating. This circuit breaker uses an I-Line Style Plug-In connection and provides Thermal Magnetic protection for reliable operation.
Key Features:
✔ Part Number: BDA261001
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 100
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: D
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: AB
✔ UPC: 785901049050
✔ GTIN: 00785901049050
✔ Country of Origin: Mexico
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 1.41
✔ Standards: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Certification: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
The Square D BDA261001 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 100 amp breaker rated for 600 Volts with an 18kA@480V AIC rating. This circuit breaker uses an I-Line Style Plug-In connection and provides Thermal Magnetic protection for reliable operation.
Key Features:
✔ Part Number: BDA261001
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 100
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: D
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: AB
✔ UPC: 785901049050
✔ GTIN: 00785901049050
✔ Country of Origin: Mexico
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 1.41
✔ Standards: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Certification: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
