Square D BDA261004 Circuit Breaker | 600V 100A 2P 18kA@480V I-Line Powerpact
Square D BDA261004 Circuit Breaker | 600V 100A 2P 18kA@480V I-Line Powerpact
Price:
Sale
Sold out
Regular price
$542.71 USD
Regular price
$0.00 USD
Sale price
$542.71 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:

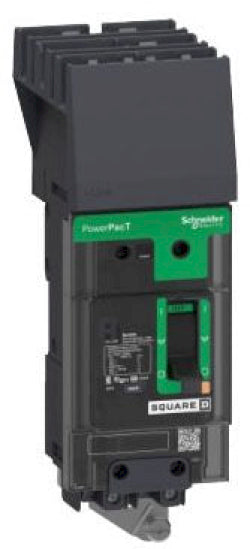

The Square D BDA261004 is a Molded Case Circuit Breaker from the Powerpact family. It features 2 poles, 600V voltage, and 100A amperage with an 18kA@480V AIC rating. This breaker uses I-Line connection and offers thermal magnetic protection for reliable performance.
Key Features:
✔ Part Number: BDA261004
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: D
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: BC
✔ UPC: 078590194202
✔ GTIN: 00785901942023
✔ Country of Origin: United States
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 1.36
✔ Standards: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Certification: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
