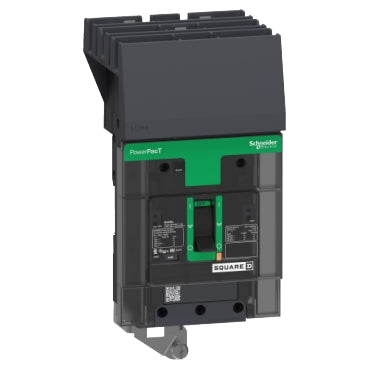

Schneider Electric BDA34030Y Molded Case Circuit Breaker | 480V 30A 3P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Schneider Electric BDA34030Y is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 30 amp breaker rated for 480 volts with an 18kA interrupting capacity. This model features an I-Line Style Plug-In connection and provides reliable thermal magnetic protection for electrical systems.

Key Features:
✔ Part Number: BDA34030Y
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 480
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901045359
✔ GTIN: 03606481152381
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.88 lb
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
