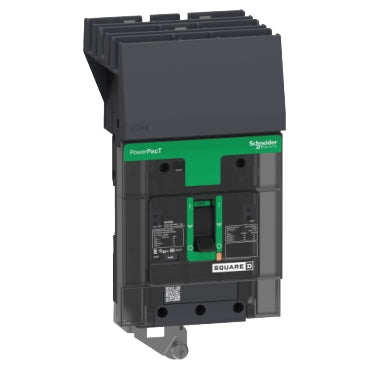

Schneider Electric BDA34045Y Circuit Breaker | Powerpact BDA 480V 45A

Product Description:
The Schneider Electric BDA34045Y is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 480V, 45A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection. It is suitable for industrial control panels and electrical distribution equipment.

Key Features:
✔ Part Number: BDA34045Y
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 480V
✔ Amperage: 45A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BD
✔ MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Temp Rating: -13-158 °F (-25-70 °C)
✔ UPC: 606481152414
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.88 lbs
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
