Schneider Electric

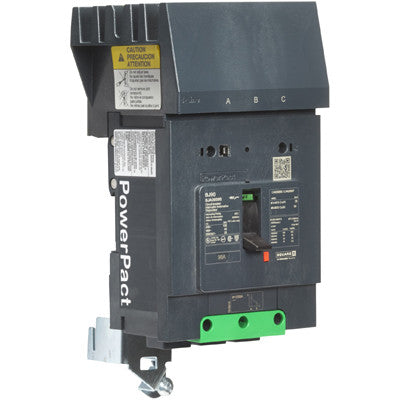

Schneider Electric BDA34060Y Circuit Breaker | 480V 60A 3P 18kA@480V I-Line Powerpact
Schneider Electric BDA34060Y Circuit Breaker | 480V 60A 3P 18kA@480V I-Line Powerpact
Price:
Sale
Sold out
Regular price
$589.53 USD
Regular price
$892.00 USD
Sale price
$589.53 USD
Unit price
per
Shipping calculated at checkout.
Stock:
28 in stock
Couldn't load pickup availability
Product Description:
The Schneider Electric BDA34060Y is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 60 amp breaker rated for 480 volts with an interrupting capacity of 18kA. This model features I-Line connections and provides reliable thermal magnetic protection for electrical systems.
Key Features:
✔ Part Number: BDA34060Y
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 480
✔ Amperage: 60
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BD
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ UPC: 785901046356
✔ GTIN: 03606481152435
The Schneider Electric BDA34060Y is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 60 amp breaker rated for 480 volts with an interrupting capacity of 18kA. This model features I-Line connections and provides reliable thermal magnetic protection for electrical systems.
Key Features:
✔ Part Number: BDA34060Y
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 480
✔ Amperage: 60
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BD
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ UPC: 785901046356
✔ GTIN: 03606481152435
