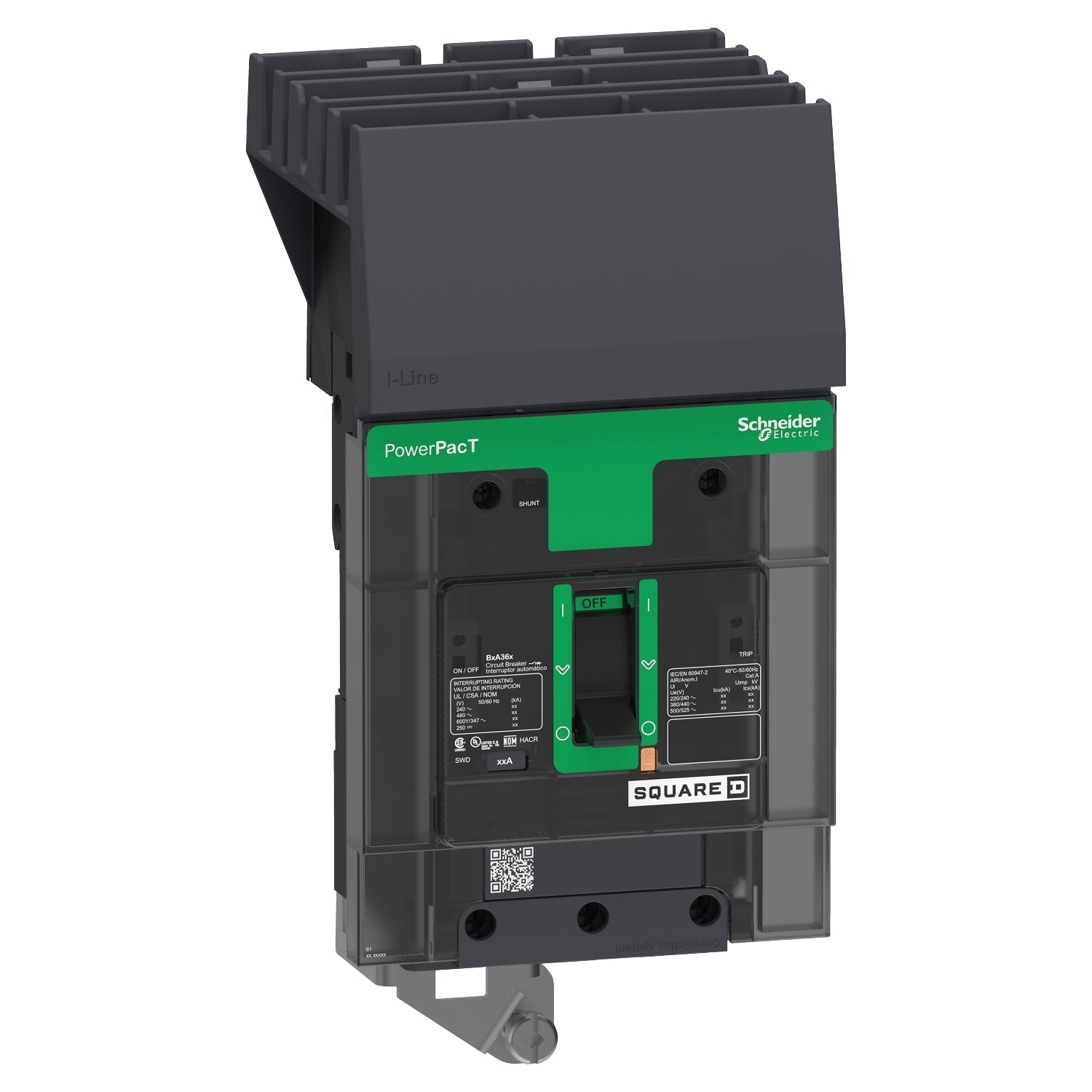

Images are for reference only
Square D
Square D BDA34125Y Circuit Breaker | 480V 125A 3P 18kA@480V I-Line Powerpact
Square D BDA34125Y Circuit Breaker | 480V 125A 3P 18kA@480V I-Line Powerpact
Price:
Sale
Sold out
Regular price
$673.70 USD
Regular price
$1,360.00 USD
Sale price
$673.70 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Square D BDA34125Y is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 125 amp breaker rated for 480 volts with an 18kA interrupting capacity. This model features I-Line connections and provides thermal magnetic protection for reliable circuit safety.
Key Features:
✔ Part Number: BDA34125Y
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 480
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BD
✔ Wire Size: Min. 14 AWG Max. 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901065869
✔ GTIN: 00785901065869
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.72
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
The Square D BDA34125Y is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 125 amp breaker rated for 480 volts with an 18kA interrupting capacity. This model features I-Line connections and provides thermal magnetic protection for reliable circuit safety.
Key Features:
✔ Part Number: BDA34125Y
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 480
✔ Amperage: 125
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BD
✔ Wire Size: Min. 14 AWG Max. 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901065869
✔ GTIN: 00785901065869
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.72
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
