Schneider Electric BDA36015 Circuit Breaker | 600V 15A 3P 18kA@480V I-Line Powerpact
Schneider Electric BDA36015 Circuit Breaker | 600V 15A 3P 18kA@480V I-Line Powerpact
Price:
Sale
Sold out
Regular price
$499.84 USD
Regular price
$1,012.00 USD
Sale price
$499.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:

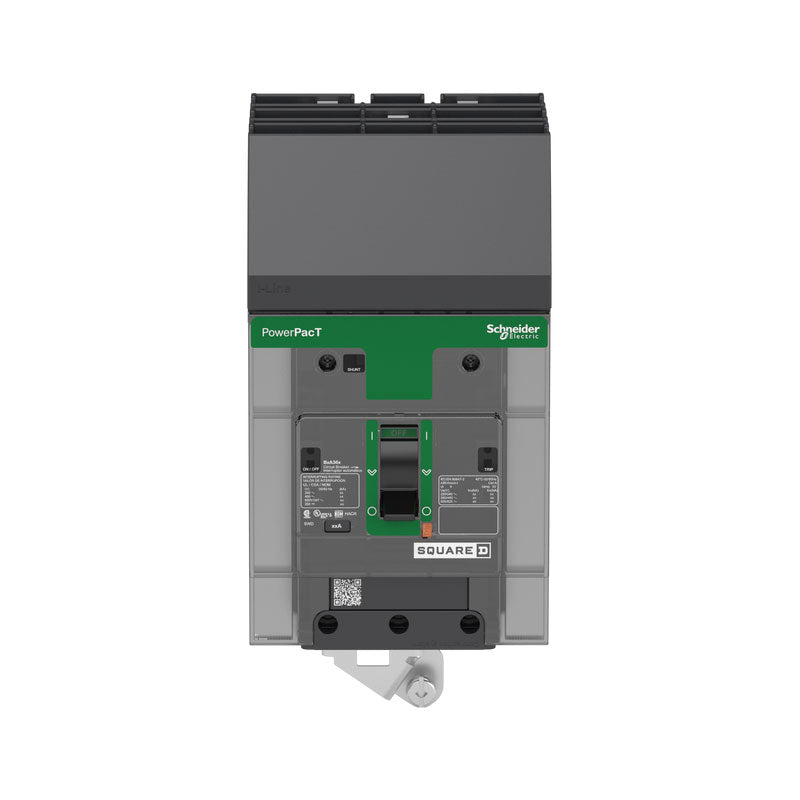

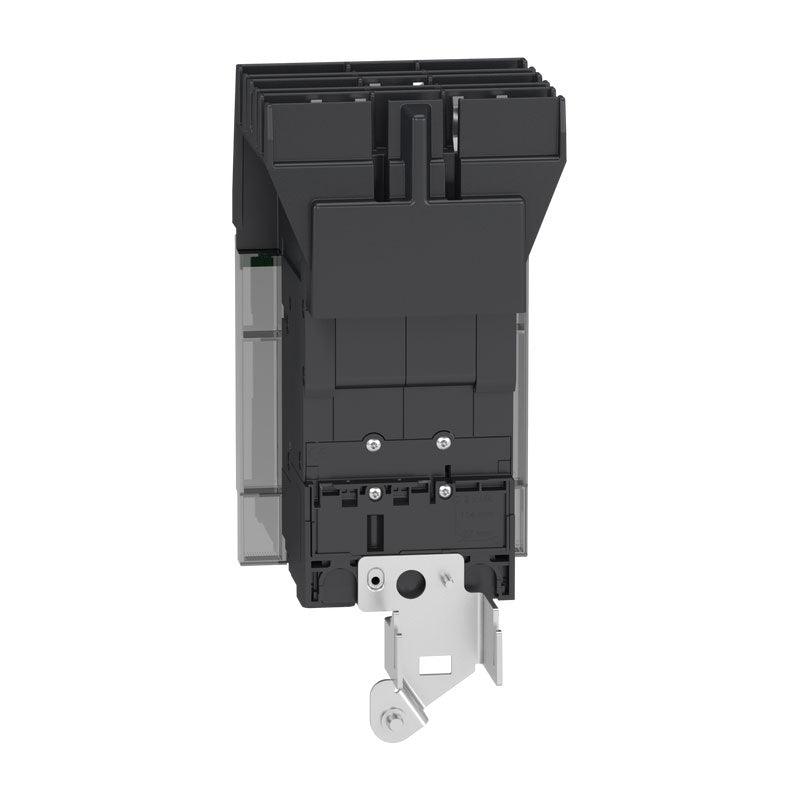

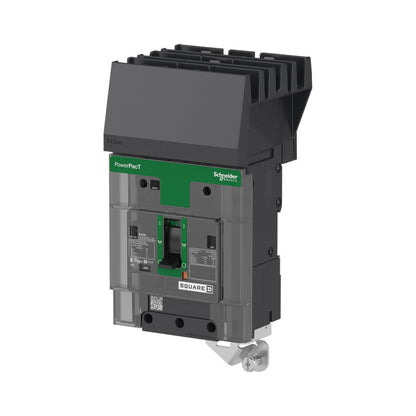

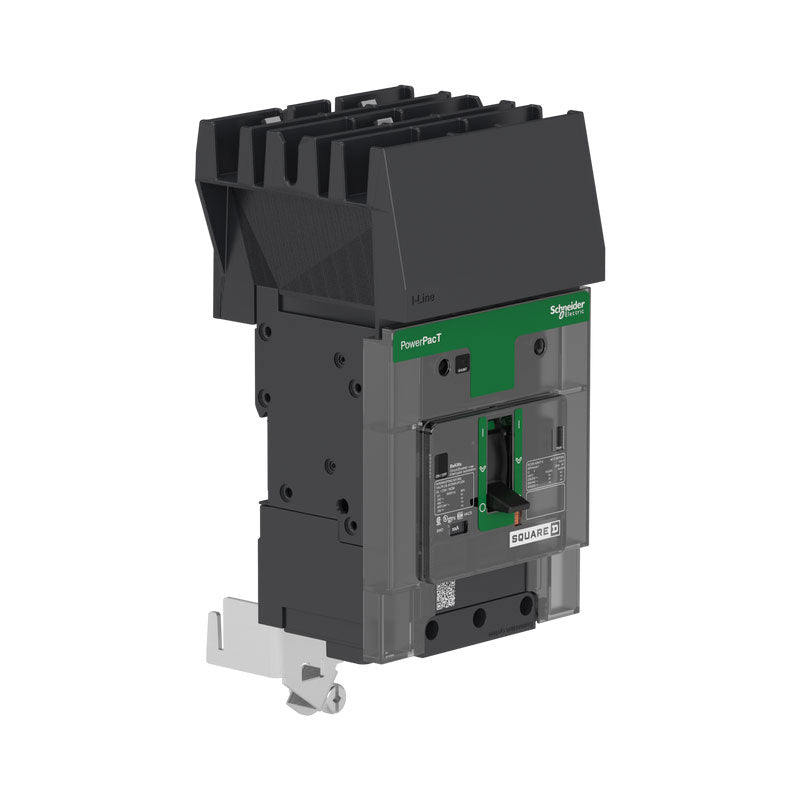

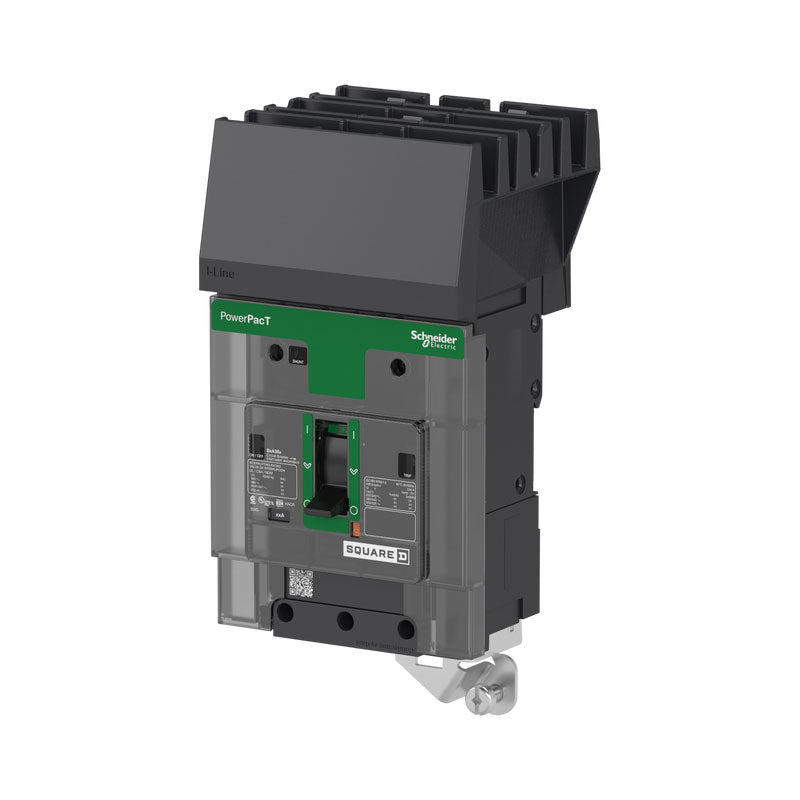

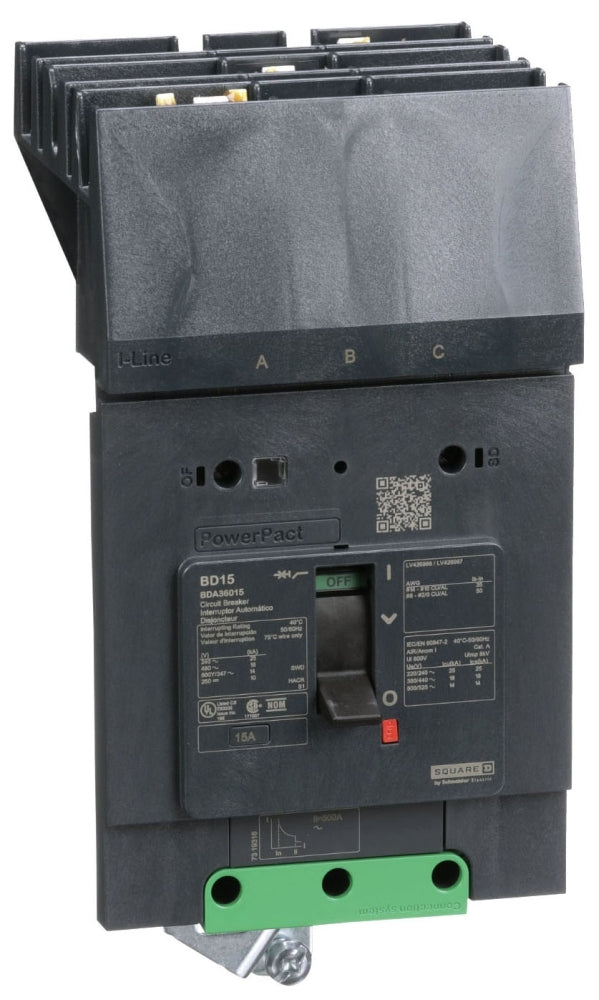

The Schneider Electric BDA36015 is a Molded Case Circuit Breaker from the Powerpact family. It features 3 poles, 600V voltage, and 15A amperage with an 18kA@480V AIC rating. This breaker uses I-Line connection and offers Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: BDA36015
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901011583
✔ GTIN: 03606481152480
✔ Country of Origin: Mexico

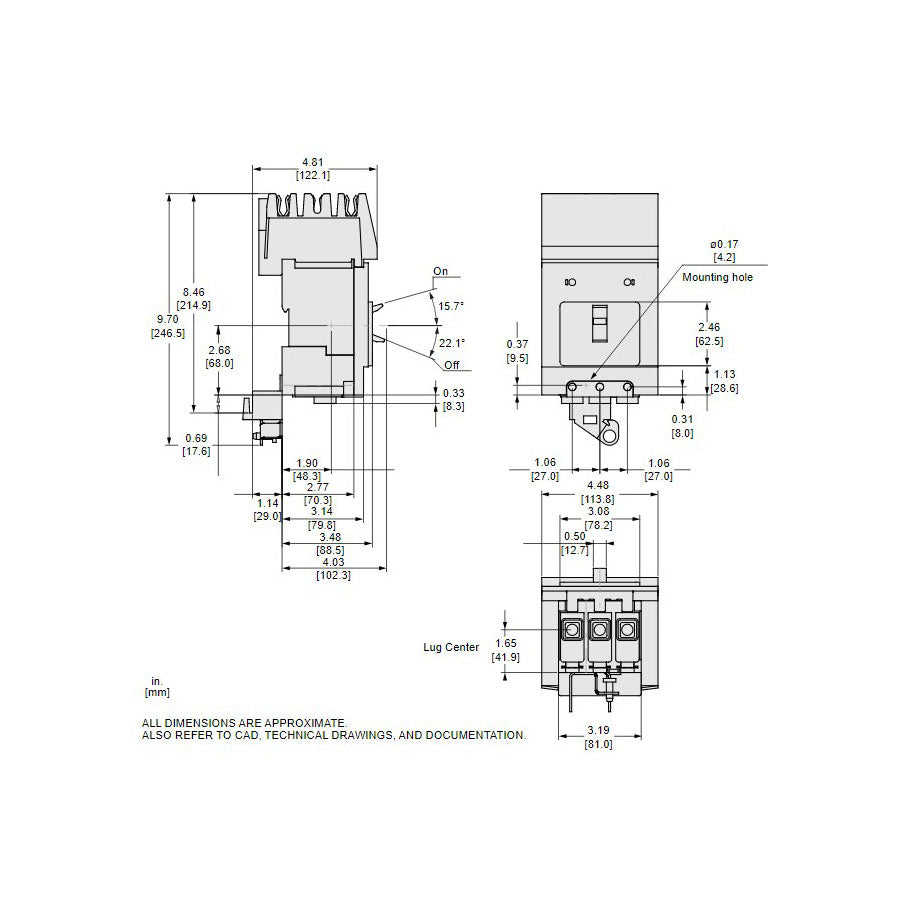

✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.91 lb
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
