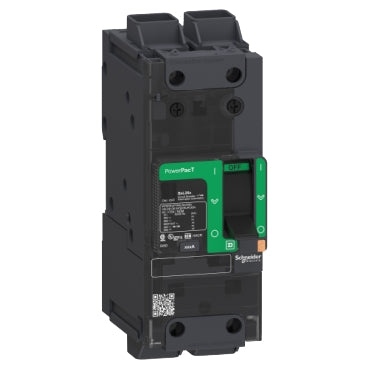

Schneider Electric BDL26030 Circuit Breaker | Powerpact BDL 600V 30A

Product Description:
The Schneider Electric BDL26030 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 30A rating and an 18kA@480V AIC rating. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection. It supports wire sizes from AWG 14 to AWG 3/0 for rigid or stranded aluminum/copper.

Key Features:
✔ Part Number: BDL26030
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDL
✔ Voltage: 600V
✔ Amperage: 30A
✔ Poles: 2
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ Wire Size: AWG 14...AWG 3/0 rigid or stranded aluminum/copper
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ UPC: 606481152827
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
