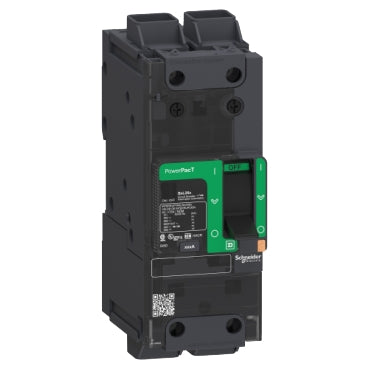

Schneider Electric BDL26080 Circuit Breaker | Powerpact BDL 600V 80A

Product Description:
The Schneider Electric BDL26080 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 80A rating and an 18kA@480V AIC rating. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance. Key Features:
✔ Part Number: BDL26080
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDL
✔ Voltage: 600V
✔ Amperage: 80A
✔ Poles: 2
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ Wire Size: Min. 14 AWG, Max. 2 AWG (rigid/stranded)
✔ Certification: CSA, EN/IEC, GB, NEMA, NMX, UL
✔ UPC: 606481152919
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
