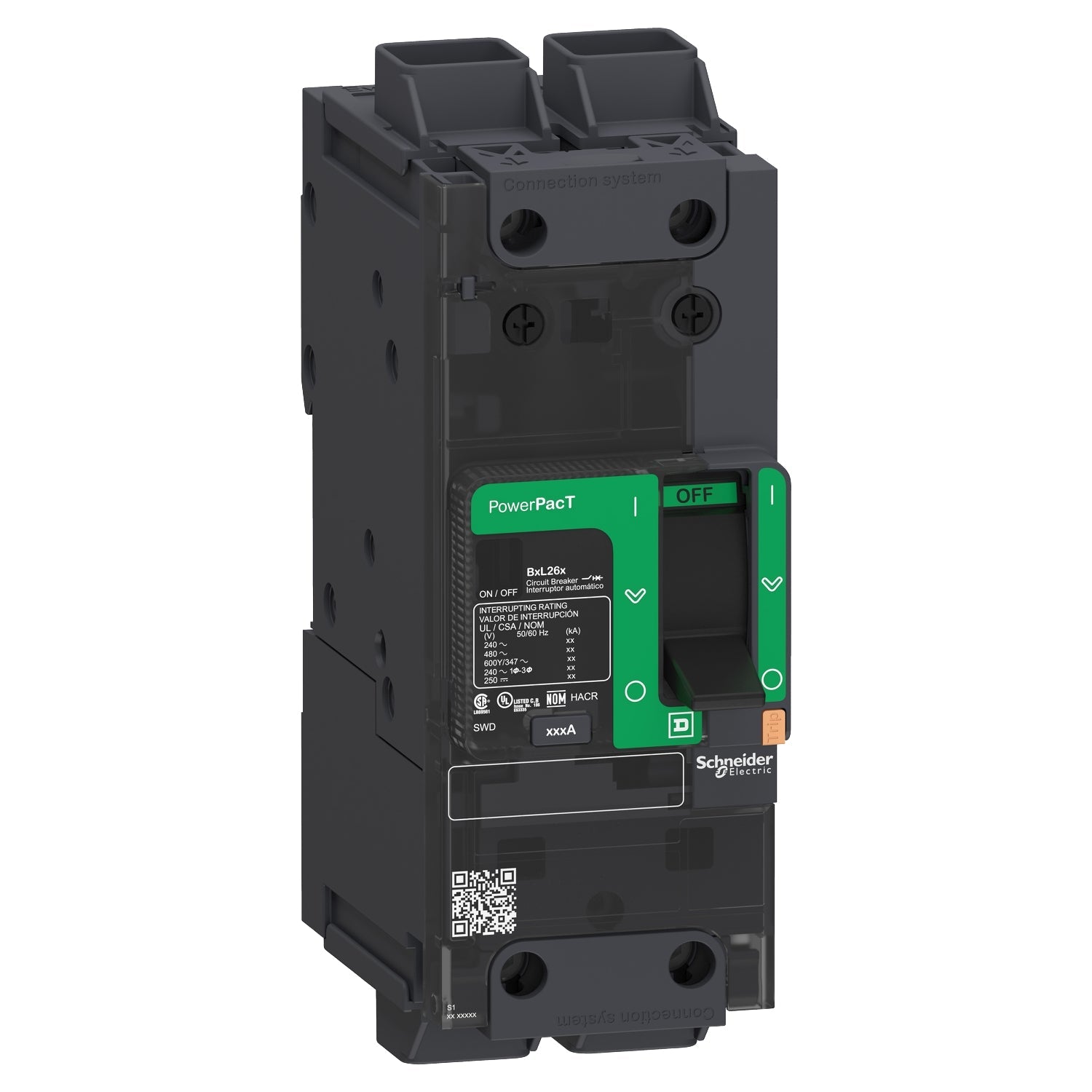

Square D BDL26090 Circuit Breaker | 600V 90A 2P 18kA@480V Feed-Thru Powerpact

Product Description:
The Square D BDL26090 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 90A rating and an 18kA@480V AIC rating. This breaker uses Feed-Thru connections and offers Thermal Magnetic protection. It is ideal for industrial control panels and electrical distribution equipment.

Key Features:
✔ Part Number: BDL26090
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDL
✔ Voltage: 600
✔ Amperage: 90
✔ Poles: 2
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BD
✔ Wire Size: AWG 6...AWG 2/0 fine stranded aluminum/copper, AWG 14...AWG 3/0 rigid or stranded aluminum/copper
✔ UPC: 785901072027
✔ GTIN: 00785901072027
✔ Country of Origin: United States
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
