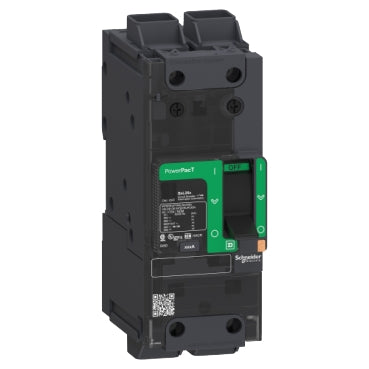

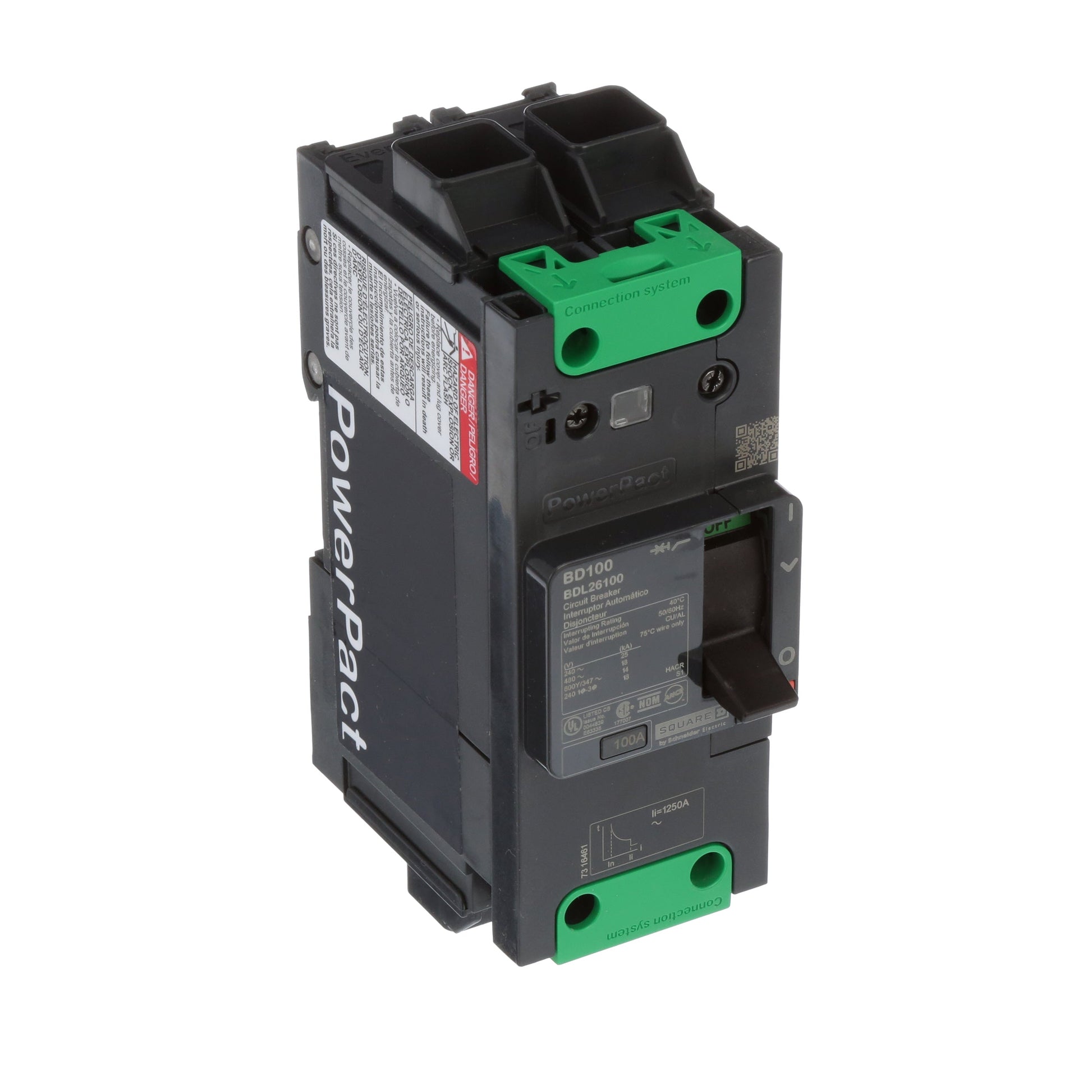

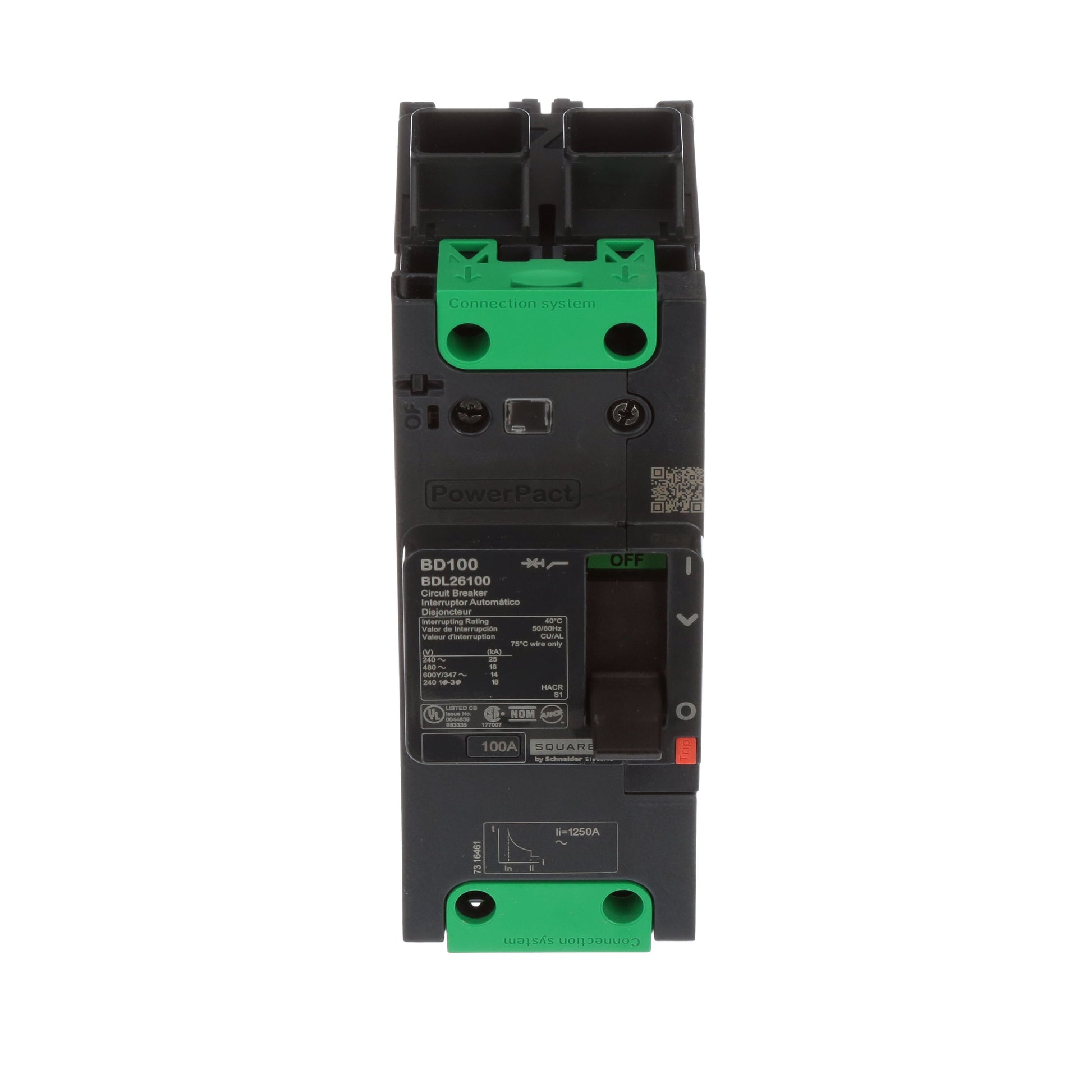

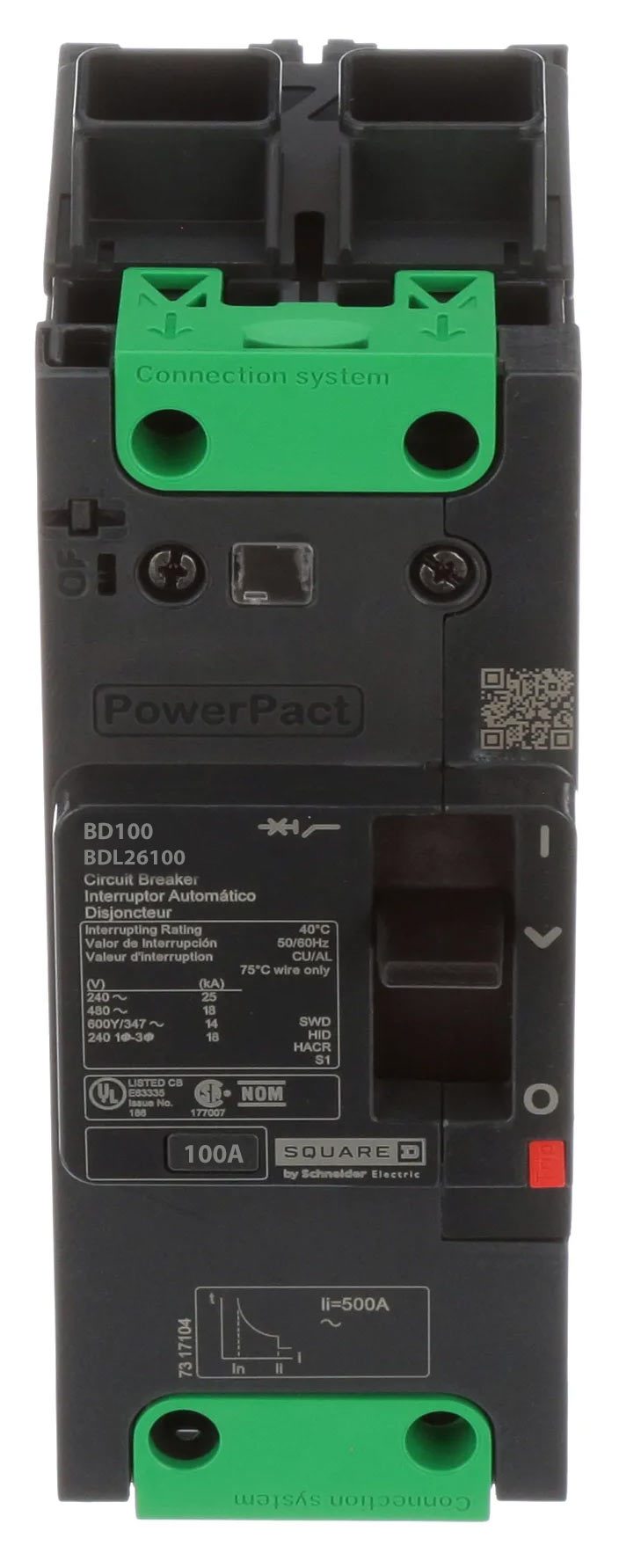

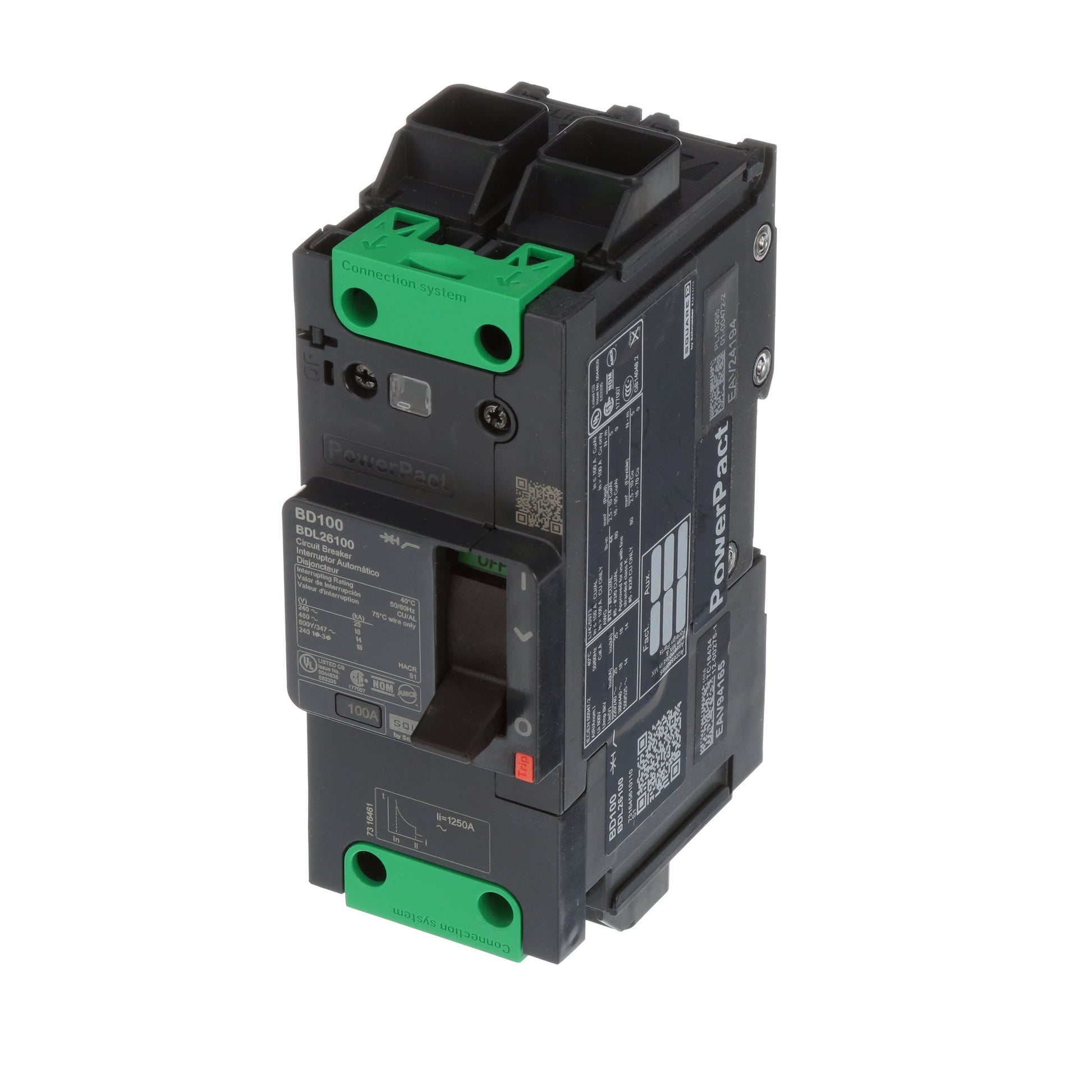

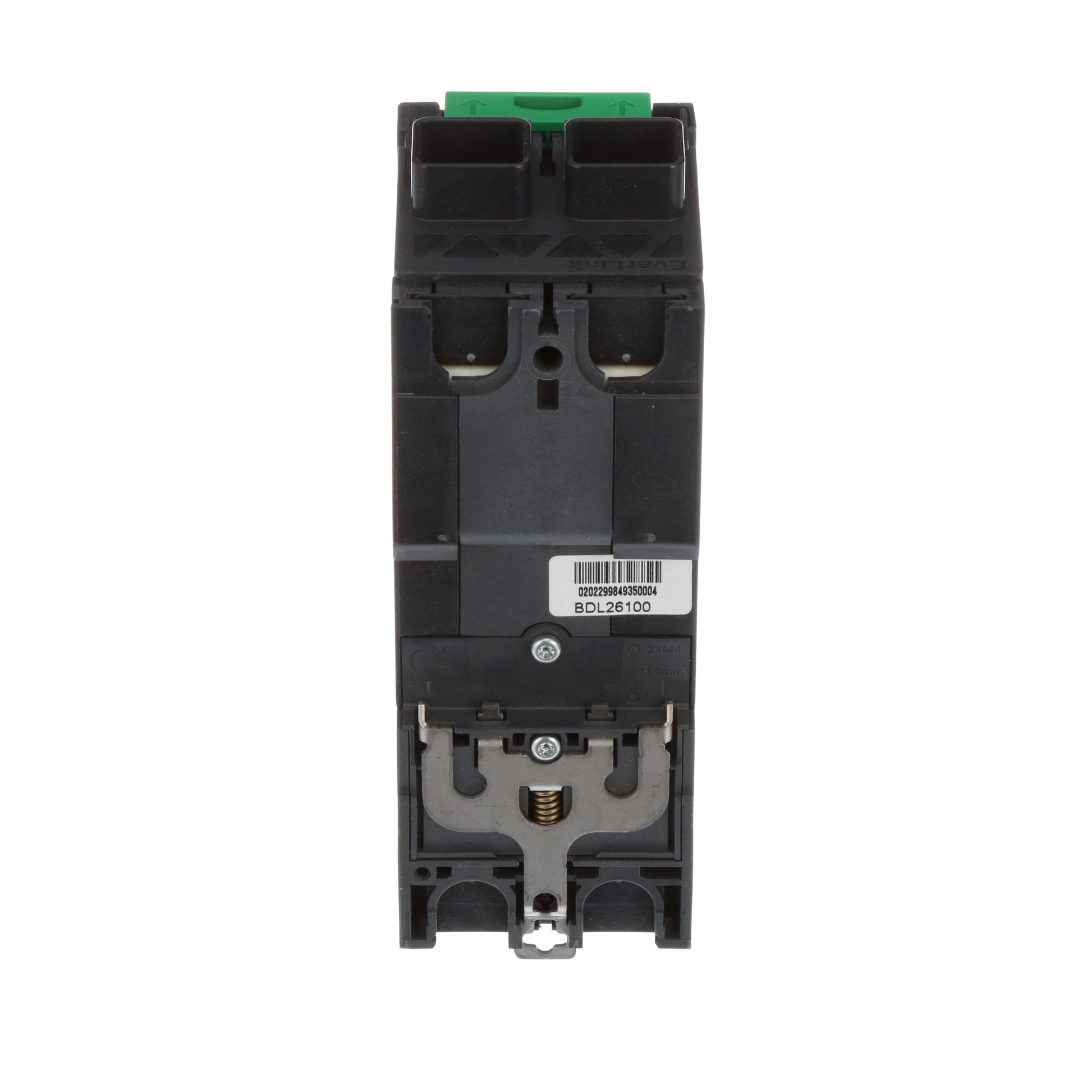

Schneider Electric BDL26100 Circuit Breaker | 600V 100A 2P 18kA@480V Feed-Thru Powerpact

Product Description:
The Schneider Electric BDL26100 is a Molded Case Circuit Breaker from the Powerpact family. It features 2 poles, 600V voltage, and 100A amperage with an AIC rating of 18kA@480V. This breaker uses Feed-Thru connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: BDL26100
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDL
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ MCM Size: Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901015307
✔ GTIN: 03606481152923
✔ Country of Origin: Mexico
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 2.14
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 6...AWG 2/0 fine stranded aluminum/copper, AWG 14...AWG 3/0 rigid or stranded aluminum/copper
