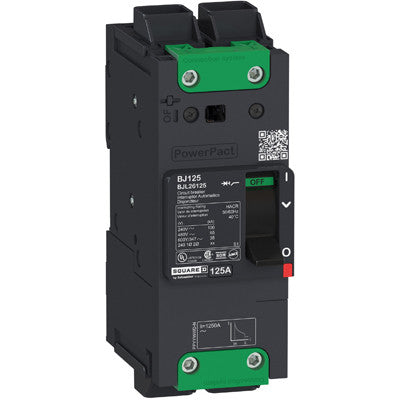

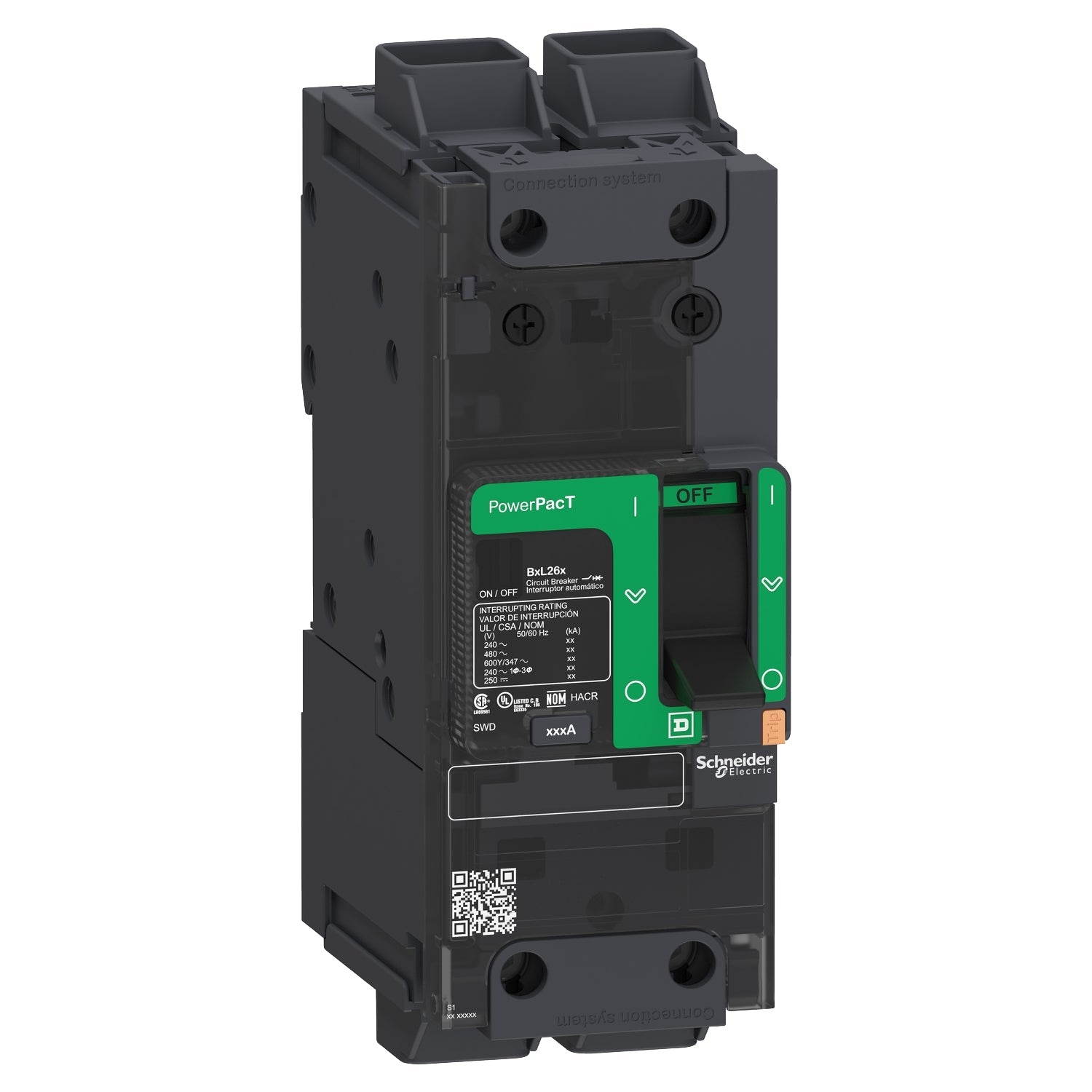

Square D BDL26125 Circuit Breaker | 600V 125A 2P 18kA@480V Feed-Thru Powerpact

Product Description:
The Square D BDL26125 is a Molded Case Circuit Breaker from the Powerpact family. It features a 2-pole design with a 600V, 125A rating and an 18kA@480V AIC rating. This breaker uses a Feed-Thru connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: BDL26125
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDL
✔ Voltage: 600
✔ Amperage: 125
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ MCM Size: Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Not Applicable
✔ UPC: 785901072263
✔ GTIN: 00785901072263
✔ Country of Origin: United States
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 2
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 6...AWG 2/0 fine stranded aluminum/copper, AWG 14...AWG 3/0 rigid or stranded aluminum/copper
