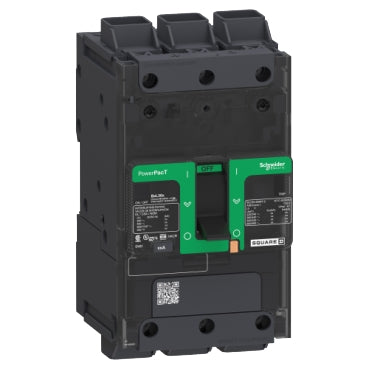

Schneider Electric BDL36020LU Circuit Breaker | 600V 20A 3P 18kA@480V Feed-Thru

Product Description:
The Schneider Electric BDL36020LU is a 3-pole molded case circuit breaker with a 600V rating and 20A capacity. It features an 18kA@480V AIC rating and a feed-thru connection for efficient power distribution. Designed for industrial applications, it meets multiple safety standards including UL 489 and CSA C22.2 No 5.

Key Features:
✔ Part Number: BDL36020LU
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ Wire Size: Min. 14 AWG, Max. 2 AWG (rigid/stranded)
✔ Breaker Type: Standard
✔ Phase Connection: ABC
✔ UPC: 785901094333
✔ GTIN: 03606481149060
✔ Country of Origin: United States
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.18
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
