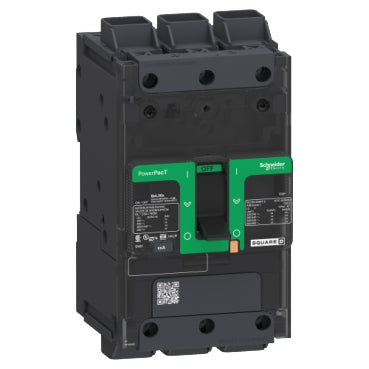

Schneider Electric BDL36030LU Circuit Breaker | 600V 30A 3P 18kA@480V Feed-Thru

Product Description:
The Schneider Electric BDL36030LU is a Molded Case Circuit Breaker designed for industrial and commercial applications. It features a 3-pole configuration with a 600V rating and 30A amperage, ensuring reliable circuit protection. The breaker has an AIC rating of 18kA@480V and uses a Feed-Thru connection for easy installation. It meets multiple industry standards, including CSA, UL, and NEMA certifications.

Key Features:
✔ Part Number: BDL36030LU
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ Wire Size: Min. 14 AWG, Max. 2 AWG (rigid/stranded)
✔ Breaker Type: Standard
✔ Phase Connection: ABC
✔ UPC: 785901094401
✔ GTIN: 03606481149084
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.18
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
