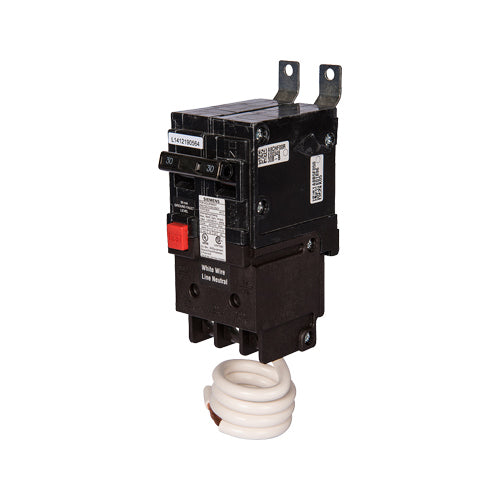

Siemens BE240H Circuit Breaker | 120/240V 40A 2P 22kA@240V Bolt-on BL Series

Product Description:
The Siemens BE240H is a Molded Case Circuit Breaker from the BL Series family. It is a 2-pole, 40 amp breaker rated for 120/240V with a 22kA interrupting capacity. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: BE240H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLEH
✔ Voltage: 120/240
✔ Amperage: 40
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 60A/BLEH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Ground Fault Equipment Protection
✔ Protection: Thermal Magnetic
✔ UPC: 783643274198
✔ GTIN: 00783643274198
✔ Country of Origin: Philippines
✔ Dimensions: 3 in x 6 in x 6 in
✔ Weight: 1.04
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
