Product Description:

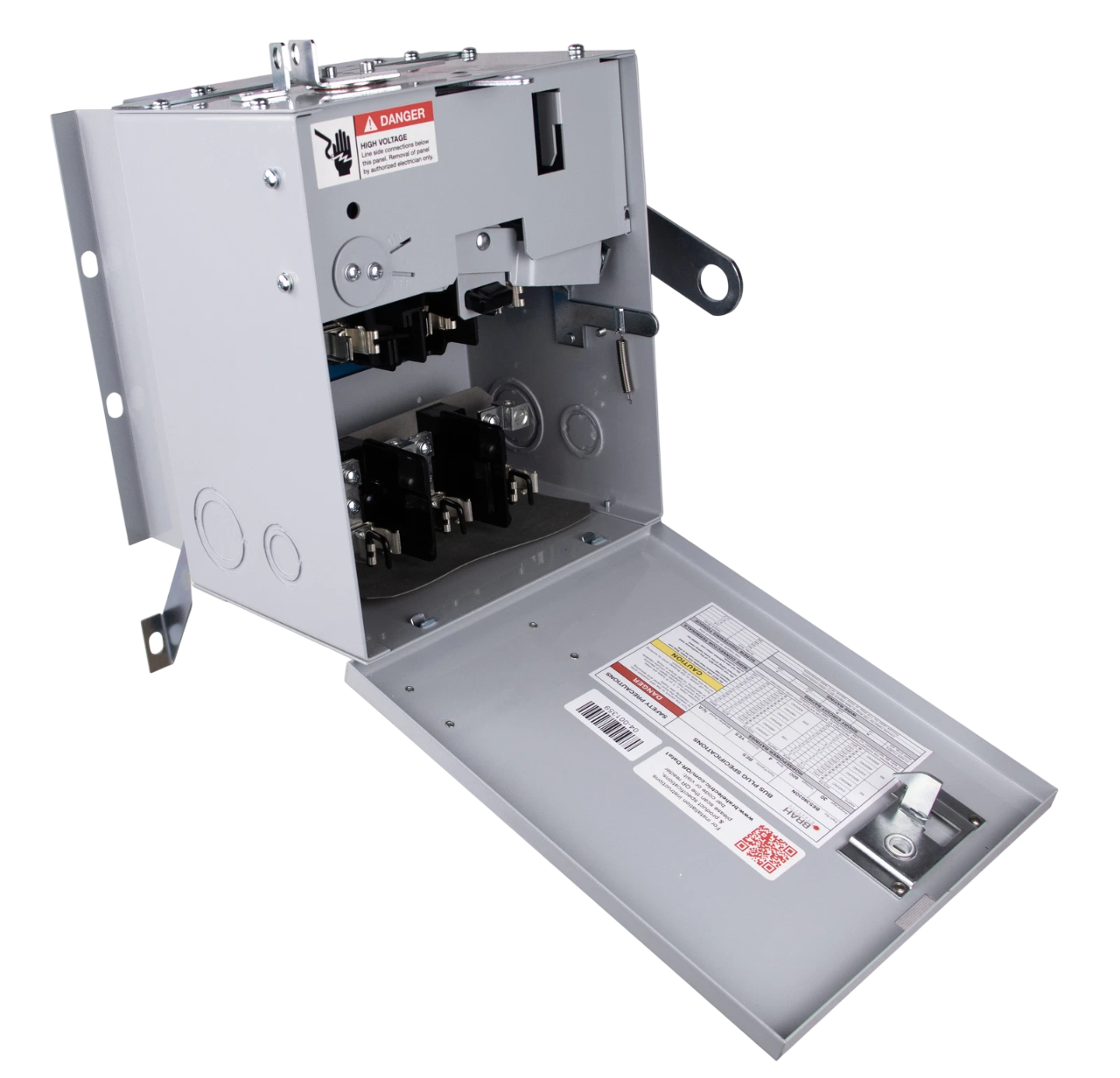

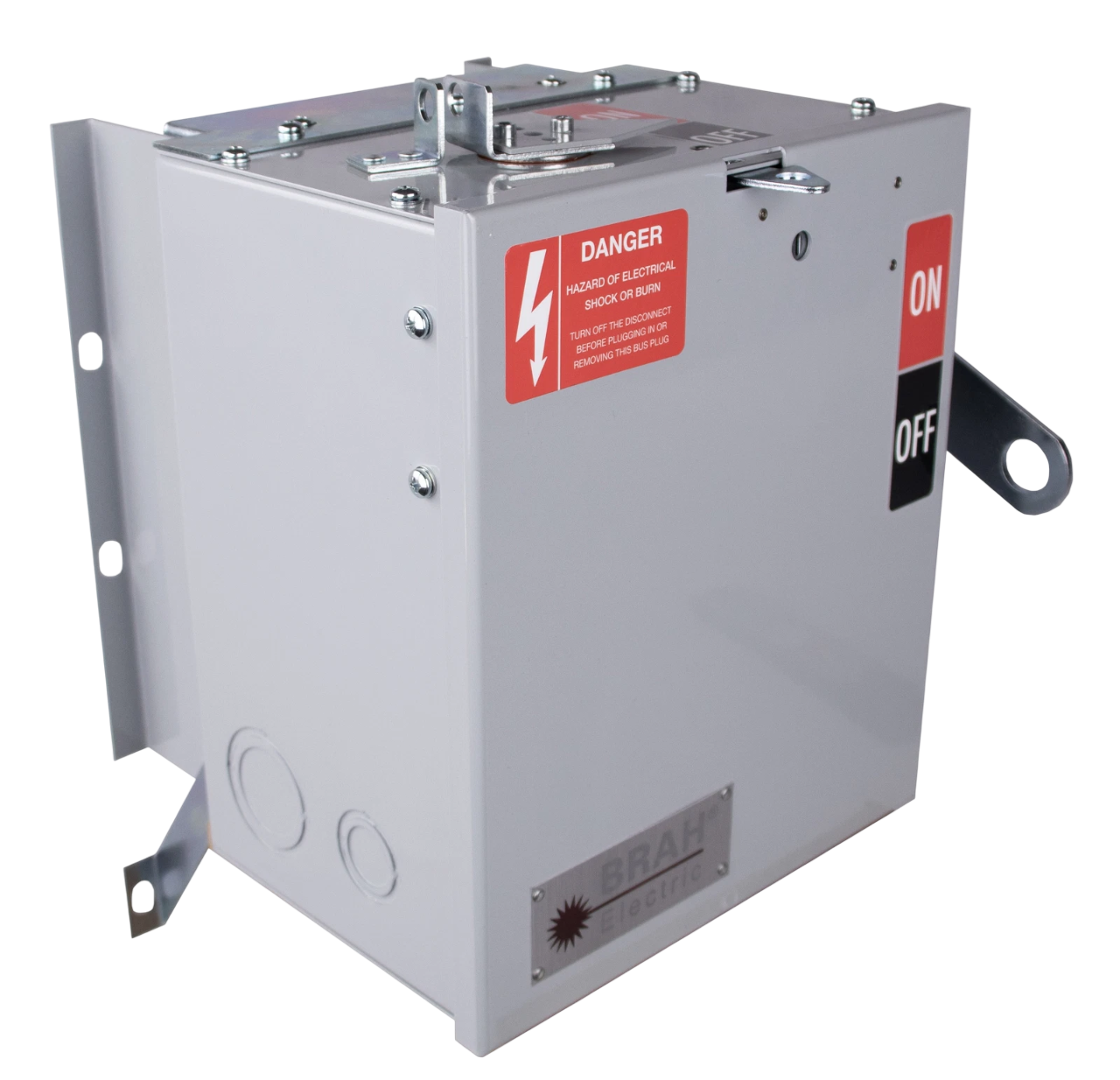

The BRAH Electric BES3206GN bus plug is a 3-phase, 4-wire fusible switch rated for 240V and 60 Amps. It belongs to the BD Series and features a 65kA@240V AIC rating. This bus plug is compatible with type R, H, and K fuses, making it suitable for industrial applications.
Key Features:
✔ Part Number: BES3206GN
✔ Manufacturer: BRAH Electric
✔ Category: Bus Plug
✔ Subcategory: Fusible
✔ Family: BD Series
✔ Type: BOS/BES
✔ Voltage: 240V
✔ Amperage: 60
✔ Phase: 3
✔ AIC Rating: 65kA@240V
✔ Fuse Class: R, H, K
✔ Wire: 4
✔ UPC: 699252496329
✔ Country of Origin: China
✔ Dimensions: 9 61/100 in x 11 19/50 in
✔ Weight: 35
✔ Certification: UL Listed, UL Recognized
