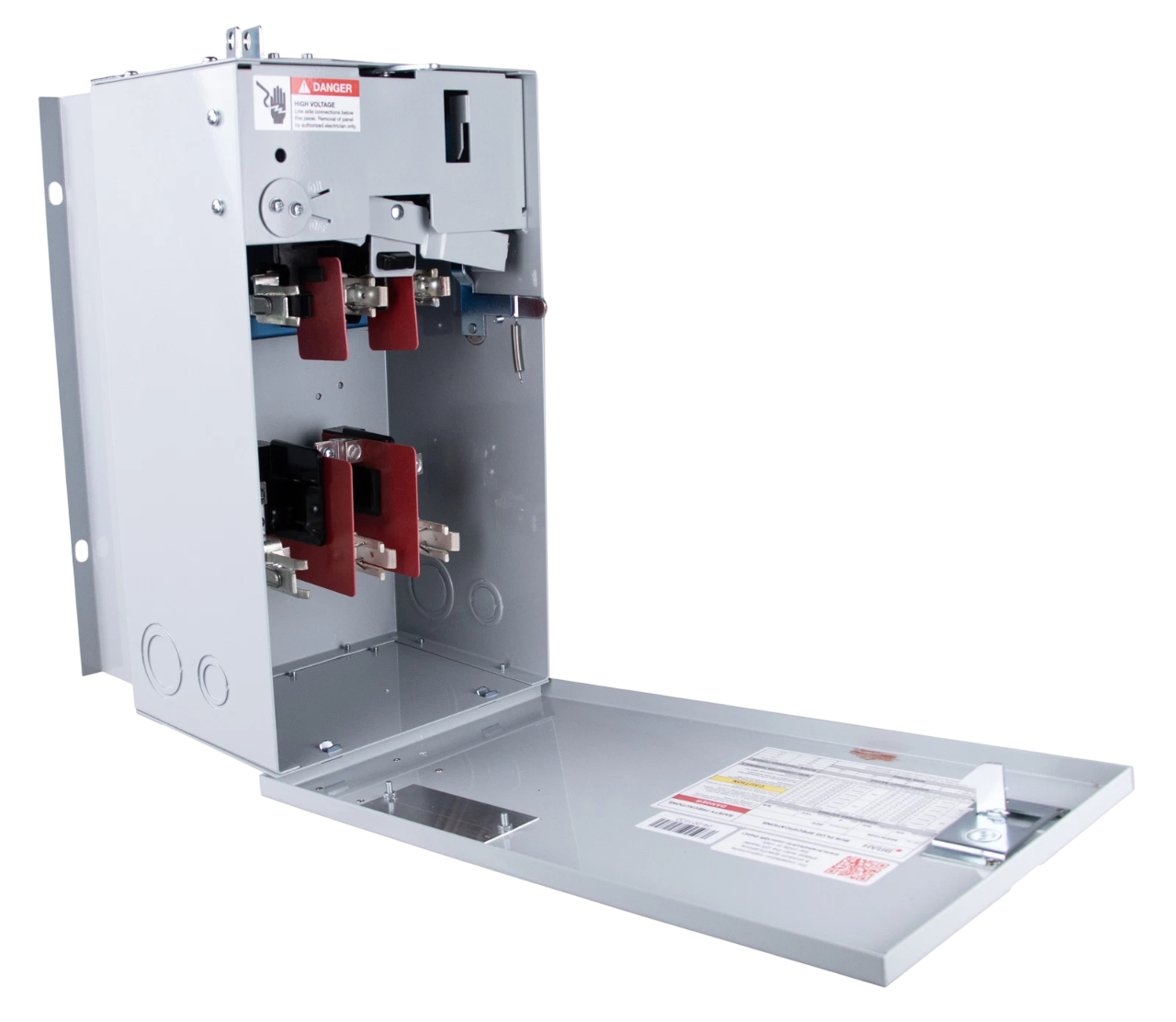

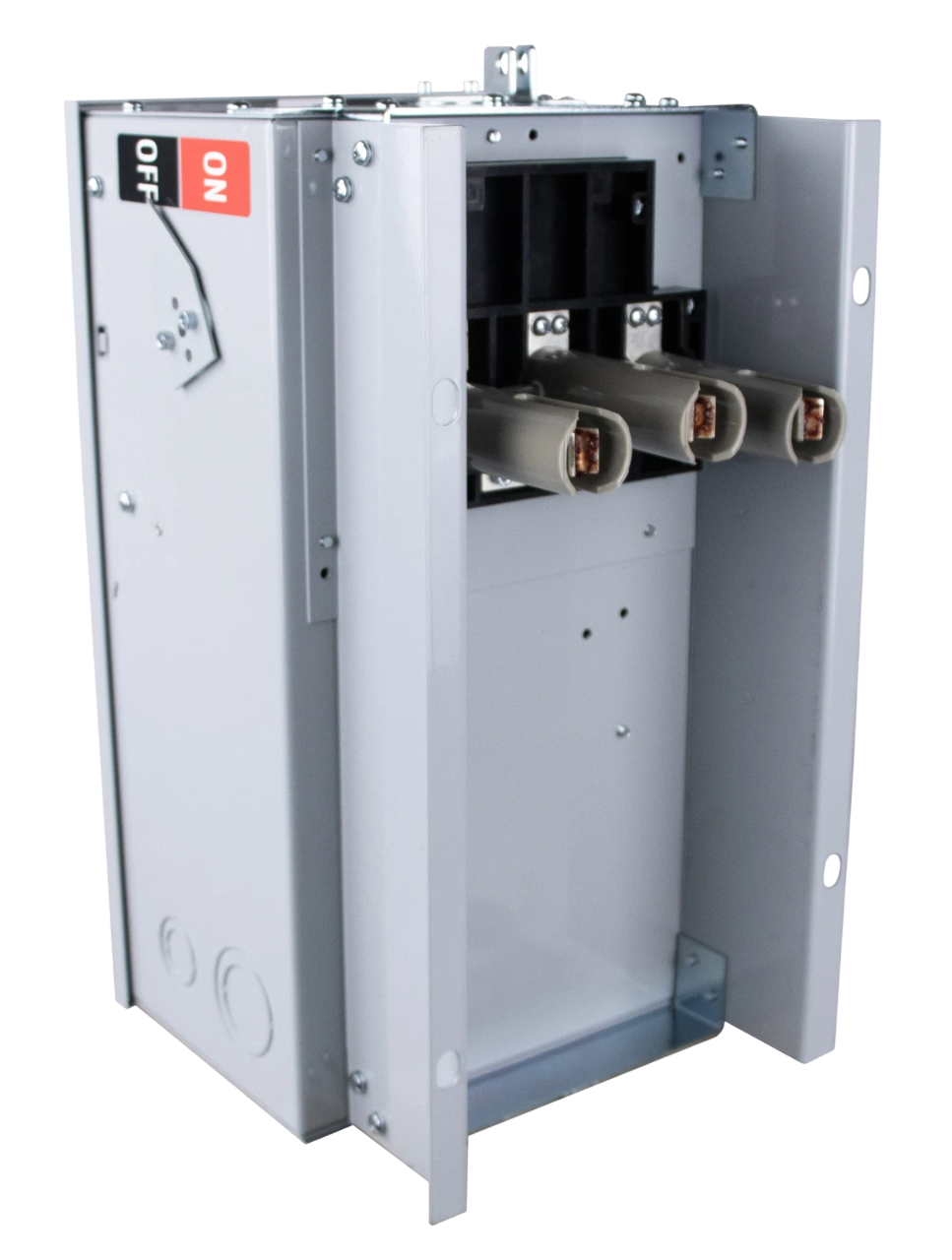

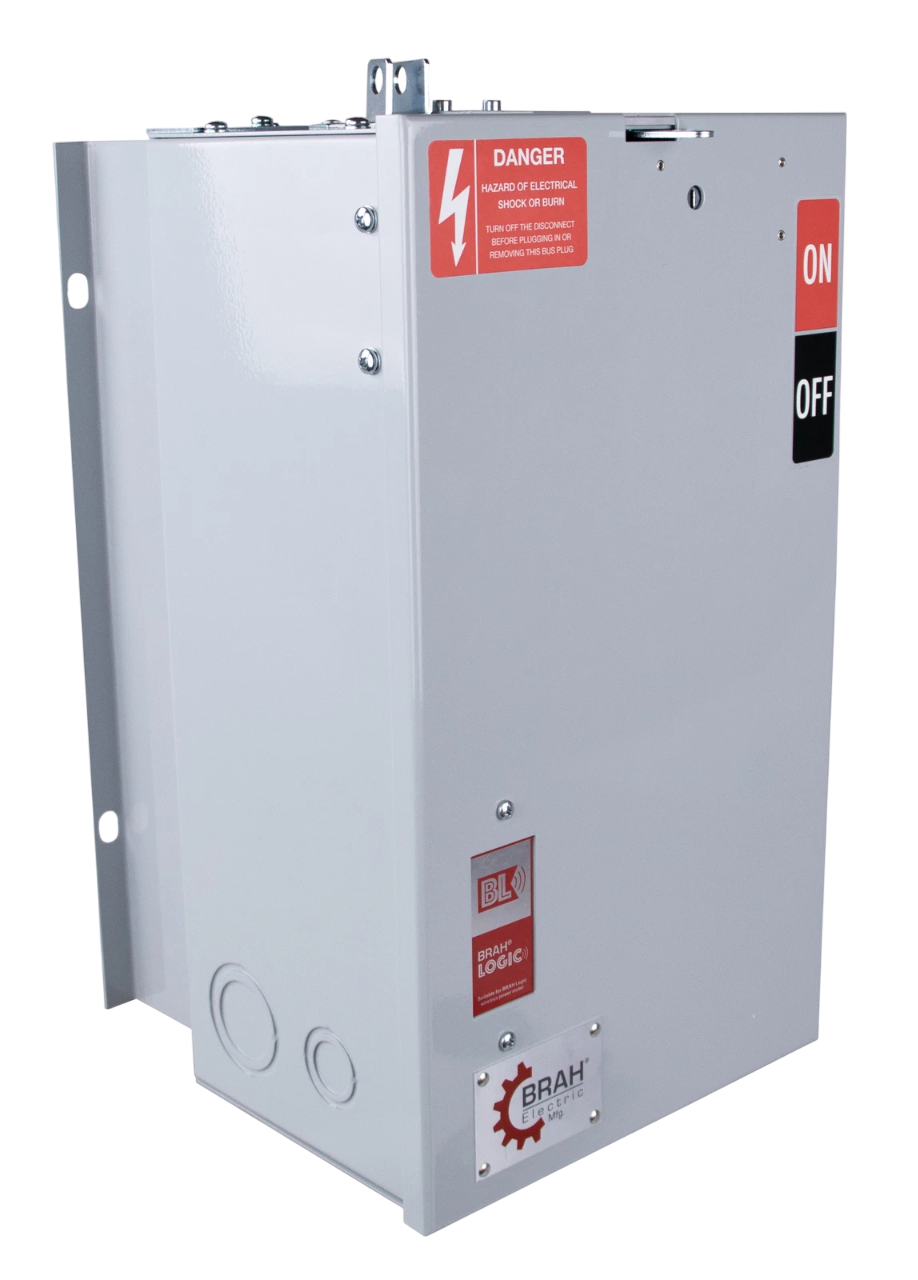

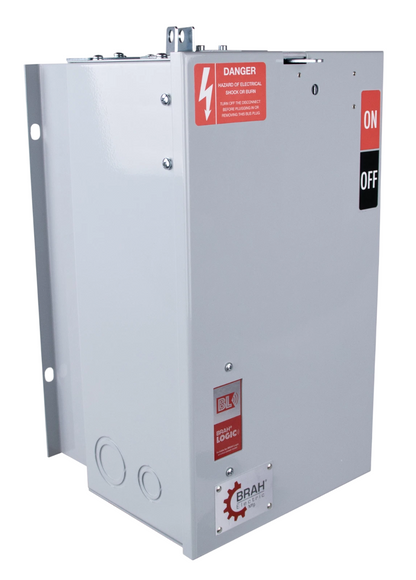

Product Description:
The BRAH Electric BES3210 bus plug is a 3-phase, 3-wire, 240V fusible busway switch rated for 100A. It belongs to the BD Series and has an AIC rating of 65kA@240V. This BOS/BES type bus plug is compatible with R, H, and K fuses. It is UL Listed and UL Recognized for safety compliance.
Key Features:
✔ Part Number: BES3210
✔ Manufacturer: BRAH Electric
✔ Category: Bus Plug
✔ Subcategory: Fusible
✔ Family: BD Series
✔ Type: BOS/BES
✔ Voltage: 240V
✔ Amperage: 100A
✔ Phase: 3
✔ AIC Rating: 65kA@240V
✔ Fuse Class: R, H, K
✔ Wire: 3
✔ Certification: UL Listed, UL Recognized
✔ UPC: 699252496381
✔ Country of Origin: China
✔ Dimensions: 9.61 in x 16.7 in
✔ Weight: 45 lbs
