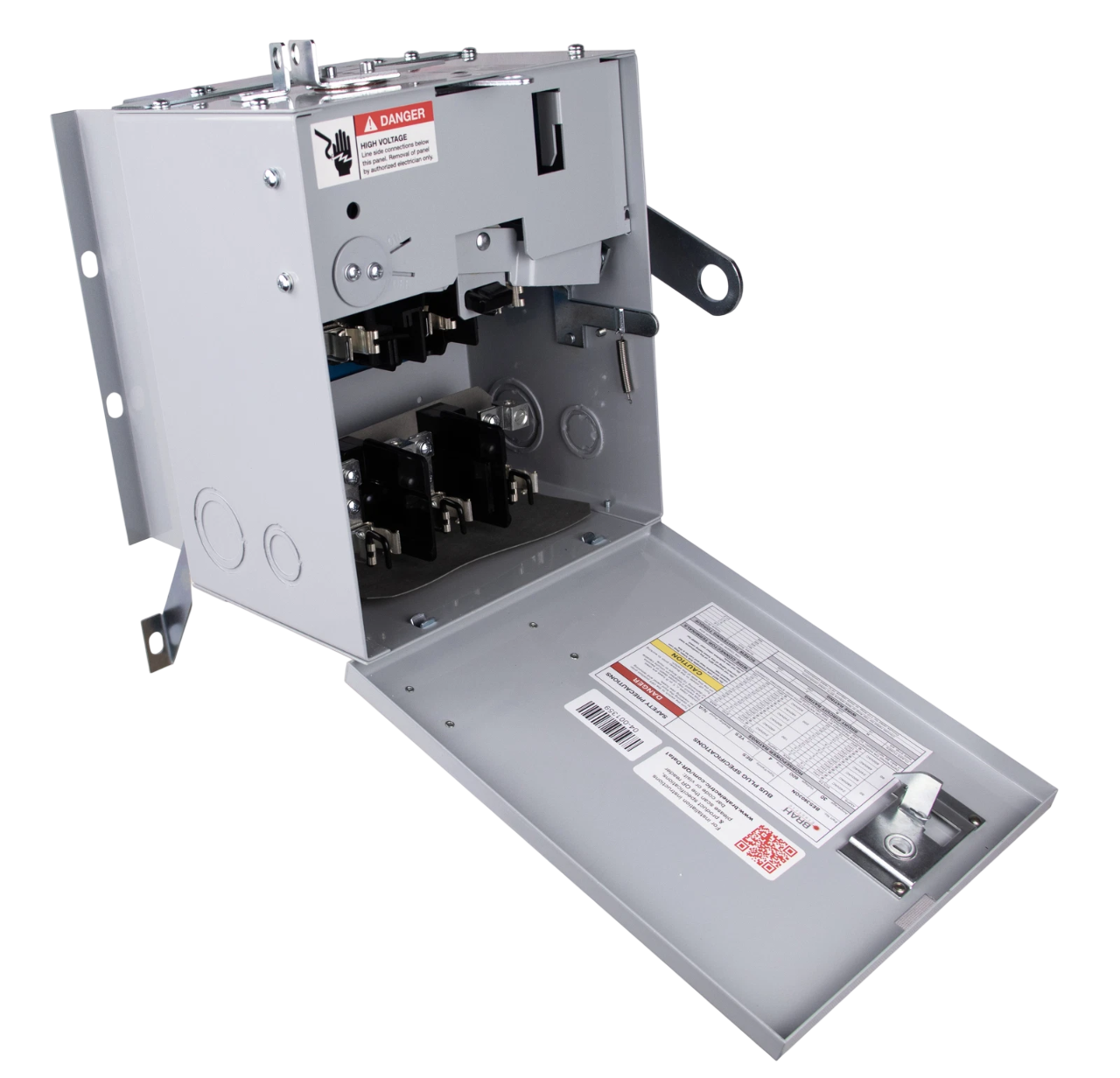

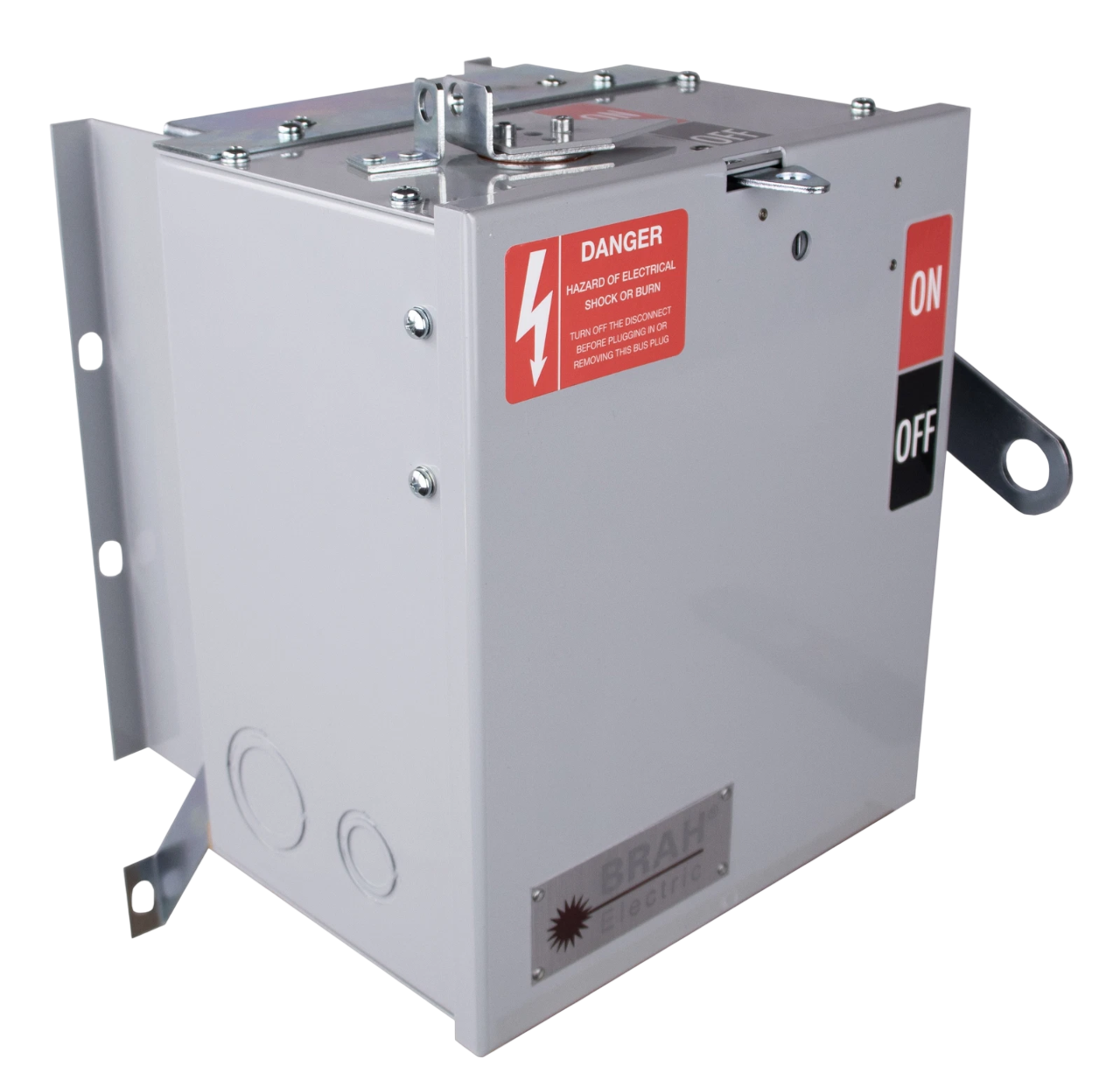

BRAH Electric BES3606N Bus Plug | 60A 600V 3 Phase 4 Wire 65kA@480V Fusible BD Series
BRAH Electric BES3606N Bus Plug | 60A 600V 3 Phase 4 Wire 65kA@480V Fusible BD Series
Price:
Sale
Sold out
Regular price
$1,365.50 USD
Regular price
$1,471.50 USD
Sale price
$1,365.50 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The BRAH Electric BES3606N bus plug is a 3-phase, 4-wire fusible switch rated for 600V and 60 Amps. It belongs to the BD Series and features a 65kA@480V AIC rating. This BOS/BES type bus plug is compatible with R, H, and K class fuses.
Key Features:
✔ Part Number: BES3606N
✔ Manufacturer: BRAH Electric
✔ Category: Bus Plug
✔ Subcategory: Fusible
✔ Family: BD Series
✔ Type: BOS/BES
✔ Voltage: 600V
✔ Amperage: 60
✔ Phase: 3
✔ AIC Rating: 65kA@480V
✔ Fuse Class: R, H, K
✔ Wire: 4
✔ UPC: 699252496596
✔ Country of Origin: China
✔ Dimensions: 9 61/100 in x 11 19/50 in
✔ Weight: 35
✔ Certification: UL Listed, UL Recognized
The BRAH Electric BES3606N bus plug is a 3-phase, 4-wire fusible switch rated for 600V and 60 Amps. It belongs to the BD Series and features a 65kA@480V AIC rating. This BOS/BES type bus plug is compatible with R, H, and K class fuses.
Key Features:
✔ Part Number: BES3606N
✔ Manufacturer: BRAH Electric
✔ Category: Bus Plug
✔ Subcategory: Fusible
✔ Family: BD Series
✔ Type: BOS/BES
✔ Voltage: 600V
✔ Amperage: 60
✔ Phase: 3
✔ AIC Rating: 65kA@480V
✔ Fuse Class: R, H, K
✔ Wire: 4
✔ UPC: 699252496596
✔ Country of Origin: China
✔ Dimensions: 9 61/100 in x 11 19/50 in
✔ Weight: 35
✔ Certification: UL Listed, UL Recognized
