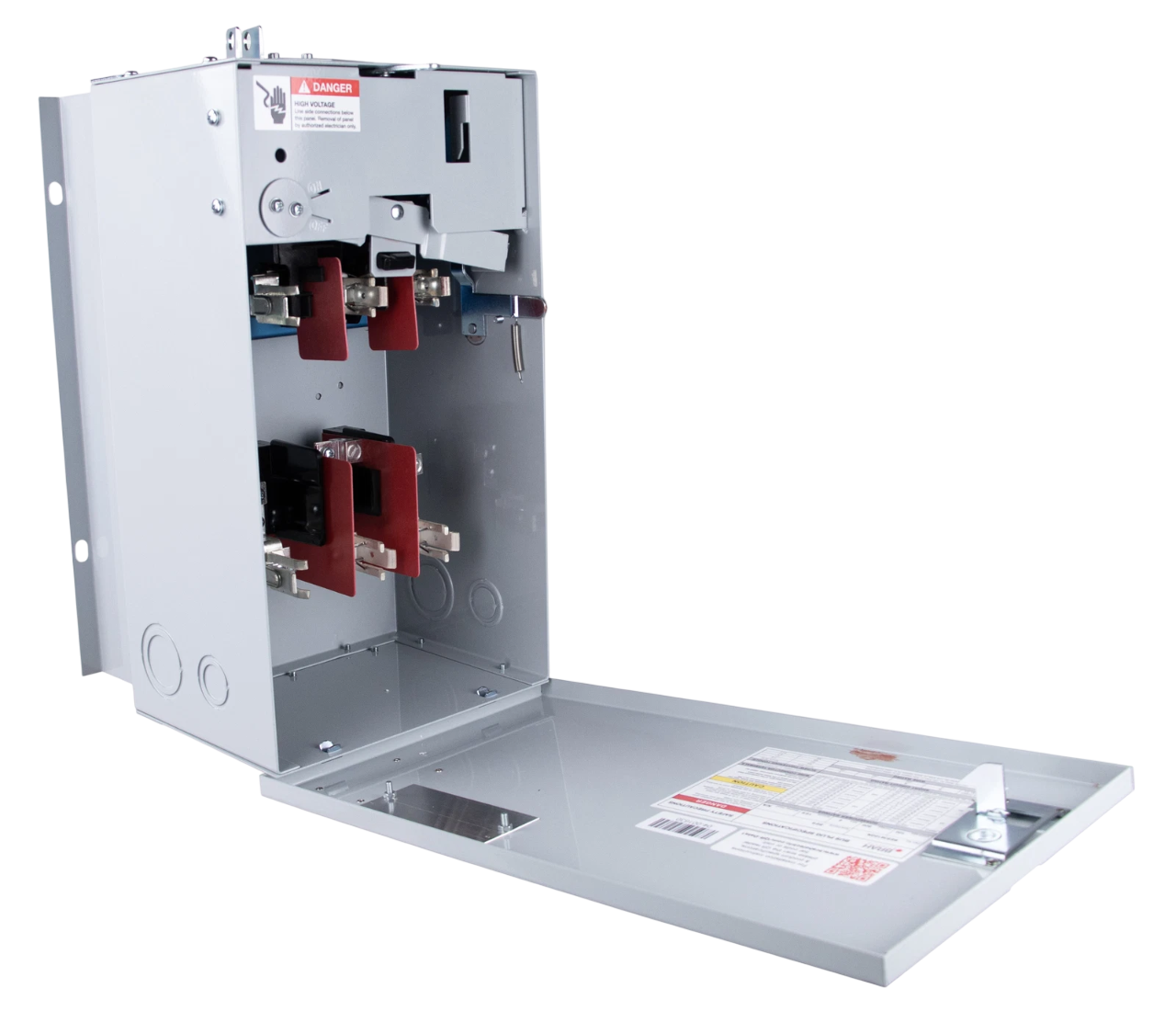

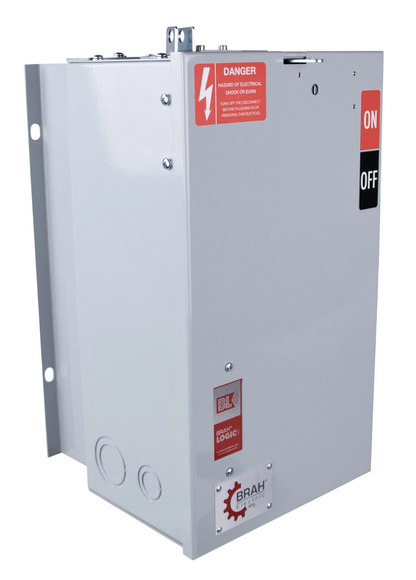

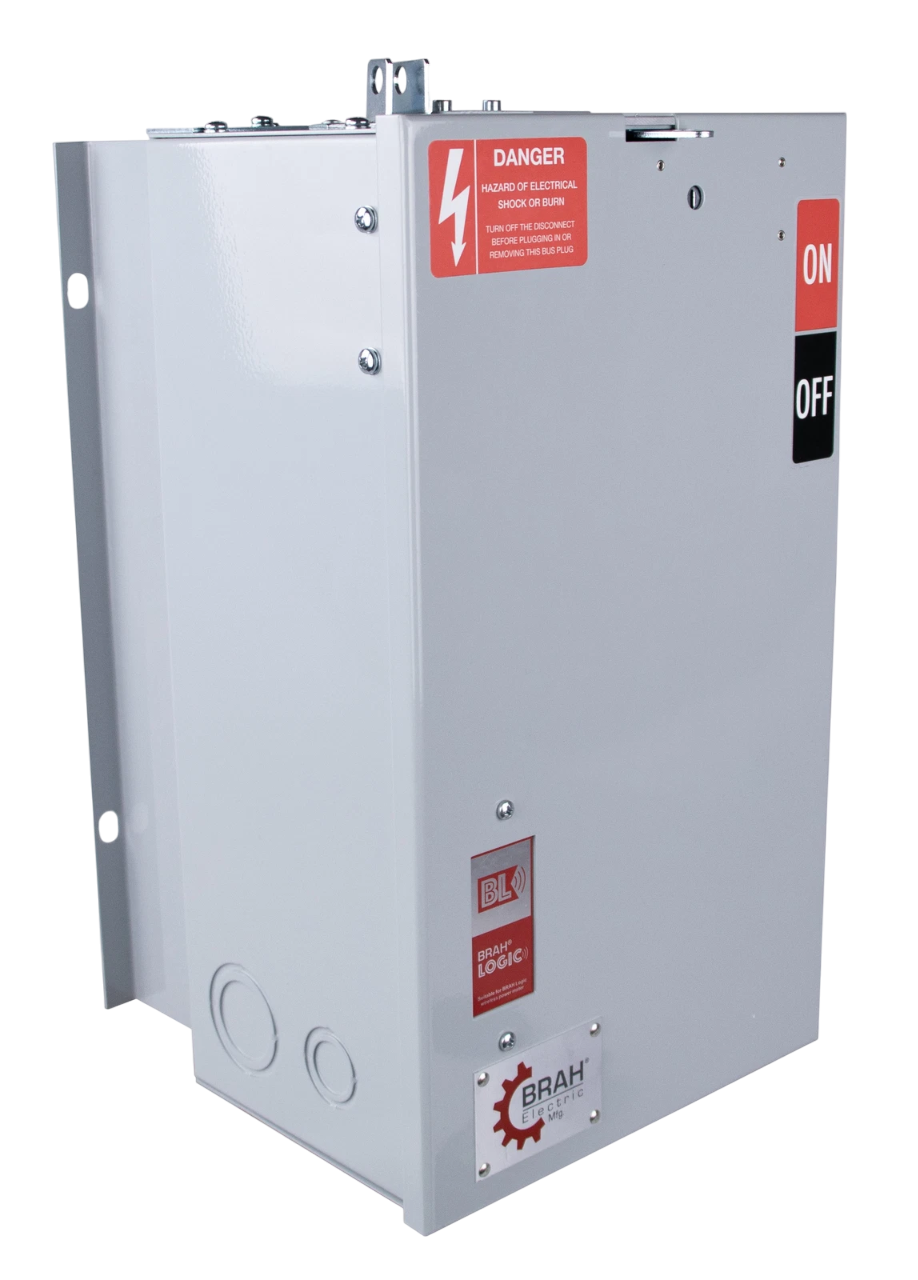

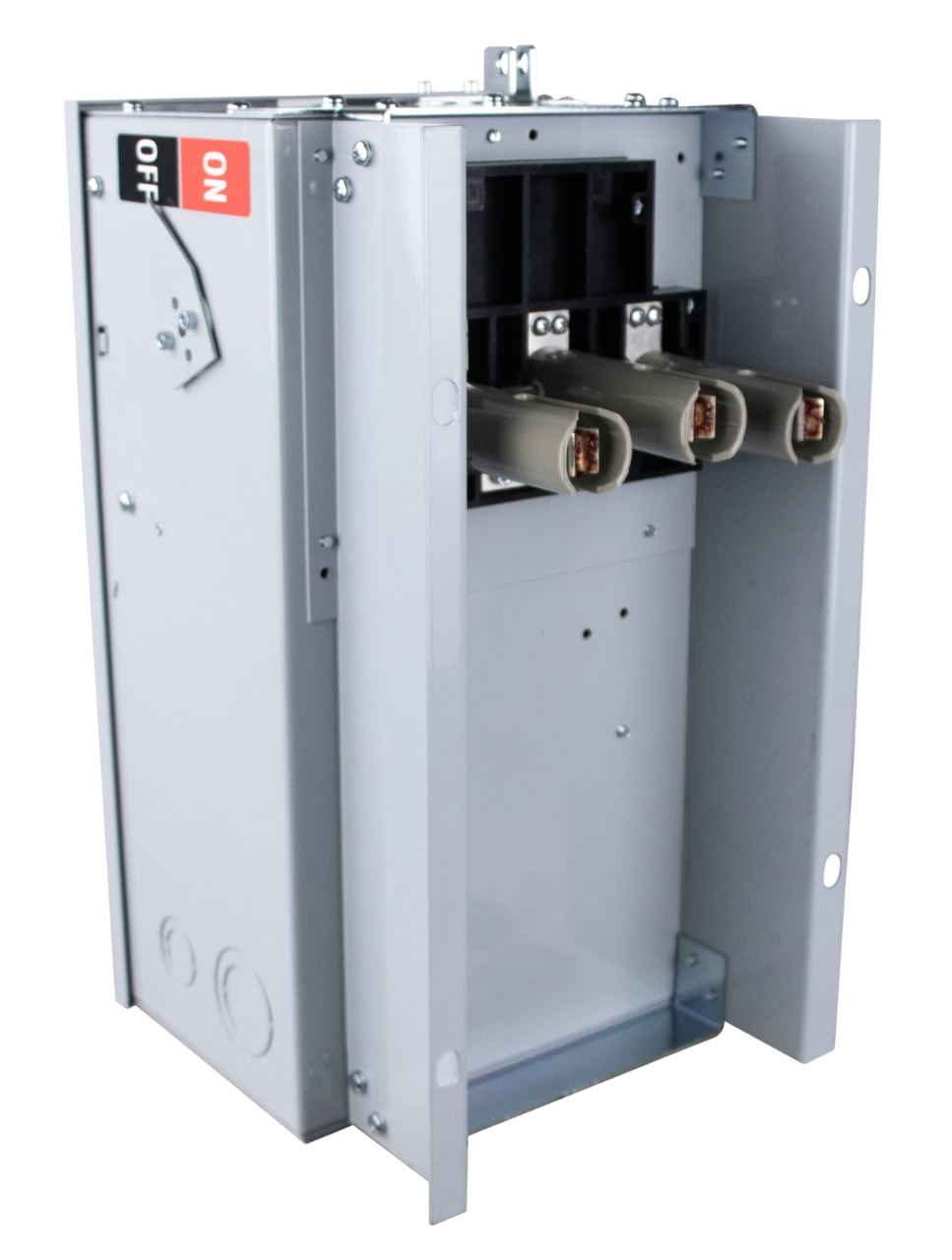

BRAH Electric BES3610 Bus Plug | 100A 600V 3 Phase 3 Wire Fusible 65kA@480V AIC BD Series
BRAH Electric BES3610 Bus Plug | 100A 600V 3 Phase 3 Wire Fusible 65kA@480V AIC BD Series
Price:
Sale
Sold out
Regular price
$1,636.78 USD
Regular price
$2,180.00 USD
Sale price
$1,636.78 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The BRAH Electric BES3610 is a 3-phase, 3-wire bus plug designed for 600 Volt busway systems with a 100 Amp rating. It belongs to the BD Series and features a fusible design for enhanced safety and performance. This BOS/BES type bus plug supports type R, H, and K fuses and offers an AIC rating of 65kA at 480V.
Key Features:
✔ Part Number: BES3610
✔ Manufacturer: BRAH Electric
✔ Category: Bus Plug
✔ Subcategory: Fusible
✔ Family: BD Series
✔ Type: BOS/BES
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ AIC Rating: 65kA@480V
✔ Fuse Class: R, H, K
✔ Wire: 3
✔ UPC: 699252496626
✔ Country of Origin: China
✔ Dimensions: 9 61/100 in x 16 7/10 in
✔ Weight: 45
✔ Certification: UL Listed, UL Recognized
The BRAH Electric BES3610 is a 3-phase, 3-wire bus plug designed for 600 Volt busway systems with a 100 Amp rating. It belongs to the BD Series and features a fusible design for enhanced safety and performance. This BOS/BES type bus plug supports type R, H, and K fuses and offers an AIC rating of 65kA at 480V.
Key Features:
✔ Part Number: BES3610
✔ Manufacturer: BRAH Electric
✔ Category: Bus Plug
✔ Subcategory: Fusible
✔ Family: BD Series
✔ Type: BOS/BES
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ AIC Rating: 65kA@480V
✔ Fuse Class: R, H, K
✔ Wire: 3
✔ UPC: 699252496626
✔ Country of Origin: China
✔ Dimensions: 9 61/100 in x 16 7/10 in
✔ Weight: 45
✔ Certification: UL Listed, UL Recognized
