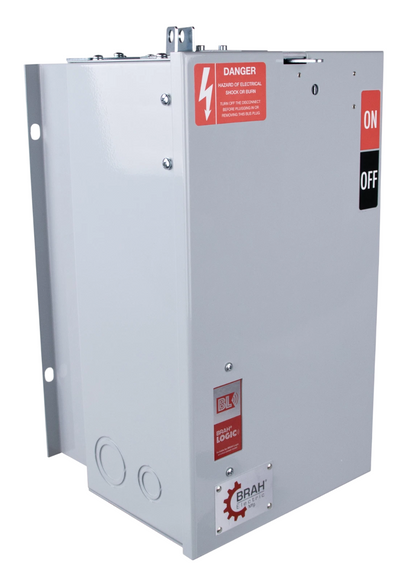

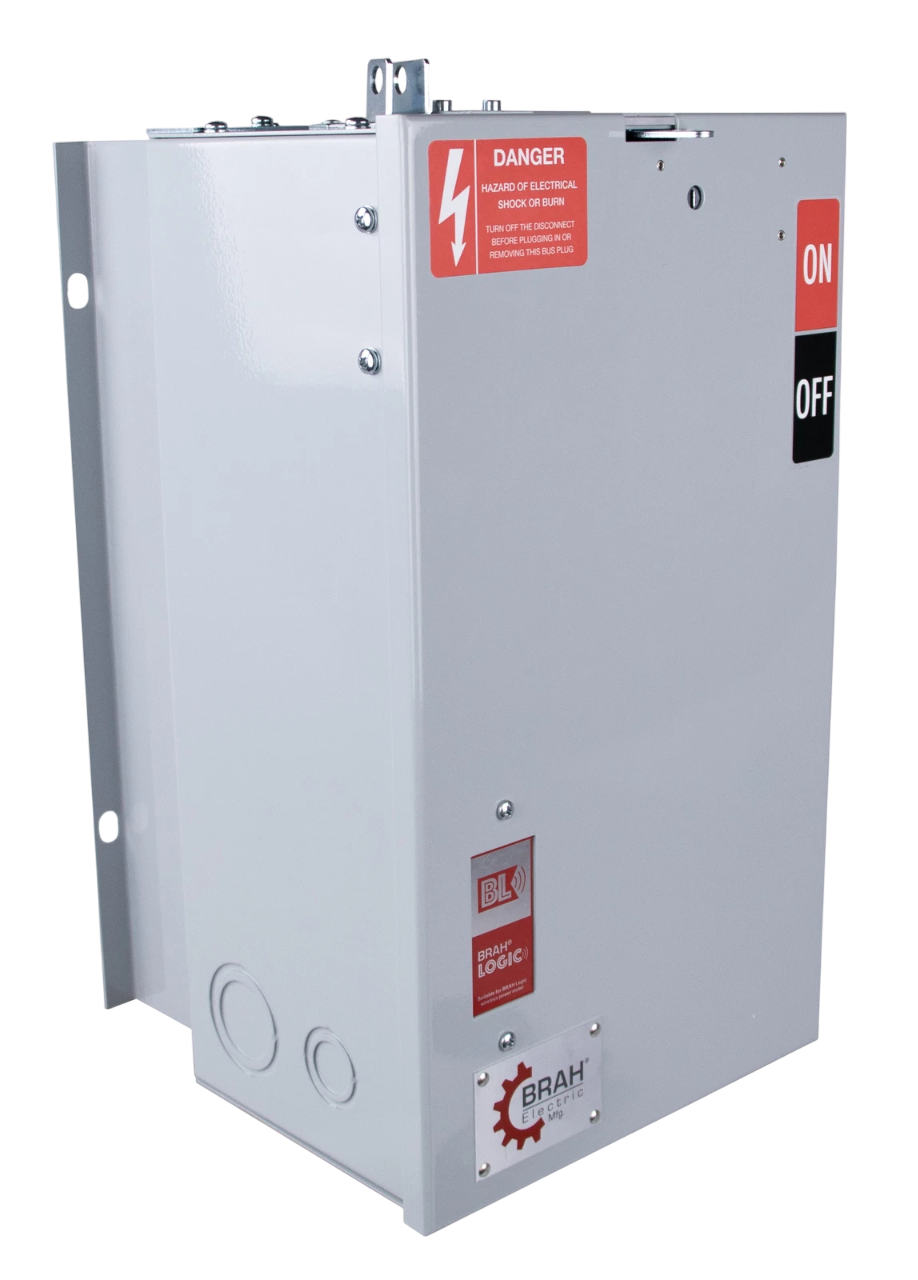

BRAH Electric BES3610GN Bus Plug | 100A 600V 3P 4W Fusible 65kA@480V R H K Fuses BD Series

Product Description:

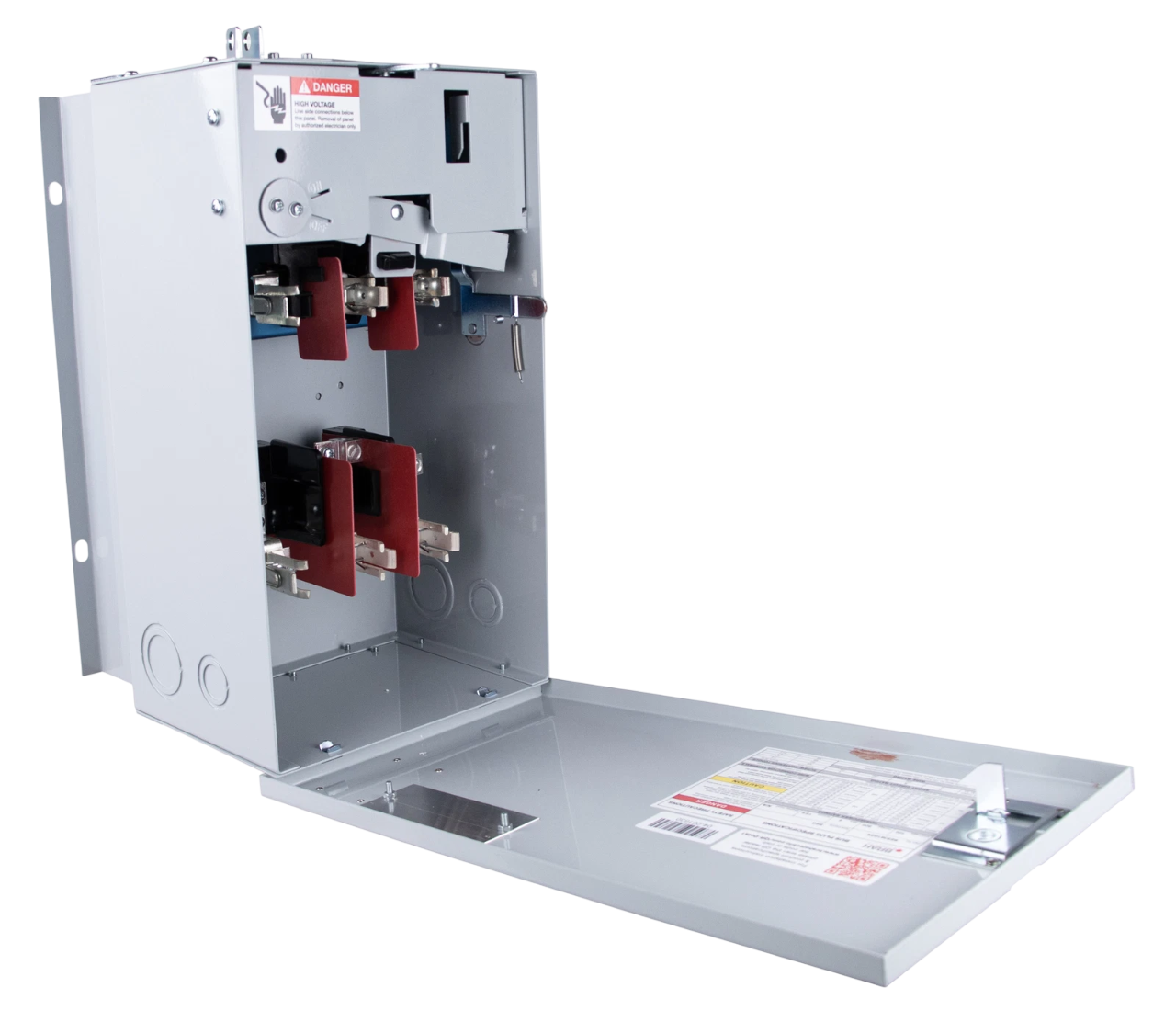

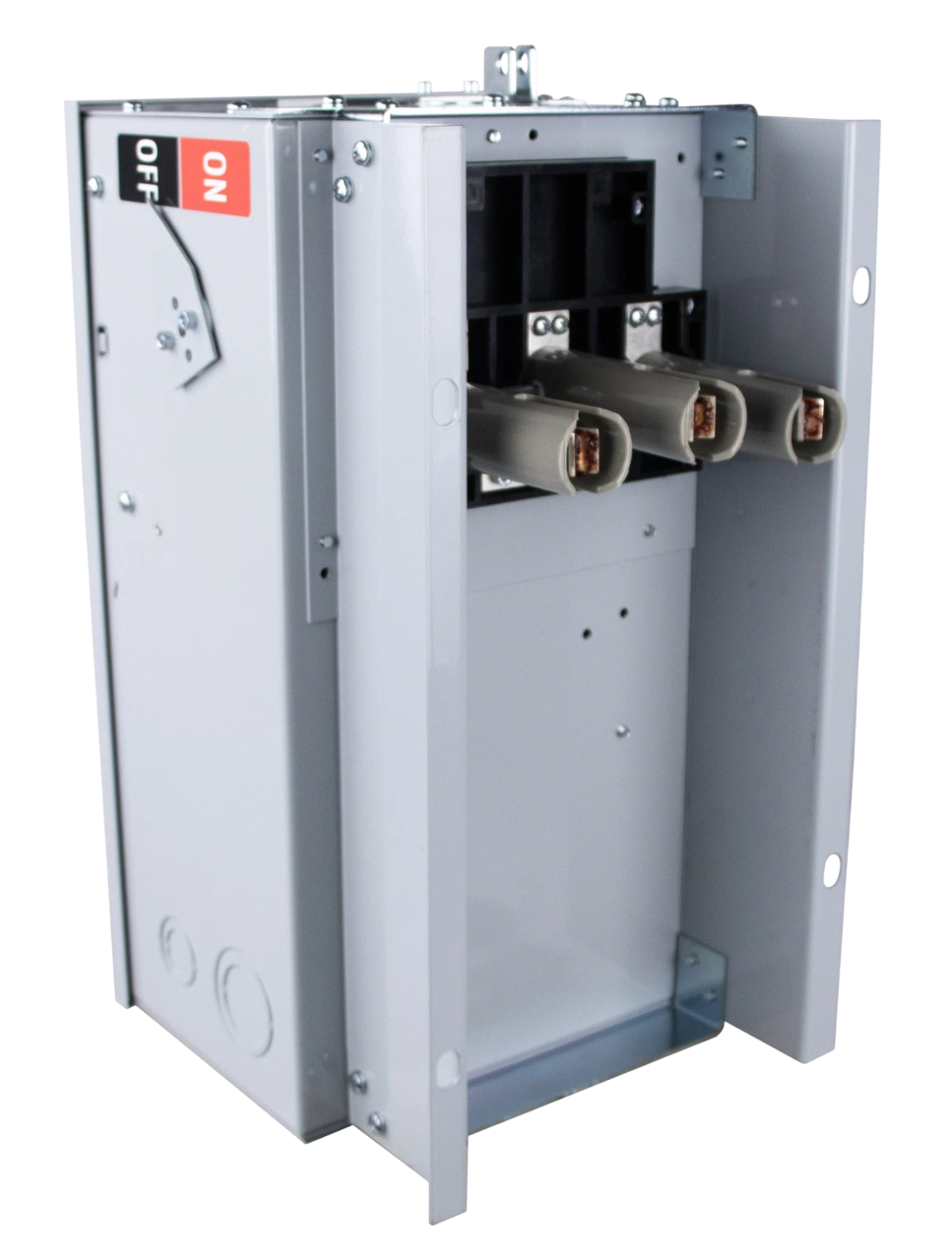

The BRAH Electric BES3610GN is a 3-phase, 4-wire bus plug designed for 600 Volt busway systems with a 100 Amp rating. It belongs to the BD Series and features a fusible design with an AIC rating of 65kA@480V. This bus plug is compatible with type R, H, and K fuses, ensuring reliable performance in industrial applications.

Key Features:
✔ Part Number: BES3610GN
✔ Manufacturer: BRAH Electric
✔ Category: Bus Plug
✔ Subcategory: Fusible
✔ Family: BD Series
✔ Type: BOS/BES
✔ Voltage: 600
✔ Amperage: 100
✔ Phase: 3
✔ AIC Rating: 65kA@480V
✔ Fuse Class: R,H,K
✔ Wire: 4
✔ UPC: 699252496640
✔ Country of Origin: China
✔ Dimensions: 9 61/100 in x 16 7/10 in
✔ Weight: 45
✔ Certification: UL Listed, UL Recognized
