Product Description:

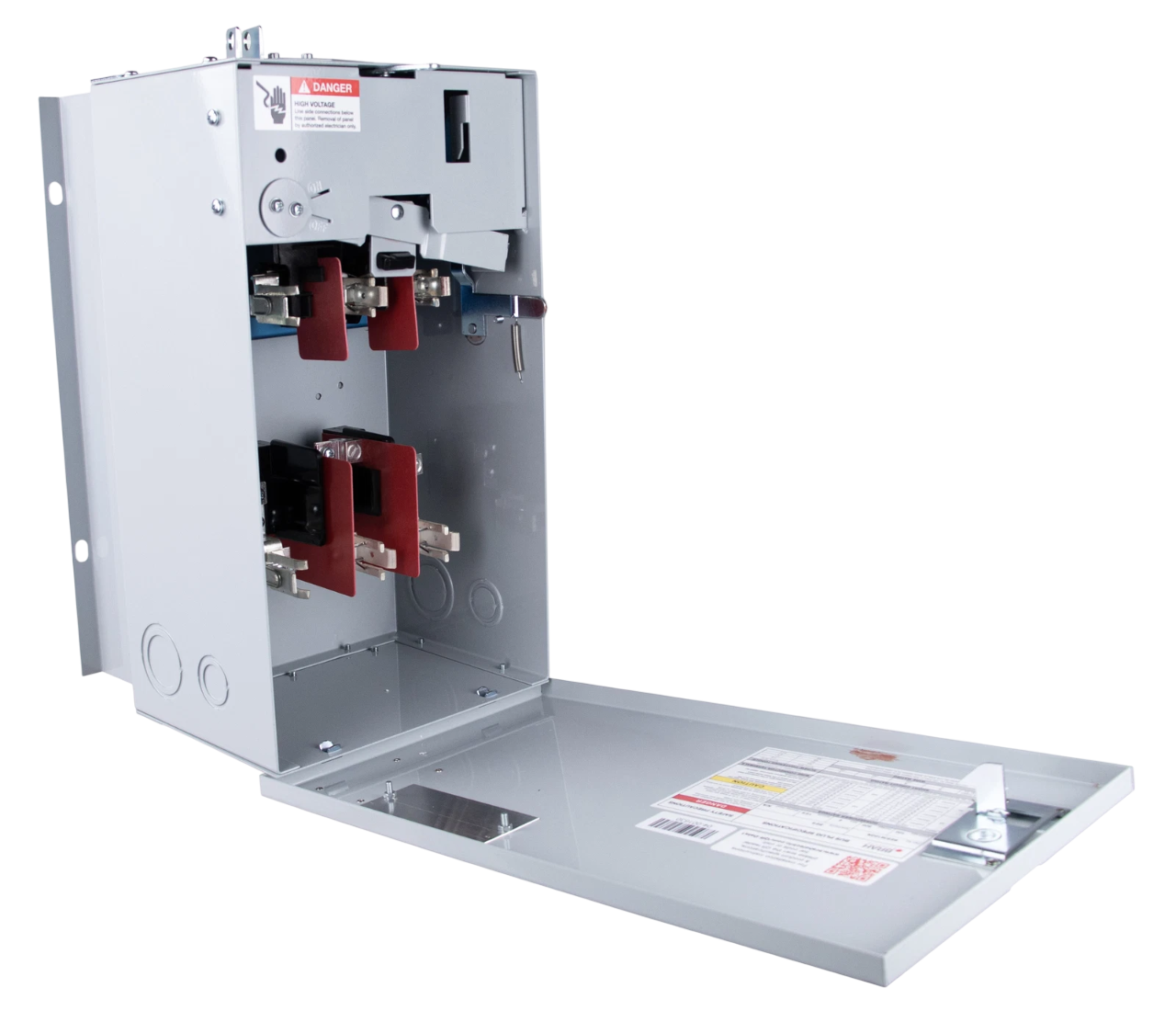

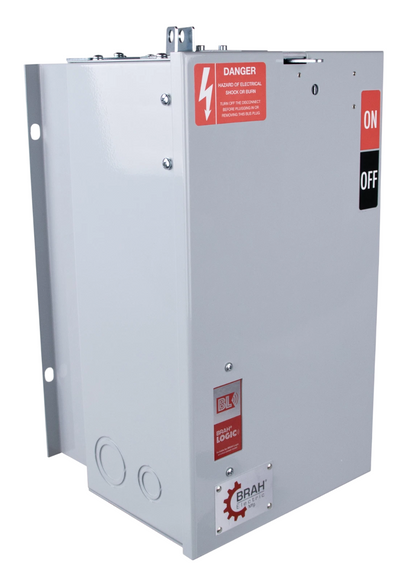

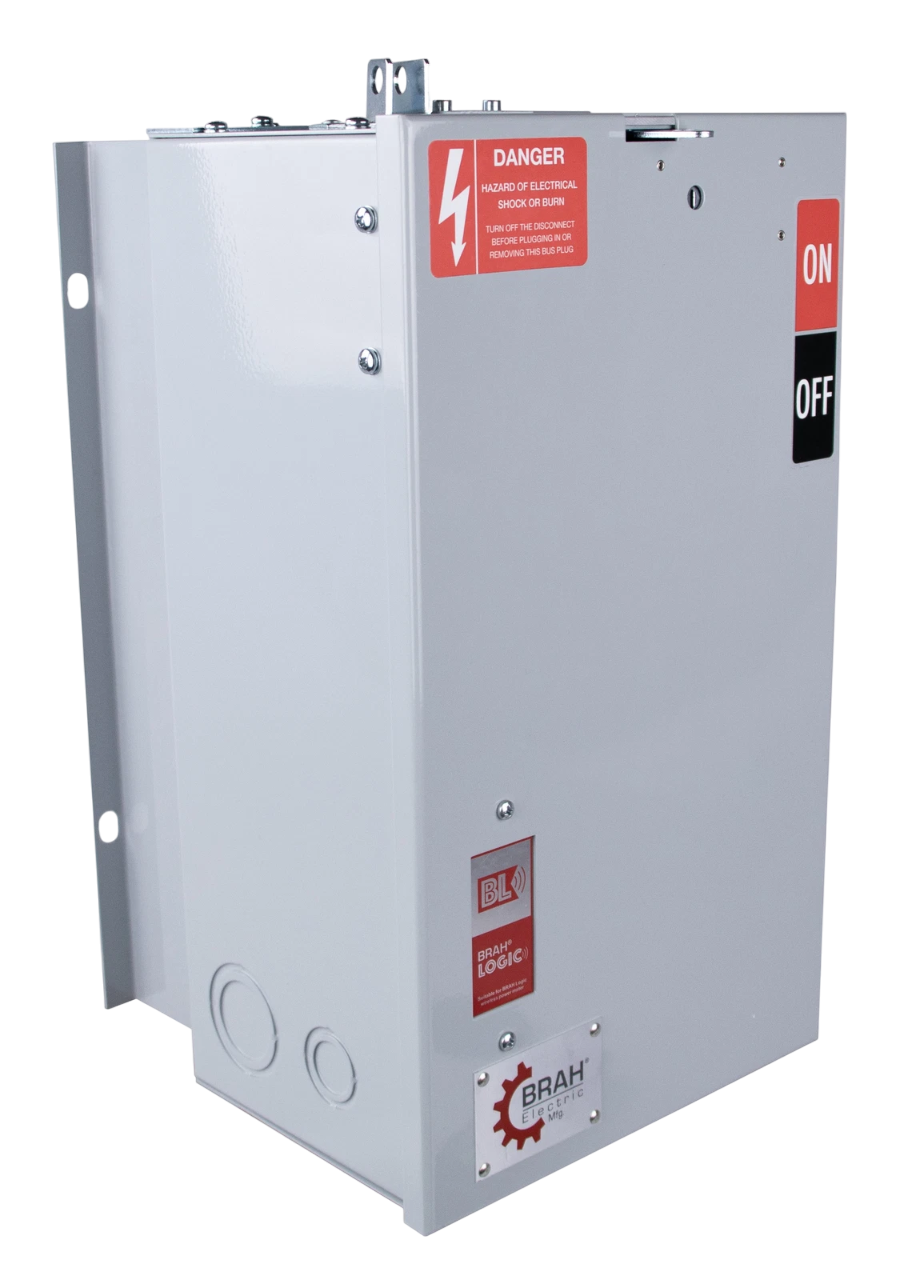

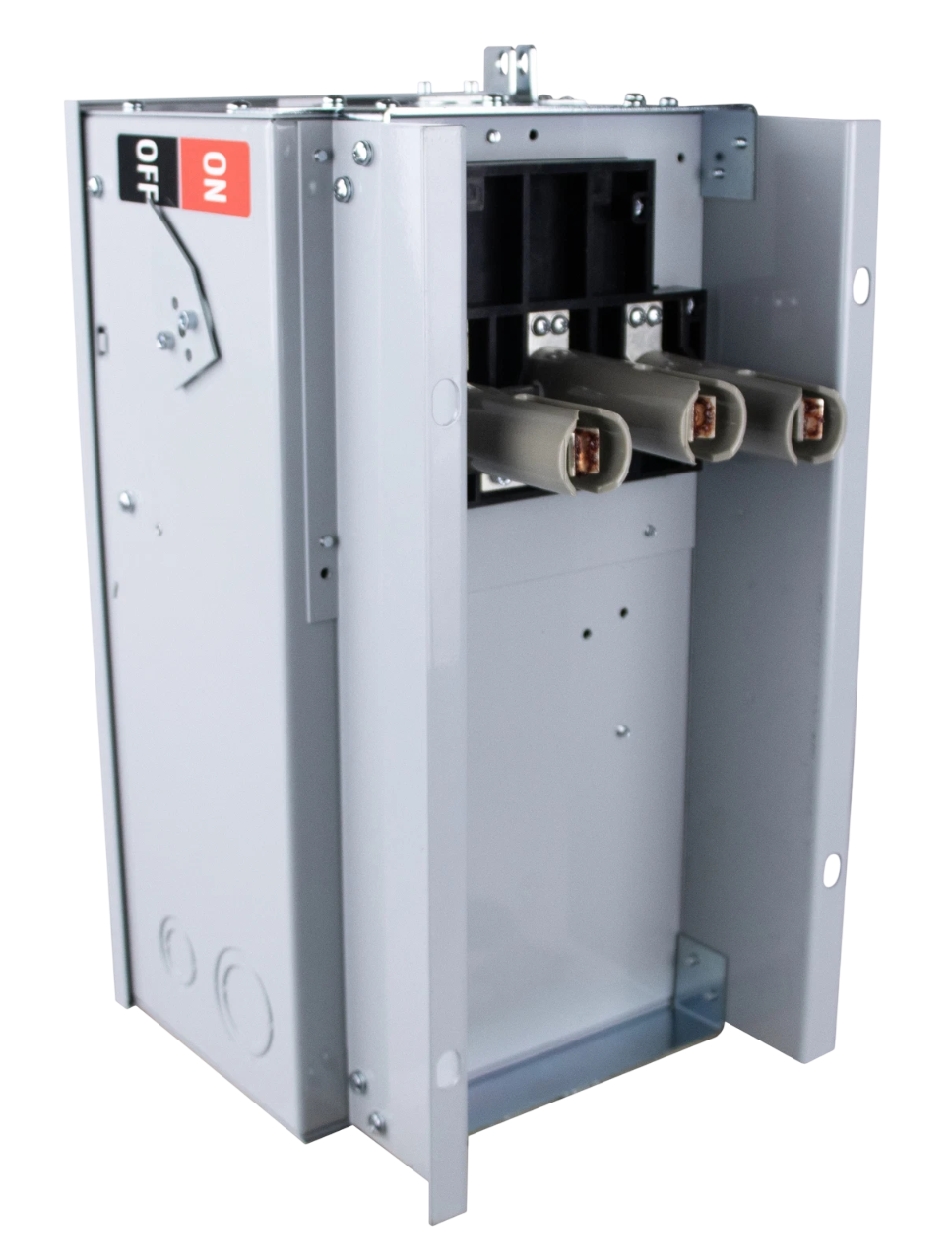

The BRAH Electric BES3610N bus plug is a 3-phase, 4-wire, 600V fusible busway switch rated for 100A. It belongs to the BD Series and has an AIC rating of 65kA@480V. This BOS/BES type bus plug is compatible with R, H, and K fuses.
Key Features:
✔ Part Number: BES3610N
✔ Manufacturer: BRAH Electric
✔ Category: Bus Plug
✔ Subcategory: Fusible
✔ Family: BD Series
✔ Type: BOS/BES
✔ Voltage: 600V
✔ Amperage: 100A
✔ Phase: 3
✔ AIC Rating: 65kA@480V
✔ Fuse Class: R, H, K
✔ Wire: 4
✔ Certification: UL Listed, UL Recognized
✔ UPC: 699252496671
✔ Country of Origin: China
✔ Dimensions: 9.61 in x 16.7 in
✔ Weight: 45 lbs
