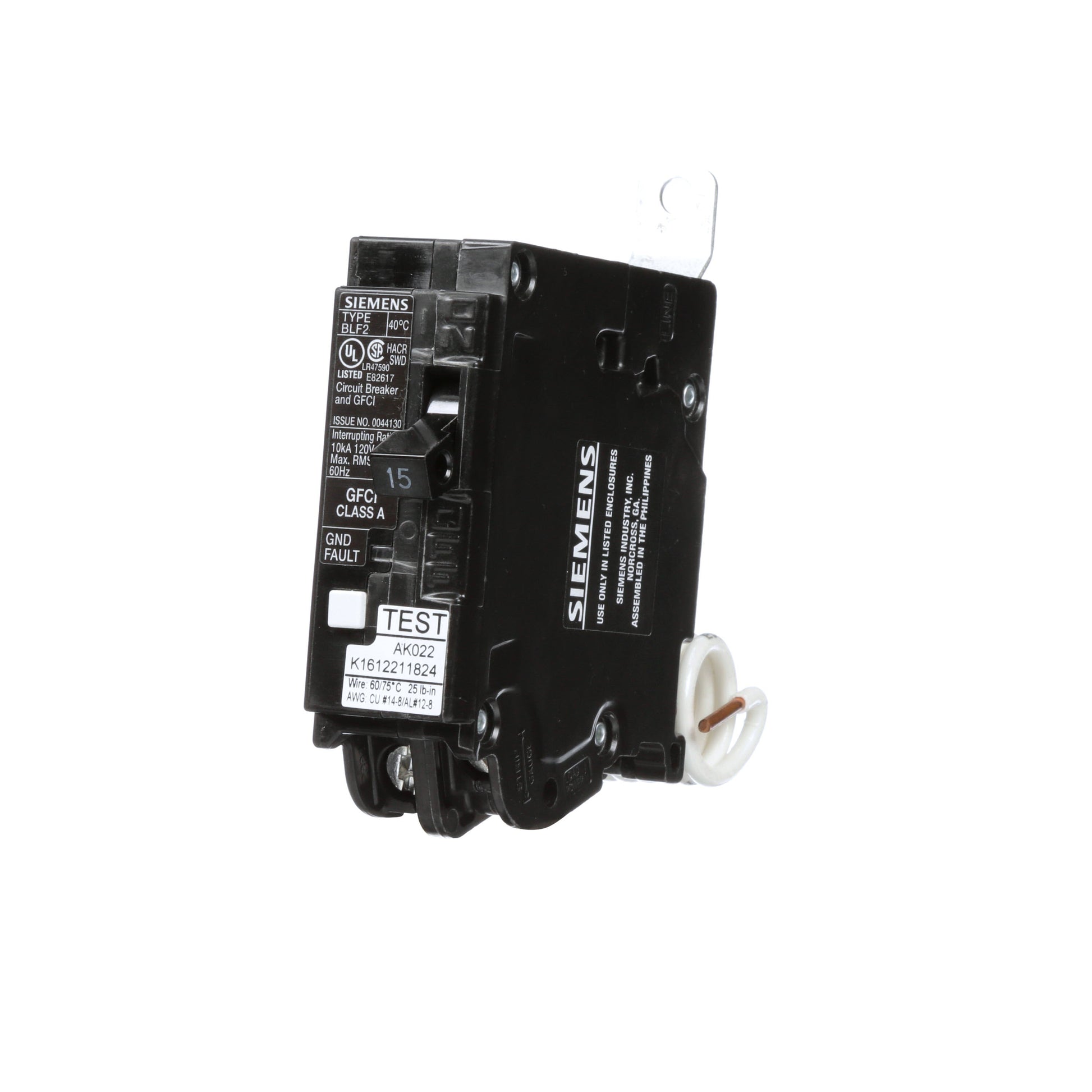

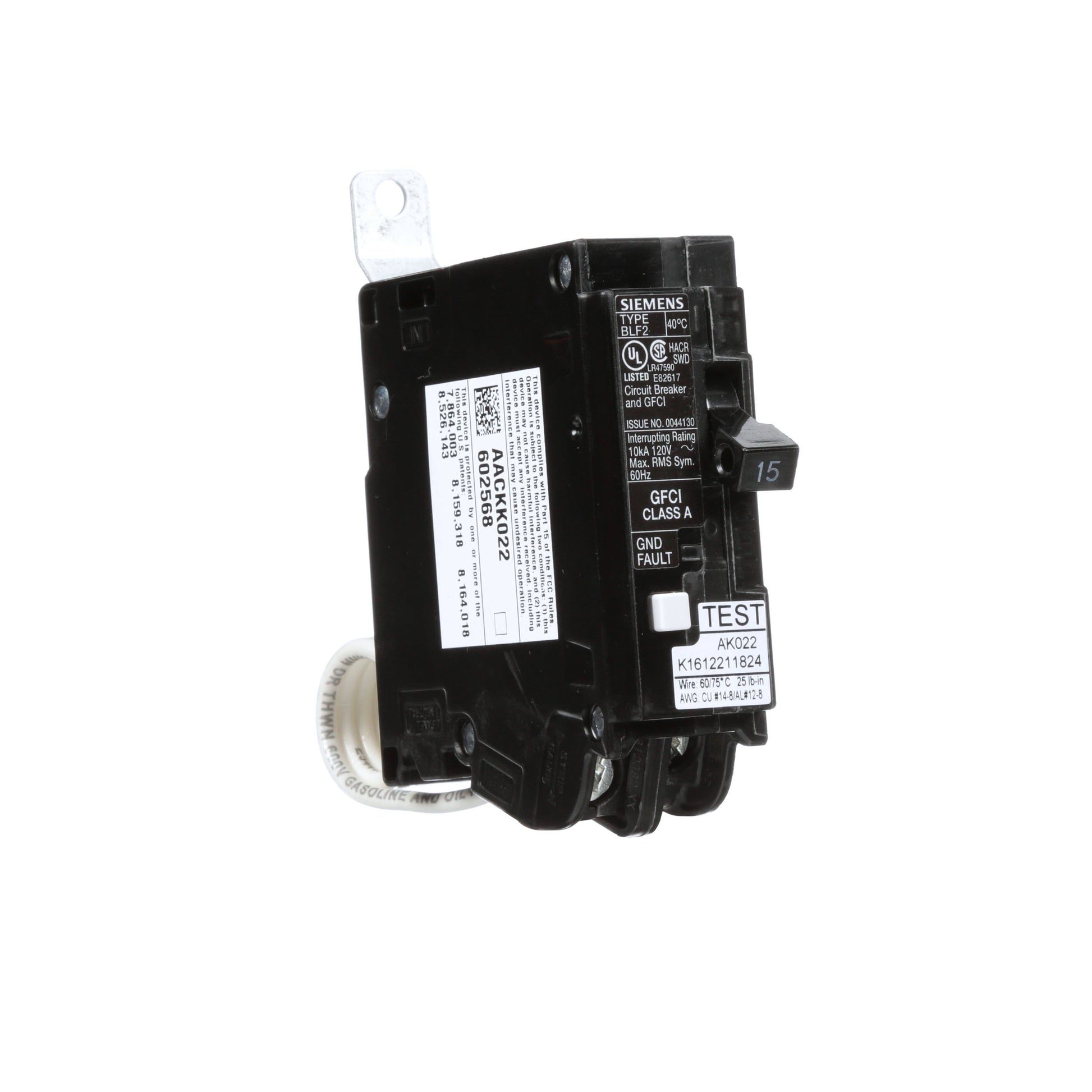

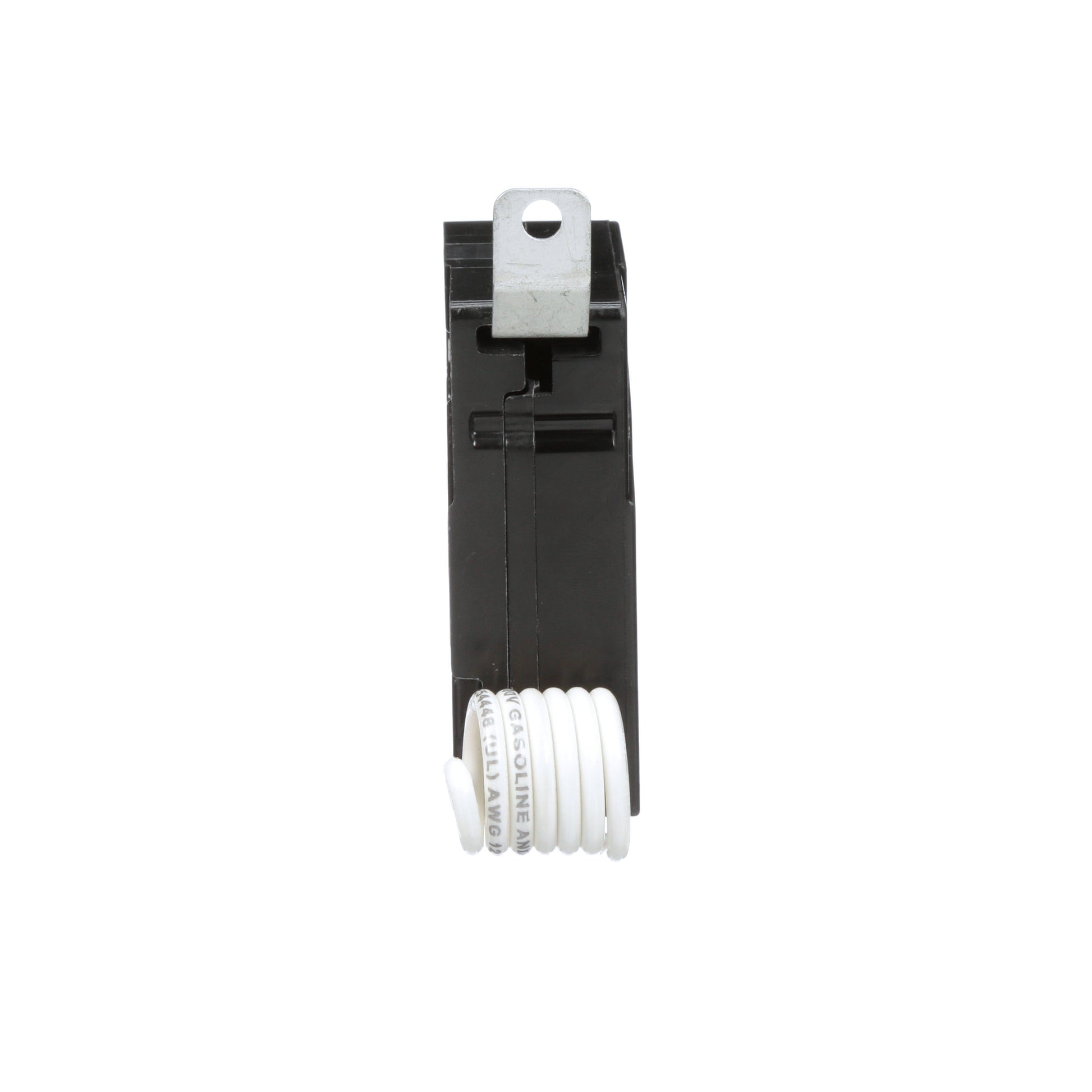

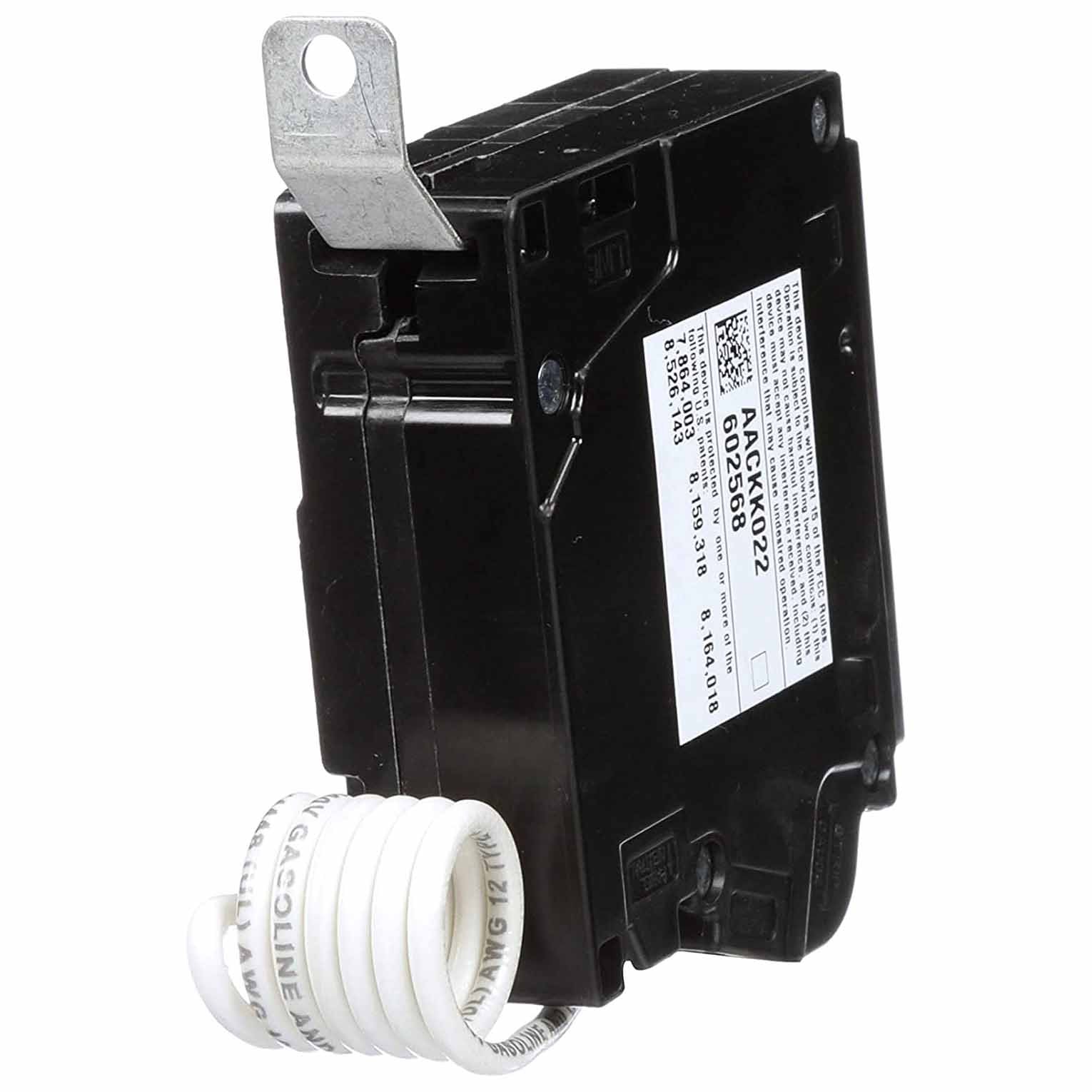

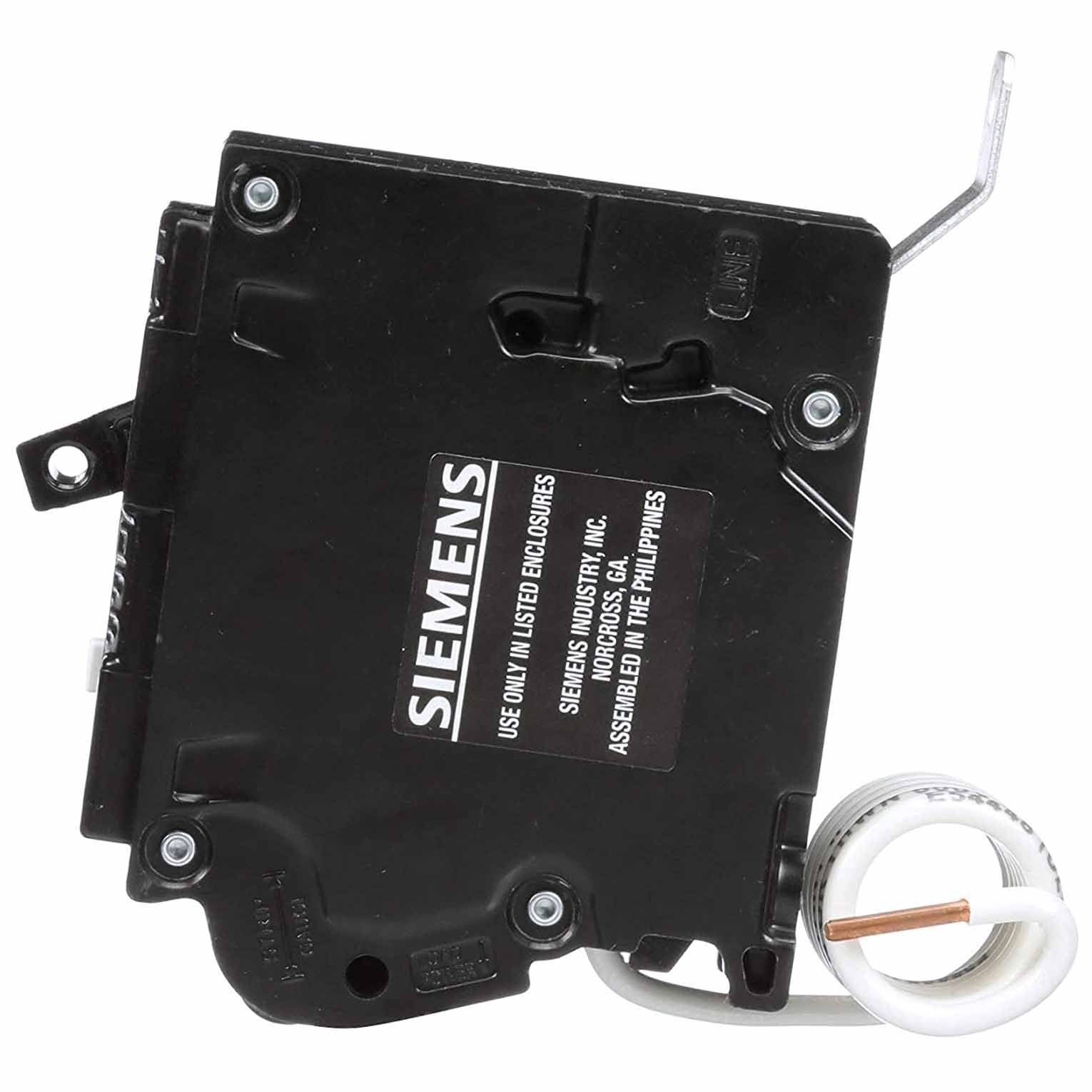

Siemens BF115A Circuit Breaker | 120V 15A 1 Pole 10kA@120V Bolt-on BL Series

Product Description:
The Siemens BF115A is a Molded Case Circuit Breaker from the BL Series family. This 1-pole breaker is rated for 120 volts and 15 amps, featuring a 10kA@120V AIC rating and bolt-on connections. It provides thermal magnetic protection and is designed for use in Siemens panelboards.

Key Features:
✔ Part Number: BF115A
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLF2
✔ Voltage: 120
✔ Amperage: 15
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 60A/BLHF
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 887621215248
✔ GTIN: 00887621215248
✔ Country of Origin: Philippines
✔ Dimensions: 1 in x 3.56 in x 3.56 in
✔ Weight: 0.24
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Wire Size: 14 - 10 AWG (Copper) 12 - 8 AWG (Aluminium)
