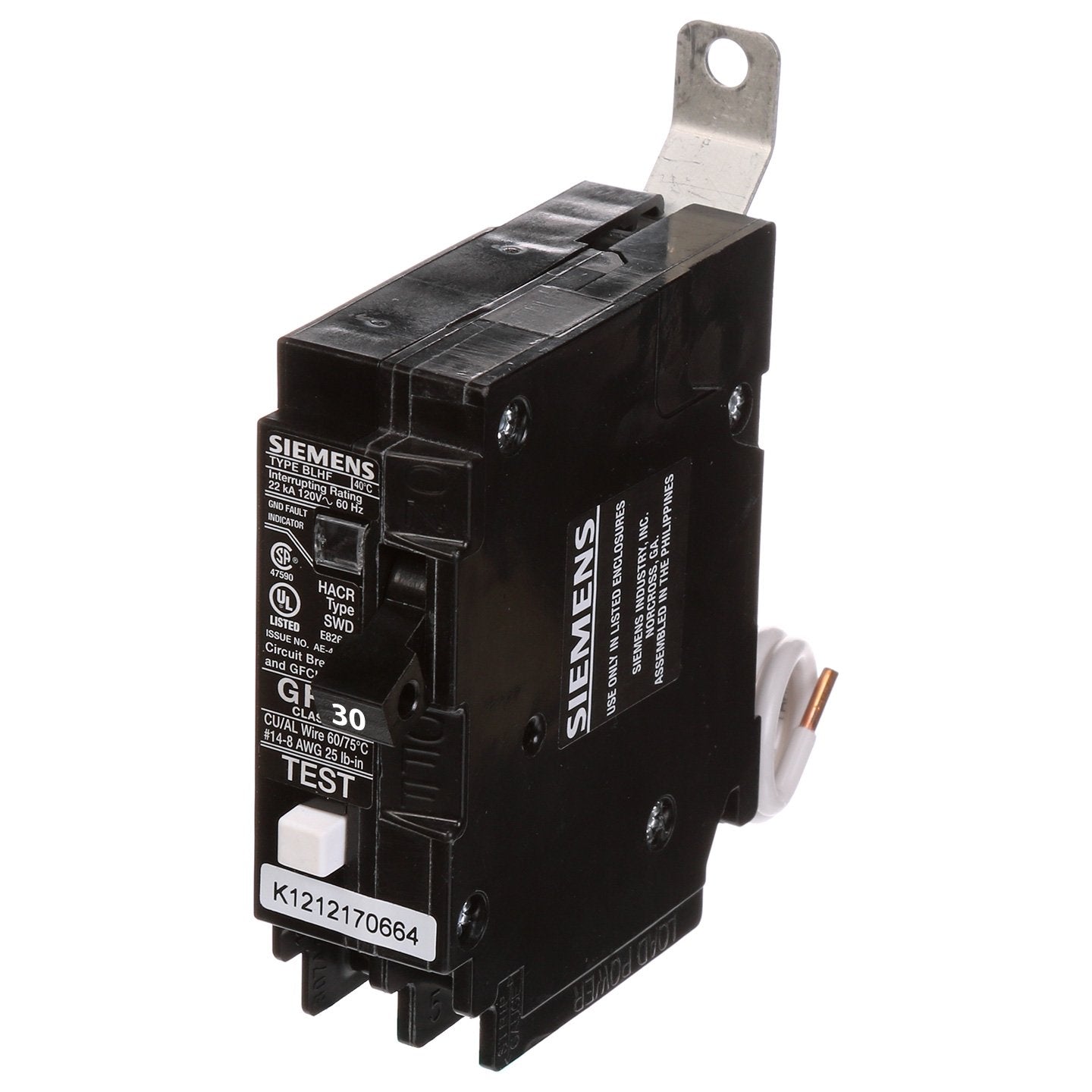

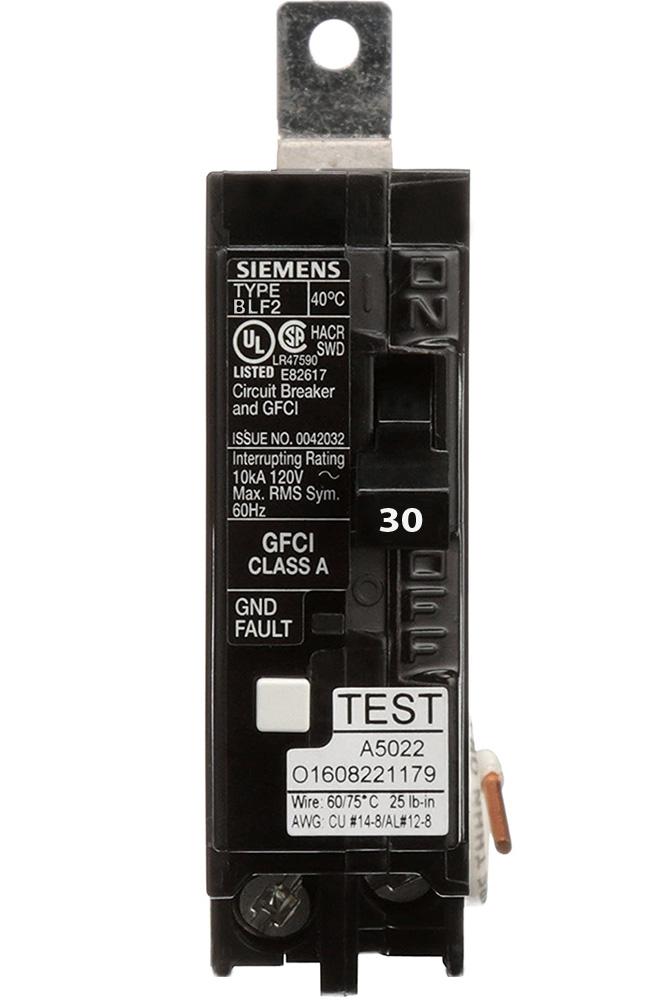

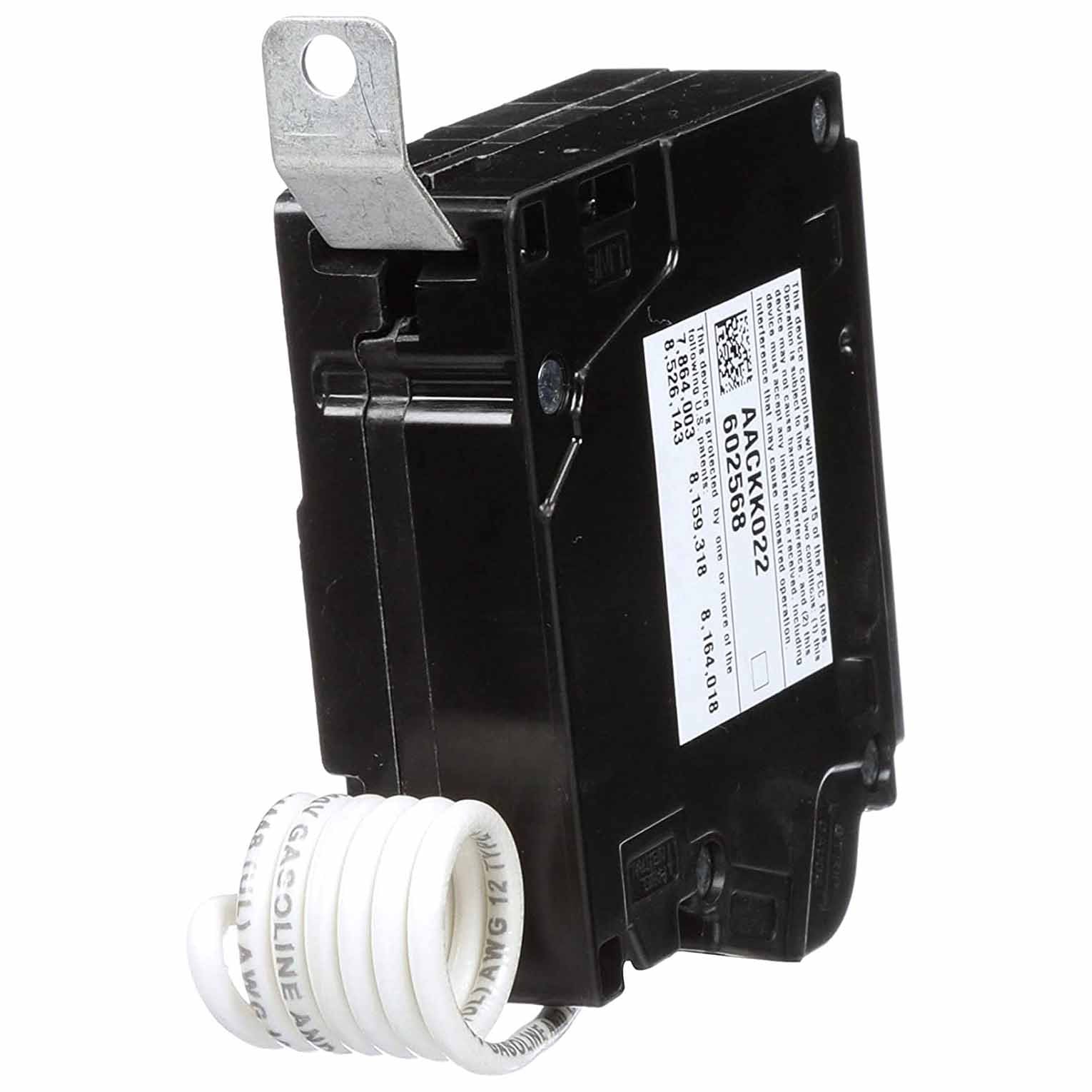

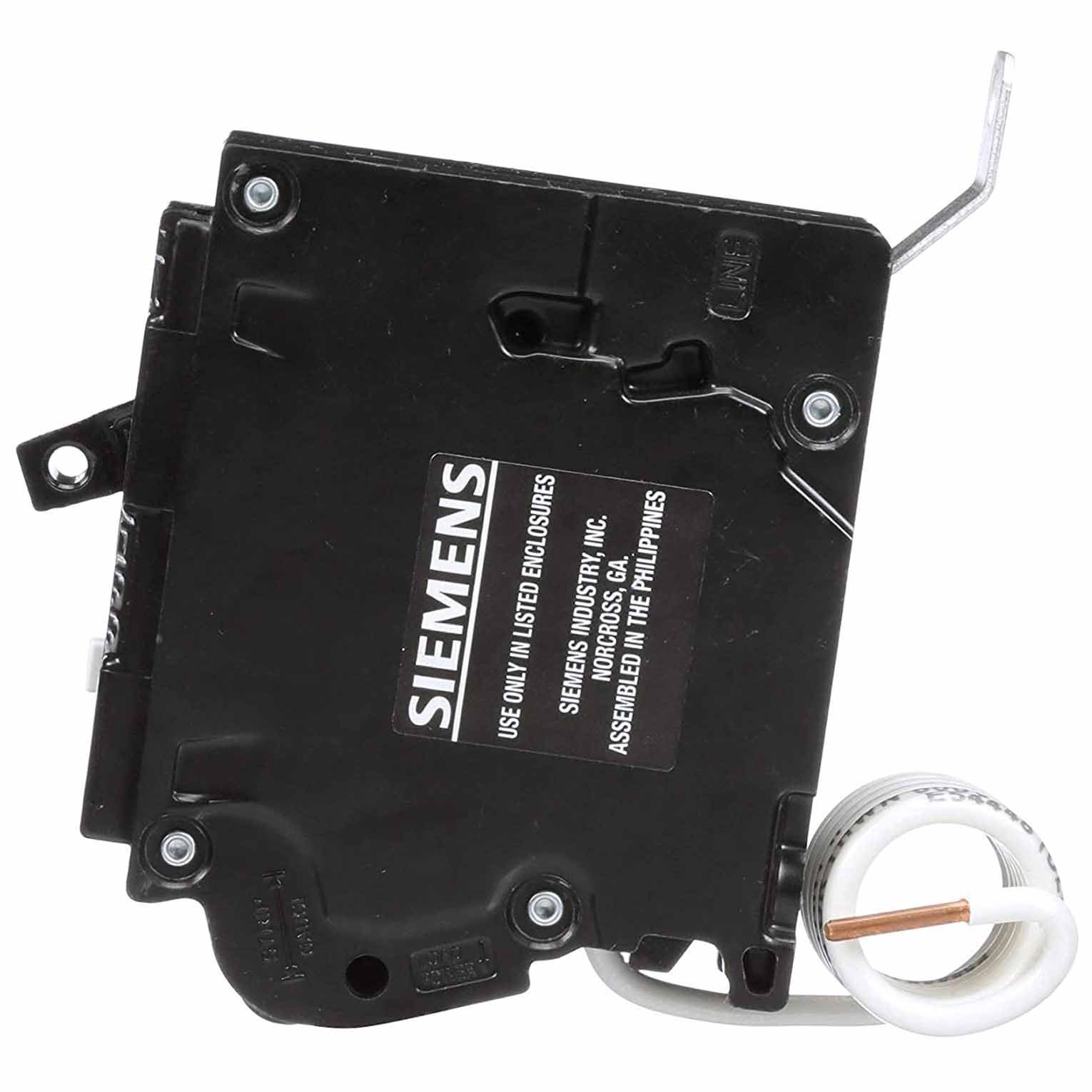

Siemens BF130A Molded Case Circuit Breaker 120V 30A 1P 10kA@120V Bolt-on BL Series

Product Description:
The Siemens BF130A is a Molded Case Circuit Breaker from the BL Series family. It is a 1 pole, 120 Volt, 30 amp rated circuit breaker with an AIC rating of 10kA@120V. This breaker uses a bolt-on connection and provides thermal magnetic protection. It is designed for use in Siemens panelboards and meets multiple industry standards.

Key Features:
✔ Part Number: BF130A
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLF2
✔ Voltage: 120
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 60A/BLHF
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 887621215347
✔ GTIN: 00887621215347
✔ Country of Origin: Philippines
✔ Dimensions: 1 in x 3.56 in x 3.56 in
✔ Weight: 0.24
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Wire Size: 14 - 10 AWG (Copper) 12 - 8 AWG (Aluminium)
