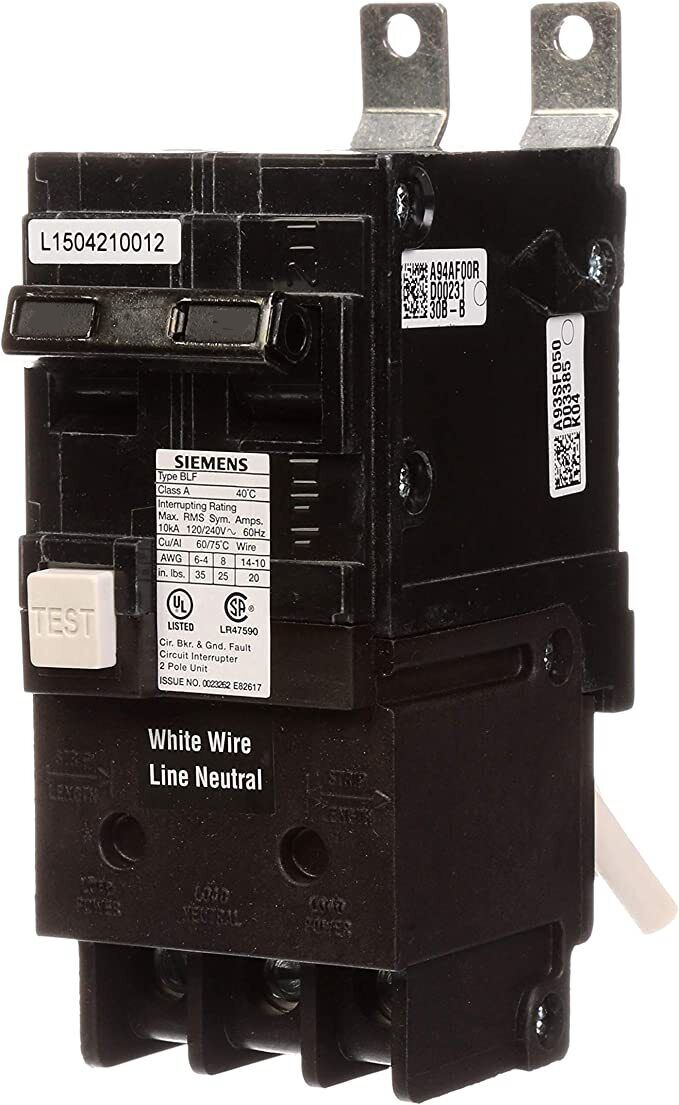

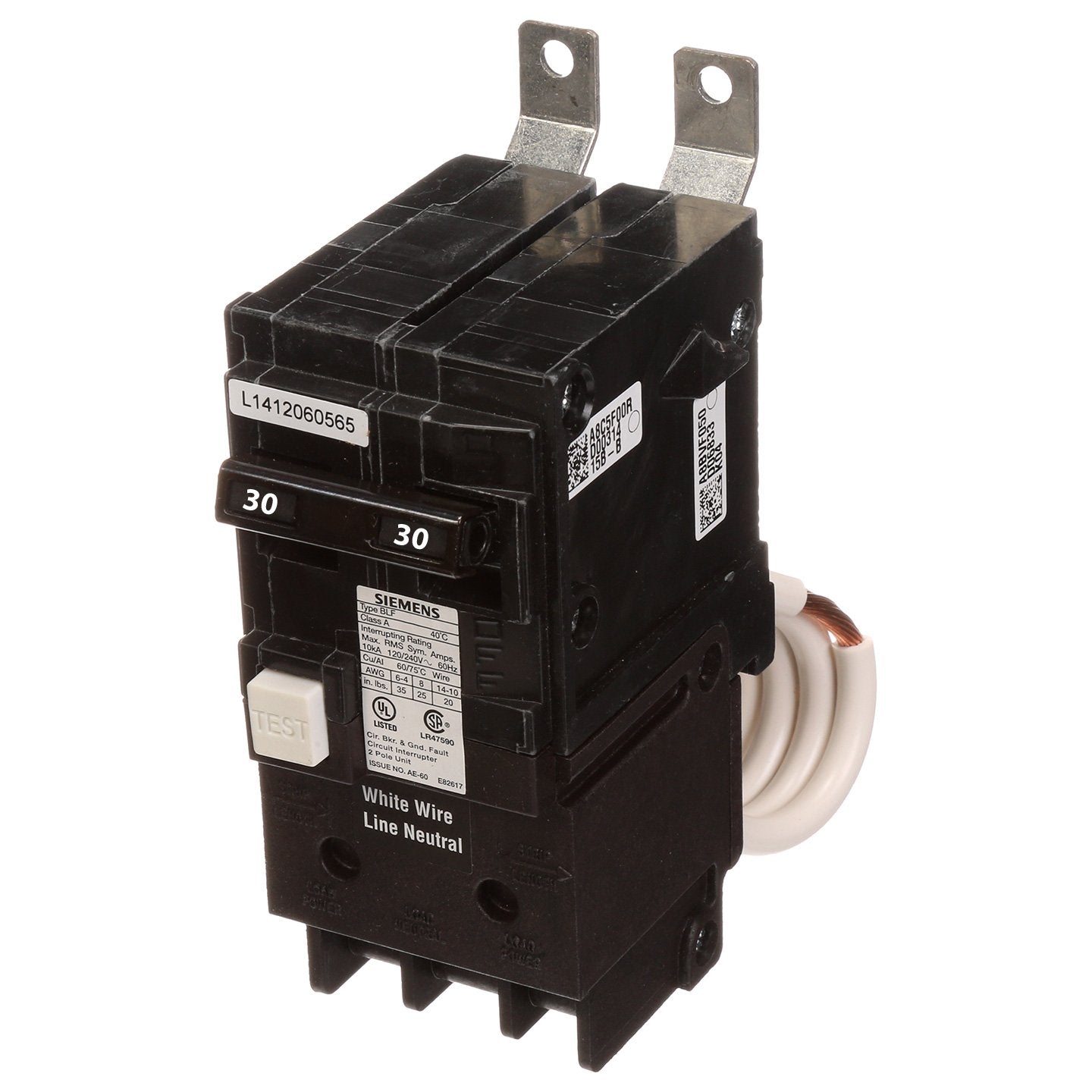

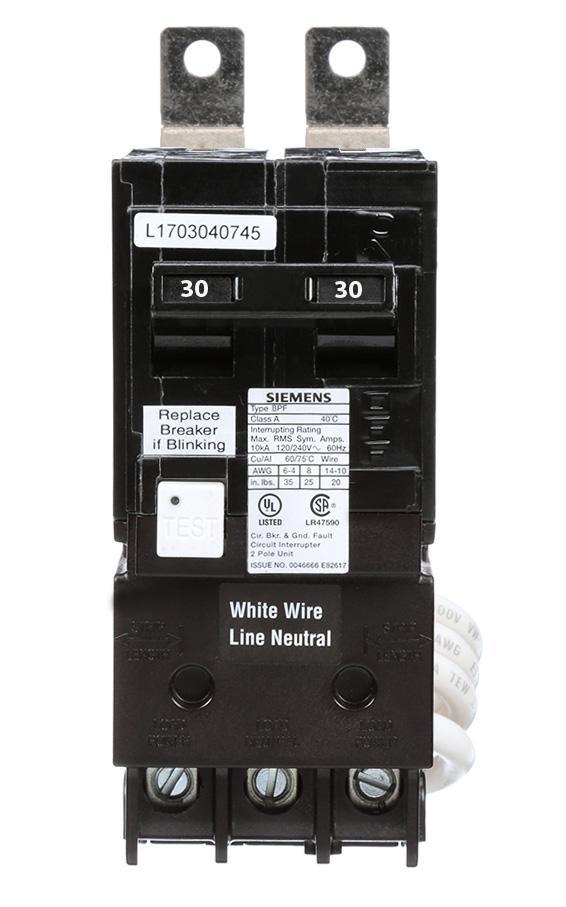

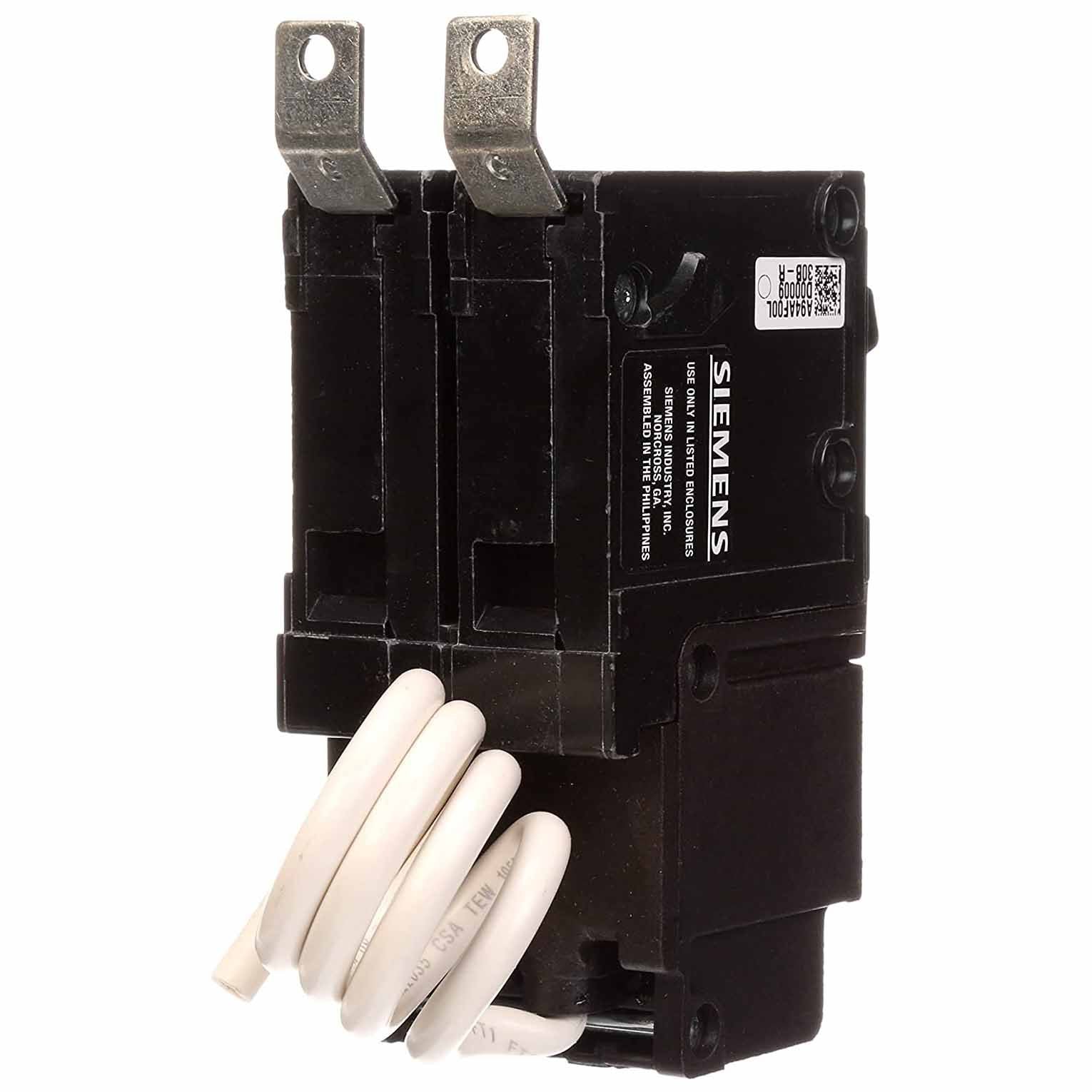

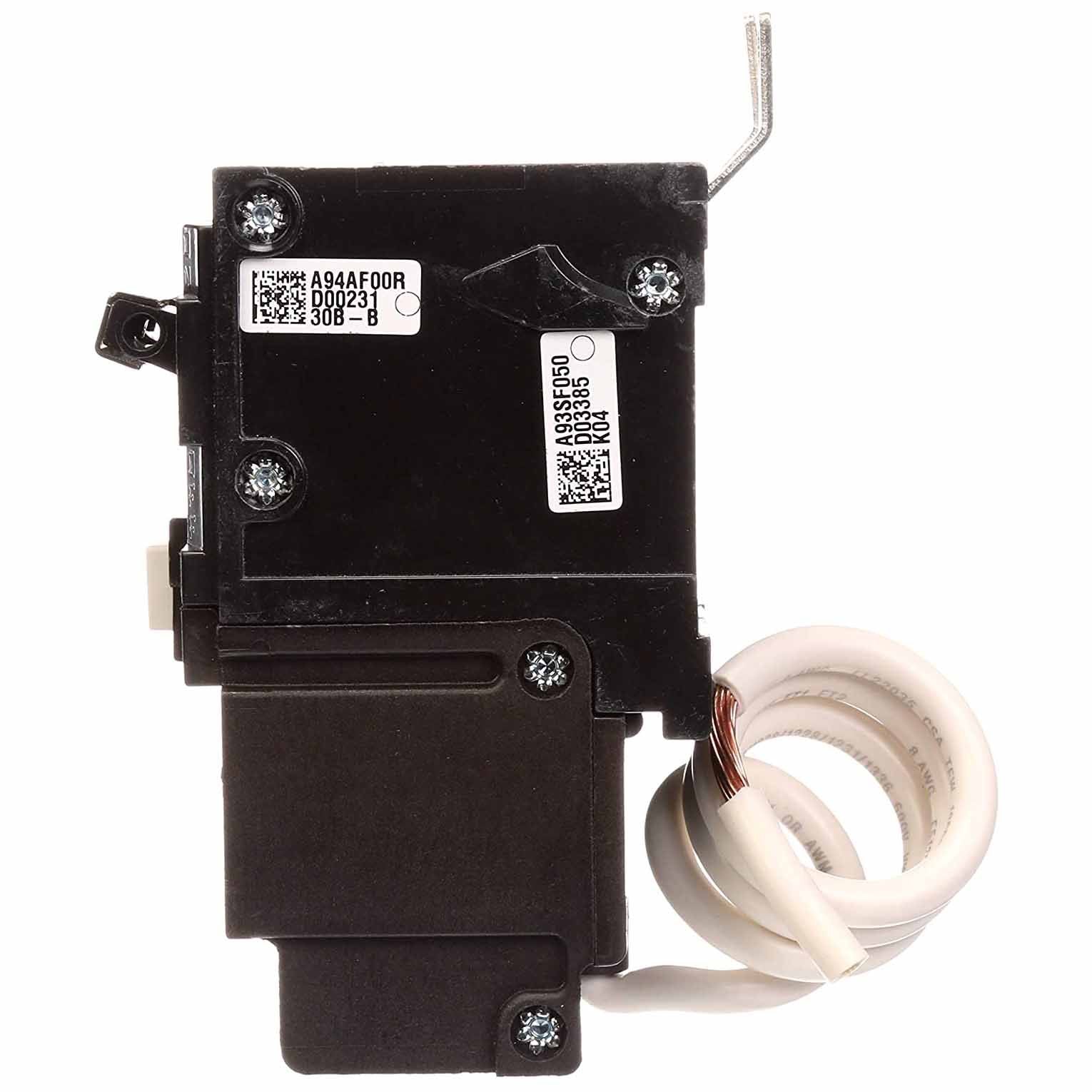

Siemens BF230A Circuit Breaker | BL Series BLF 240V 30A

Product Description:
The Siemens BF230A is a Molded Case Circuit Breaker from the BL Series family. It is a 2-pole, 240V, 30A breaker with a 10kA@240V AIC rating and Bolt-on connection. This BLF-type breaker features Thermal Magnetic protection and is suitable for Siemens Panelboards.

Key Features:
✔ Part Number: BF230A
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLF
✔ Voltage: 240V
✔ Amperage: 30A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 60A/BLHF
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
✔ Max. Wire Size: 10 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ Certification: CSA Certified, HACR Rated, NOM
