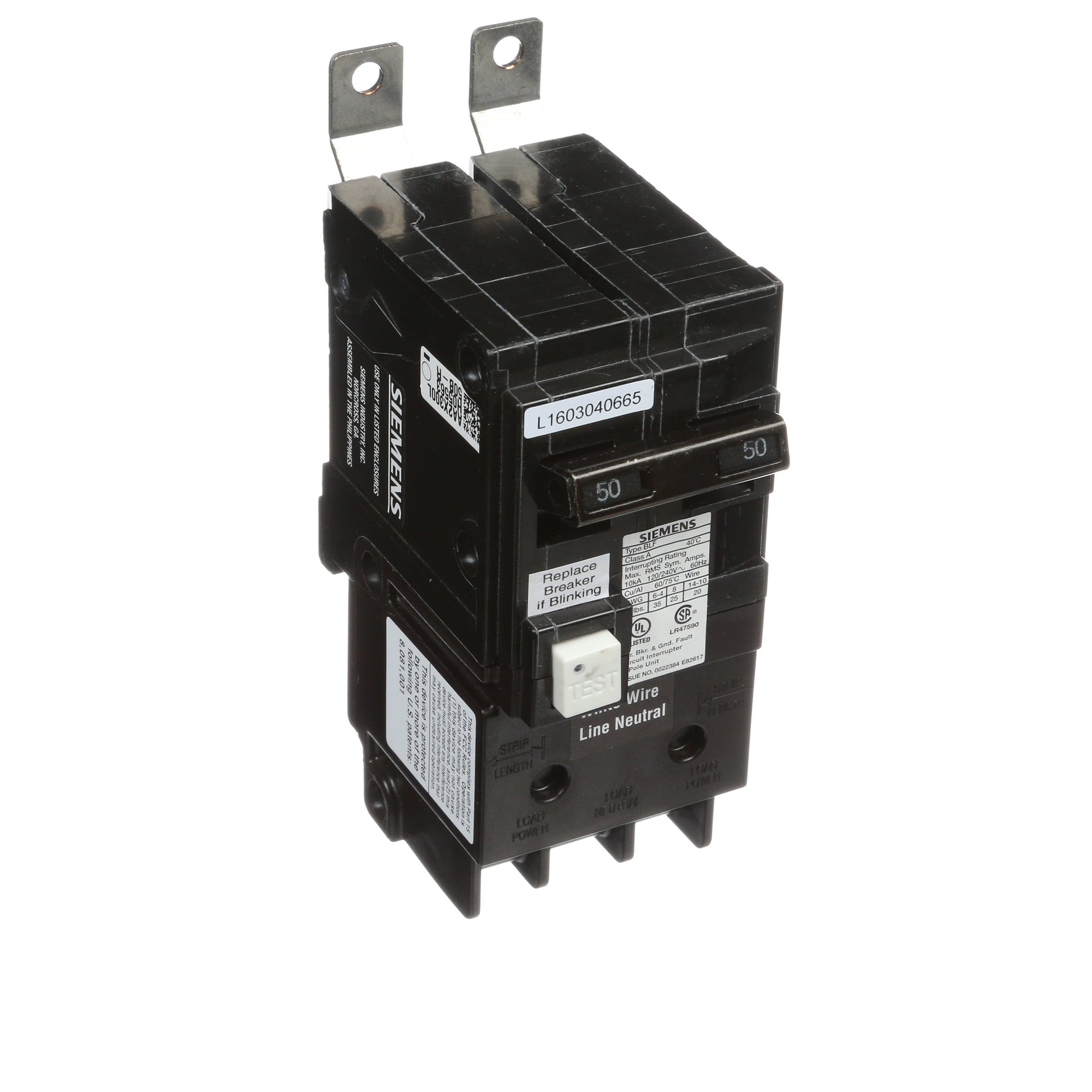

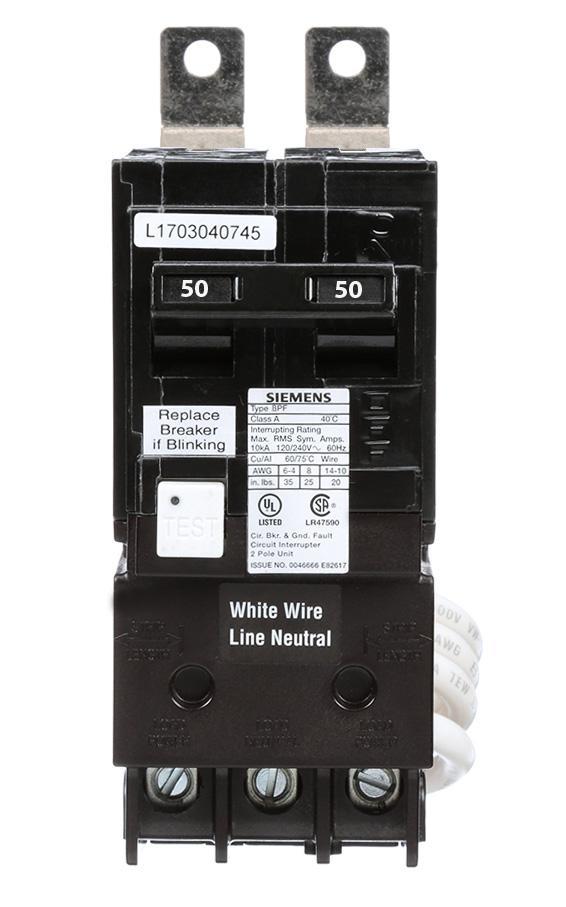

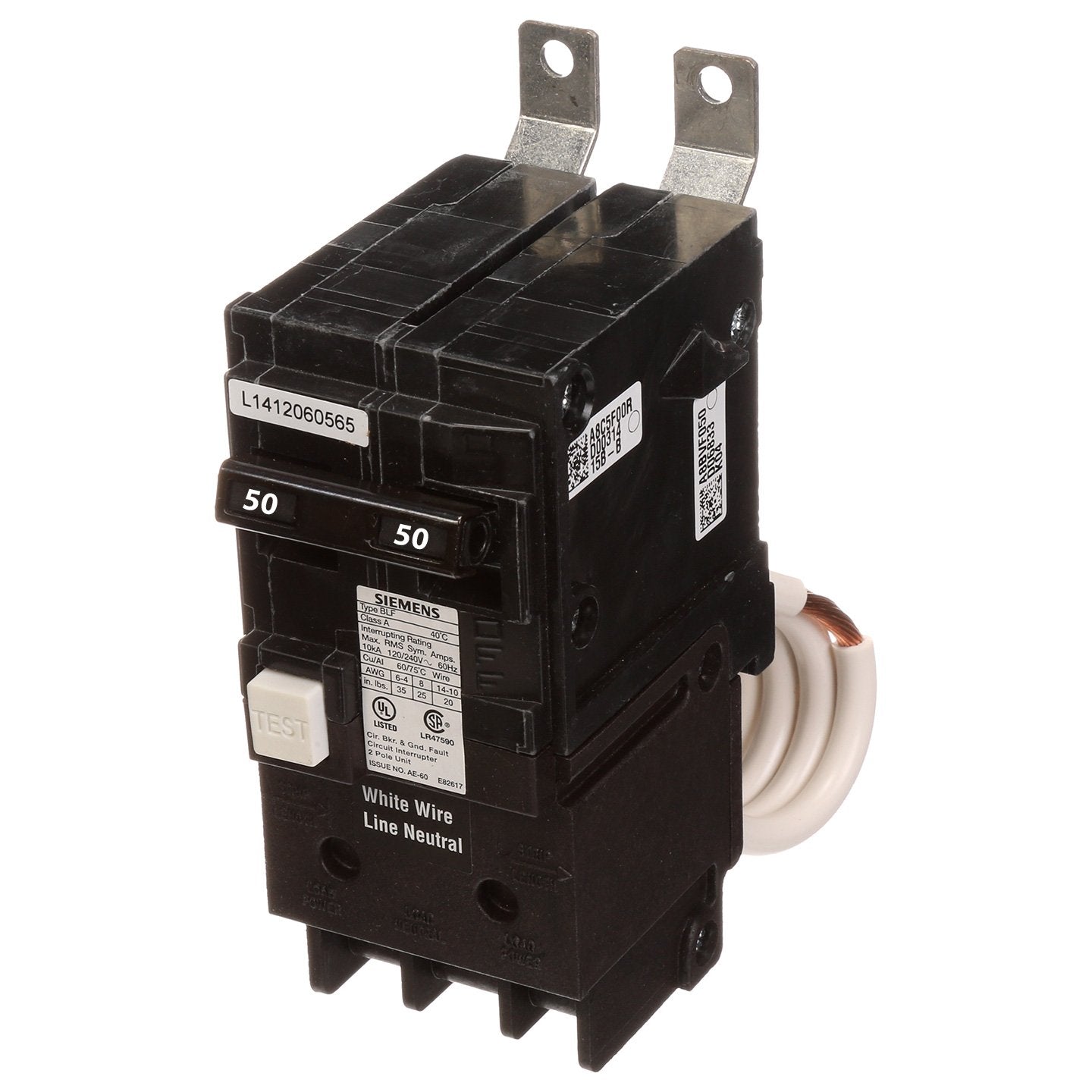

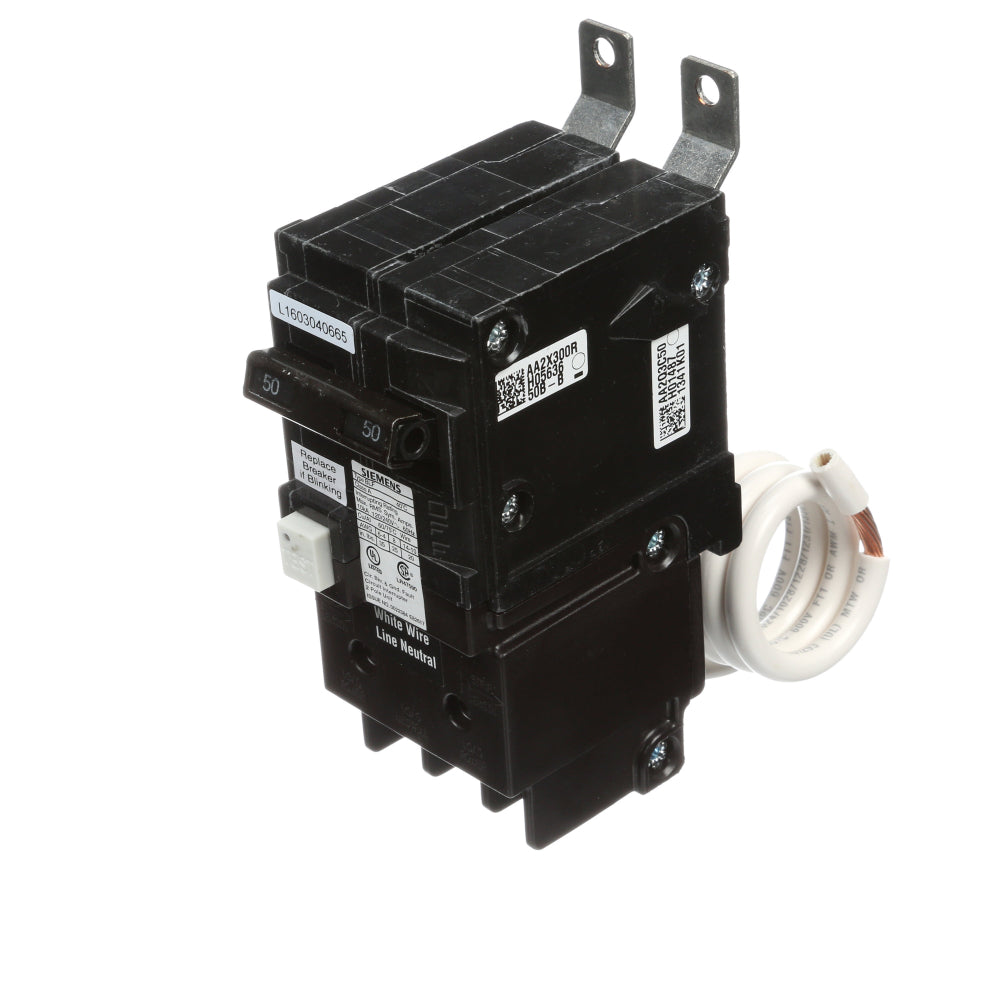

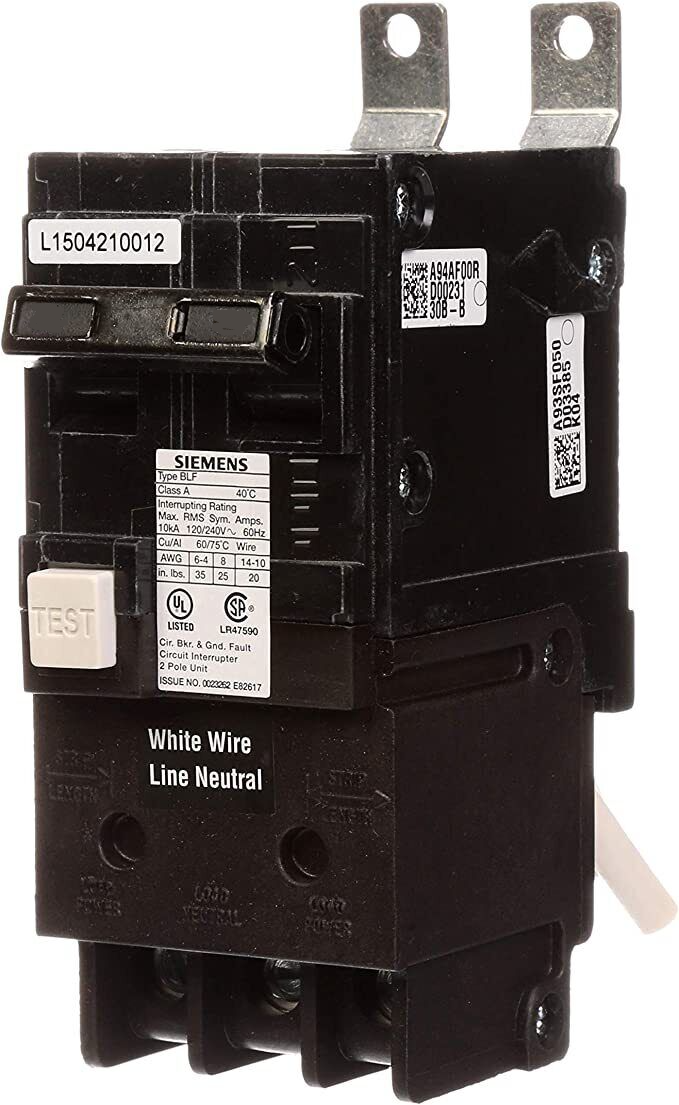

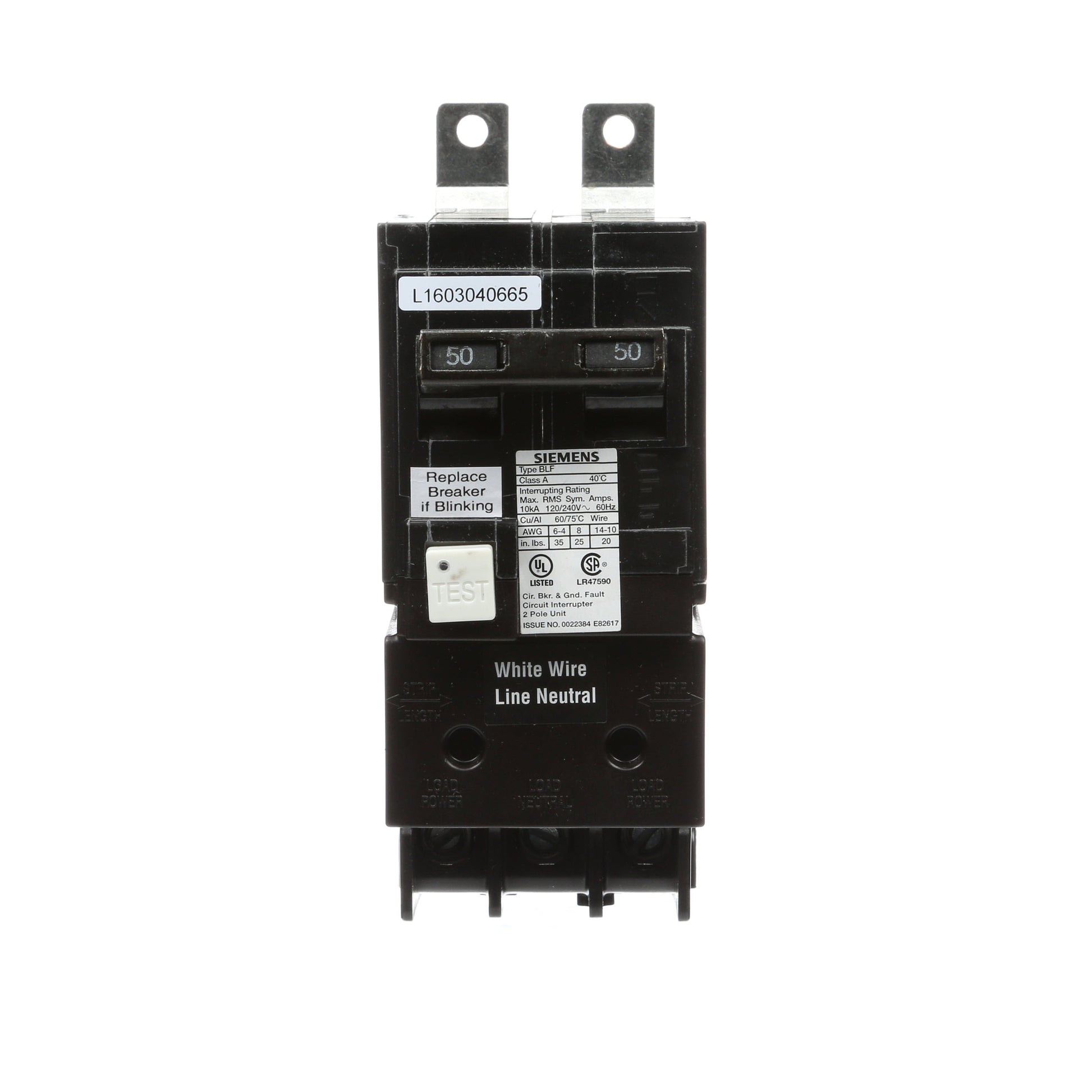

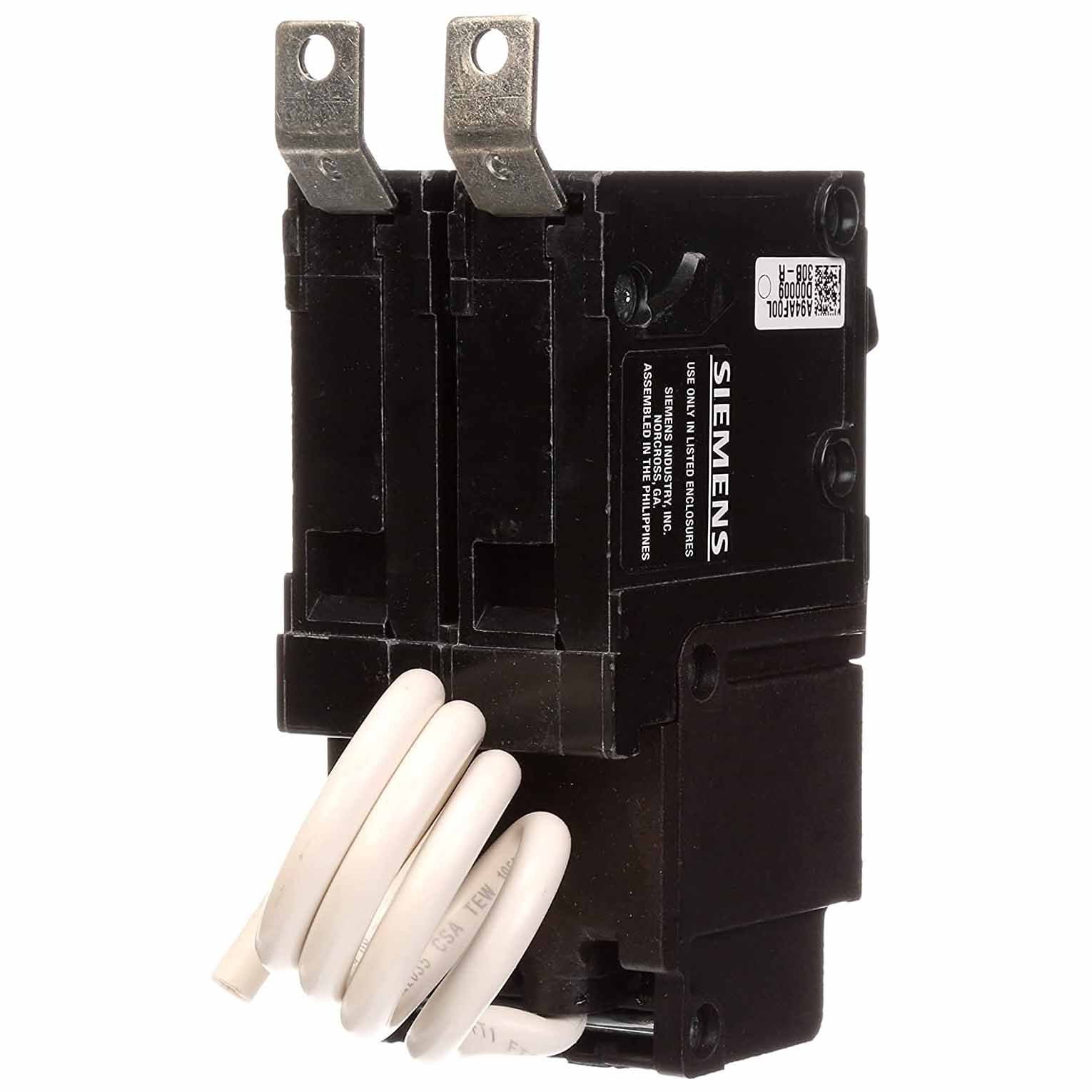

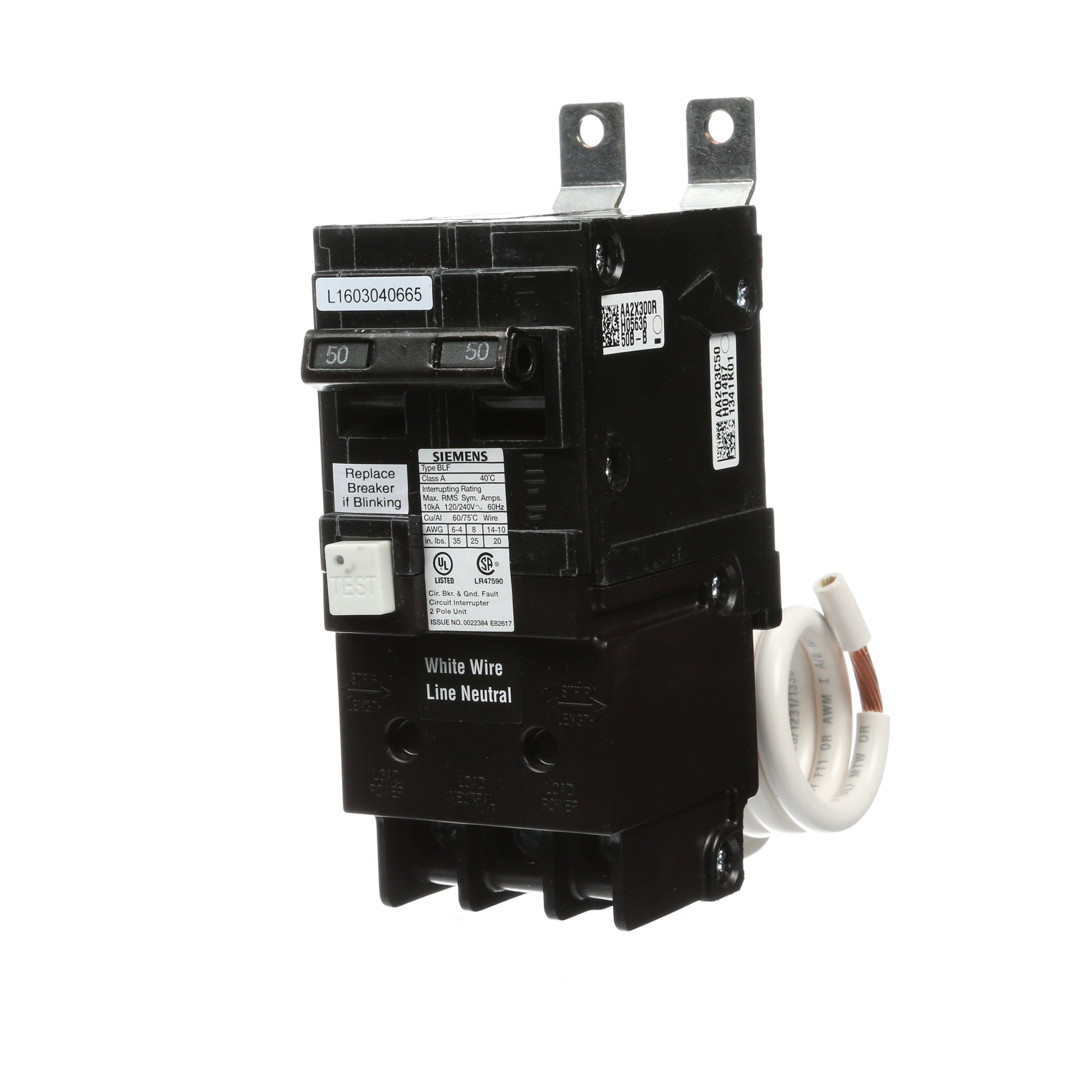

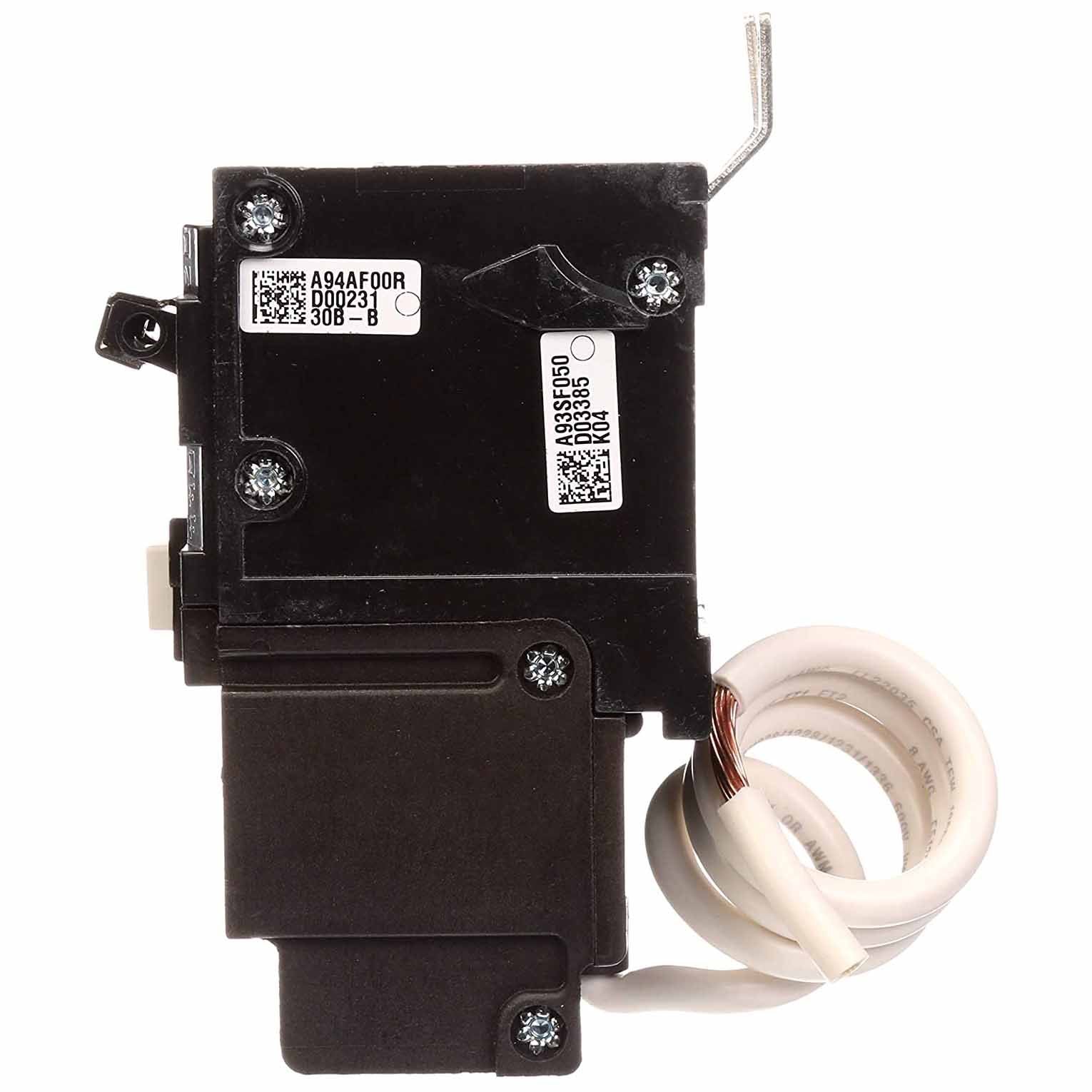

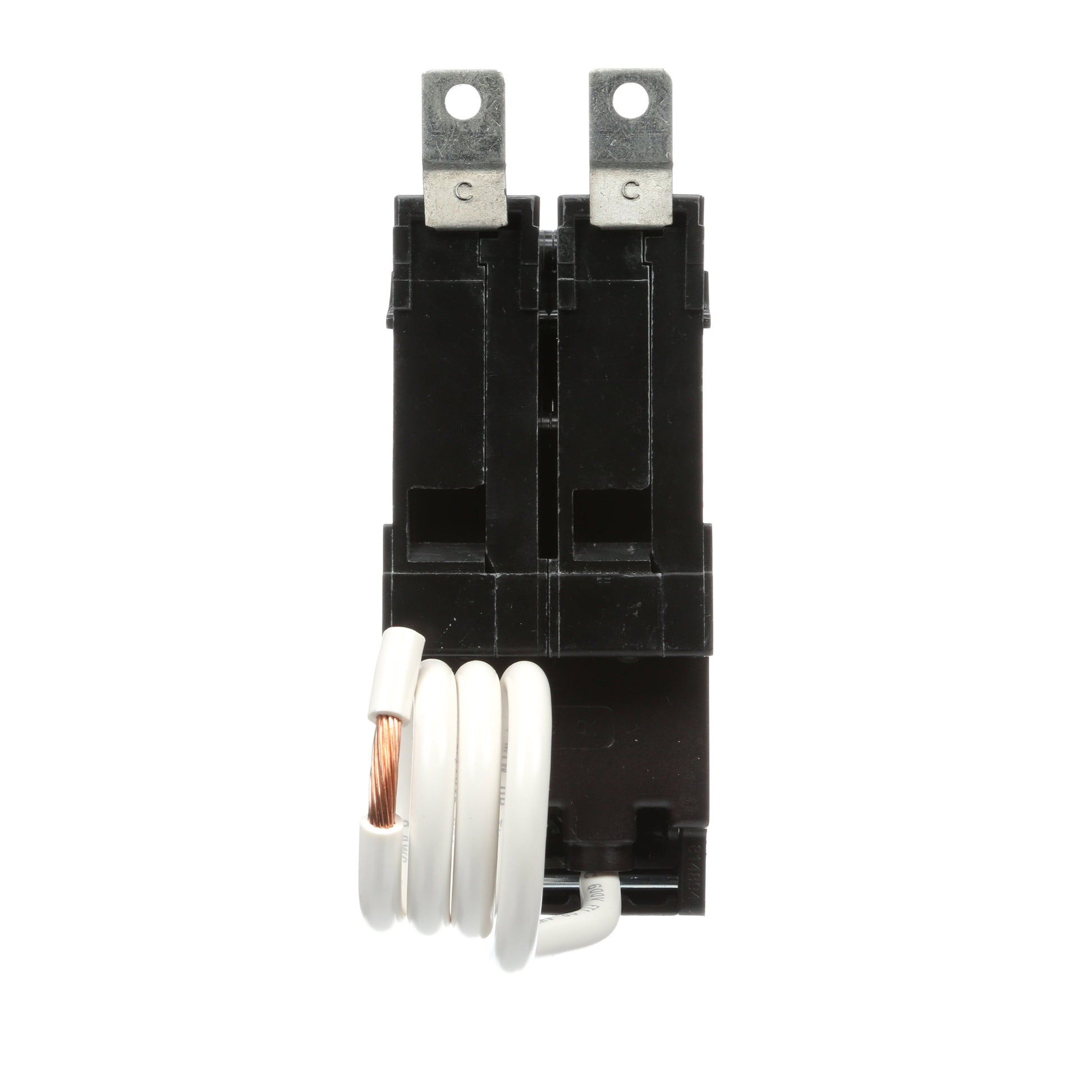

Siemens BF250A Molded Case Circuit Breaker | 120/240V 50A 2P 10kA@240V Bolt-on BL Series

Product Description:
The Siemens BF250A is a Molded Case Circuit Breaker from the BL Series family. It is a 2-pole, 50 amp breaker rated for 120/240V with a 10kA AIC rating at 240V. This model features bolt-on connections and thermal magnetic protection for reliable circuit interruption. It is designed for use in Siemens panelboards and meets multiple industry certifications.

Key Features:
✔ Part Number: BF250A
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLF
✔ Voltage: 120/240
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 60A/BLHF
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Ground Fault Circuit Interrupter (Class A - 5mA)
✔ Protection: Thermal Magnetic
✔ UPC: 887621215453
✔ GTIN: 00887621215453
✔ Country of Origin: Philippines
✔ Dimensions: 2 in x 3.56 in x 3.56 in
✔ Weight: 0.99
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Wire Size: 8 AWG Min, 4 AWG (Al), 6 AWG (Cu) Max
