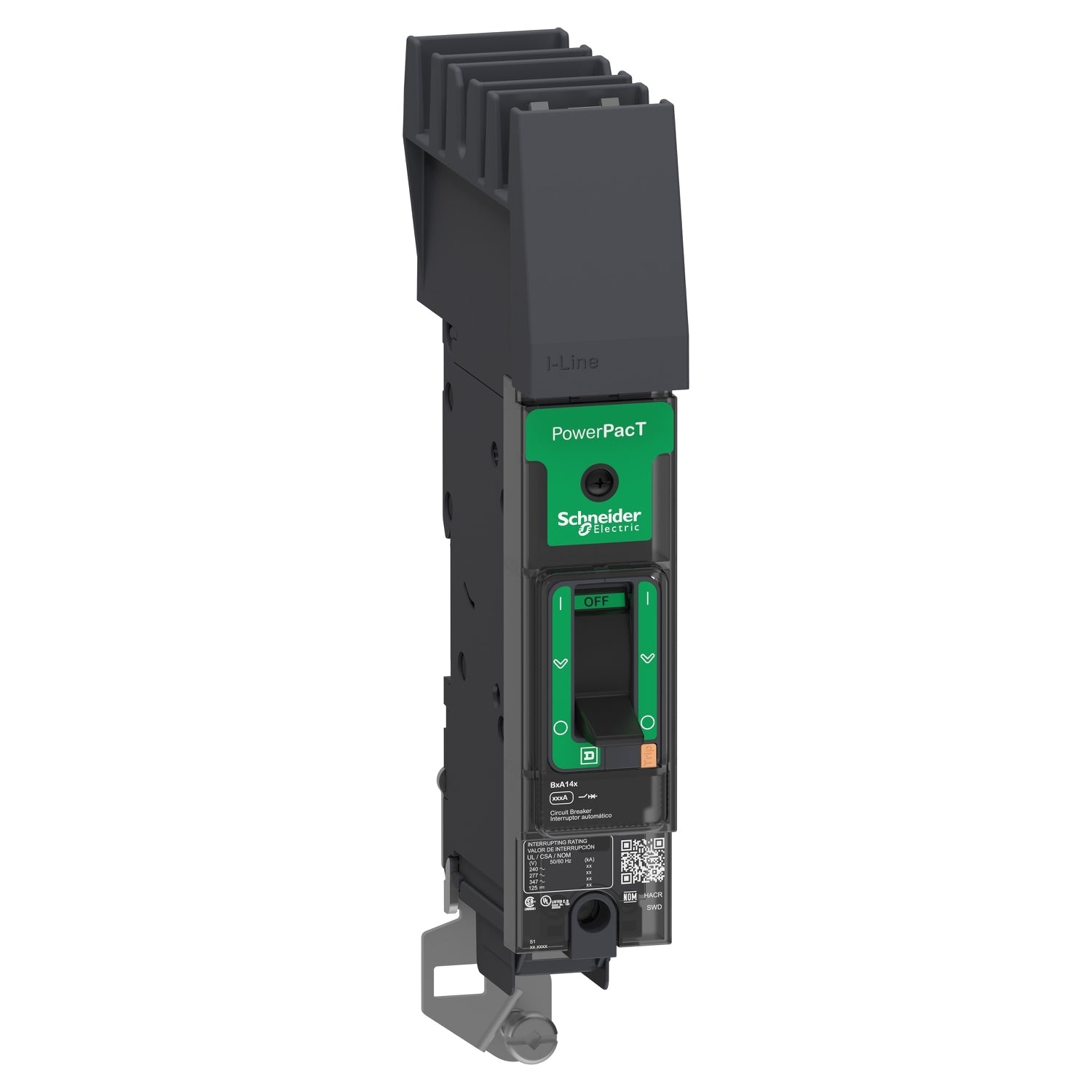

Square D BJA160203 Circuit Breaker | Powerpact BJA 600V 20A

Product Description:
The Square D BJA160203 is a Molded Case Circuit Breaker from the Powerpact family. It features a 1-pole design with a 600V, 20A rating and a 100kA@240V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection. It supports wire sizes from AWG 14 to 2/0 for both aluminum and copper.

Key Features:
✔ Part Number: BJA160203
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJA
✔ Voltage: 600V
✔ Amperage: 20A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 100kA@240V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: J
✔ Wire Size: AWG 14...AWG 2/0 (Cu/Al)
✔ Temp Rating: -13-158°F (-25-70°C)
✔ Certification: UL, IEC, CCC, EAC, CSA, NOM
✔ UPC: 606481154170
✔ GTIN: 03606481154170
✔ Country of Origin: Mexico
