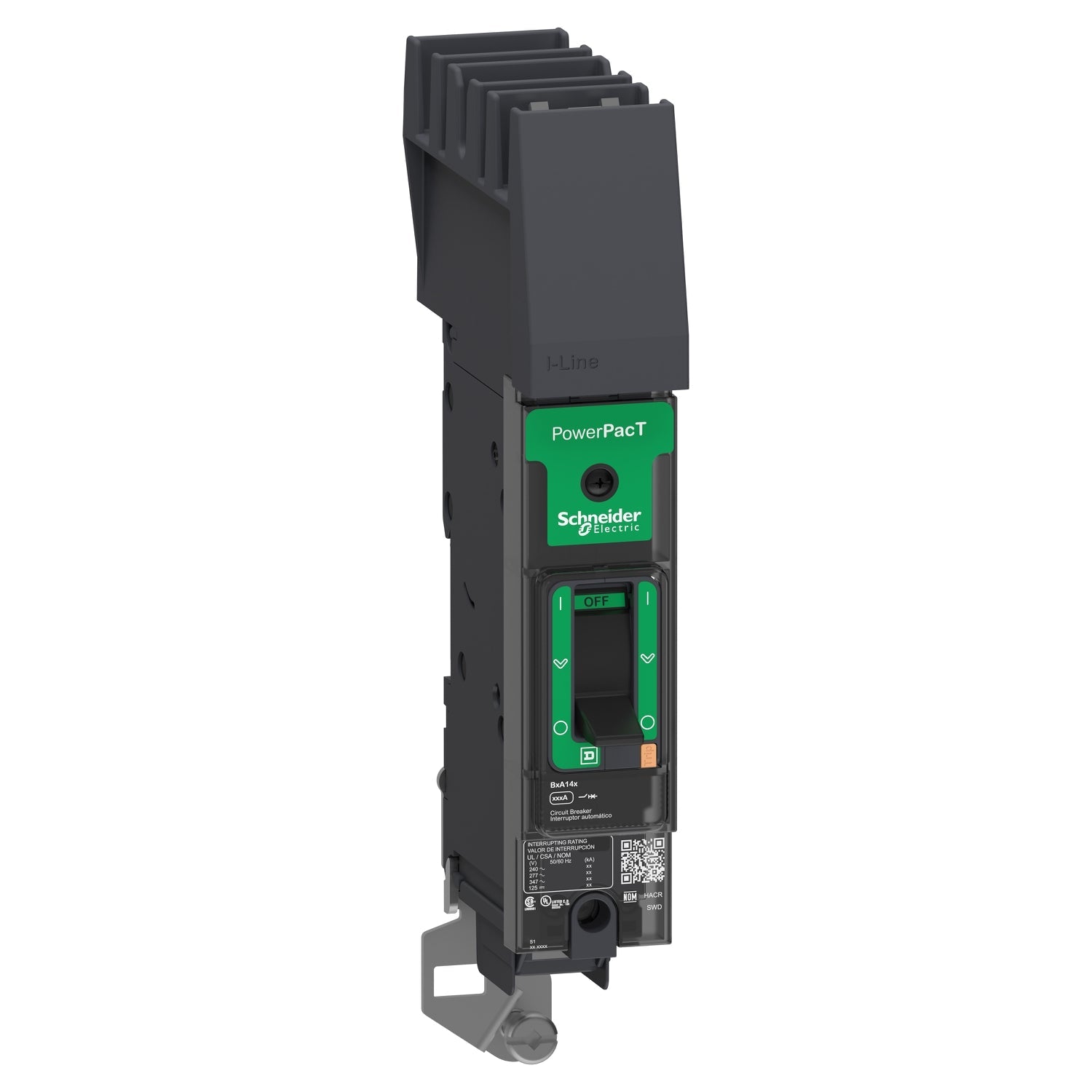

Square D BJA160205 Circuit Breaker | 600V 20A 1P 100kA@240V Powerpact

Product Description:
The Square D BJA160205 is a Molded Case Circuit Breaker from the Powerpact family. It features a 1-pole design with a 600V, 20A rating and a 100kA@240V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: BJA160205
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJA
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 100kA@240V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: J
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: C
✔ UPC: 606481154180
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
✔ Dimensions: 1.06 in x 5.39 in
✔ Weight: 1 lb
✔ Standards: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Certification: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
