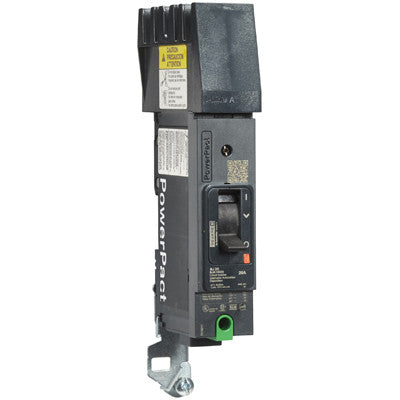

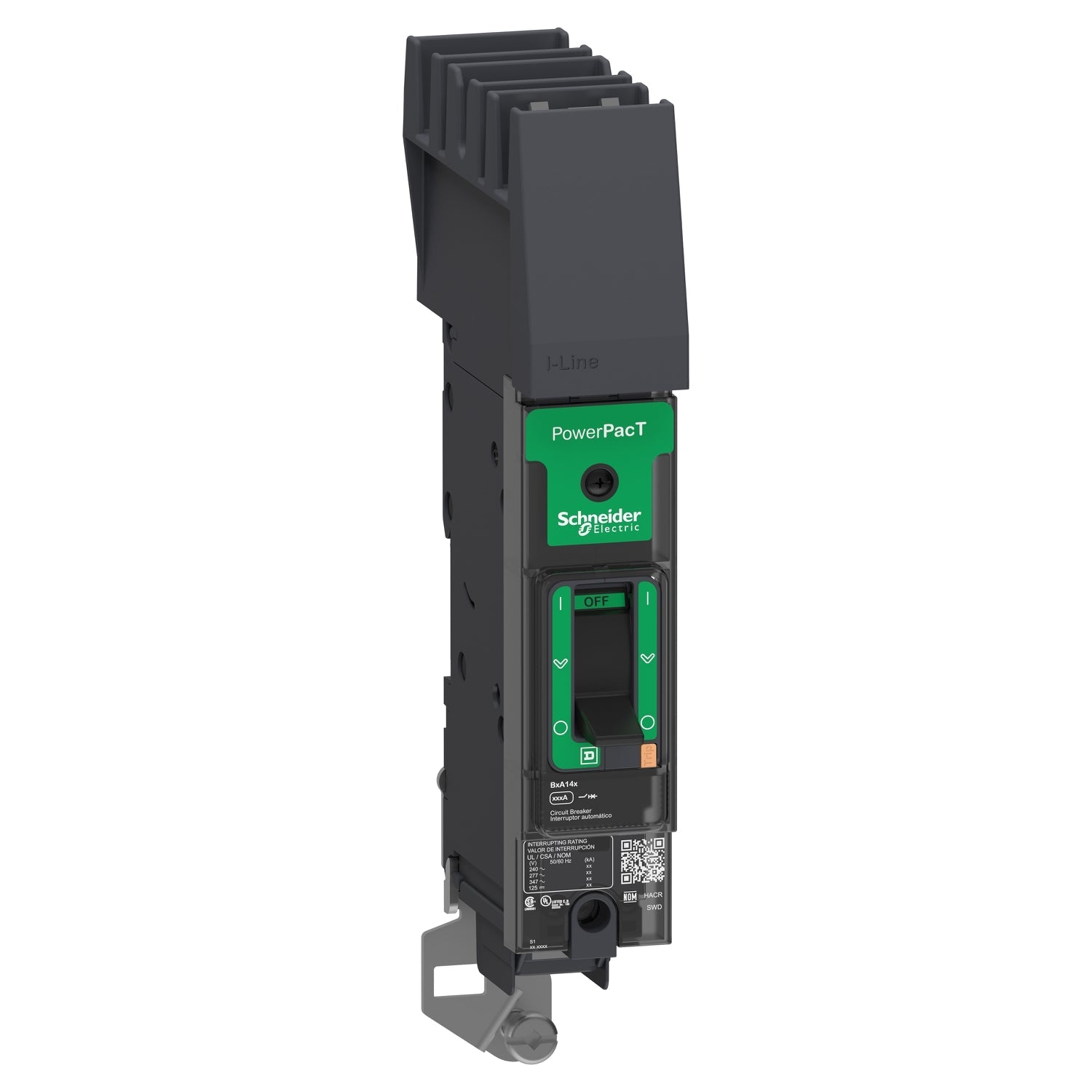

Schneider Electric BJA160301 Circuit Breaker | Powerpact BJA 600V 30A

Product Description:
The Schneider Electric BJA160301 is a Molded Case Circuit Breaker from the Powerpact family. It features a 1-pole design with a 600V, 30A rating and a 100kA@240V AIC rating. This breaker uses an I-Line Style Plug-In connection and offers Thermal Magnetic protection. It supports wire sizes from 14 AWG to 2 AWG.

Key Features:
✔ Part Number: BJA160301
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJA
✔ Voltage: 600V
✔ Amperage: 30A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 100kA@240V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BJ
✔ Wire Size: 14 AWG to 2 AWG
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ UPC: 785901056287
✔ GTIN: 00785901056287
✔ Country of Origin: Mexico
✔ Dimensions: 5.39 in (137 mm) x 3.09 in (78.49 mm) x 4.44 in (112.78 mm)
✔ Weight: 1 lb
