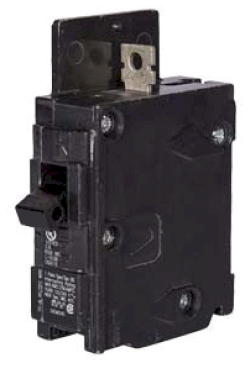

Siemens BQ1B01500S01 Circuit Breaker | 120V 15A 1P 10kA@120V Bolt-on BQ Series

Product Description:
The Siemens BQ1B01500S01 is a Molded Case Circuit Breaker from the BQ Series. It features a 1 pole, 120V, 15A design with a 10kA@120V AIC rating and Bolt-on connection. This breaker includes Thermal Magnetic protection and a non-interchangeable 120V shunt trip. It is compatible with Siemens Panelboards and meets CSA, HACR, and UL standards.

Key Features:
✔ Part Number: BQ1B01500S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643237698
✔ GTIN: 00783643237698
✔ Country of Origin: Mexico
✔ Dimensions: 3.937 x 5.906 x 2.756
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA, HACR, UL
