Product Description:

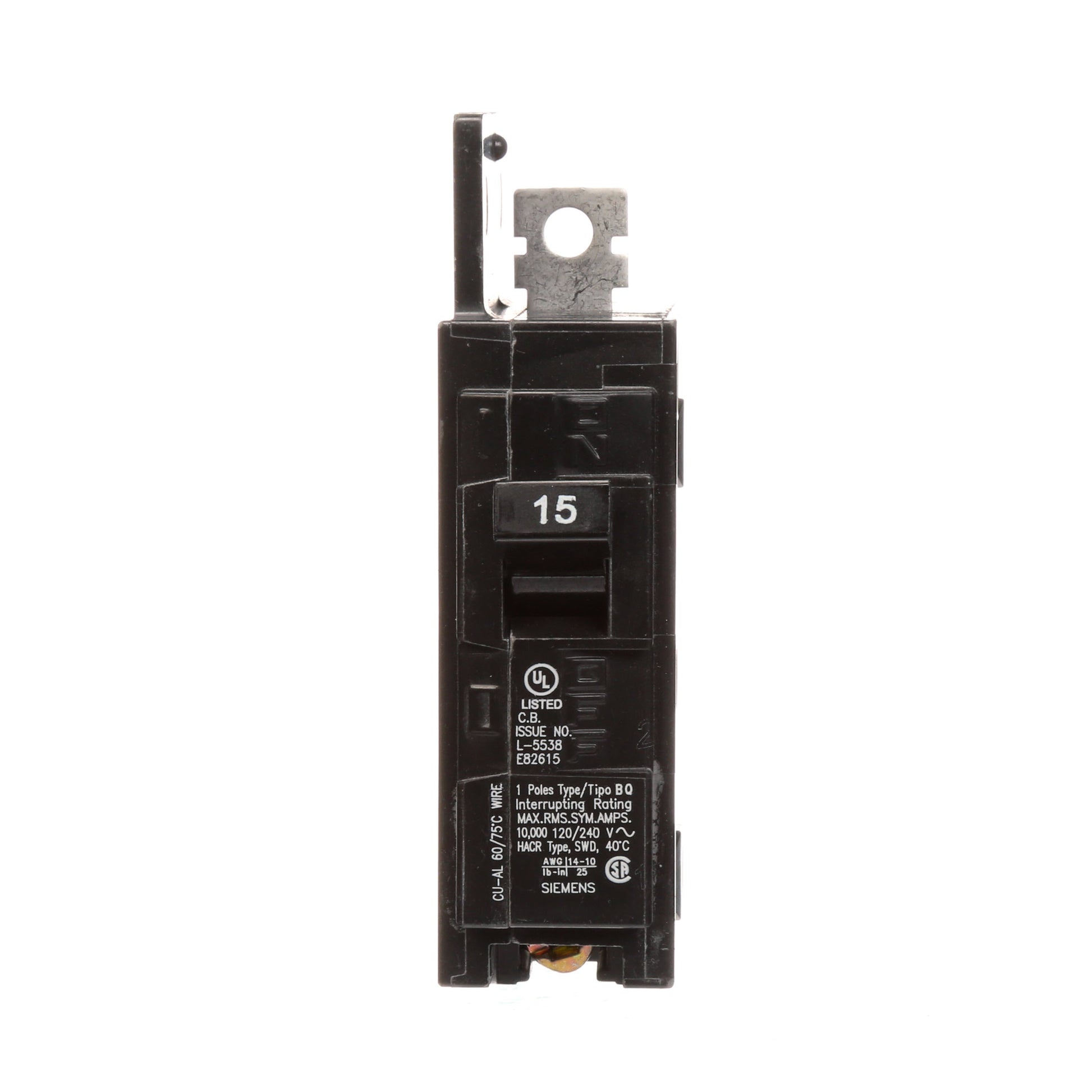

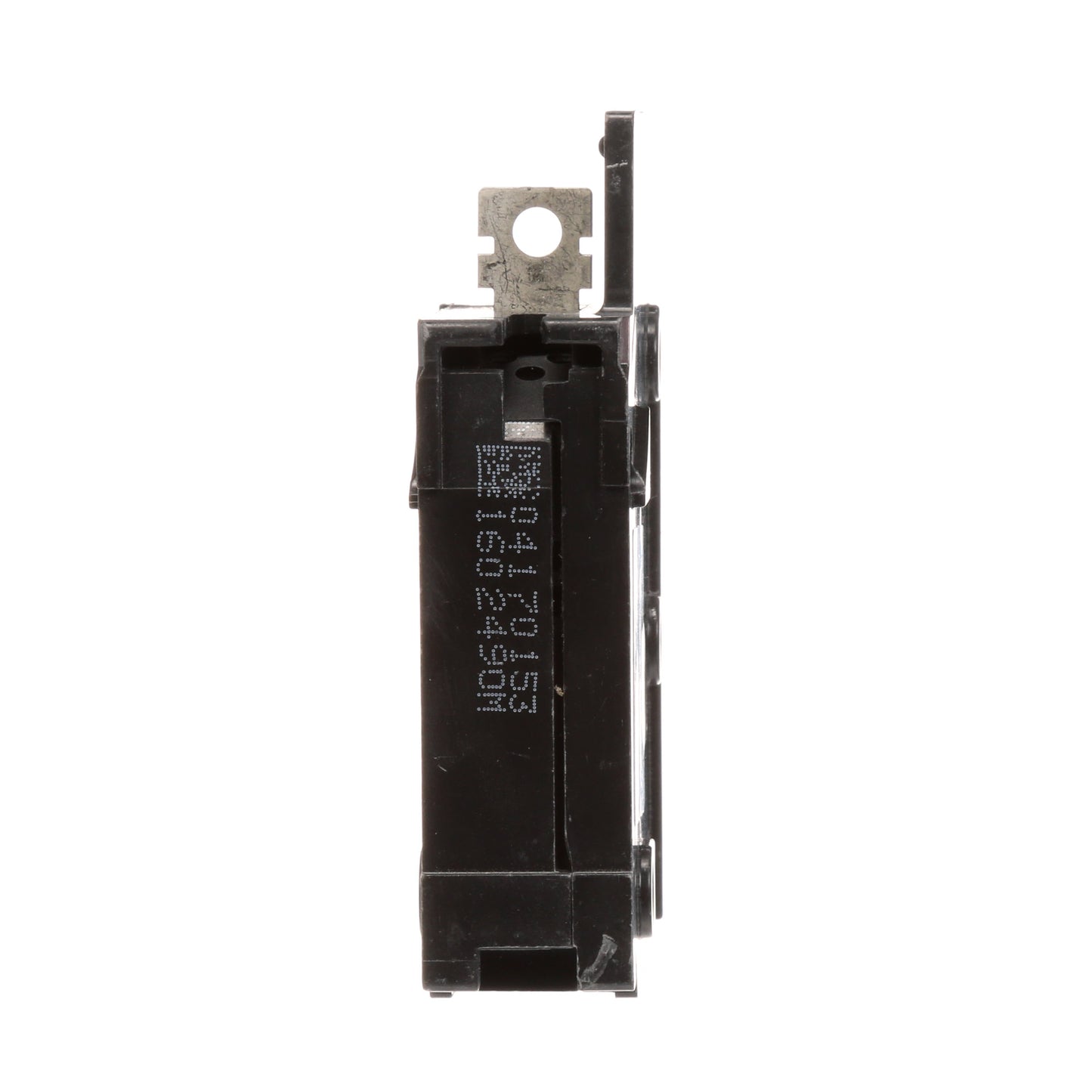

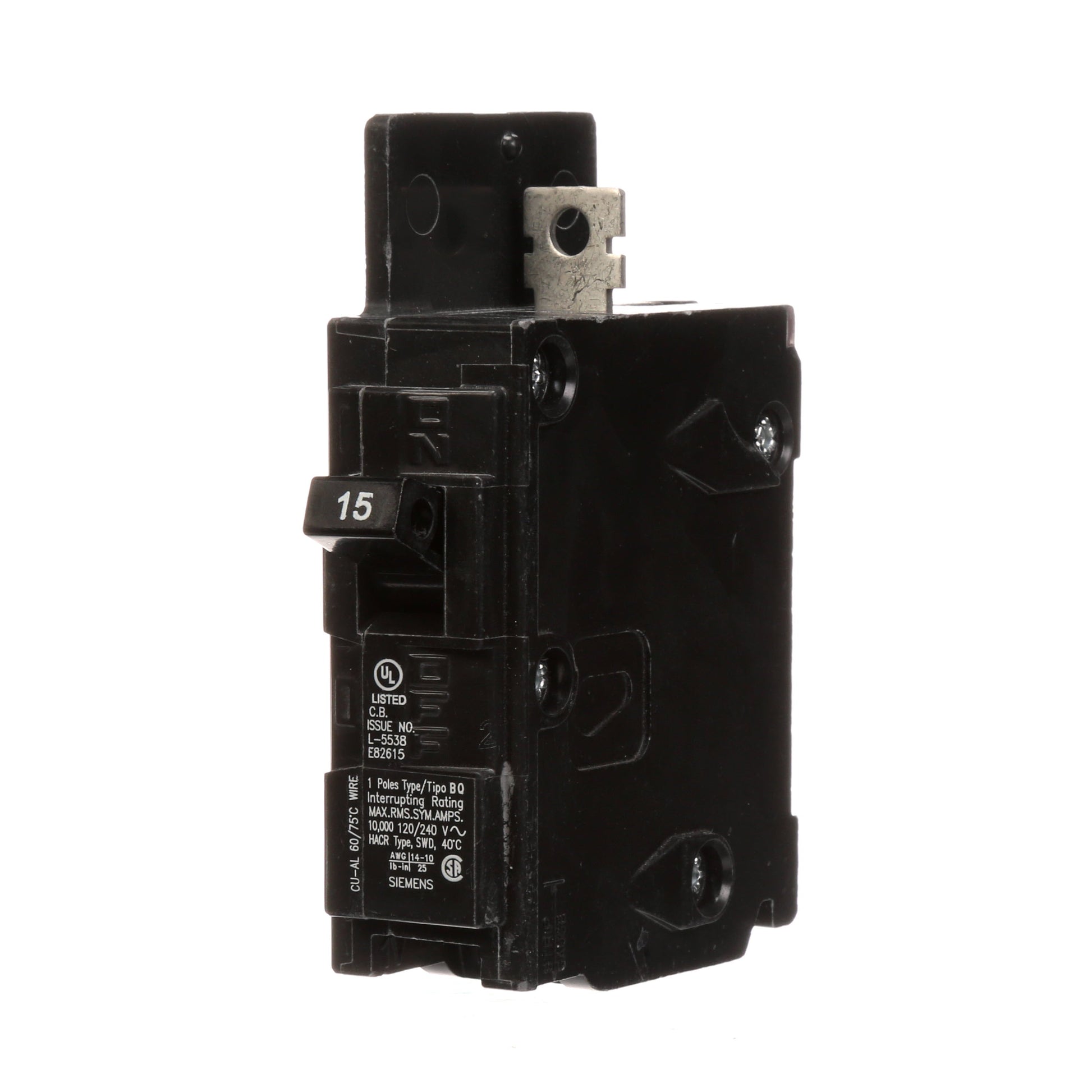

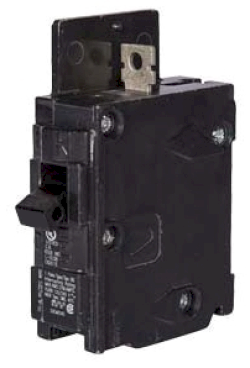

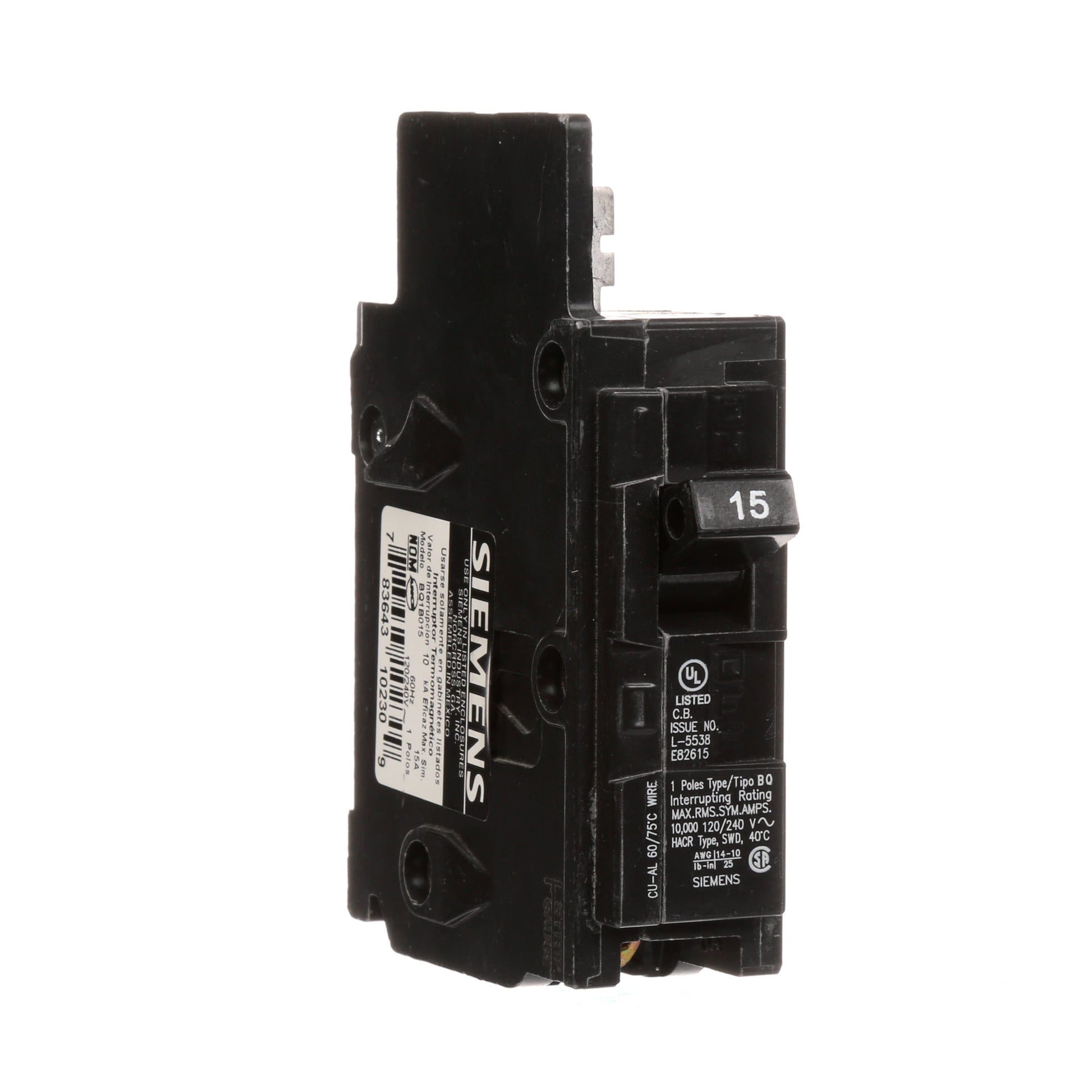

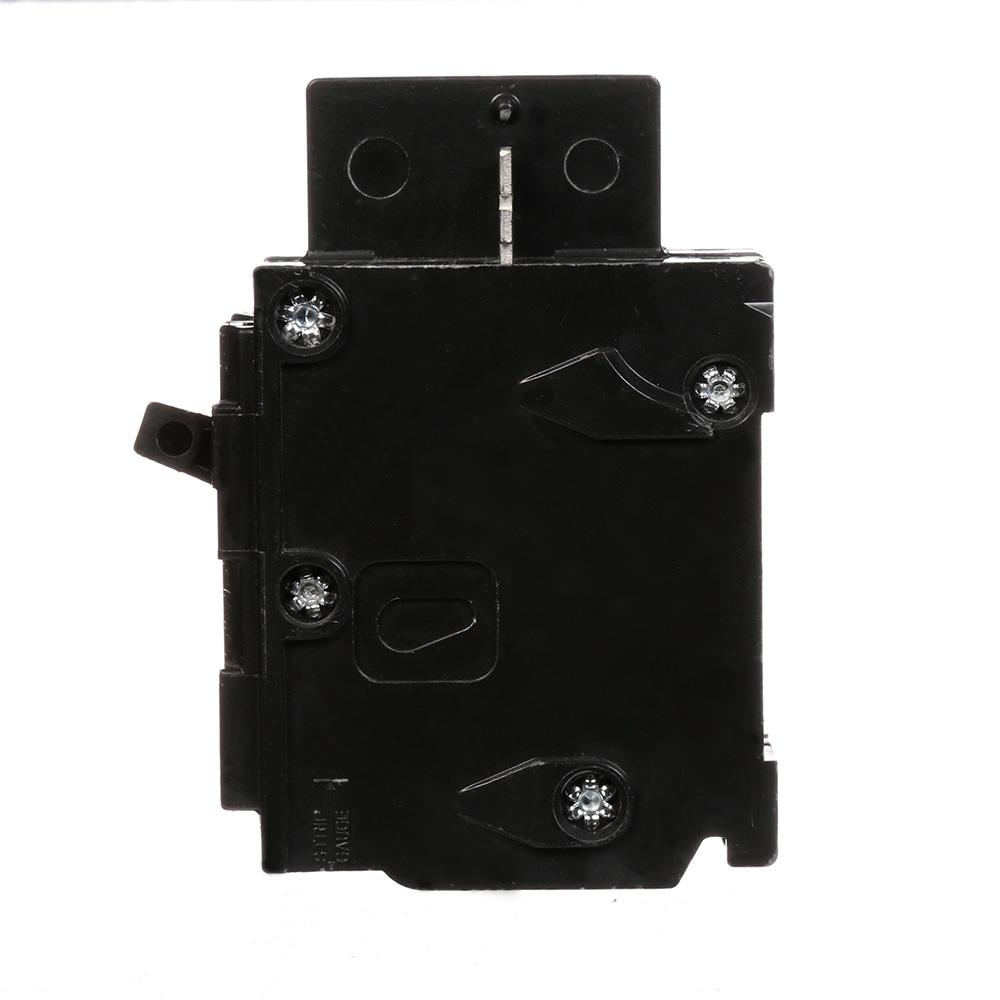

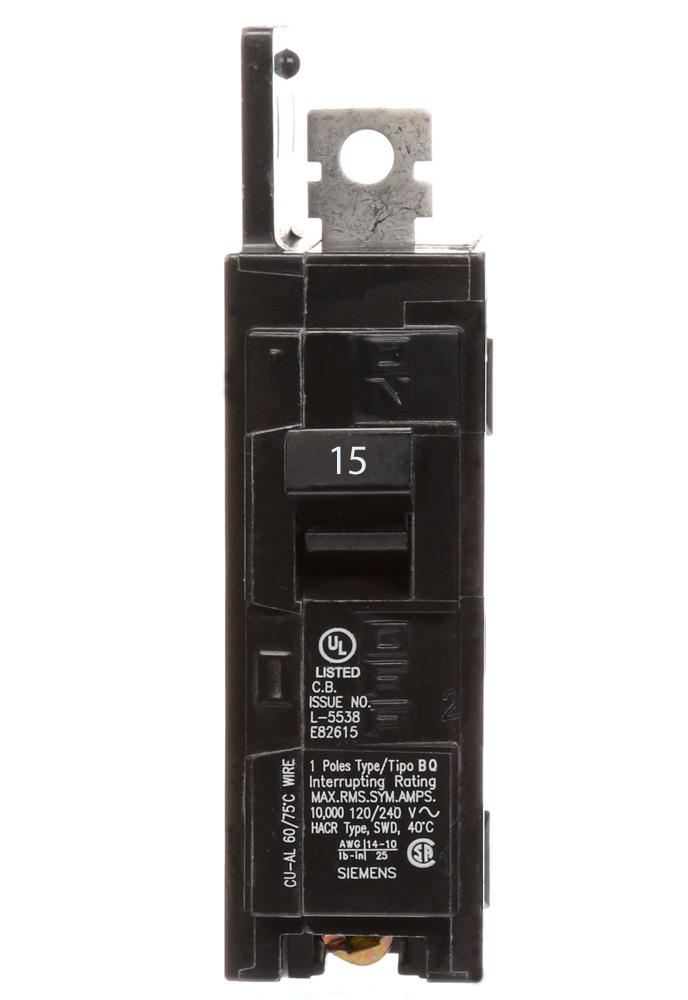

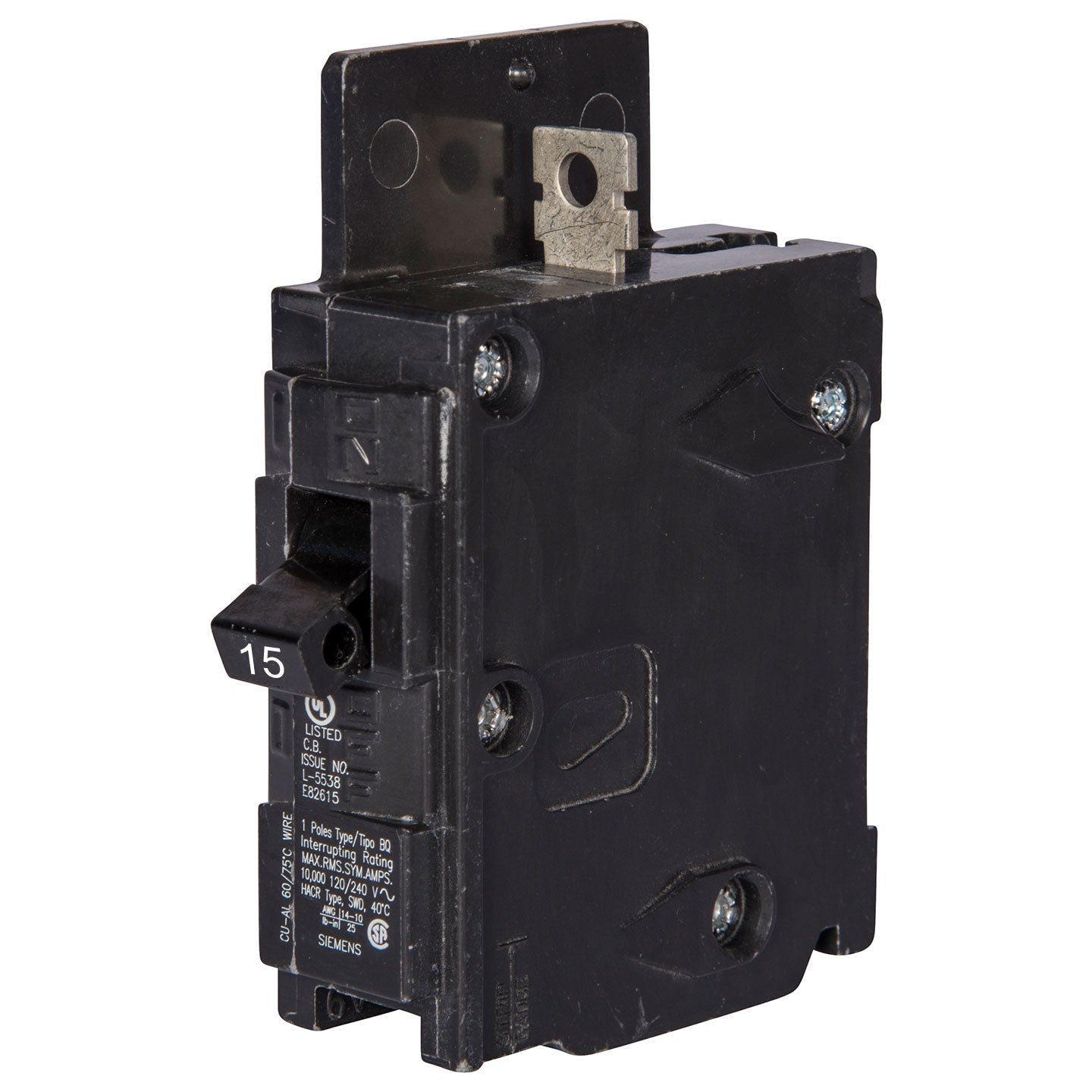

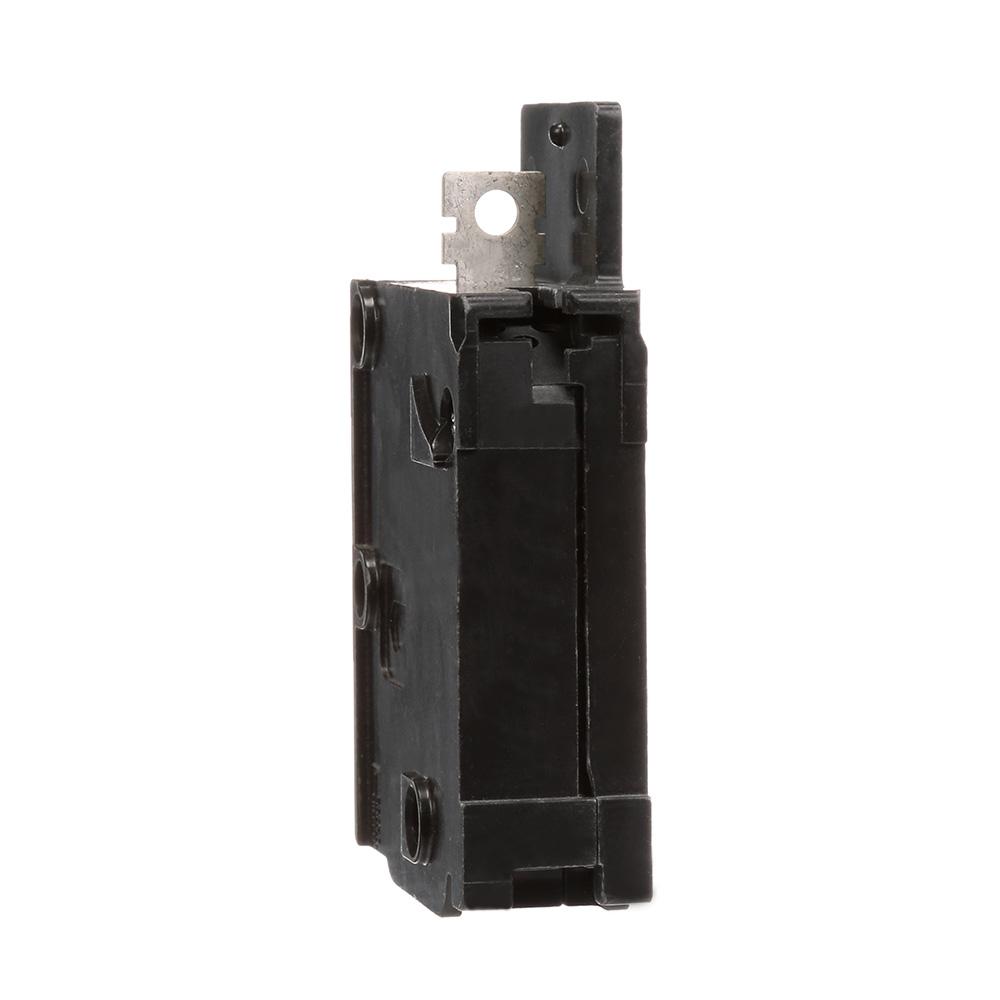

The Siemens BQ1B015 is a Molded Case Circuit Breaker from the BQ Series. It features a 1-pole design with 120VAC voltage and 15 amp rating, offering reliable thermal magnetic protection. This circuit breaker has a 10kA@120V AIC rating and uses a bolt-on connection for secure installation. It is compatible with Siemens Panelboards and meets CSA, HACR, and UL standards.
Key Features:
✔ Part Number: BQ1B015
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120VAC
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643102309
✔ GTIN: 00783643102309
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 1 in x 1 in
✔ Weight: 0.63
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
