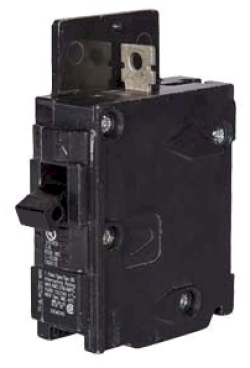

Siemens BQ1B010 Molded Case Circuit Breaker | 120V 10A 10kA@120V Bolt-On BQ Series

Product Description:
The Siemens BQ1B010 is a molded case circuit breaker from the BQ Series family. It operates at 120 volts with a 10 amp rating and offers thermal magnetic protection. This bolt-on connection breaker is designed for reliable performance in electrical systems.

Key Features:
✔ Part Number: BQ1B010
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120
✔ Amperage: 10
✔ Phase: 1
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643472297
✔ GTIN: 00783643472297
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 1 in x 1 in
✔ Weight: 0.33
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
