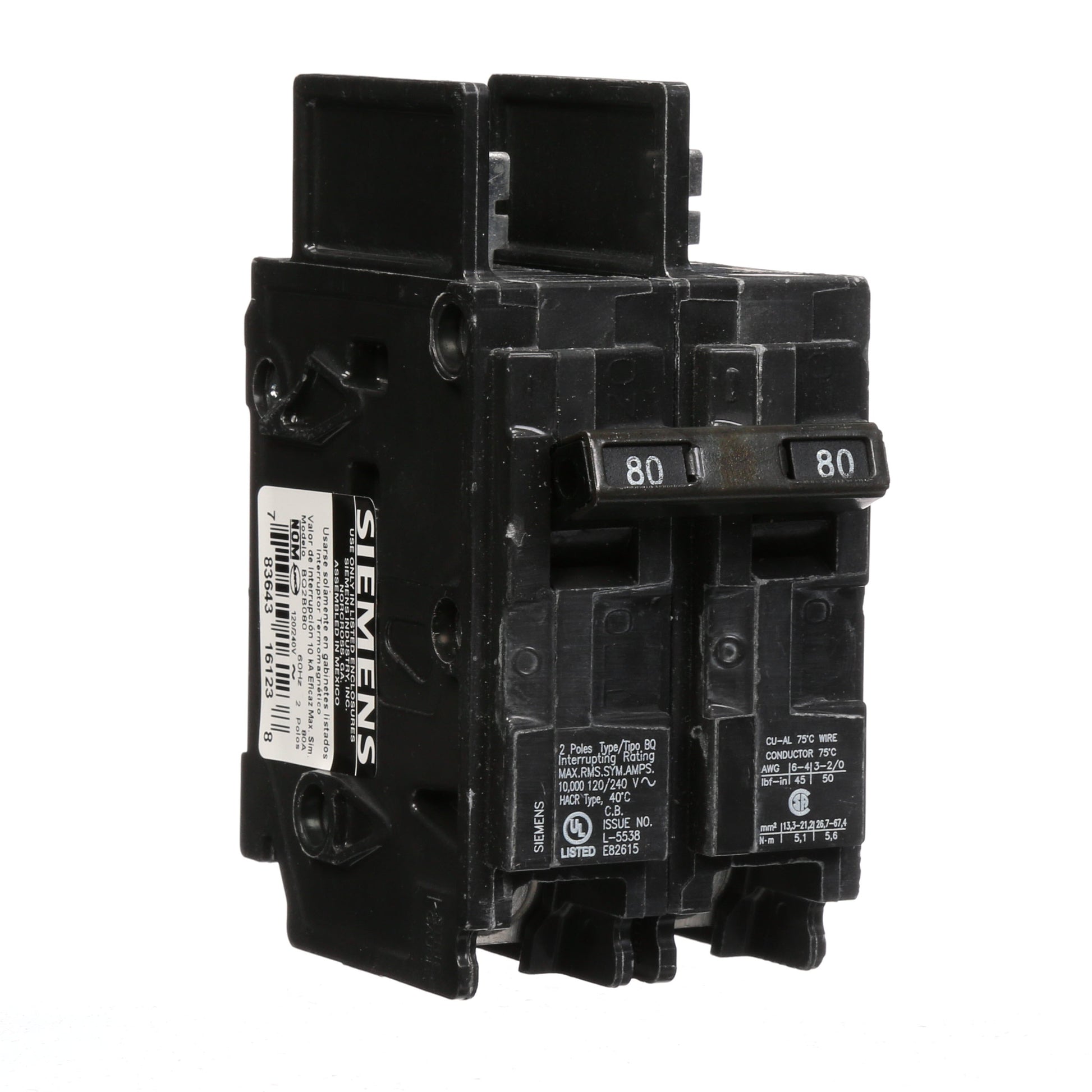

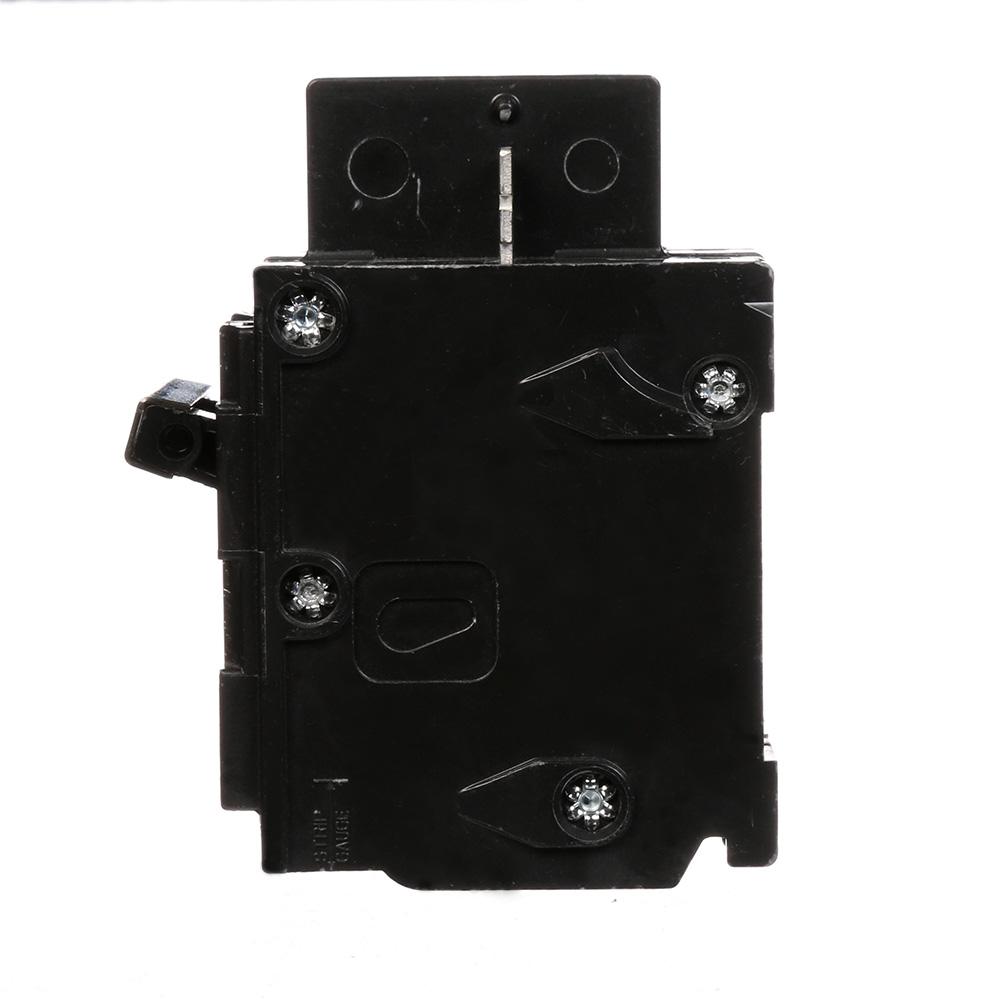

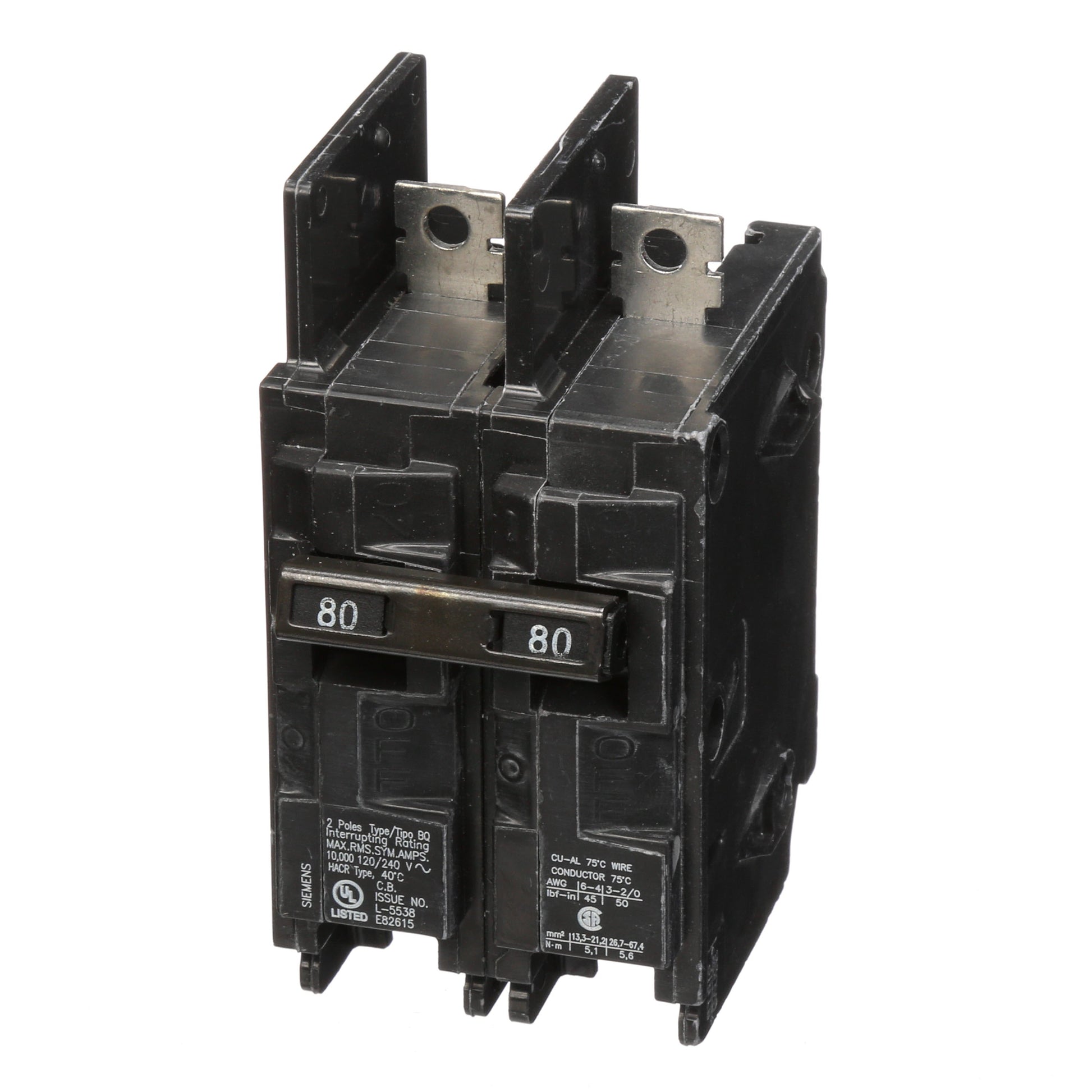

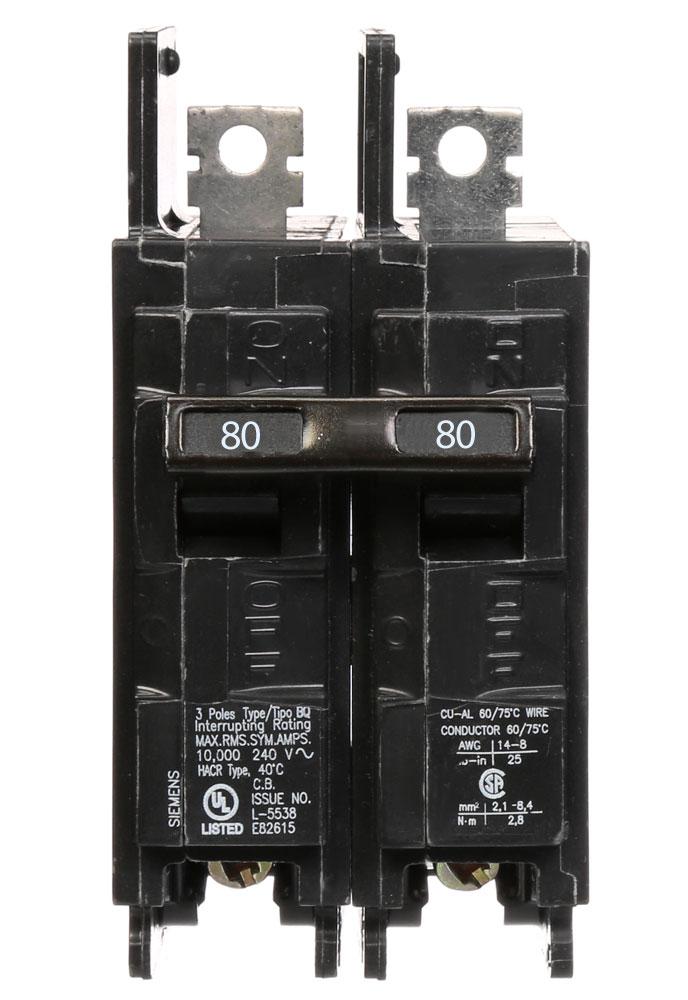

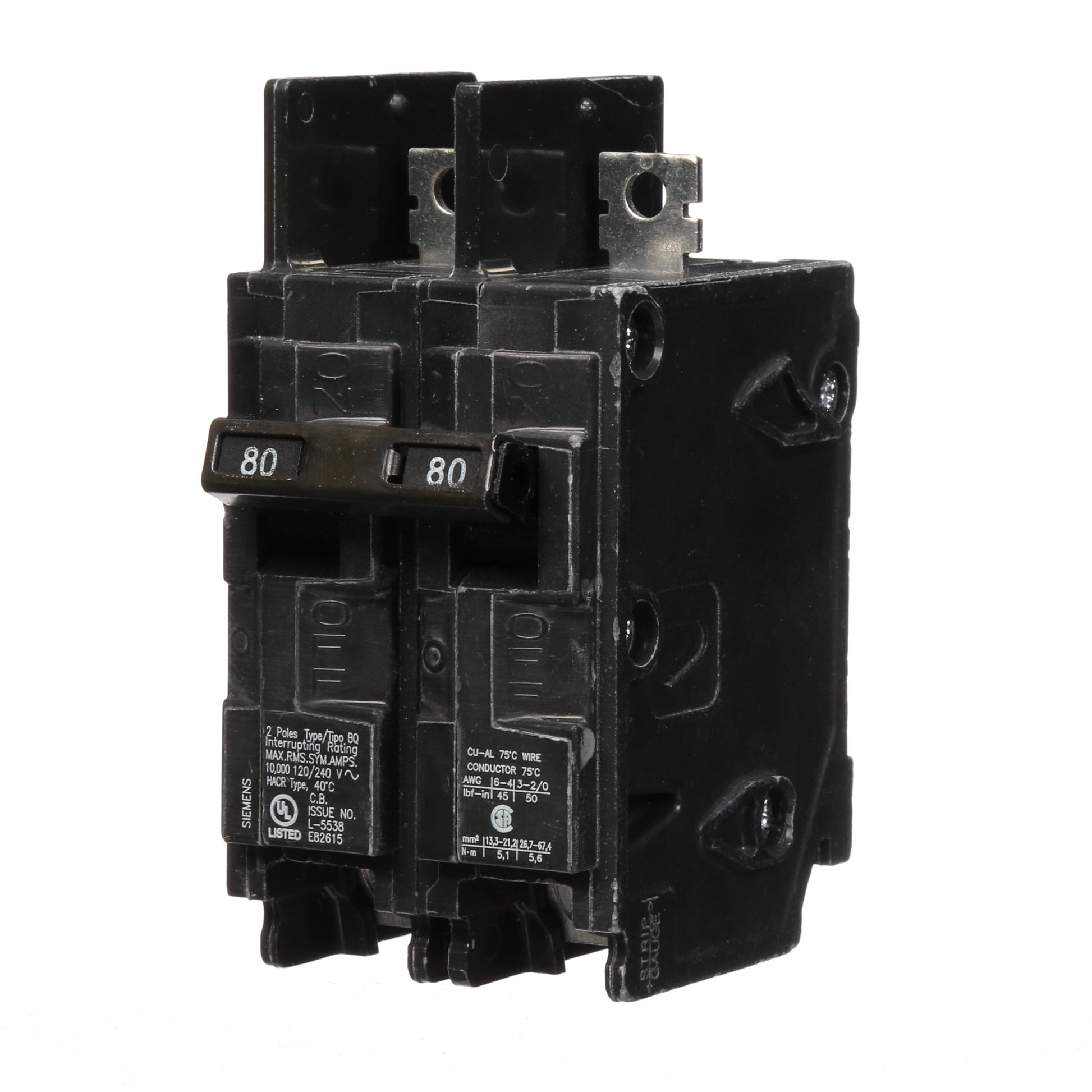

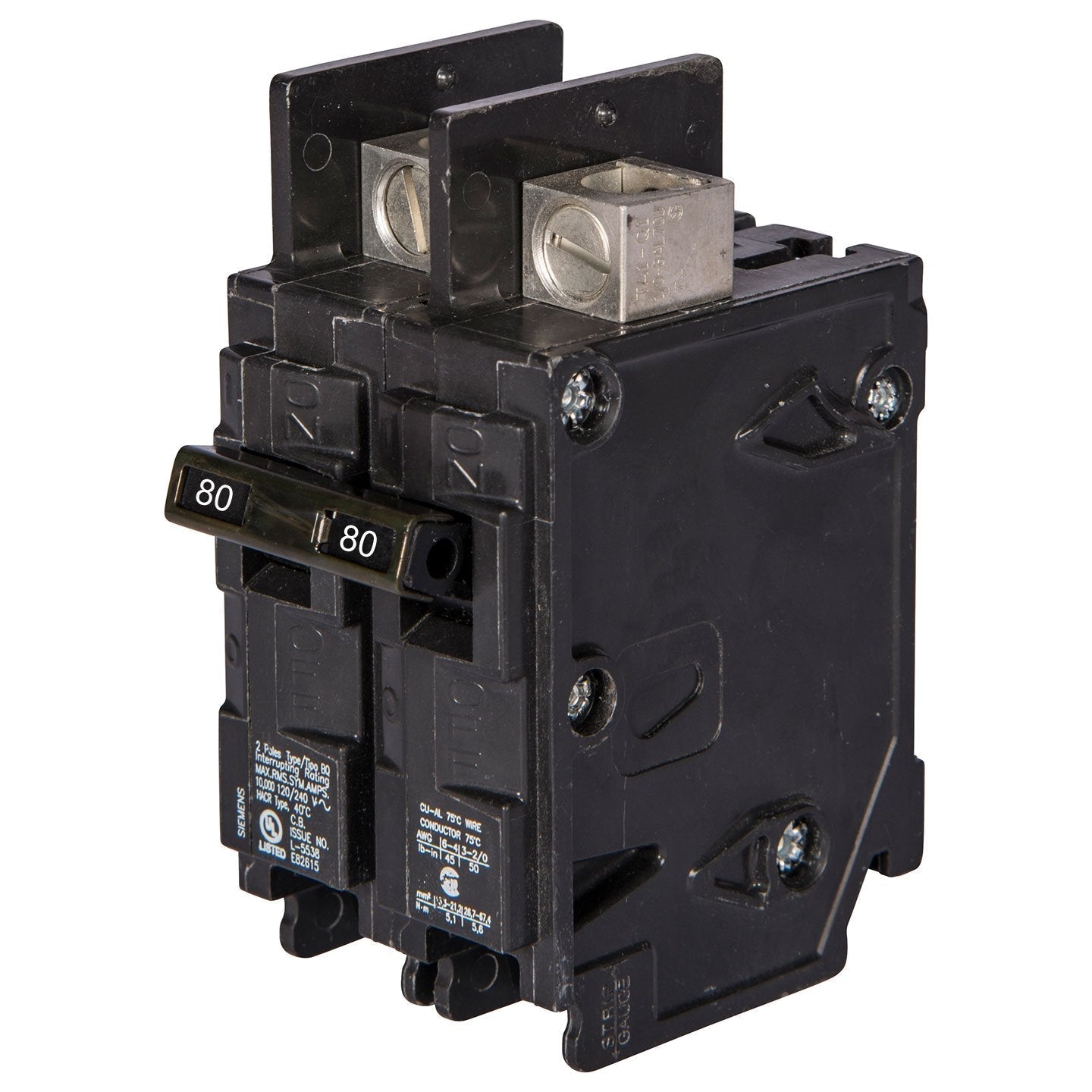

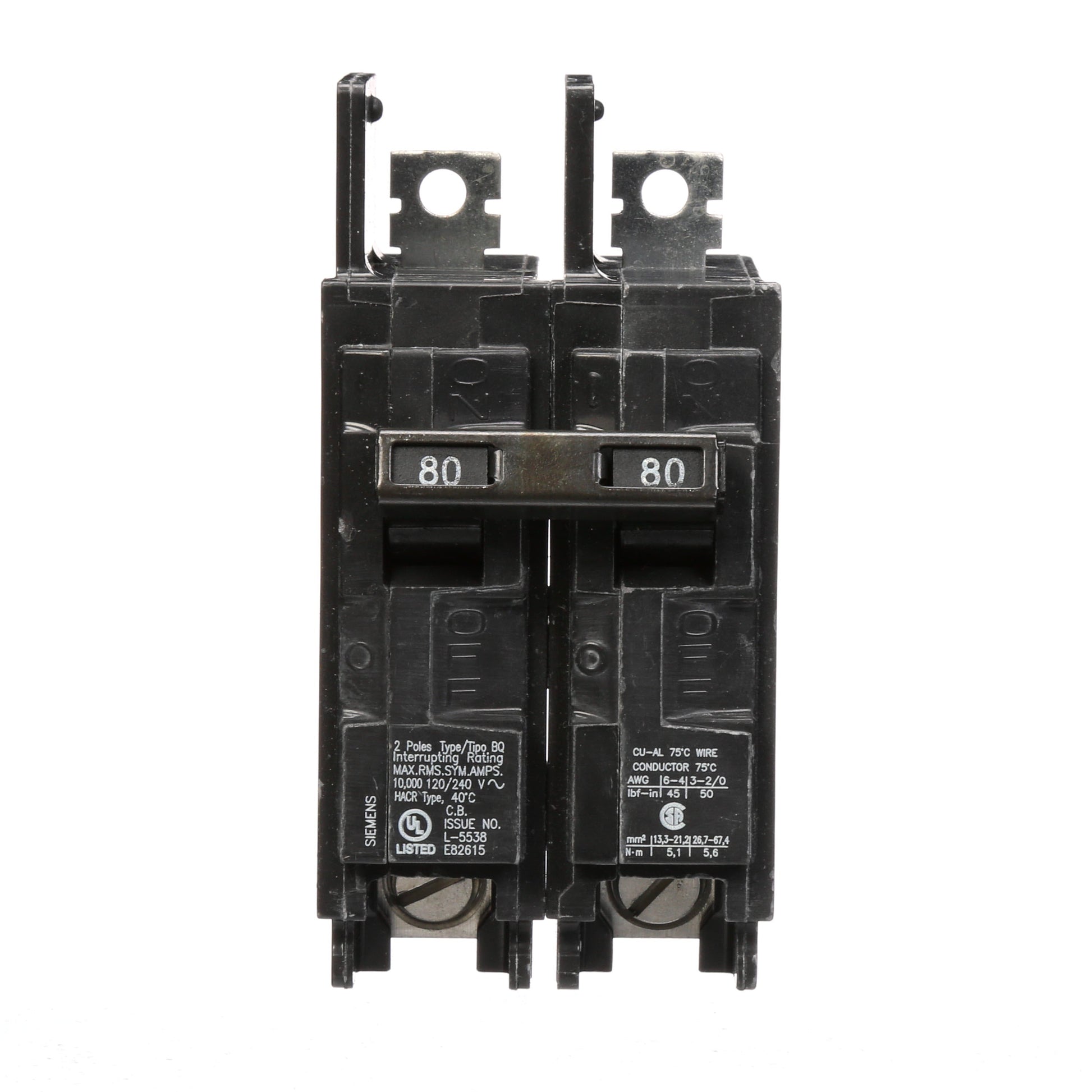

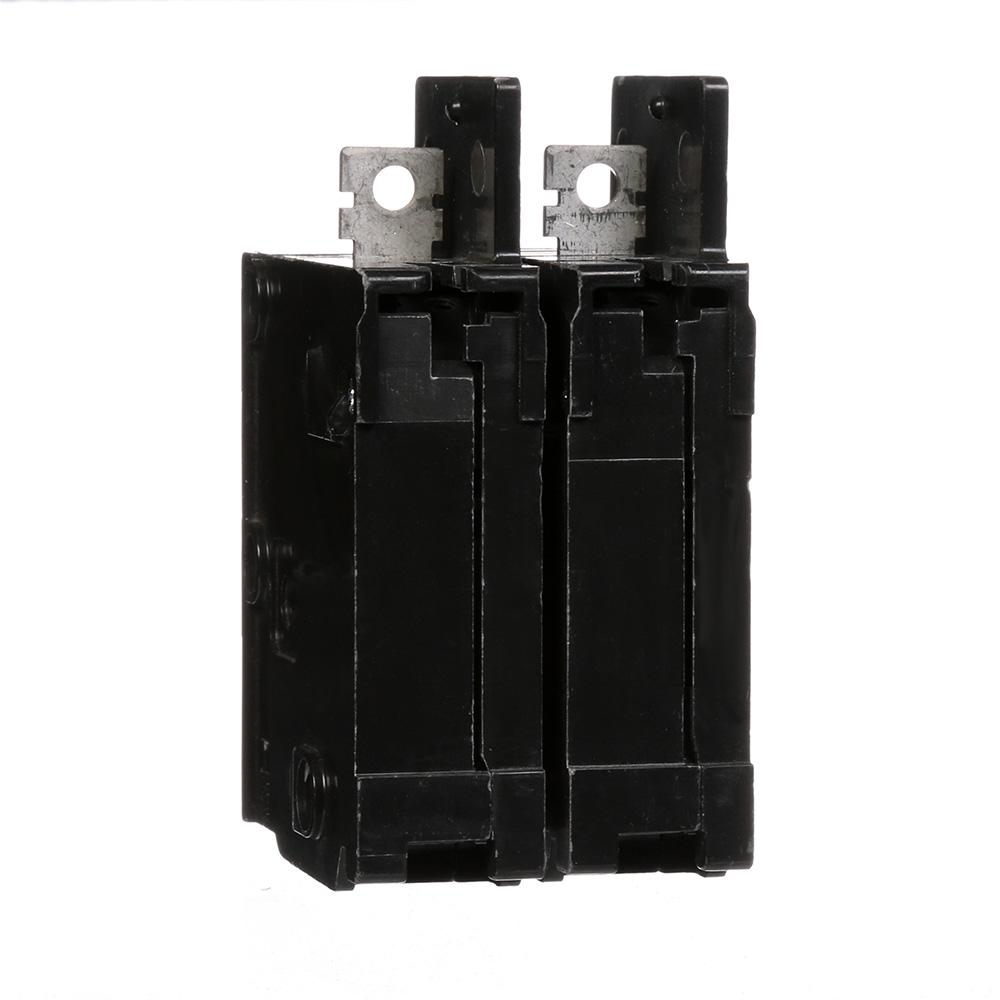

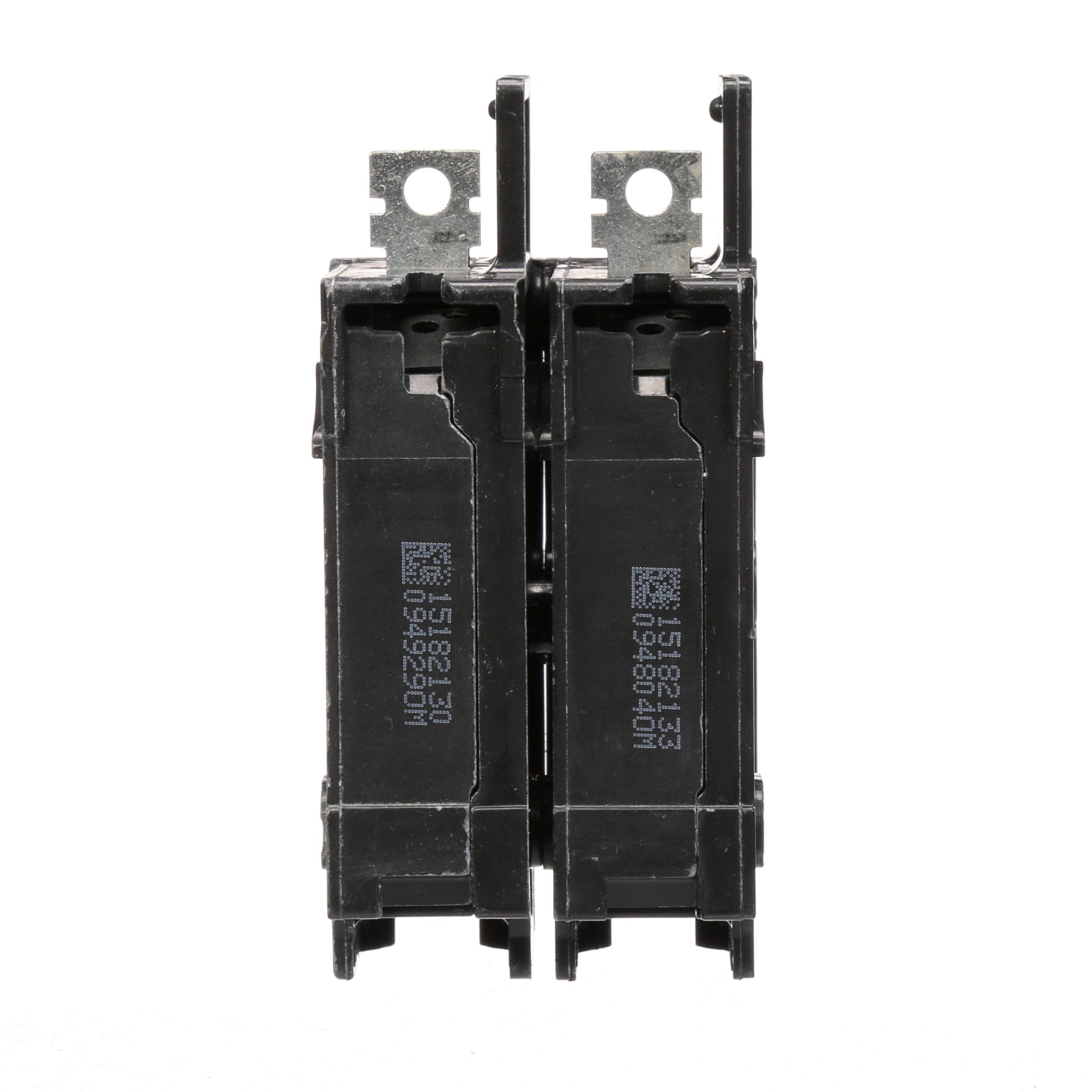

Siemens BQ2B080 Molded Case Circuit Breaker | 120/240V 80A 2P 10kA@240V BQ Series

Product Description:
The Siemens BQ2B080 is a Molded Case Circuit Breaker from the BQ Series family. It is a 2-pole, 80 amp breaker rated for 120/240V with a 10kA@240V AIC rating. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: BQ2B080
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120/240
✔ Amperage: 80
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 783643161238
✔ GTIN: 00783643161238
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 4 in x 4 in
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
