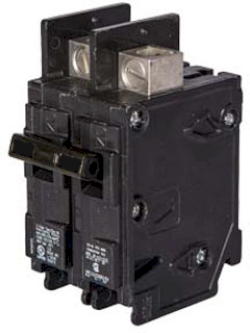

Siemens BQ2B08000S01 Molded Case Circuit Breaker 120/240V 80A 2P 10kA@240V Bolt-on BQ Series

Product Description:
The Siemens BQ2B08000S01 is a molded case circuit breaker designed for reliable electrical protection. It features a 2-pole configuration with a 120/240V rating and an 80 amp capacity. This breaker includes thermal magnetic protection and a non-interchangeable 120V shunt trip. It is compatible with Siemens panelboards and meets industry standards for safety and performance.

Key Features:
✔ Part Number: BQ2B08000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120/240
✔ Amperage: 80
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643237780
✔ GTIN: 00783643237780
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 3 in x 3 in
✔ Weight: 0.75
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
