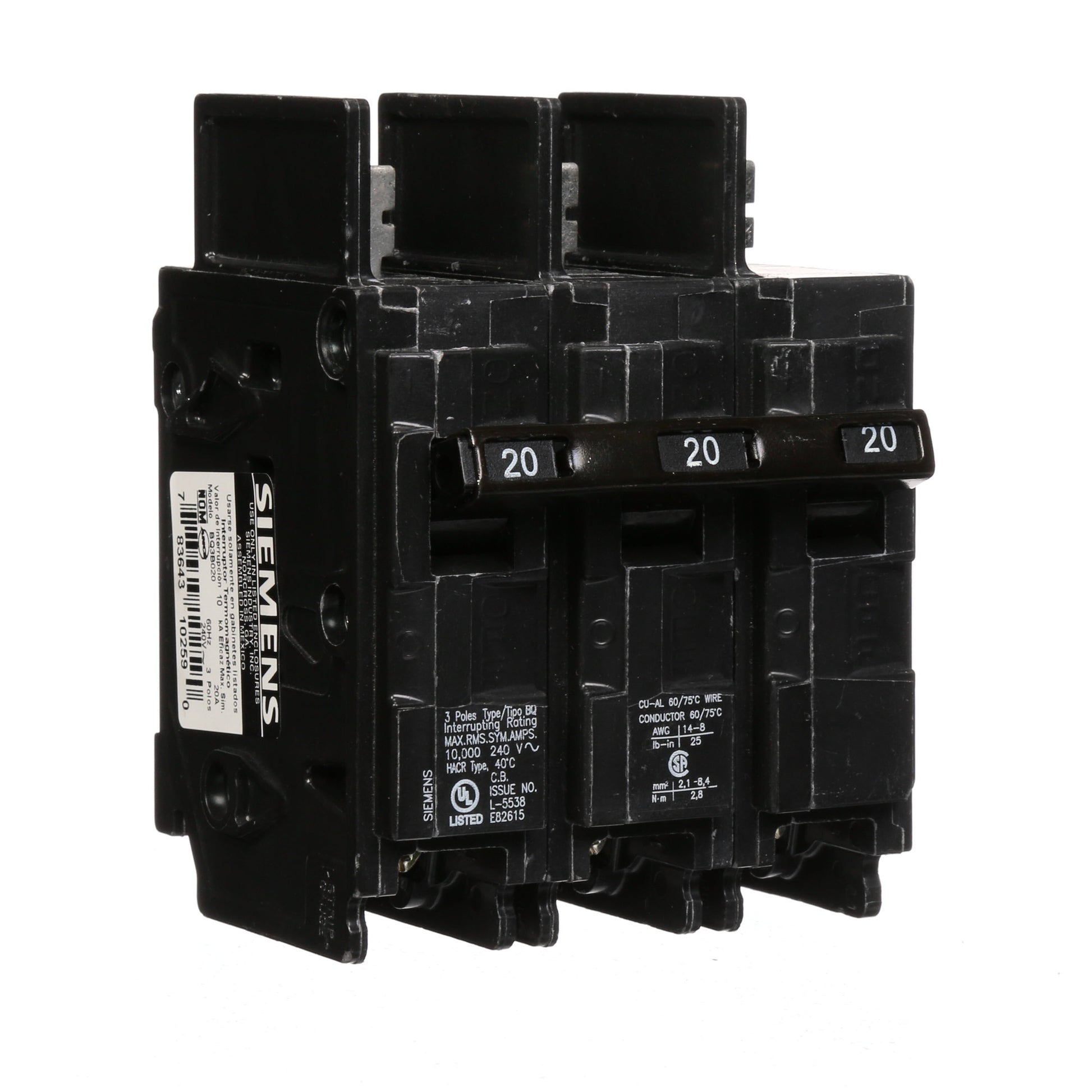

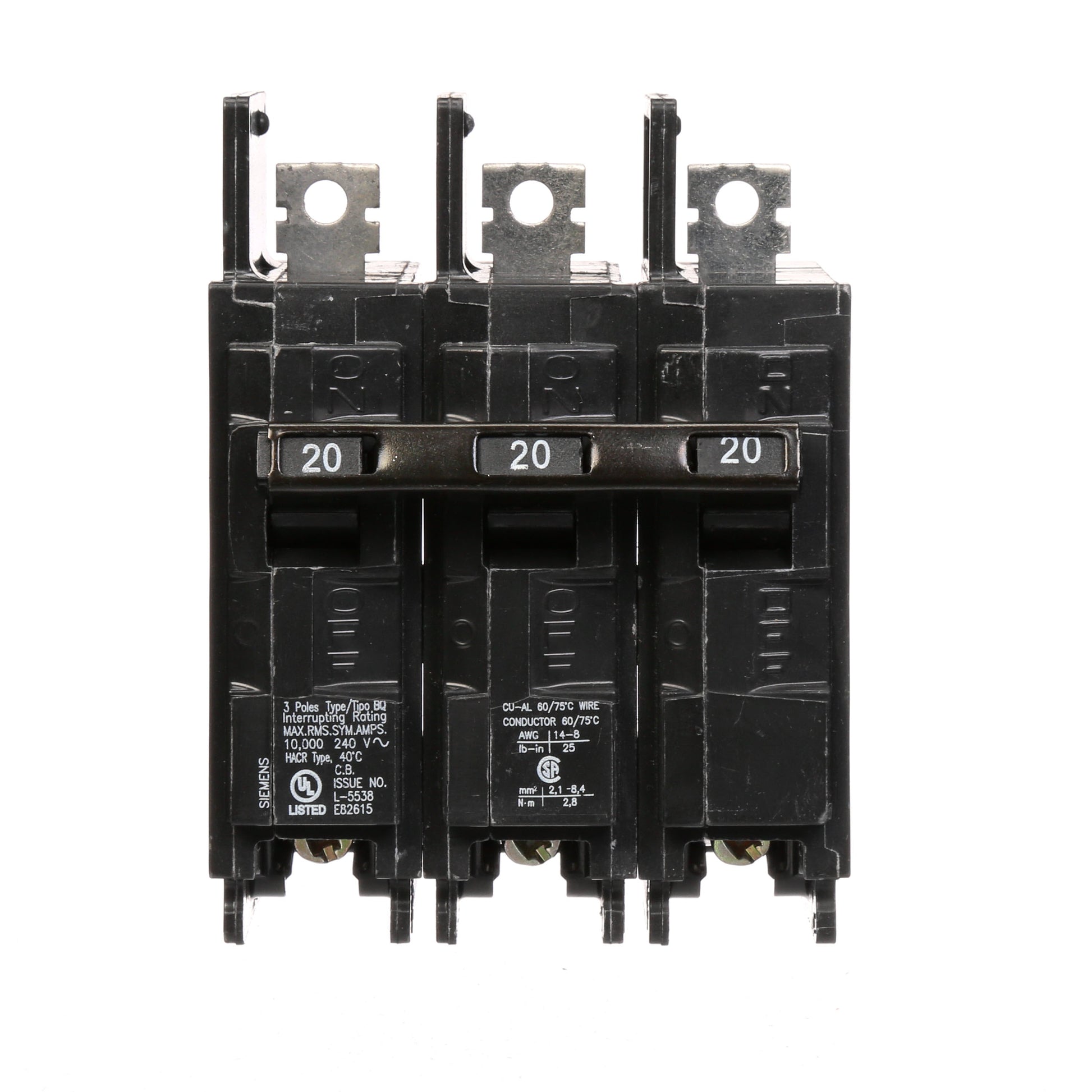

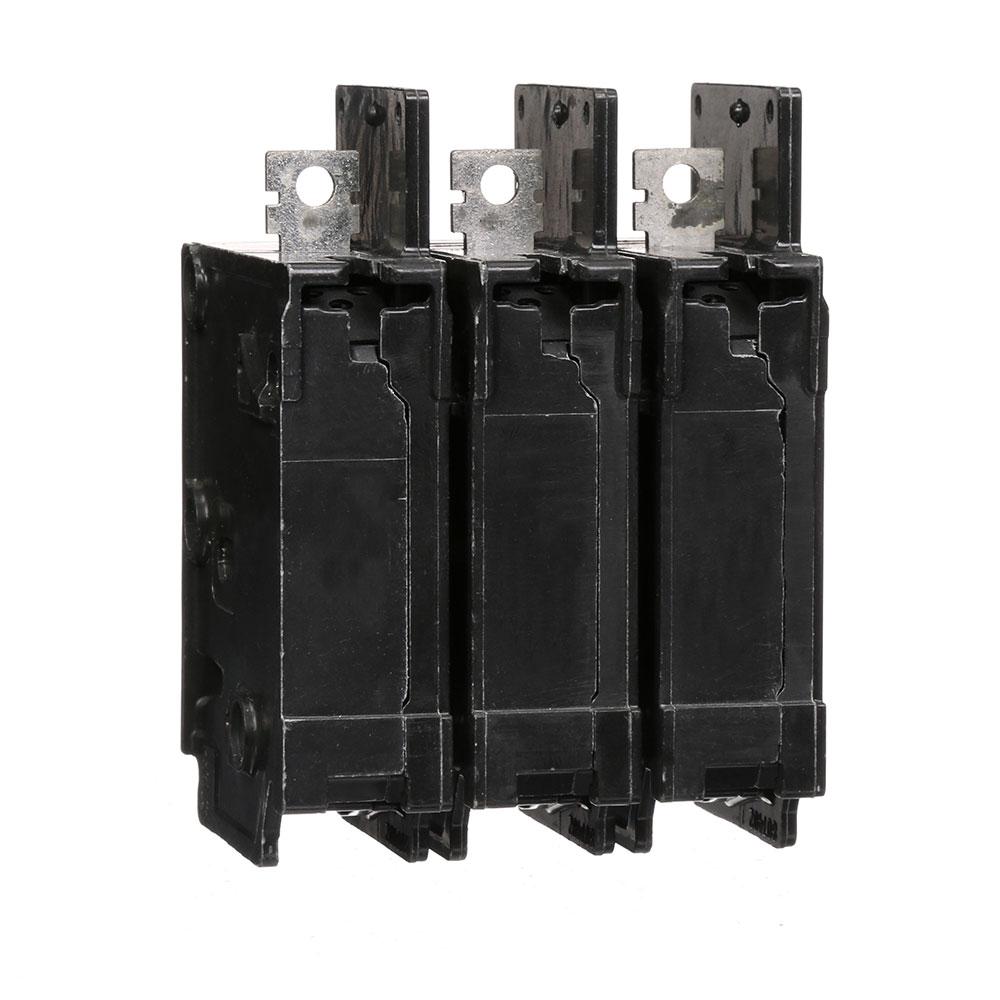

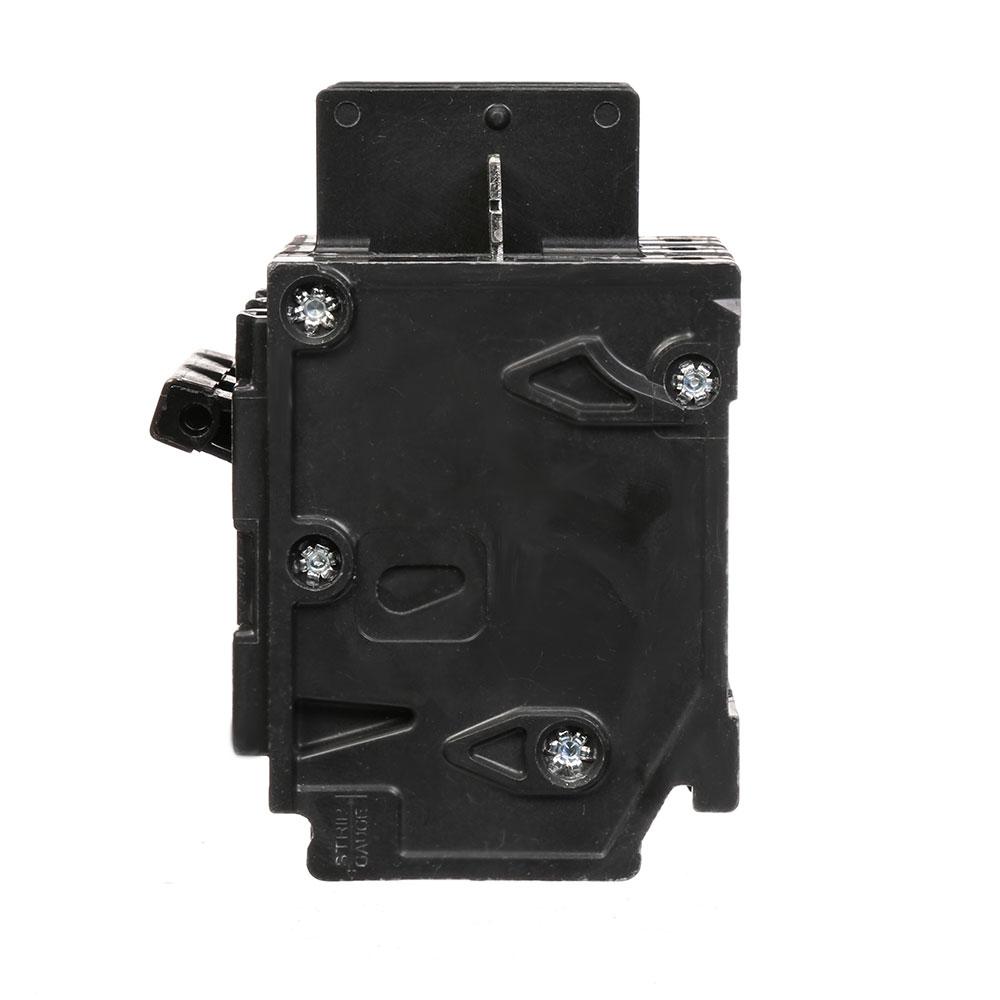

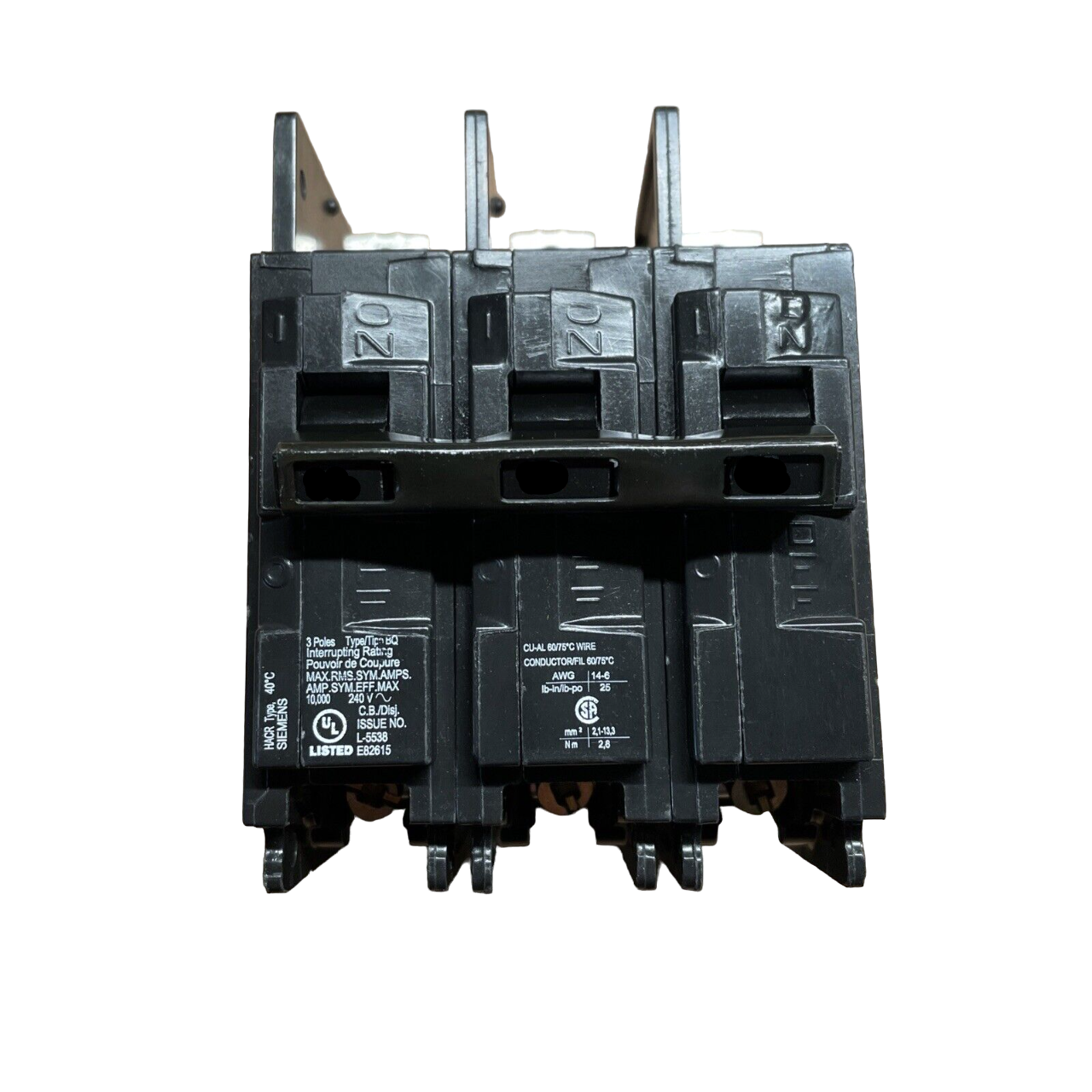

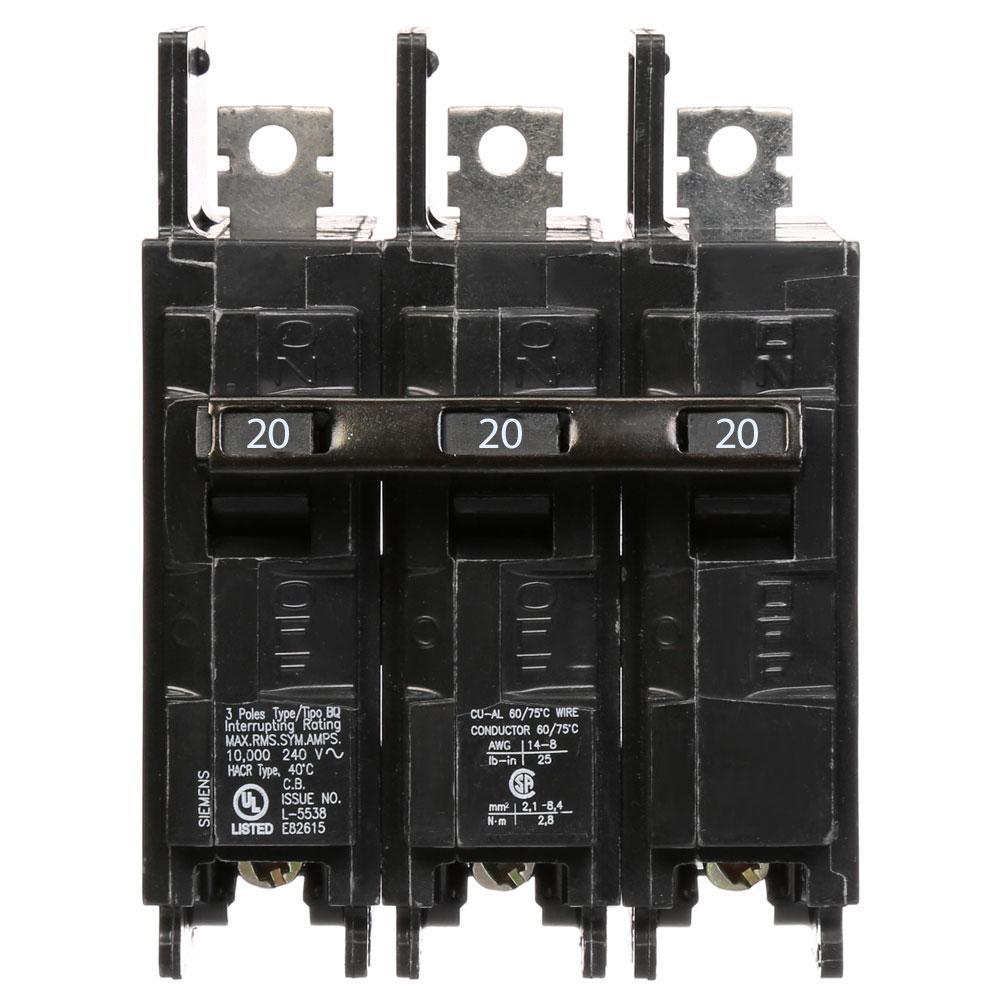

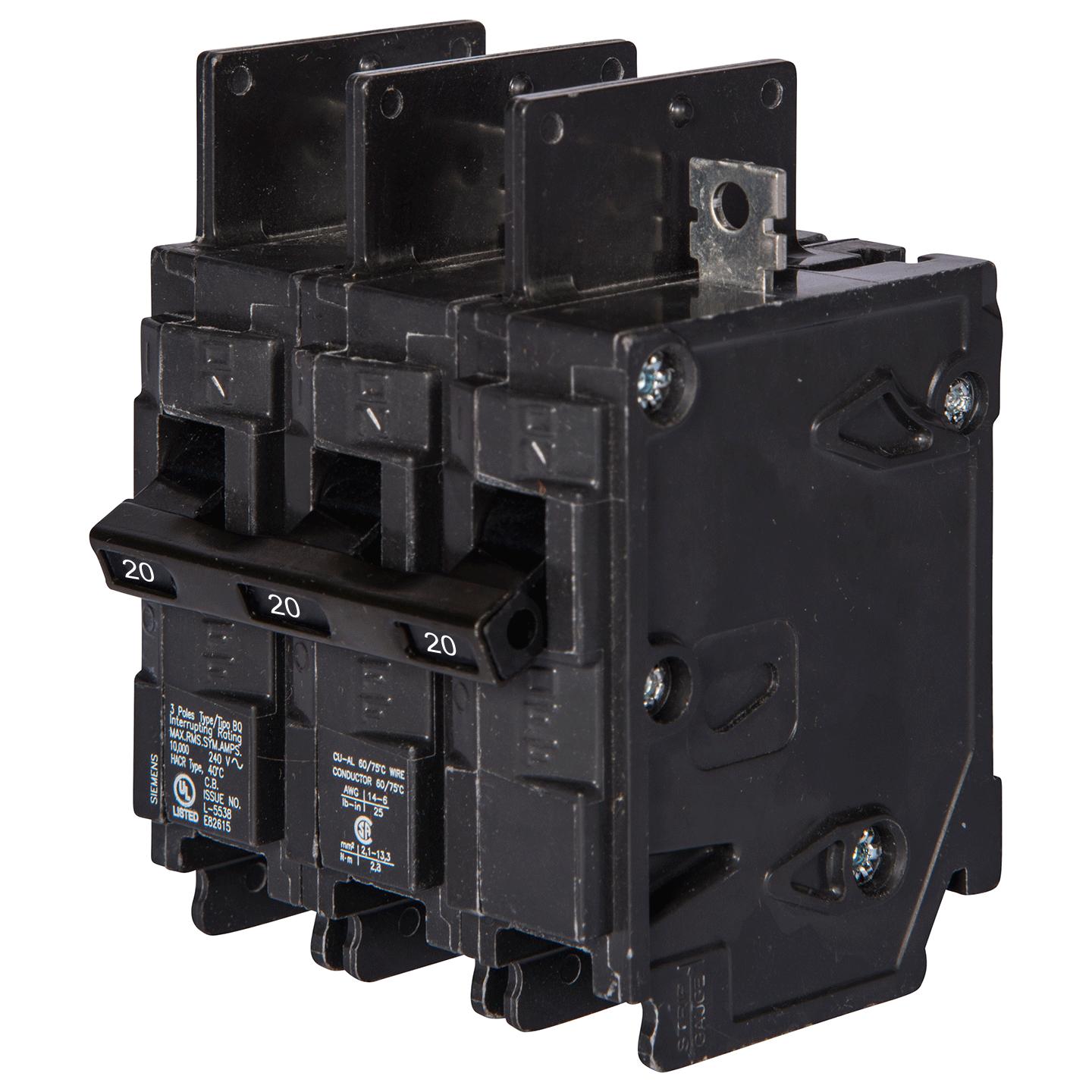

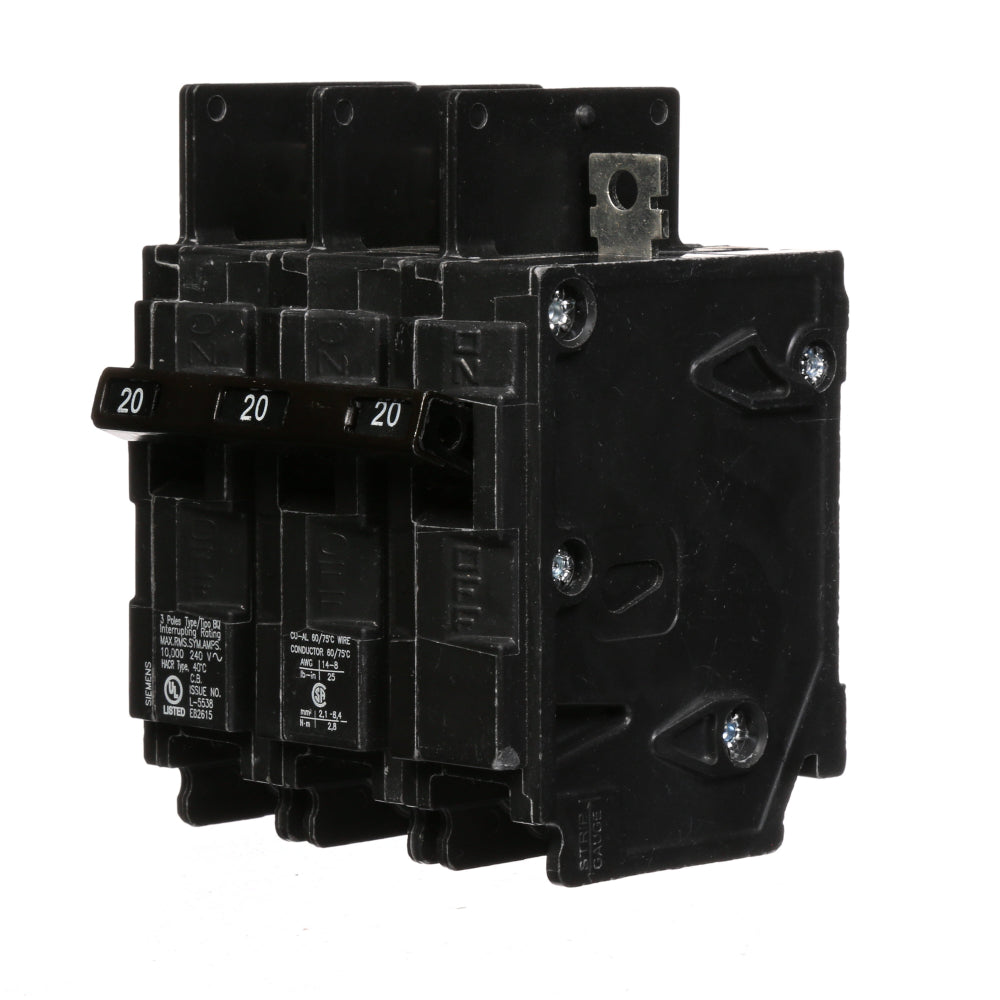

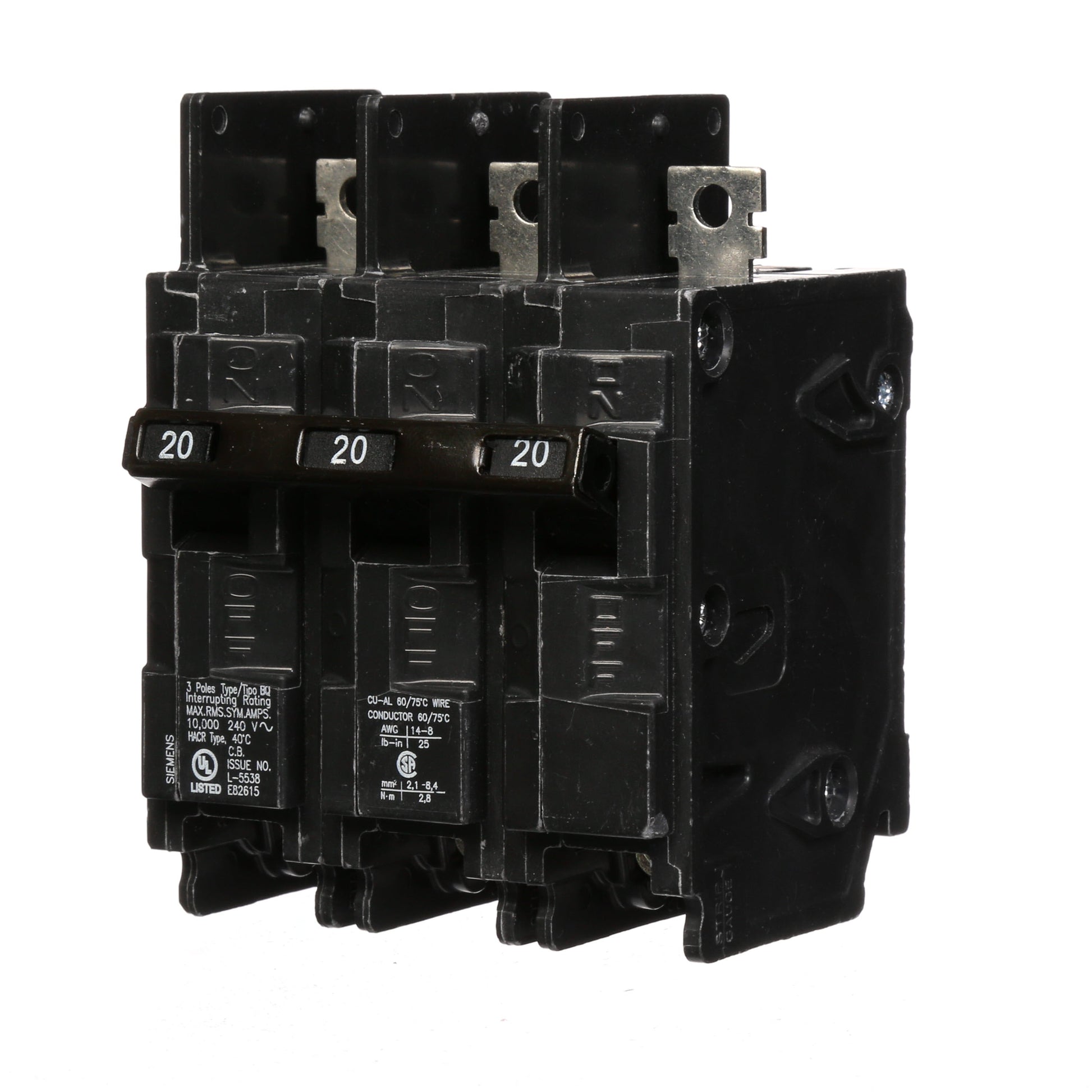

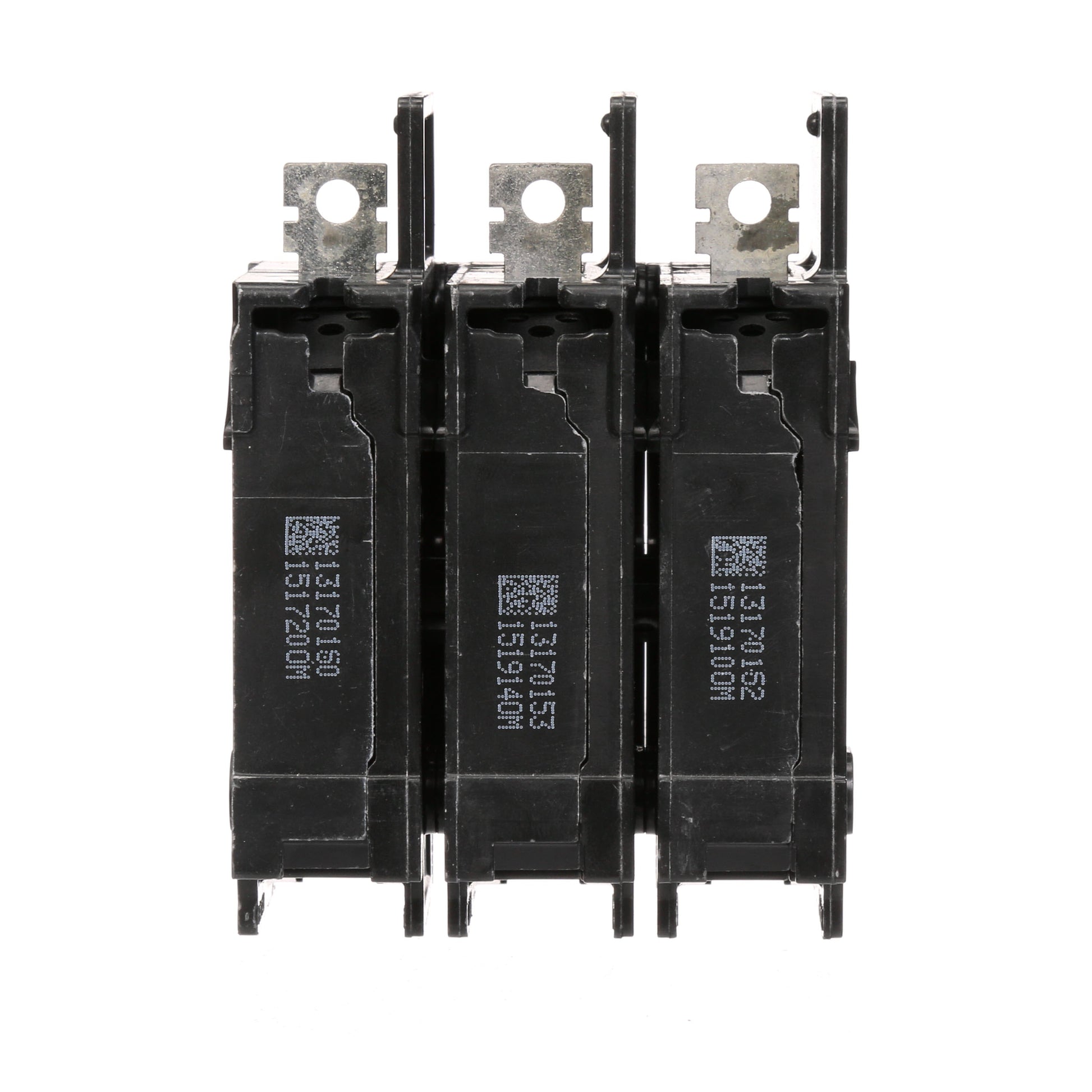

Siemens BQ3B020 Molded Case Circuit Breaker | 240V 20A 3P 10kA@240V Bolt-on BQ Series

Product Description:
The Siemens BQ3B020 is a Molded Case Circuit Breaker from the BQ Series family. It is a 3-pole, 20 amp breaker rated for 240 volts with a 10kA interrupting capacity. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: BQ3B020
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 240
✔ Amperage: 20
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643102590
✔ GTIN: 00783643102590
✔ Country of Origin: Mexico
✔ Dimensions: 4.6 in x 3.7 in x 3.7 in
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
