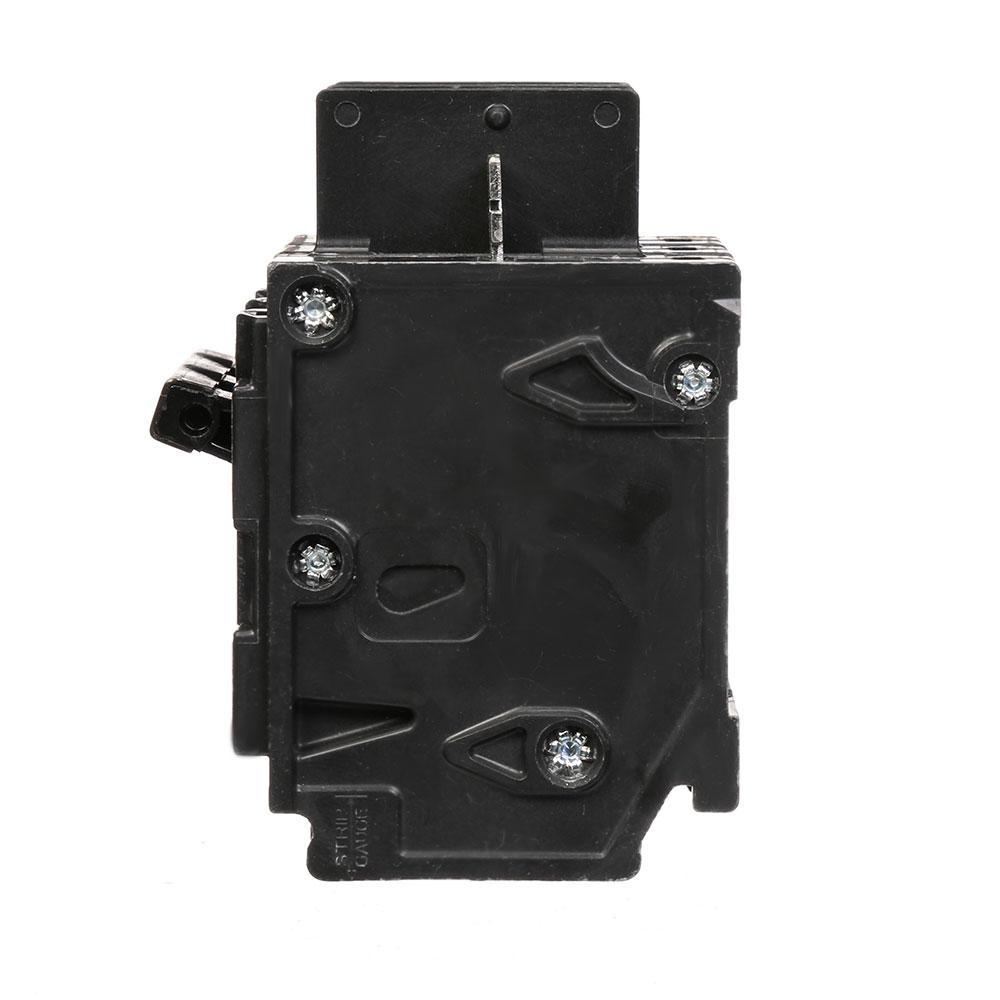

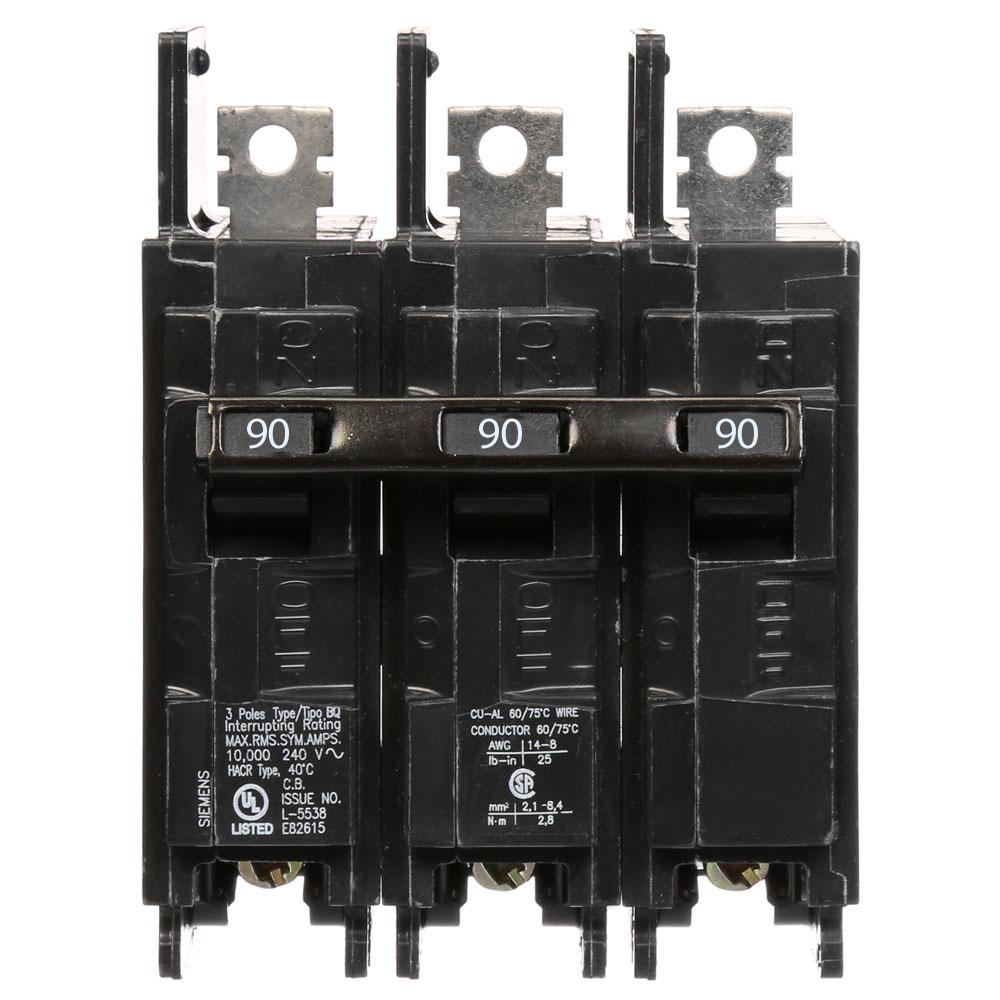

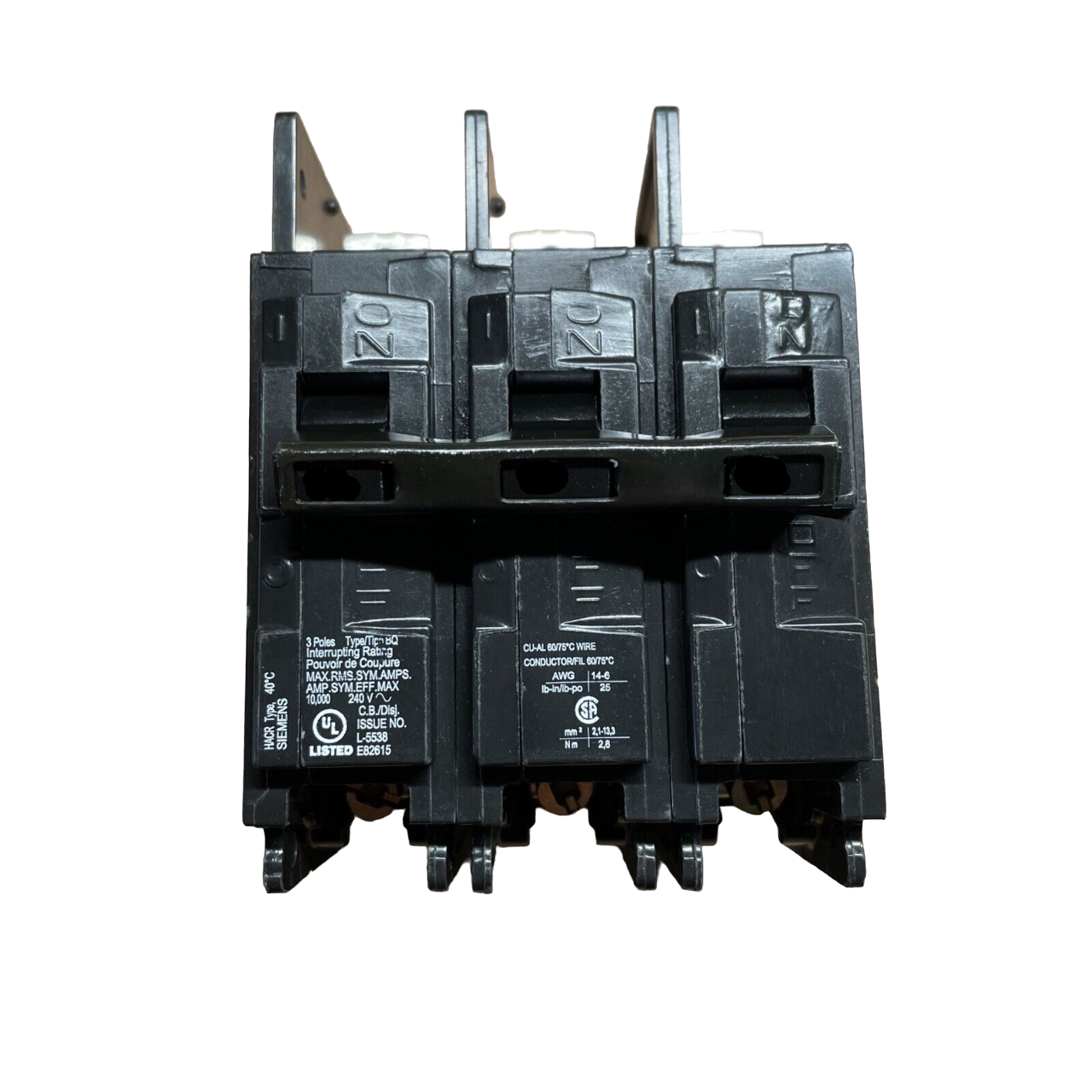

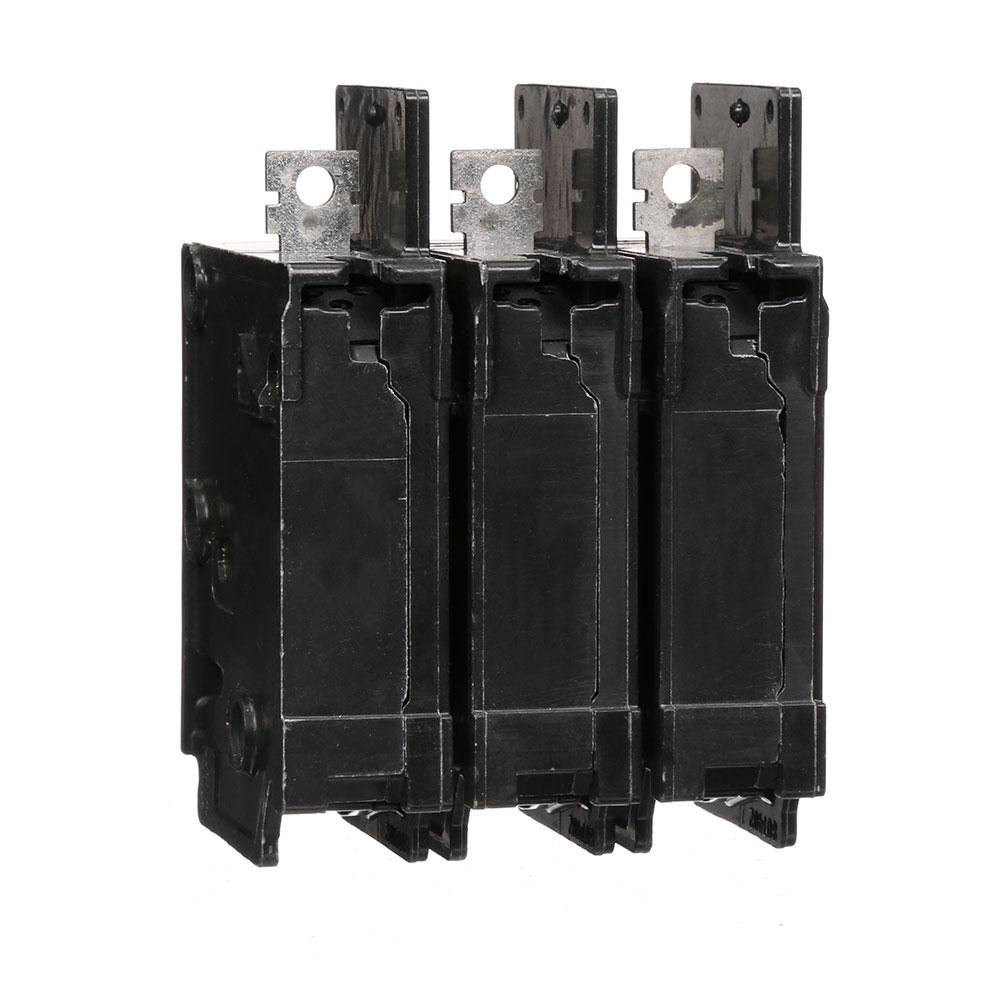

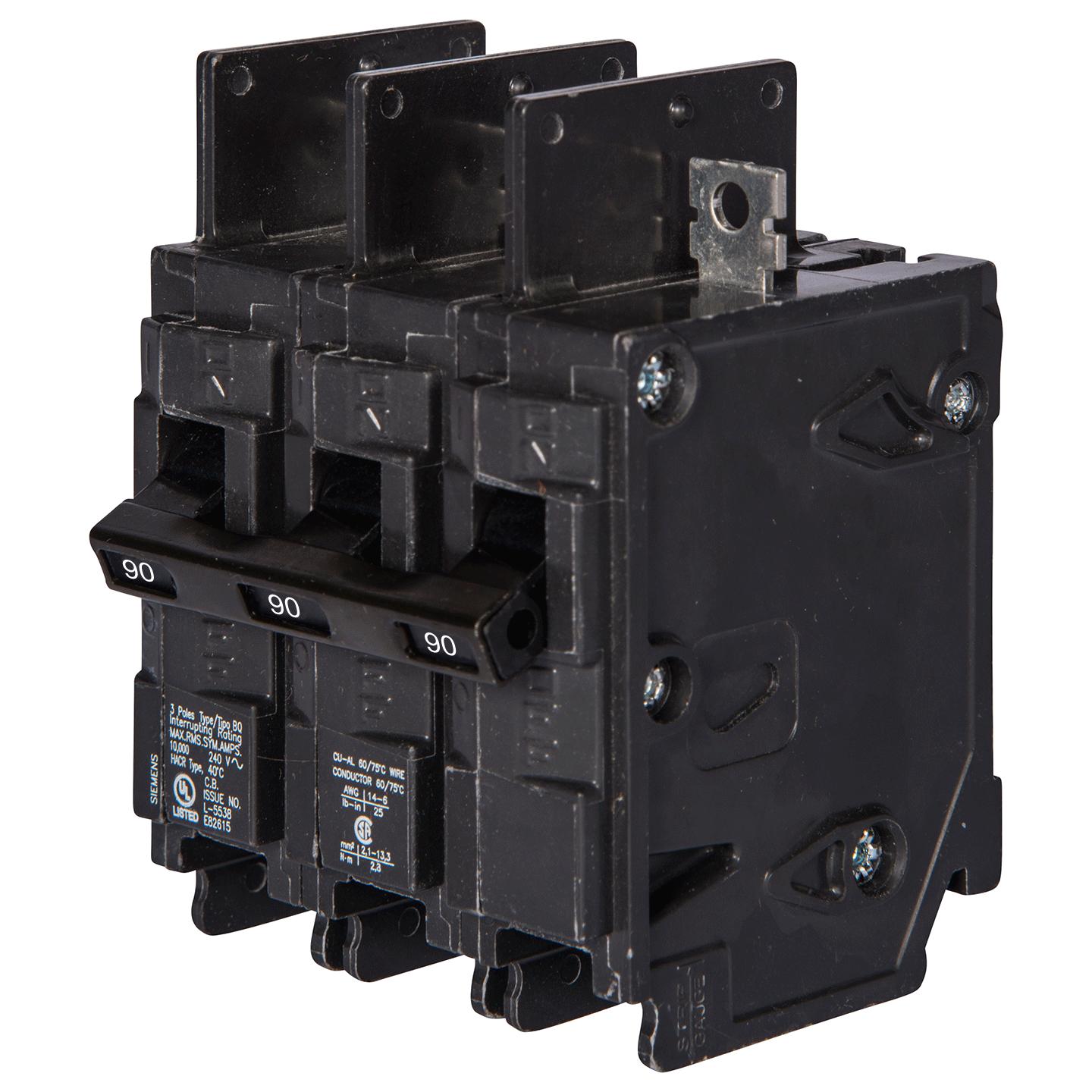

Siemens BQ3B090 Circuit Breaker | 240V 90A 3P 10kA@240V Bolt-on BQ Series

Product Description:
The Siemens BQ3B090 is a molded case circuit breaker designed for reliable electrical protection. It features a 3-pole configuration with a 240V voltage rating and 90A amperage capacity. This breaker offers thermal magnetic protection and is suitable for use in Siemens panelboards. It is HACR rated and UL listed for safety and compliance.

Key Features:
✔ Part Number: BQ3B090
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 240
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643102651
✔ GTIN: 00783643102651
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 4 in x 4 in
✔ Weight: 1
✔ Panel Type: Siemens Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
