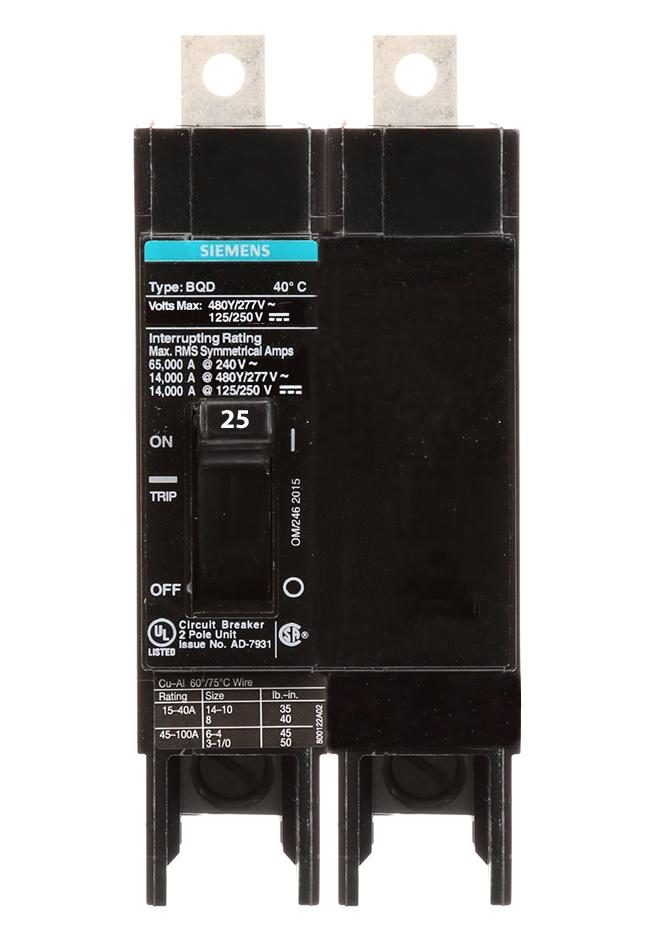

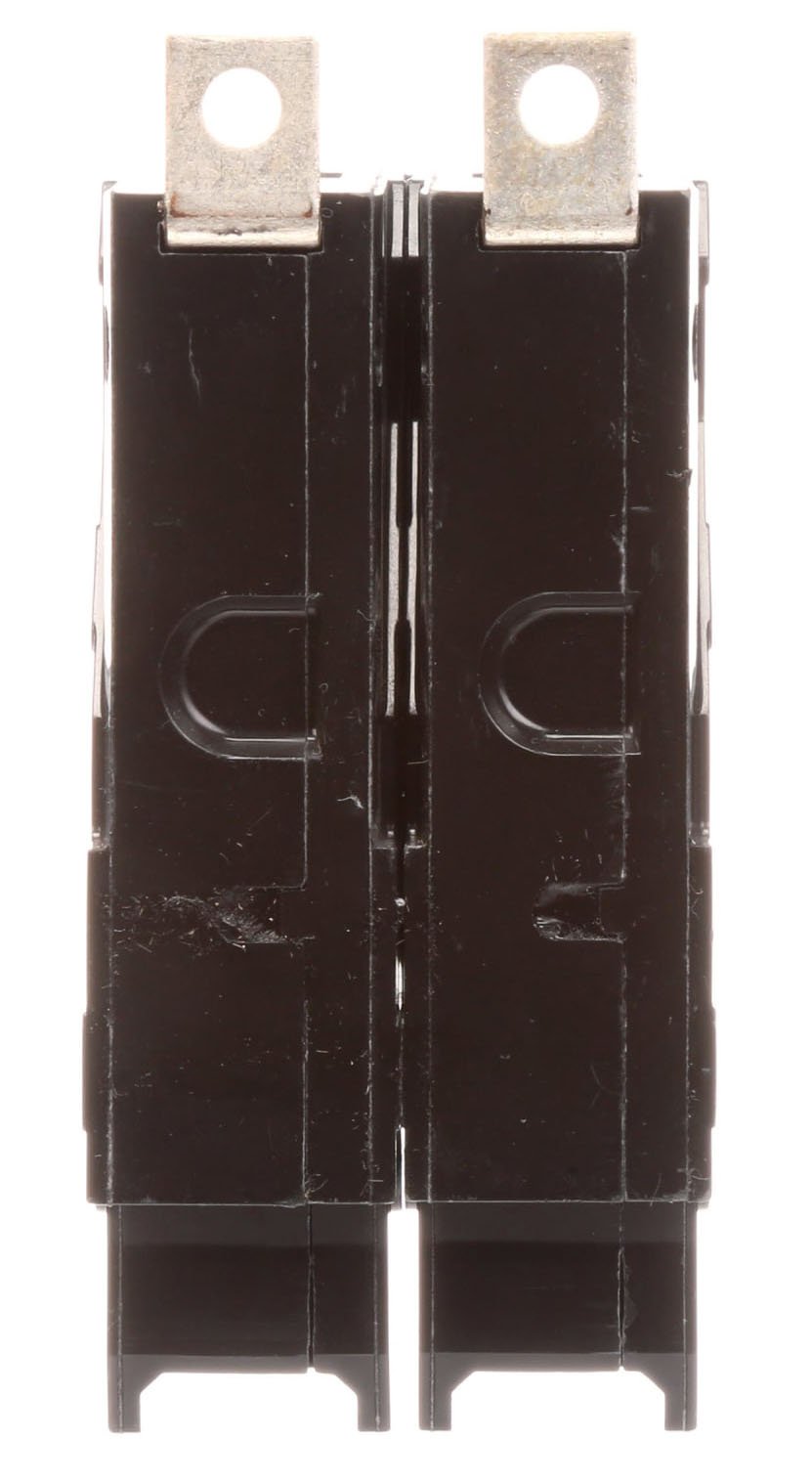

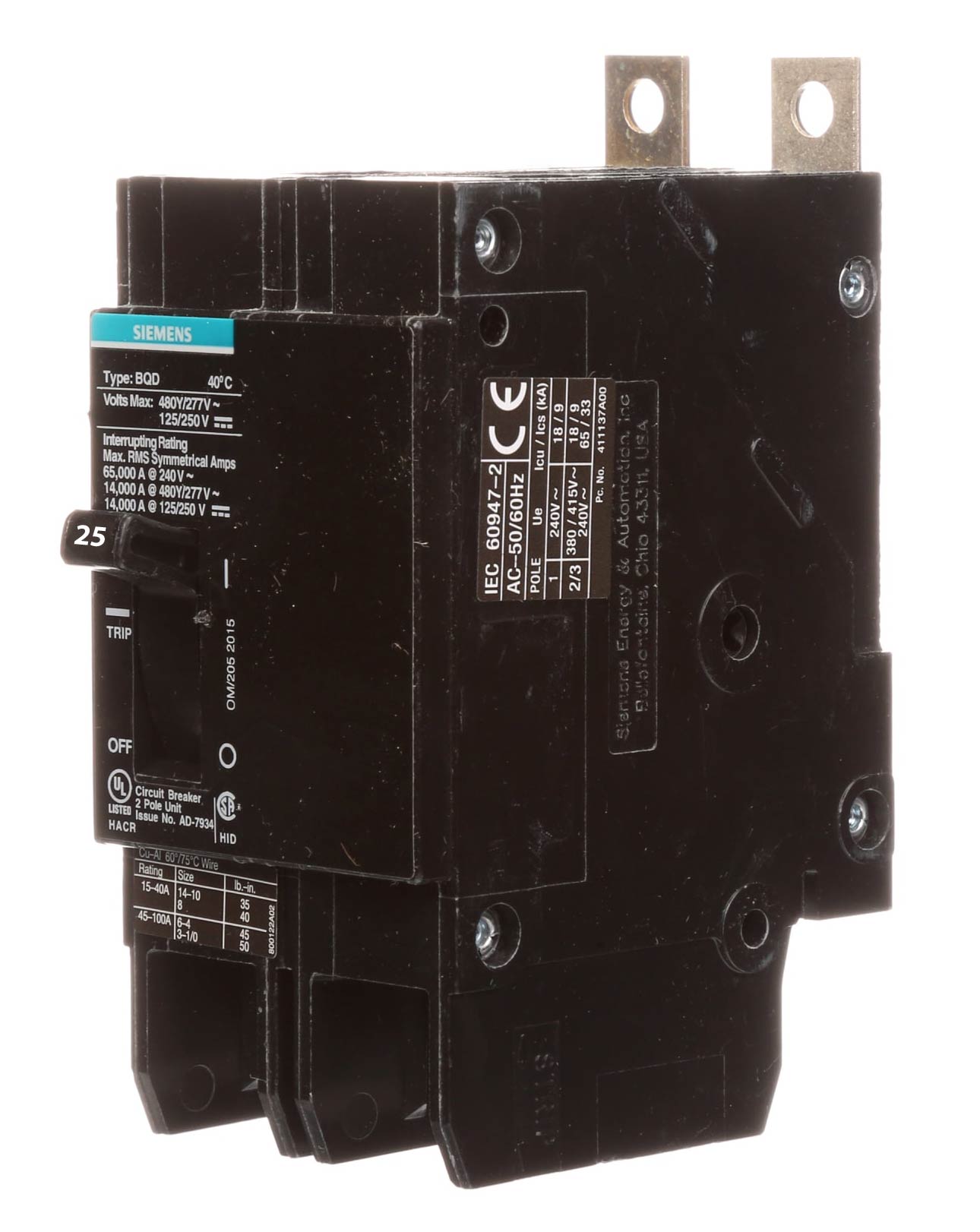

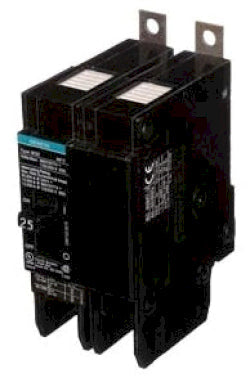

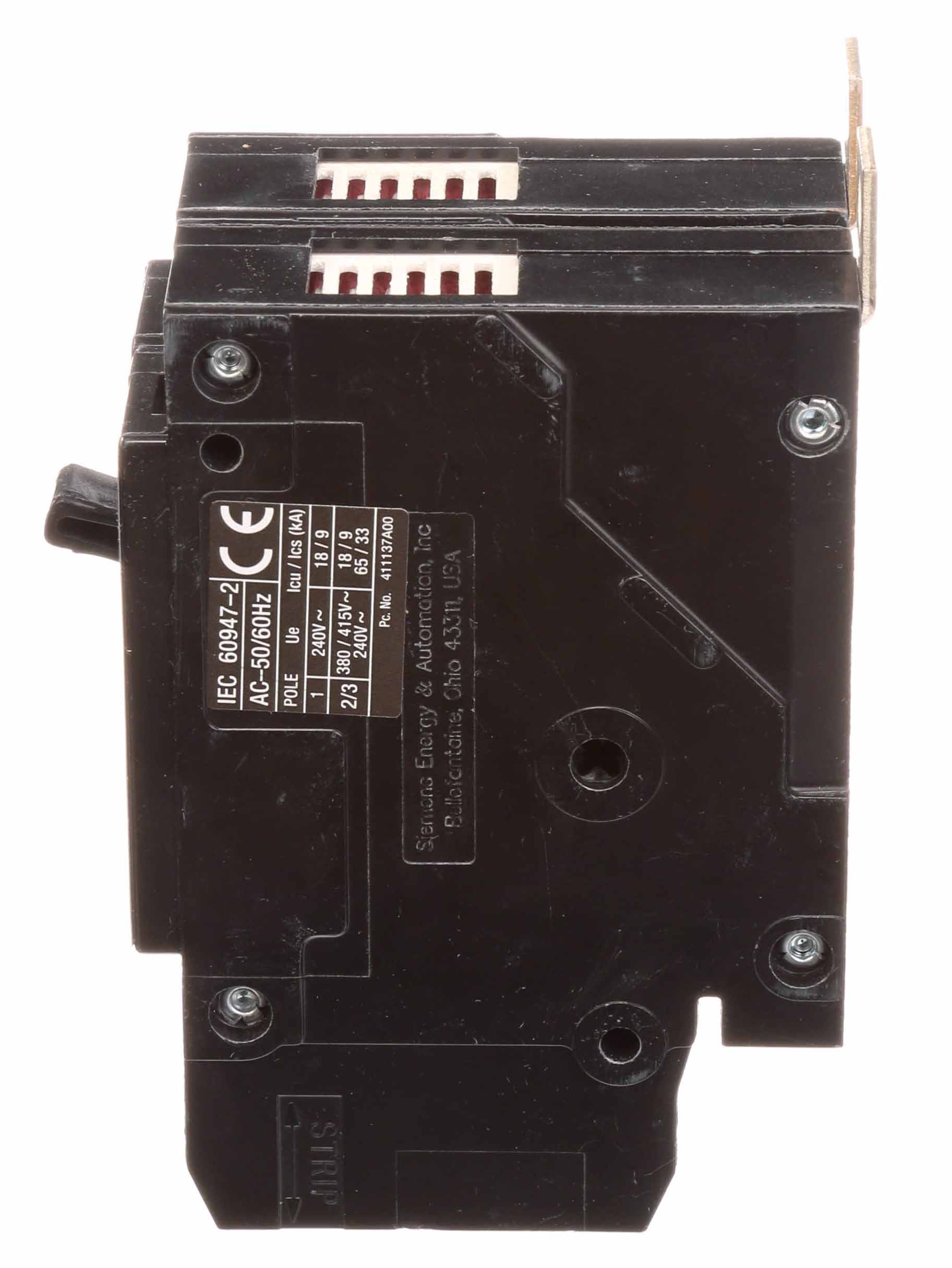

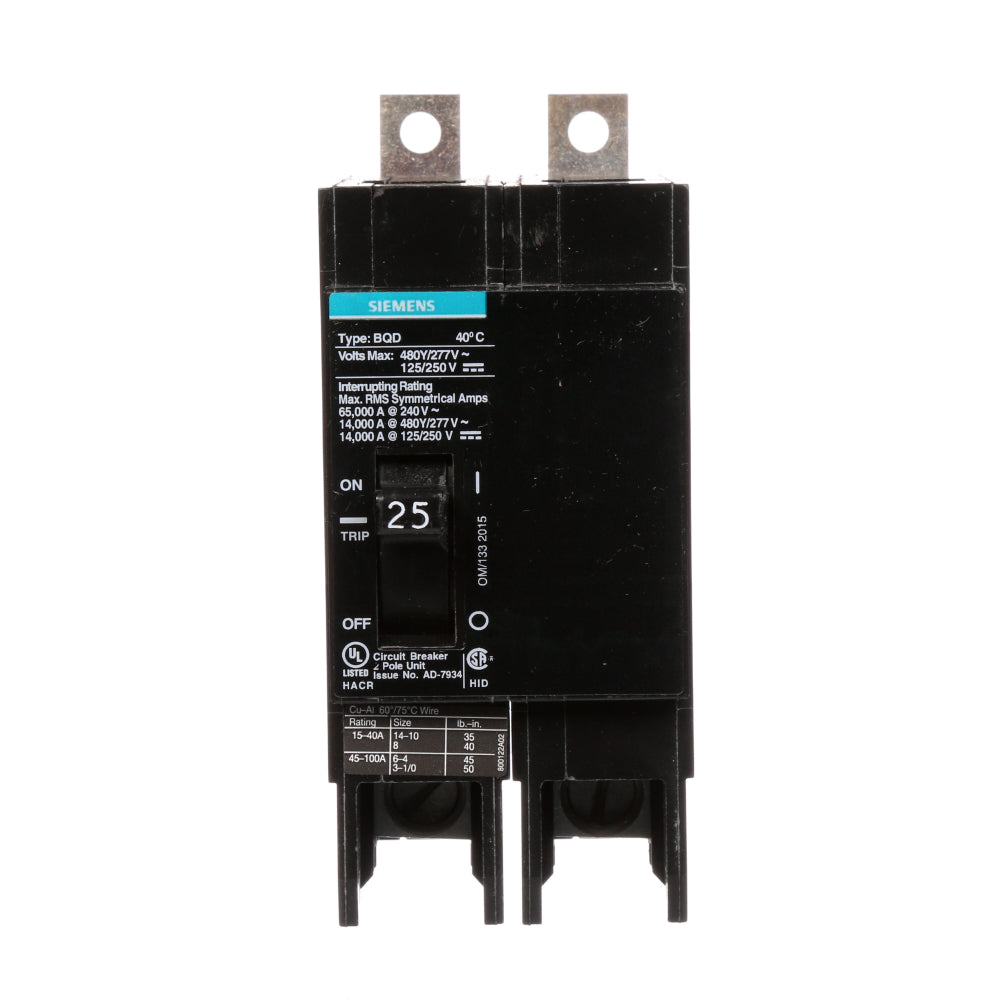

Siemens BQD225 Circuit Breaker | 480V 25A 2P 14kA@480V Bolt-on BQD Series

Product Description:
The Siemens BQD225 is a Molded Case Circuit Breaker from the BQD Series family. It is a 2-pole, 25 amp breaker rated for 480 volts with an AIC rating of 14kA@480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation. It is designed for use in Siemens P1 Panelboards and meets industry standards.

Key Features:
✔ Part Number: BQD225
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQD Series
✔ Type: BQD
✔ Voltage: 480
✔ Amperage: 25
✔ Poles: 2
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/BQD
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Protection: Thermal Magnetic
✔ UPC: 783643277236
✔ GTIN: 00783643277236
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 4.49 in x 4.49 in
✔ Weight: 1
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA-C22.2, IEC 60947-2, UL 489
✔ Certification: CSA-C22.2, IEC 60947-2, UL 489
