Siemens BQD230 Circuit Breaker | 480V 30A 2P 14kA@480V BQD Series

Product Description:

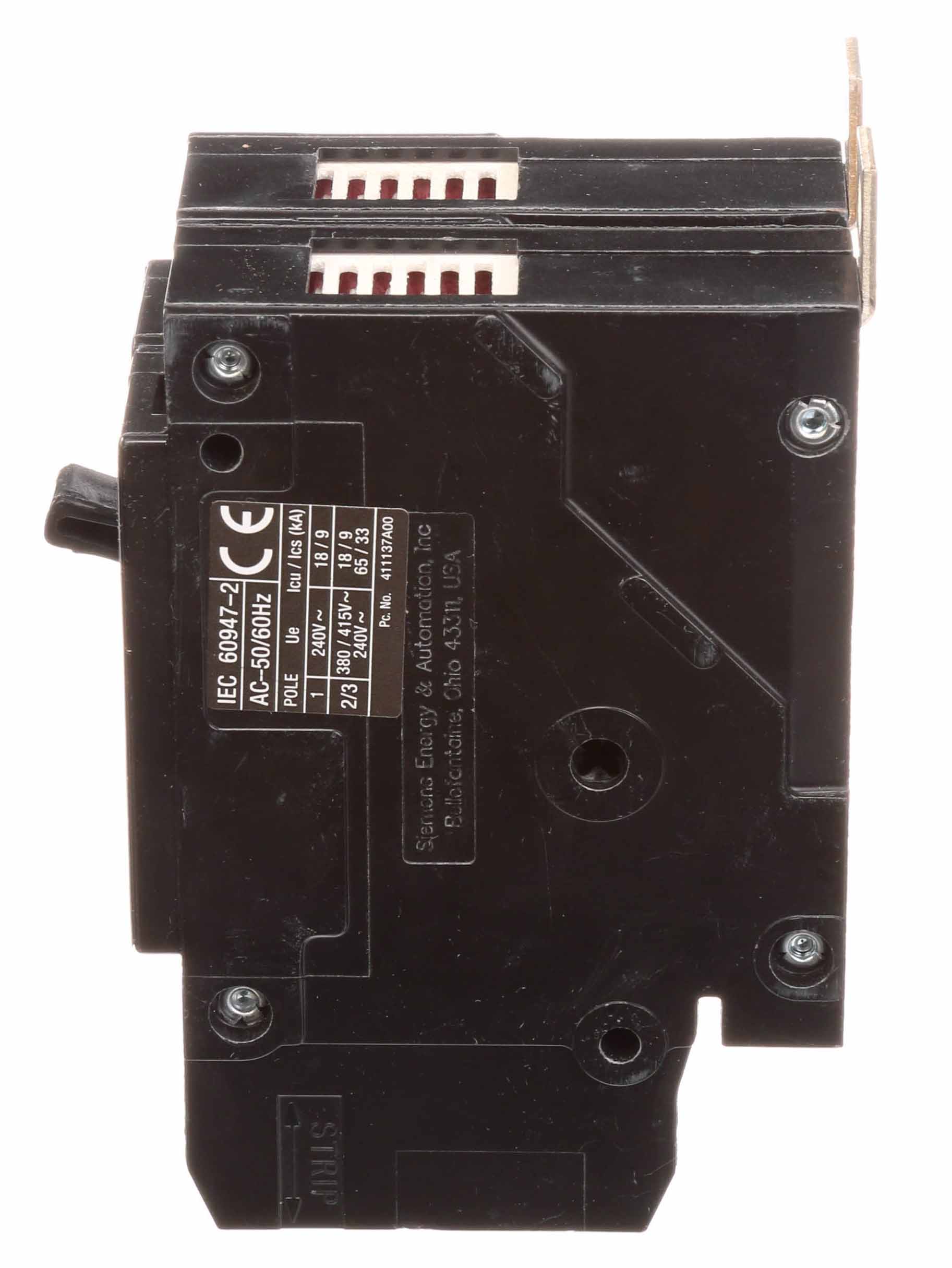

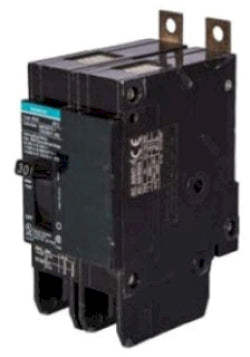

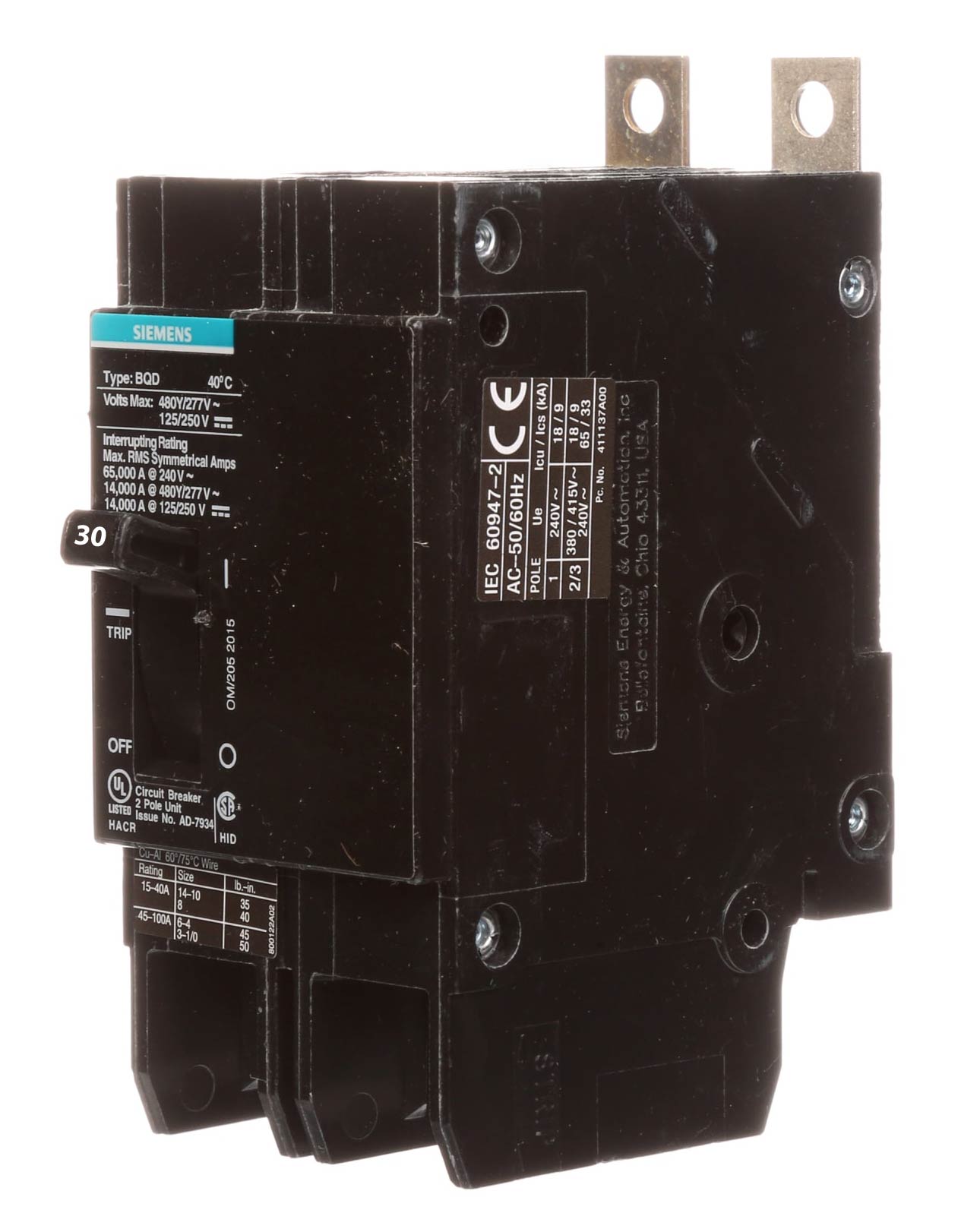

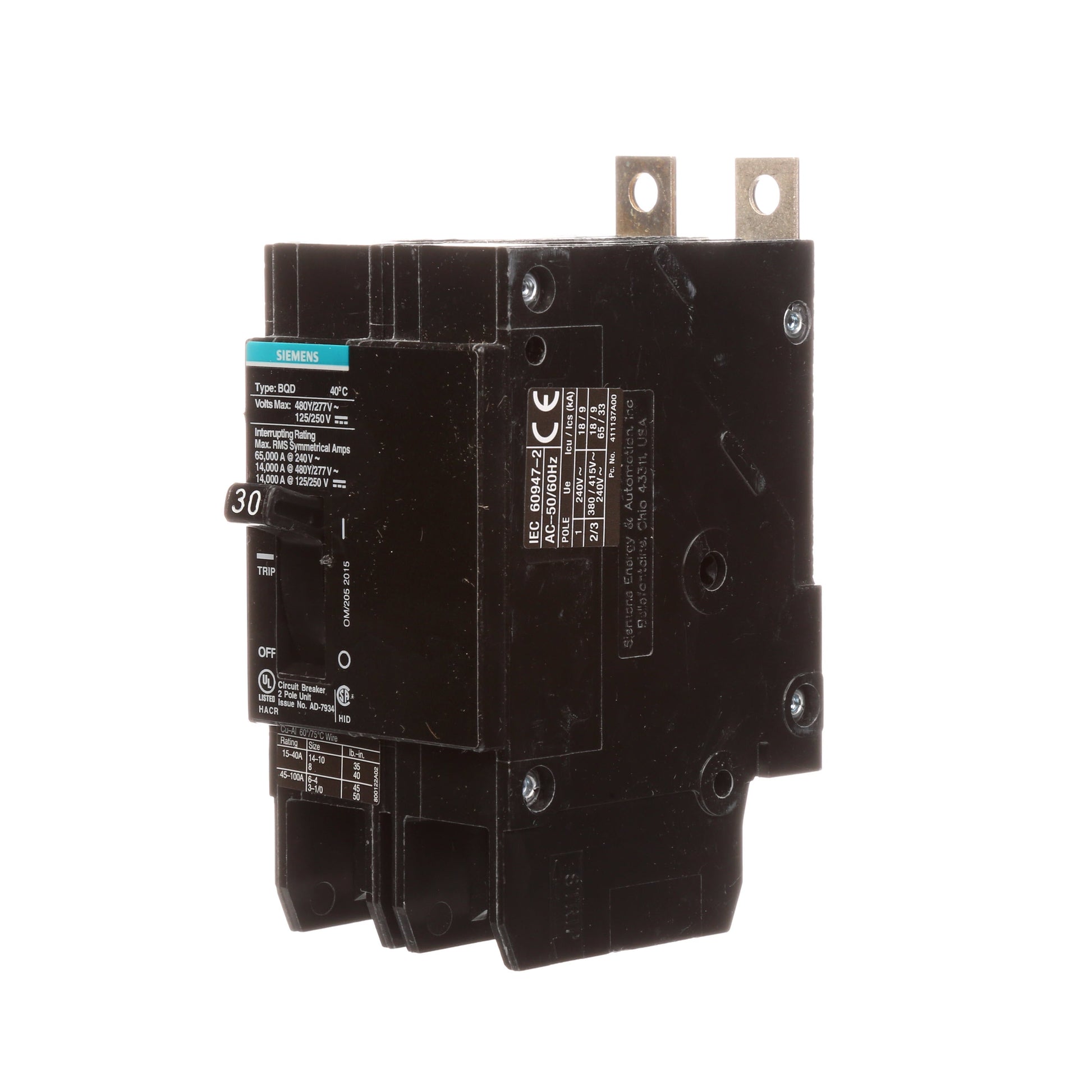

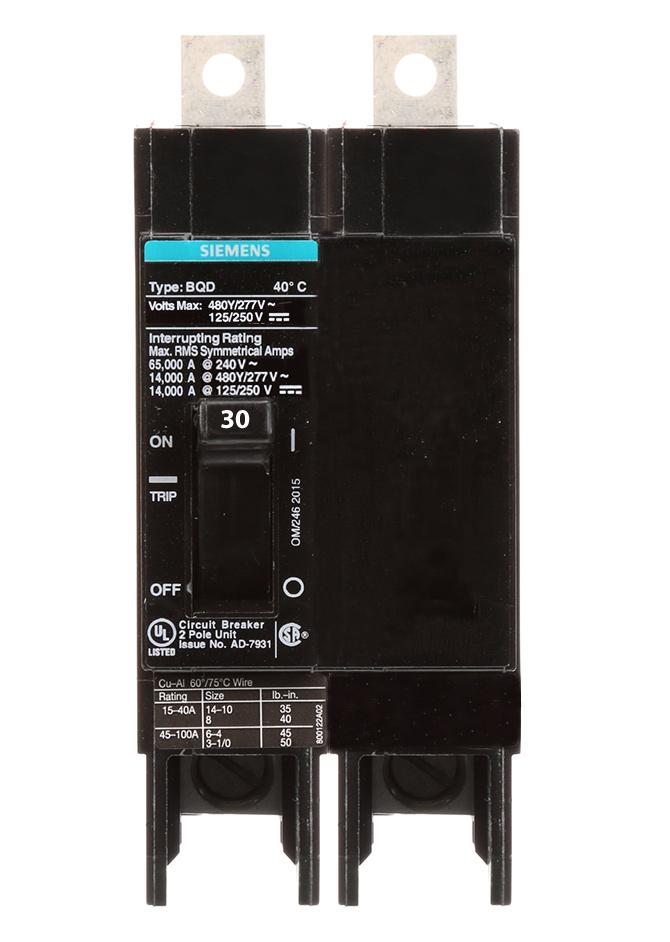

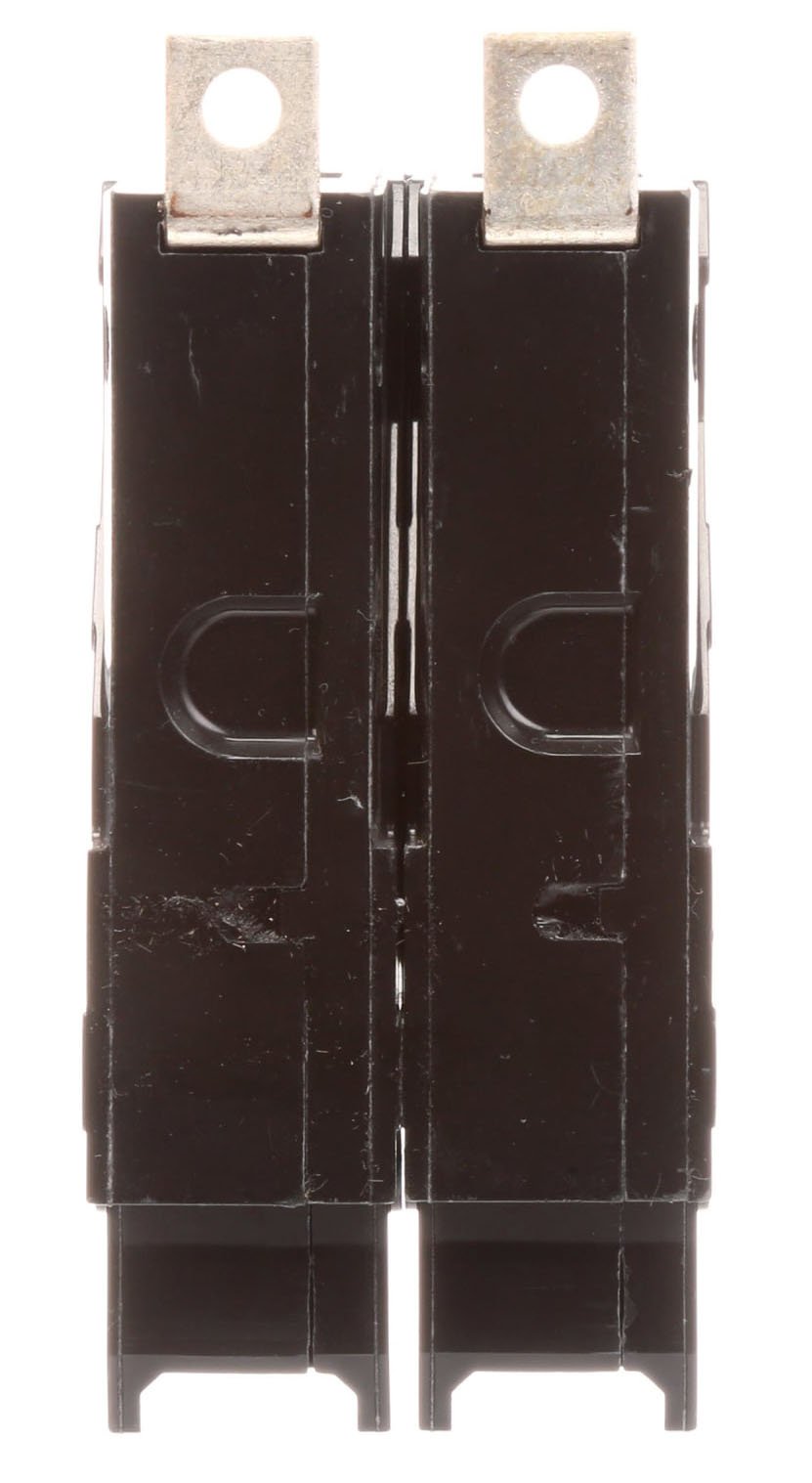

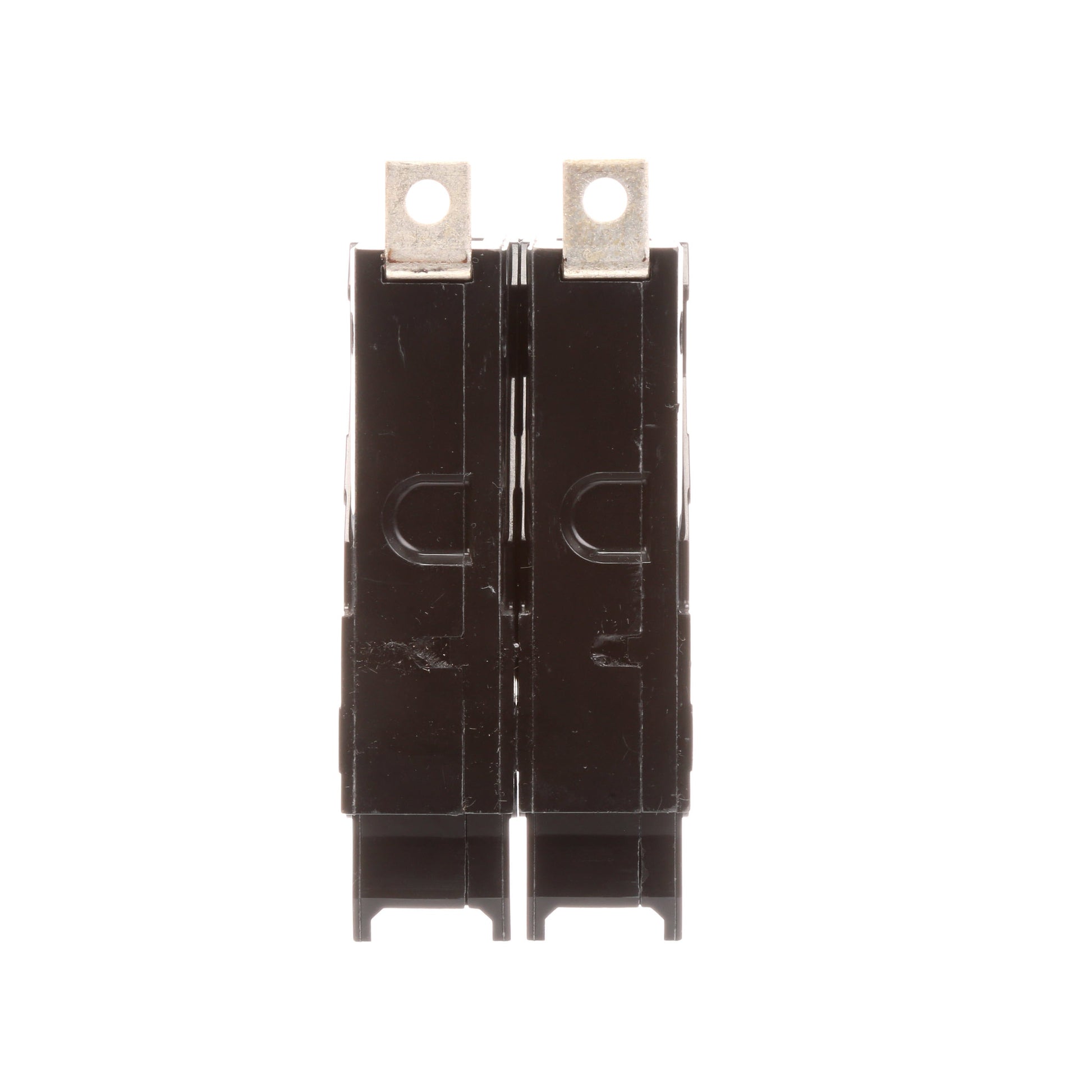

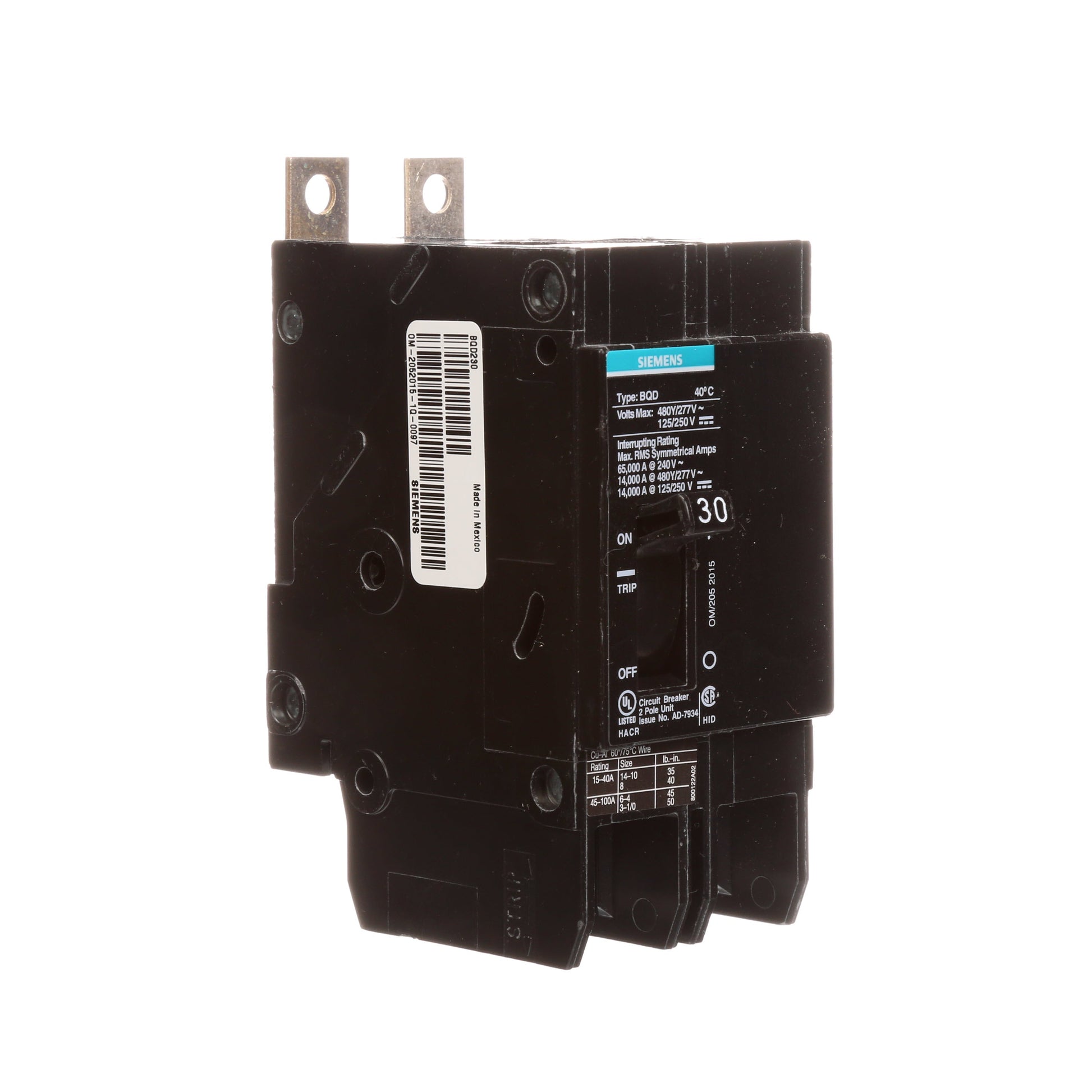

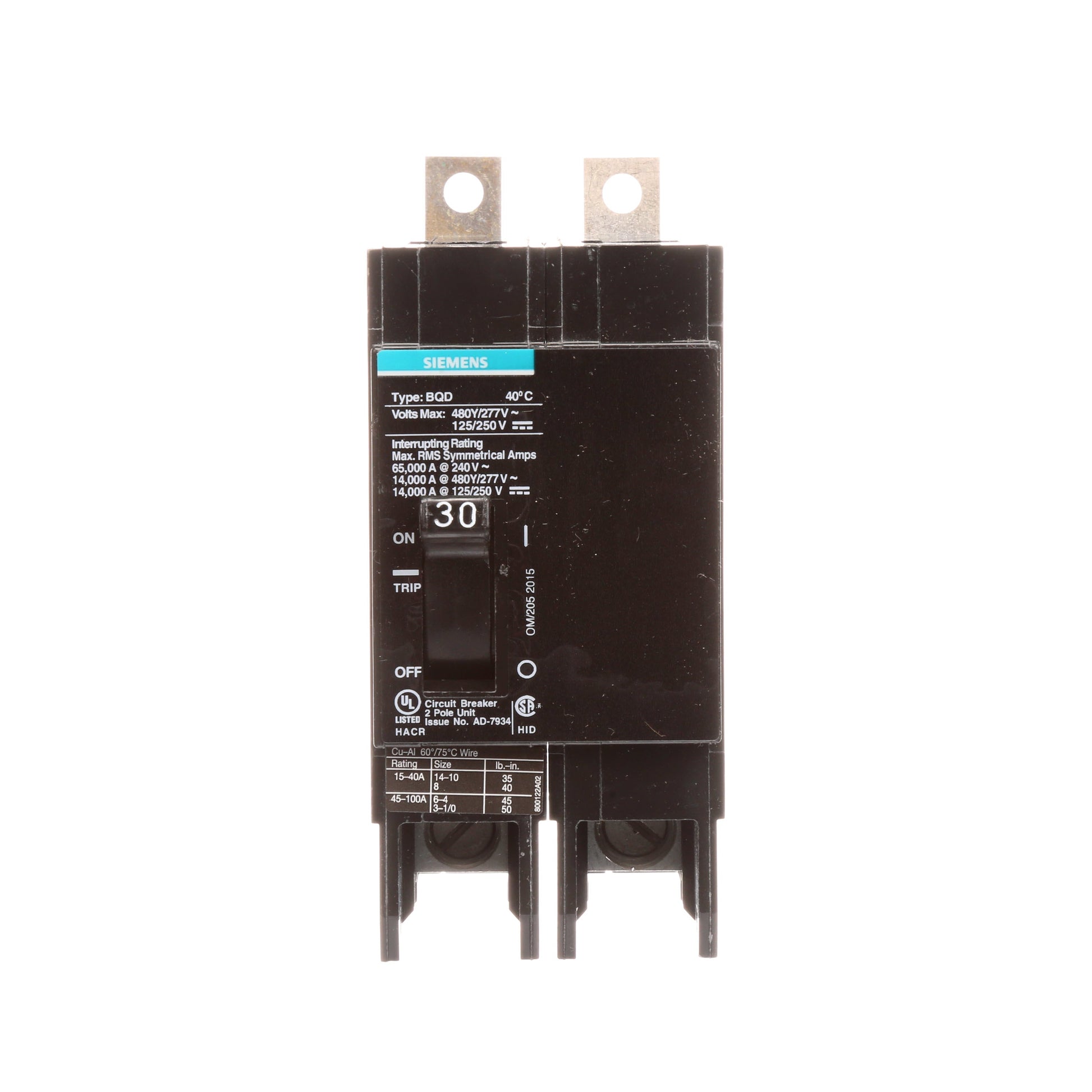

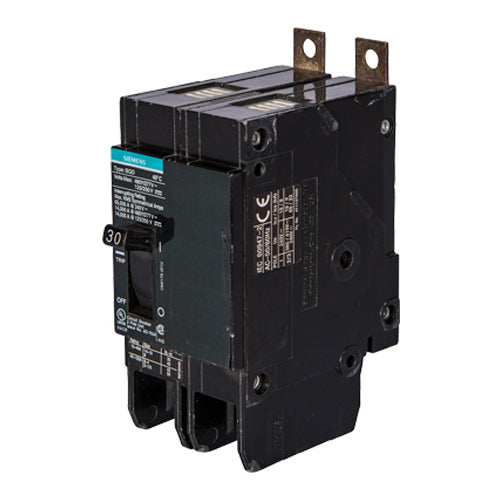

The Siemens BQD230 is a Molded Case Circuit Breaker from the BQD Series family. It is a 2-pole, 30 amp breaker rated for 480 volts with an AIC rating of 14kA@480V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation.

Key Features:
✔ Part Number: BQD230
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQD Series
✔ Type: BQD
✔ Voltage: 480
✔ Amperage: 30
✔ Poles: 2
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/BQD
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643277243
✔ GTIN: 00783643277243
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 4.49 in x 4.49 in
✔ Weight: 1 lb
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA-C22.2, IEC 60947-2, UL 489
✔ Certification: CSA-C22.2, IEC 60947-2, UL 489
