Product Description:

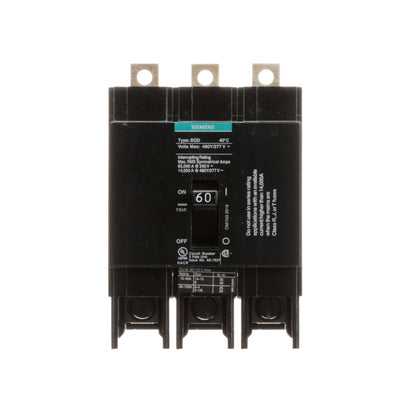

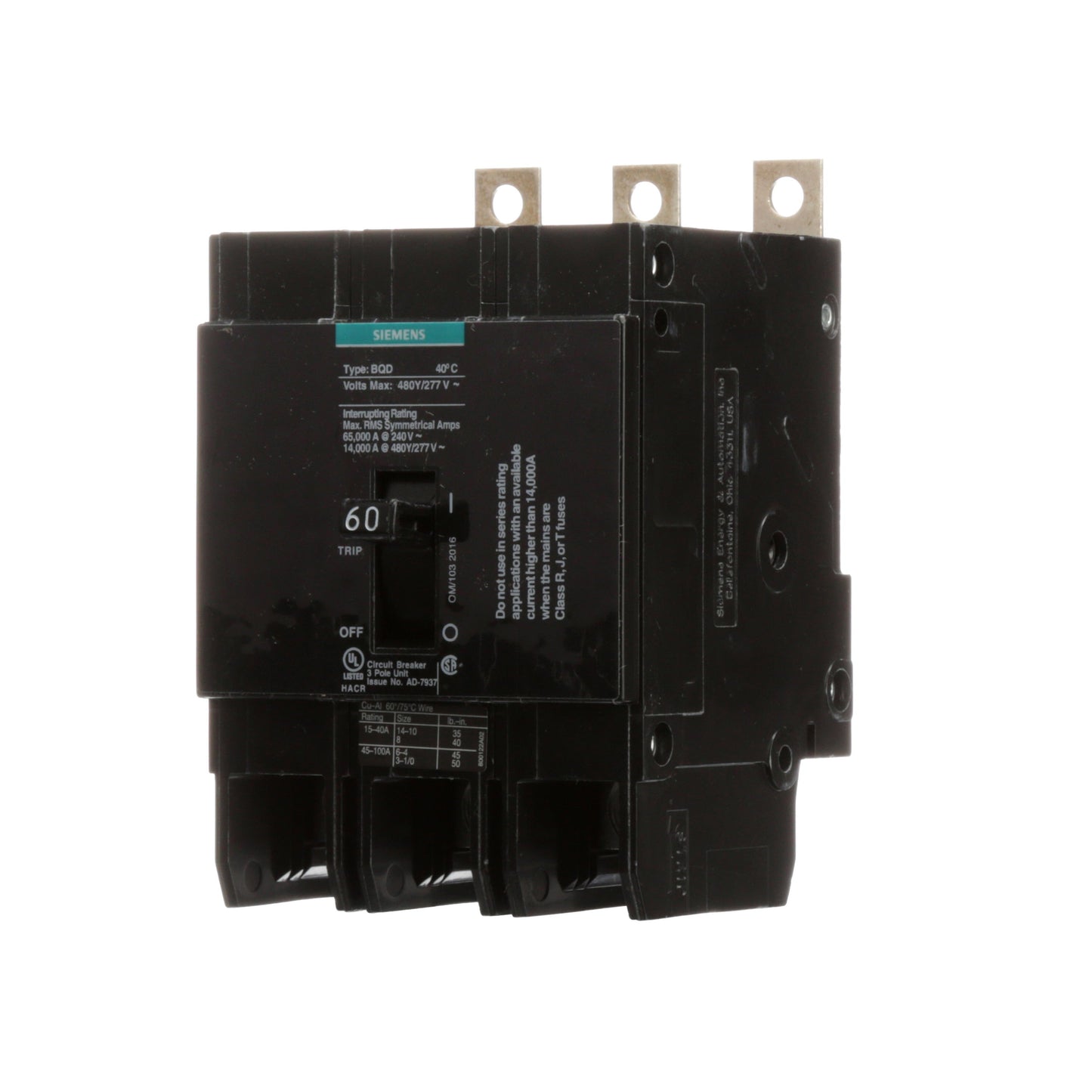

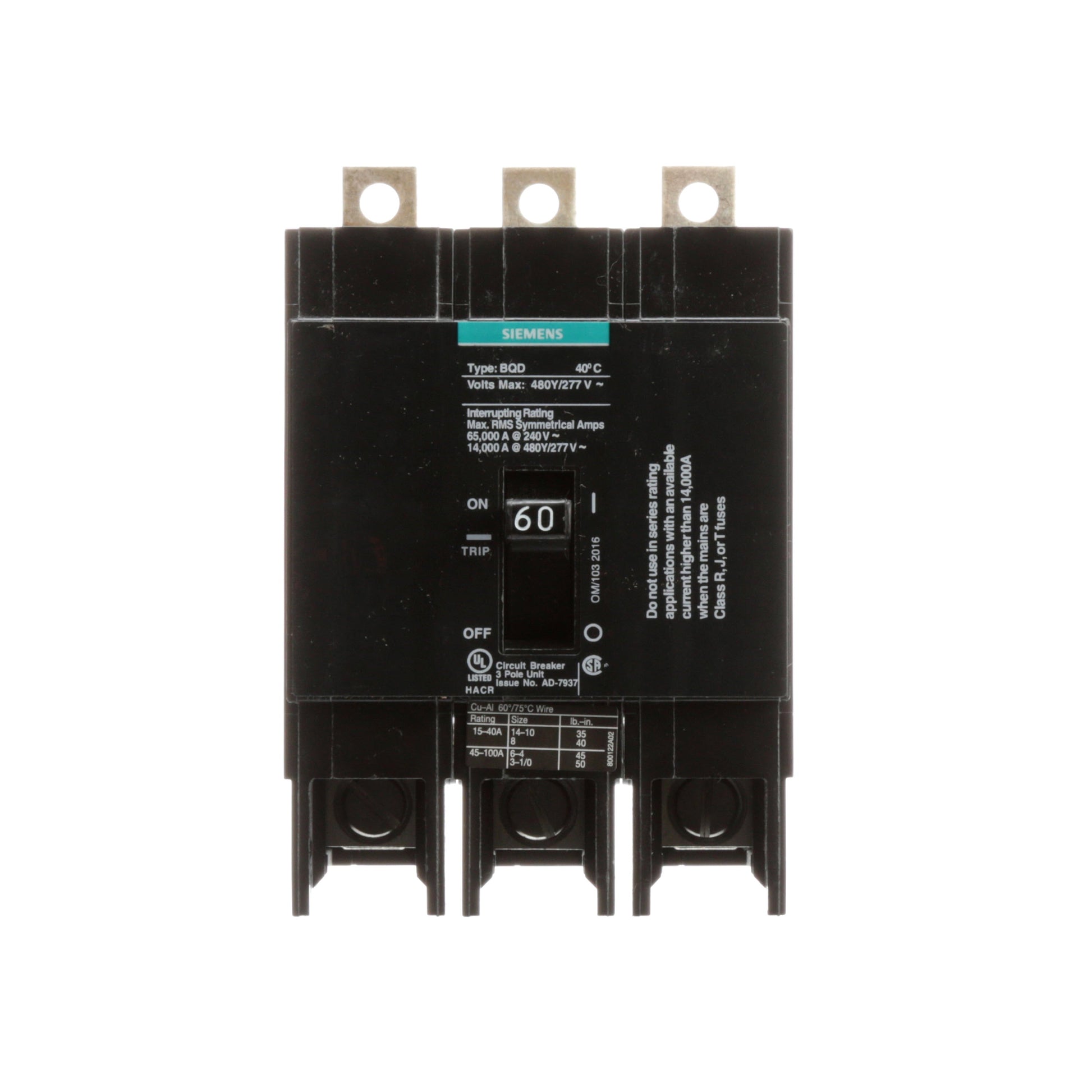

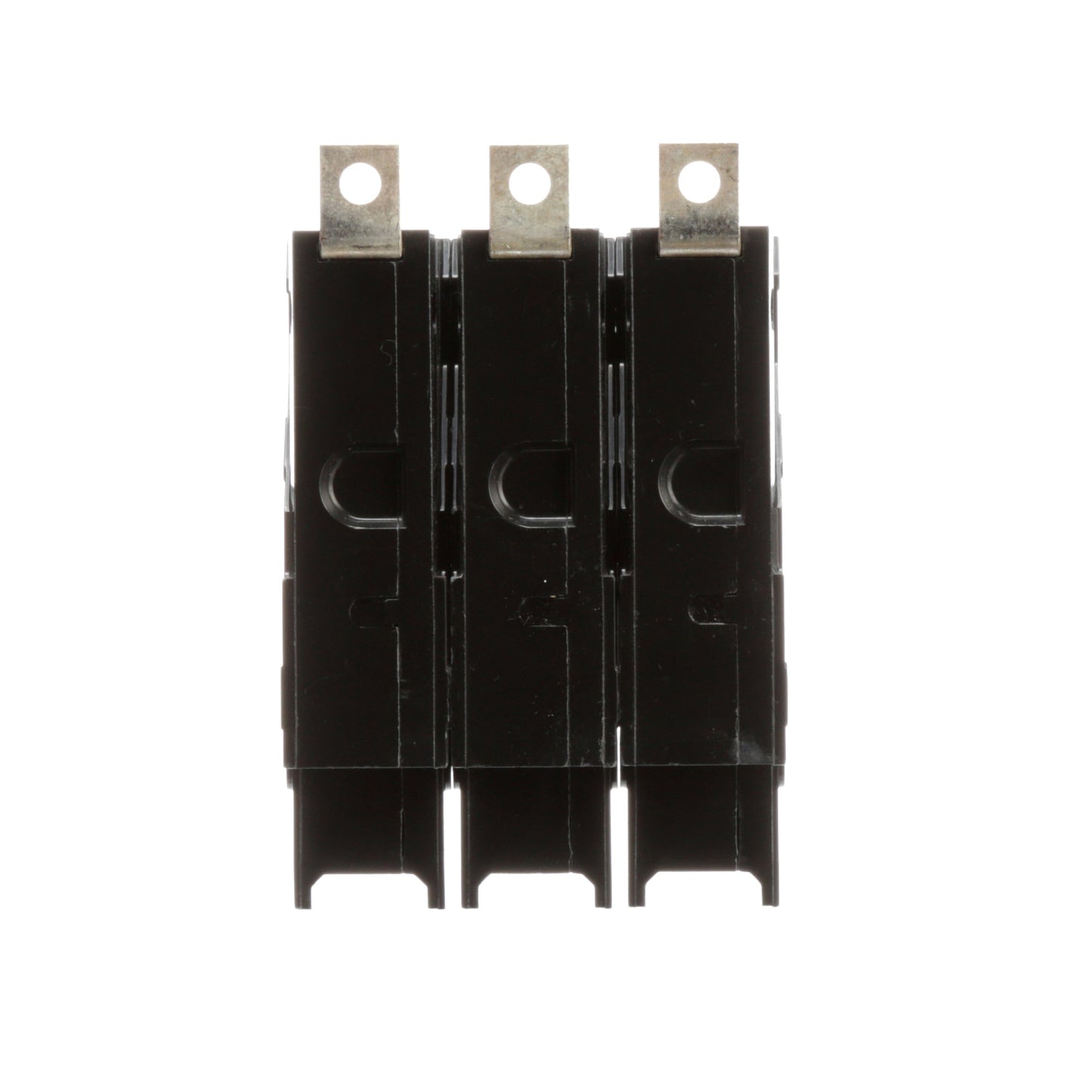

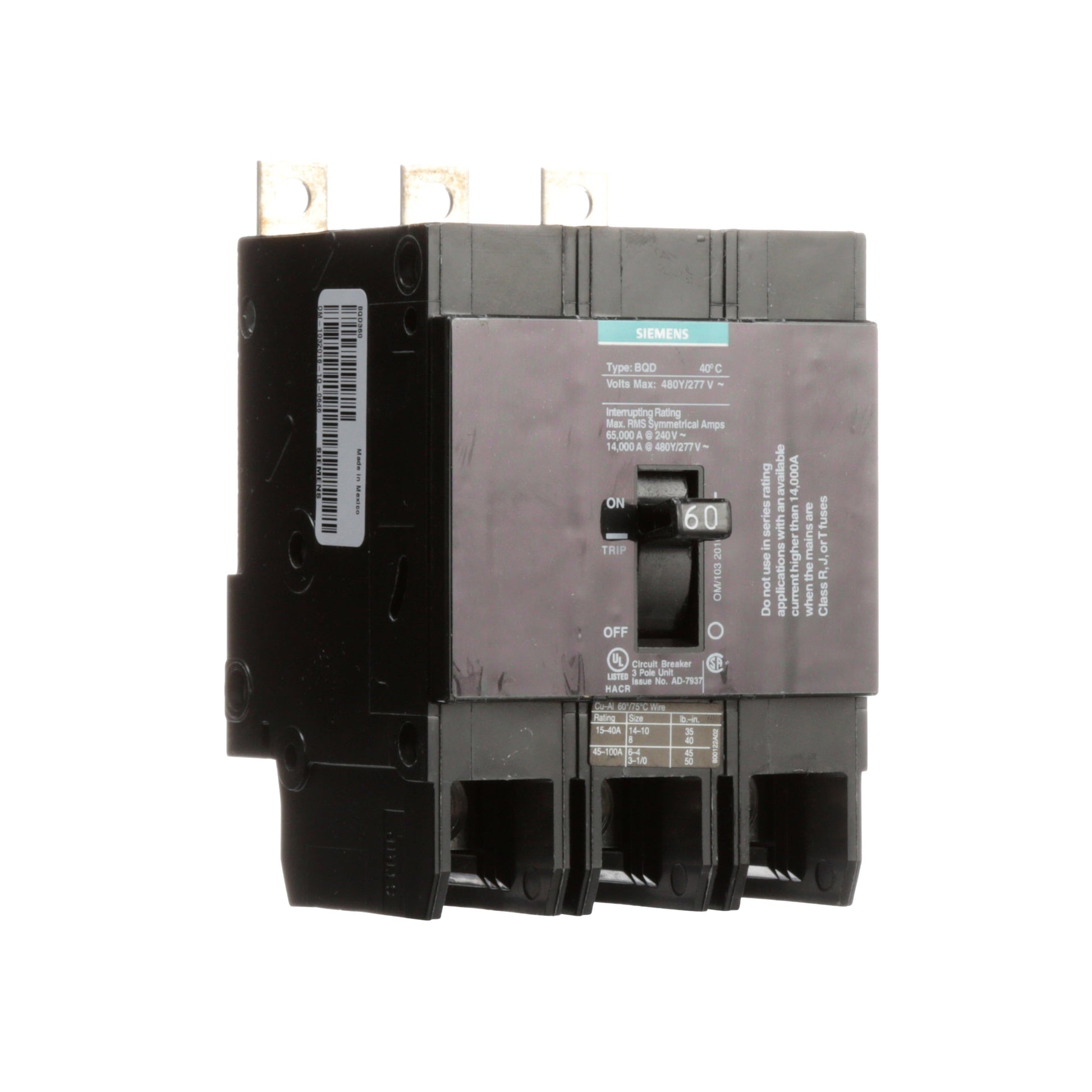

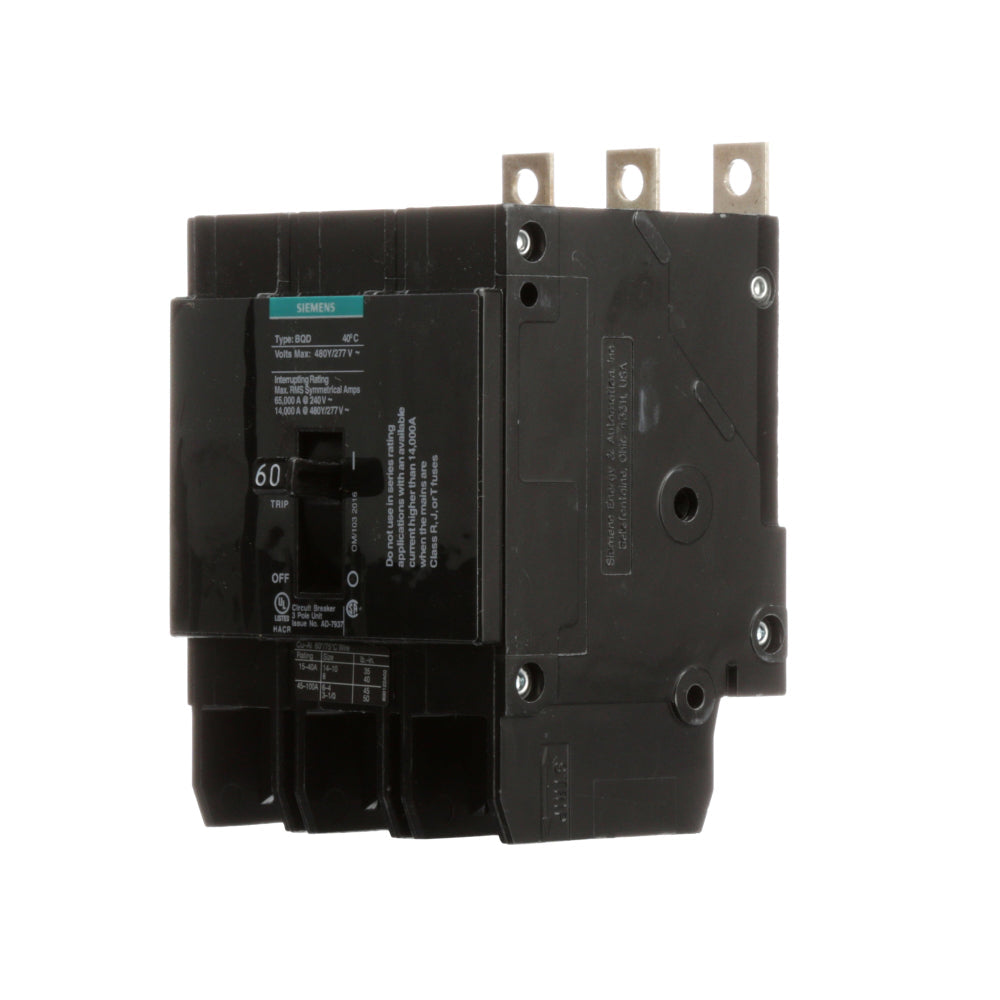

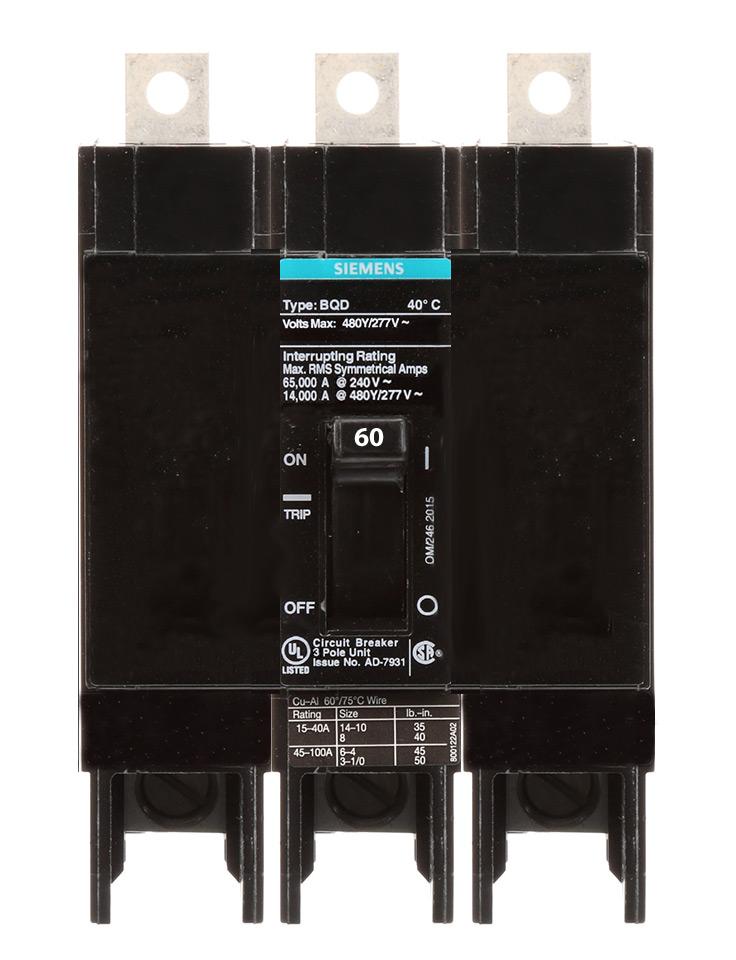

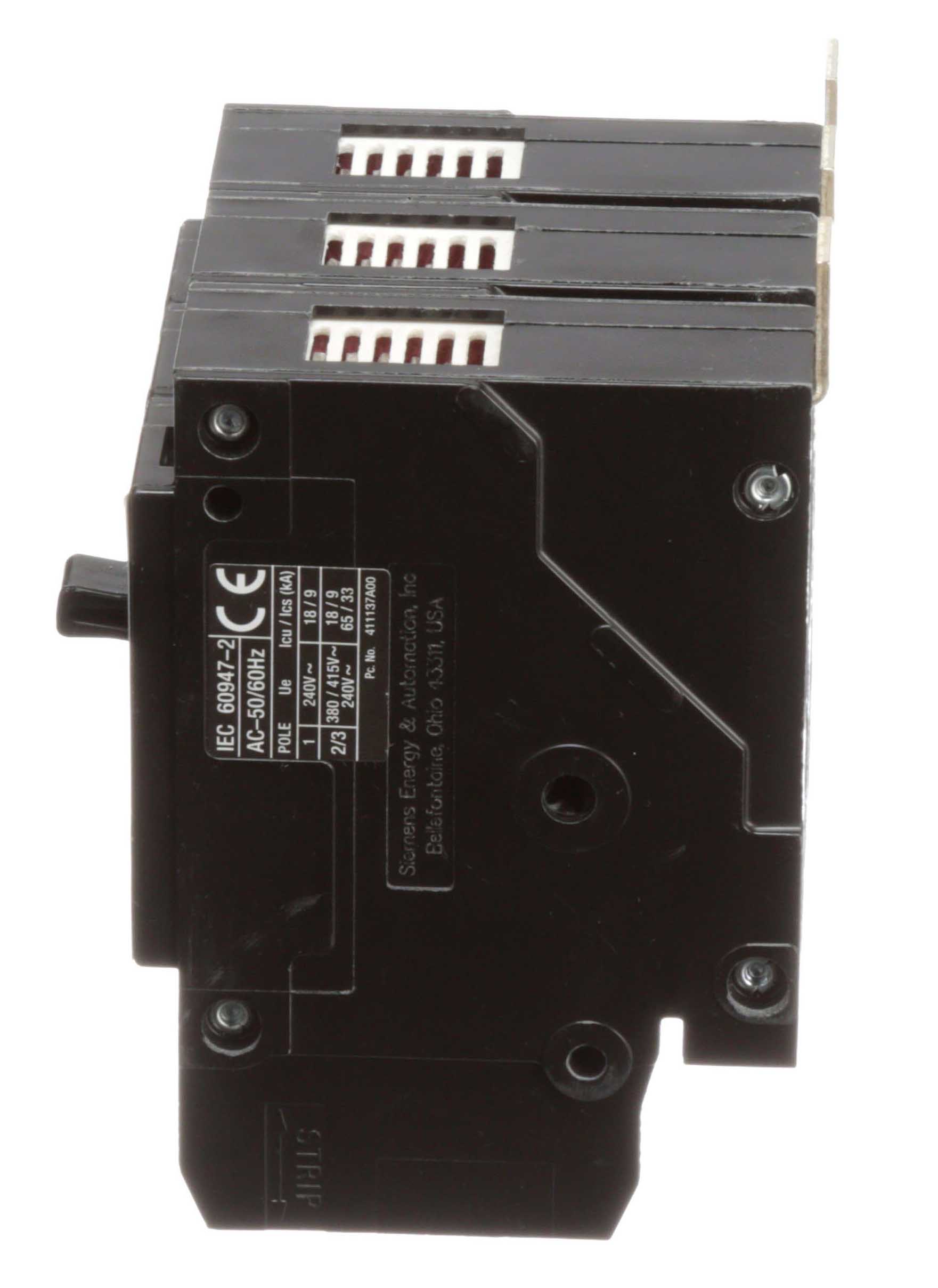

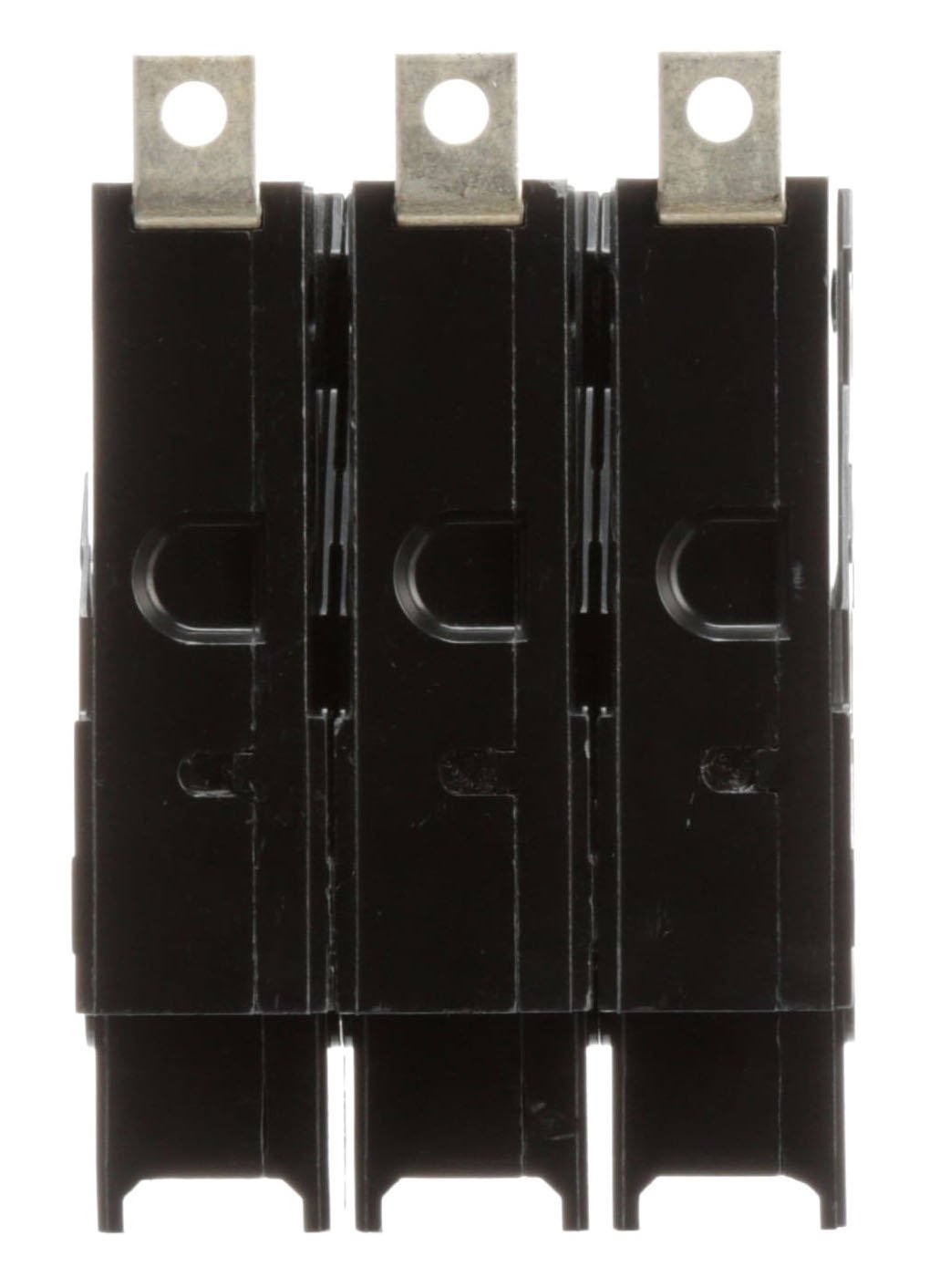

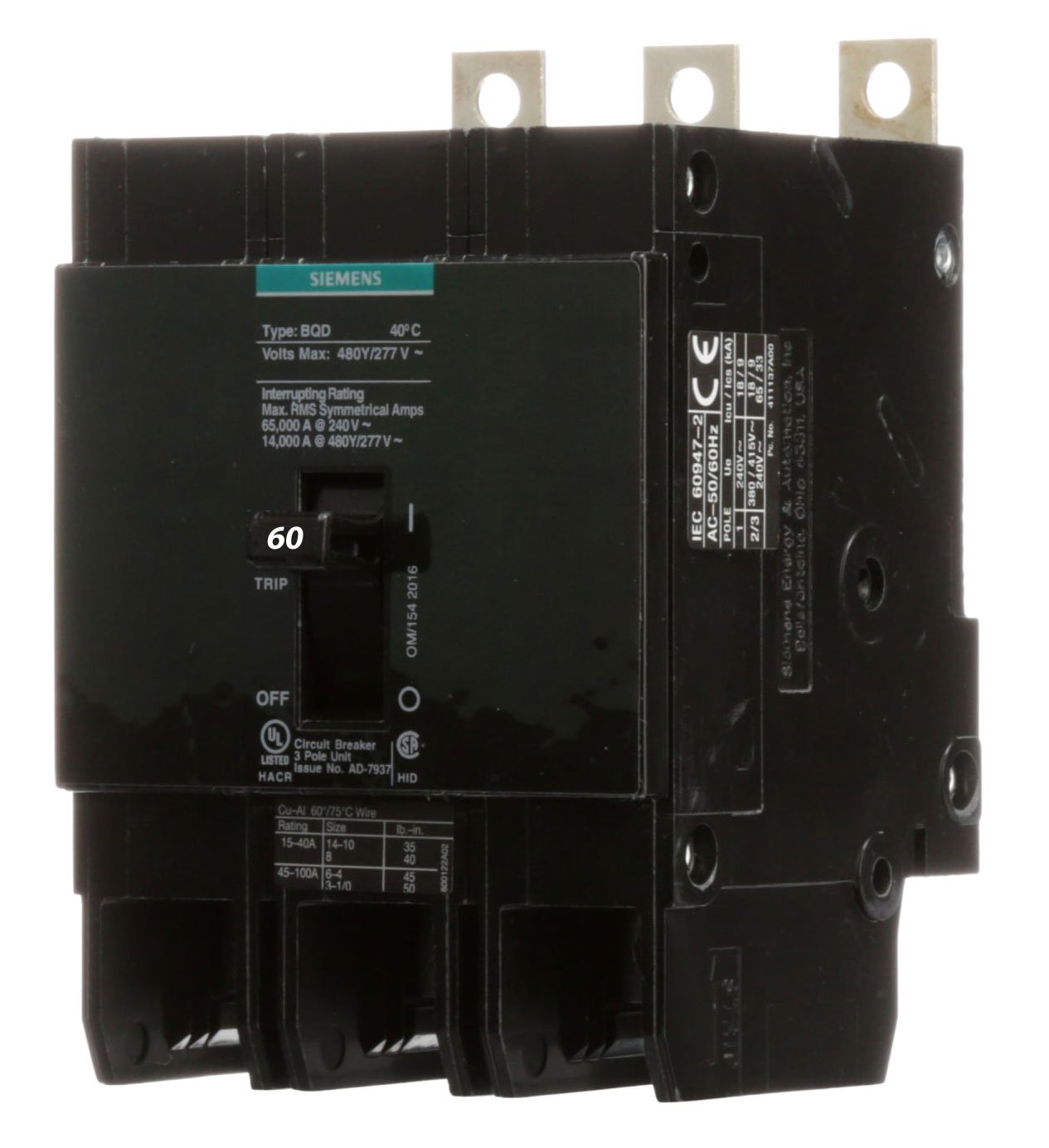

The Siemens BQD360 is a 3-pole molded case circuit breaker with a 480VAC voltage rating and 60 amp capacity. It features thermal magnetic protection and a 14kA@480V AIC rating for reliable performance. Designed for bolt-on connections, it is compatible with Siemens P1 Panelboards and meets CSA-C22.2 and UL 489 standards.
Key Features:
✔ Part Number: BQD360
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQD Series
✔ Type: BQD
✔ Voltage: 480VAC
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/BQD
✔ MCM Size: Min. Wire Size 6 AWG (Al), 8 AWG (Cu) Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643277427
✔ GTIN: 00783643277427
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 4.49 in x 4.49 in
✔ Weight: 1 lb
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA-C22.2,UL 489
✔ Certification: CSA-C22.2,UL 489
