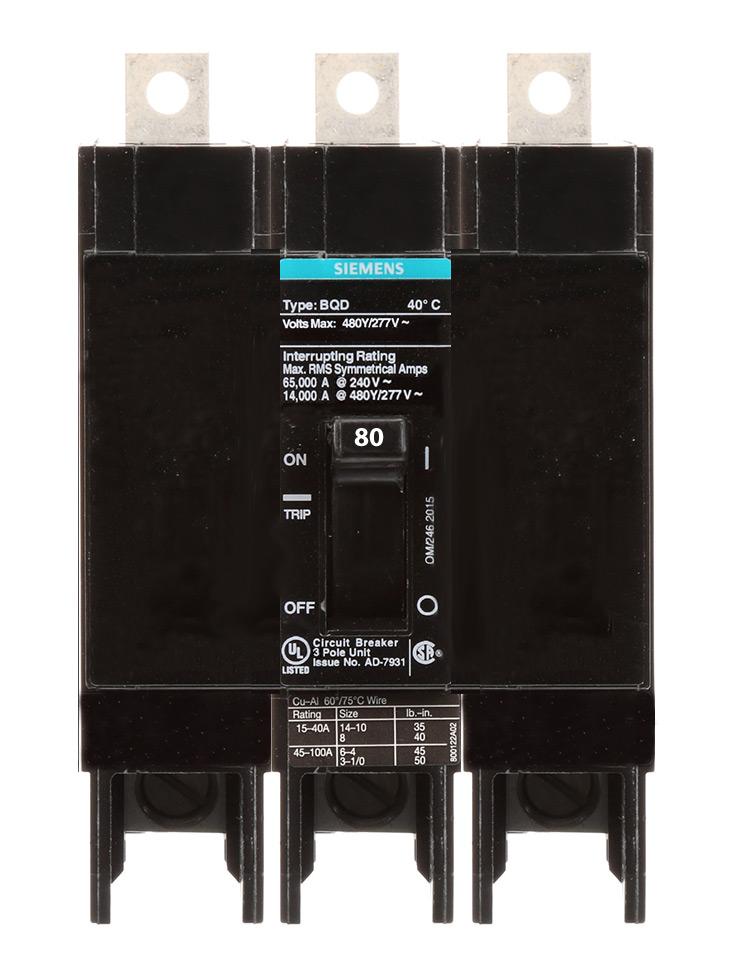

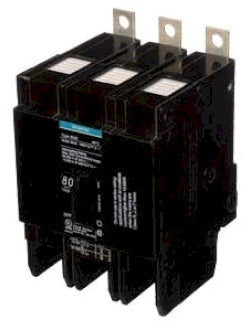

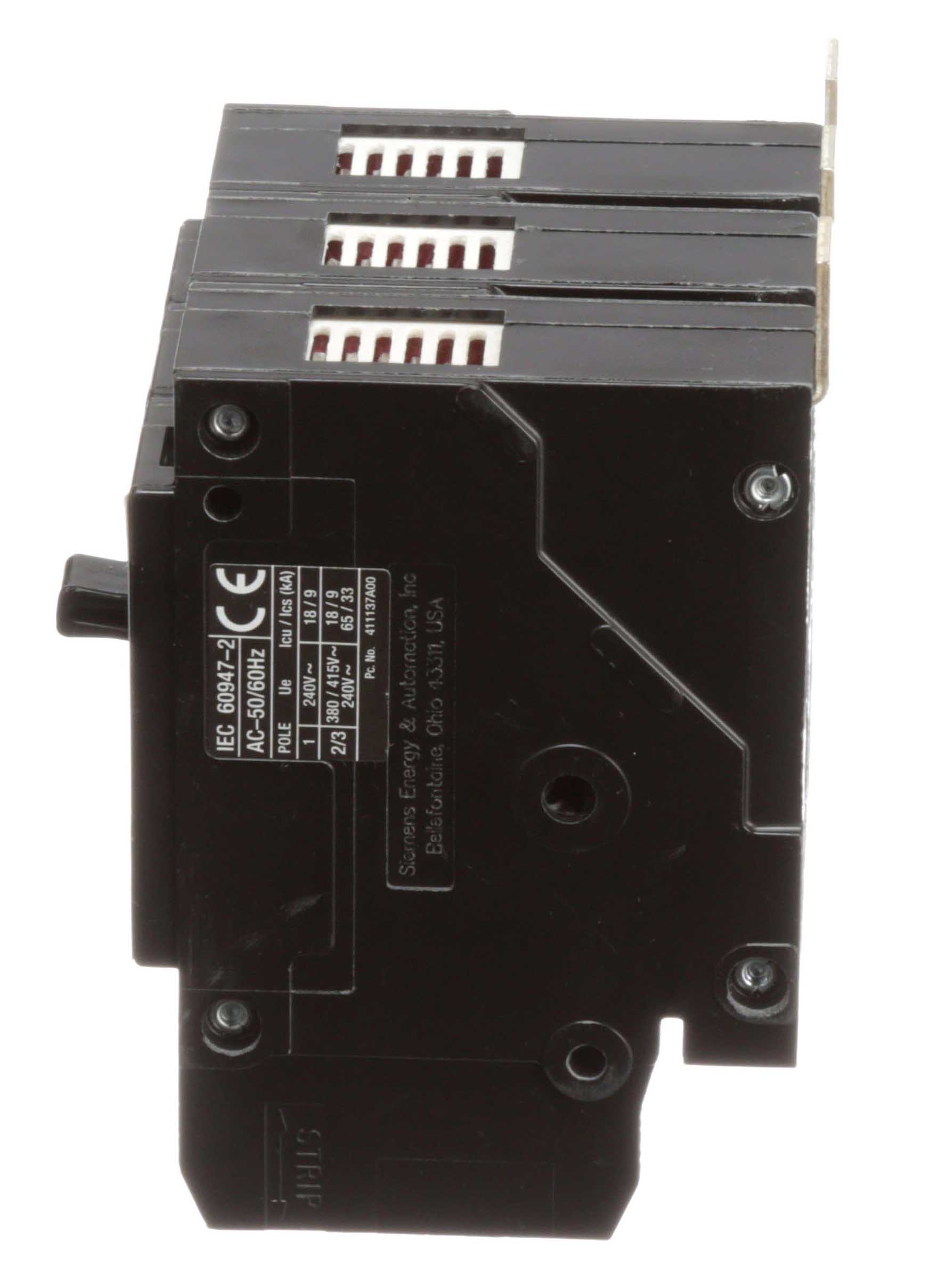

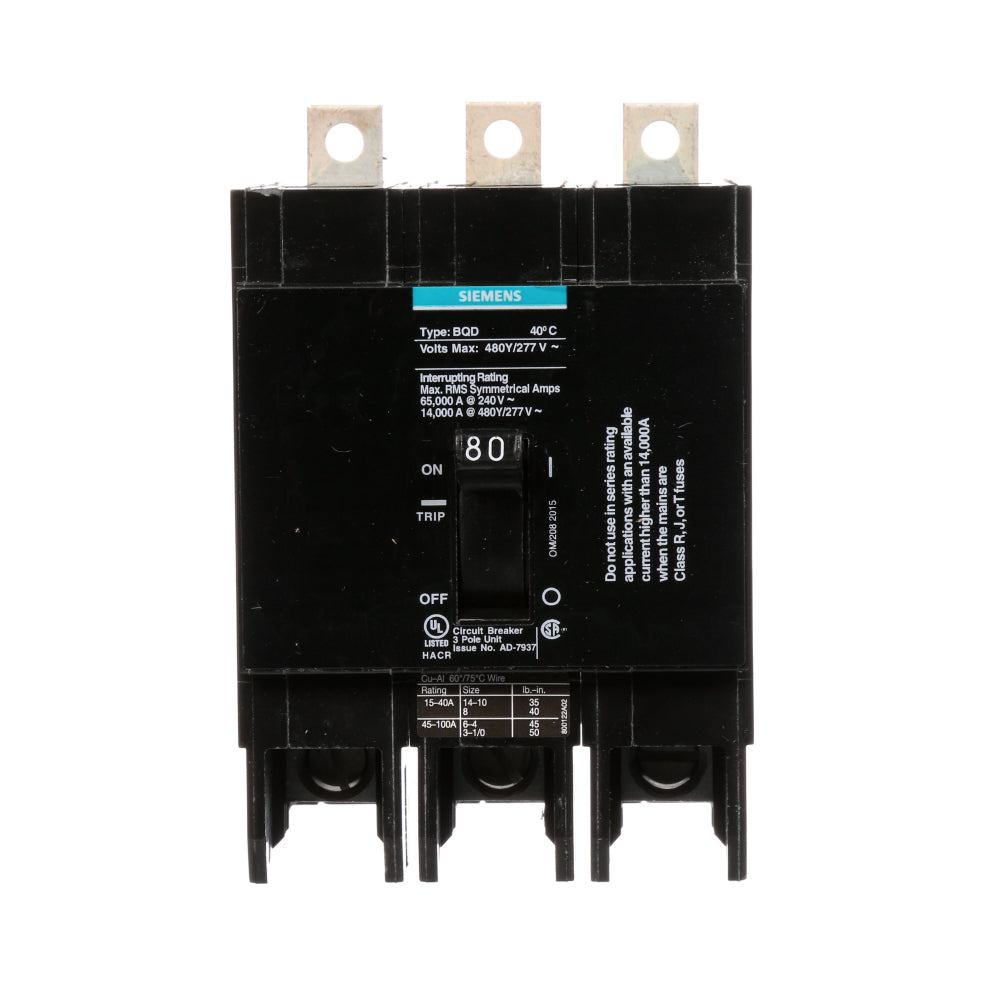

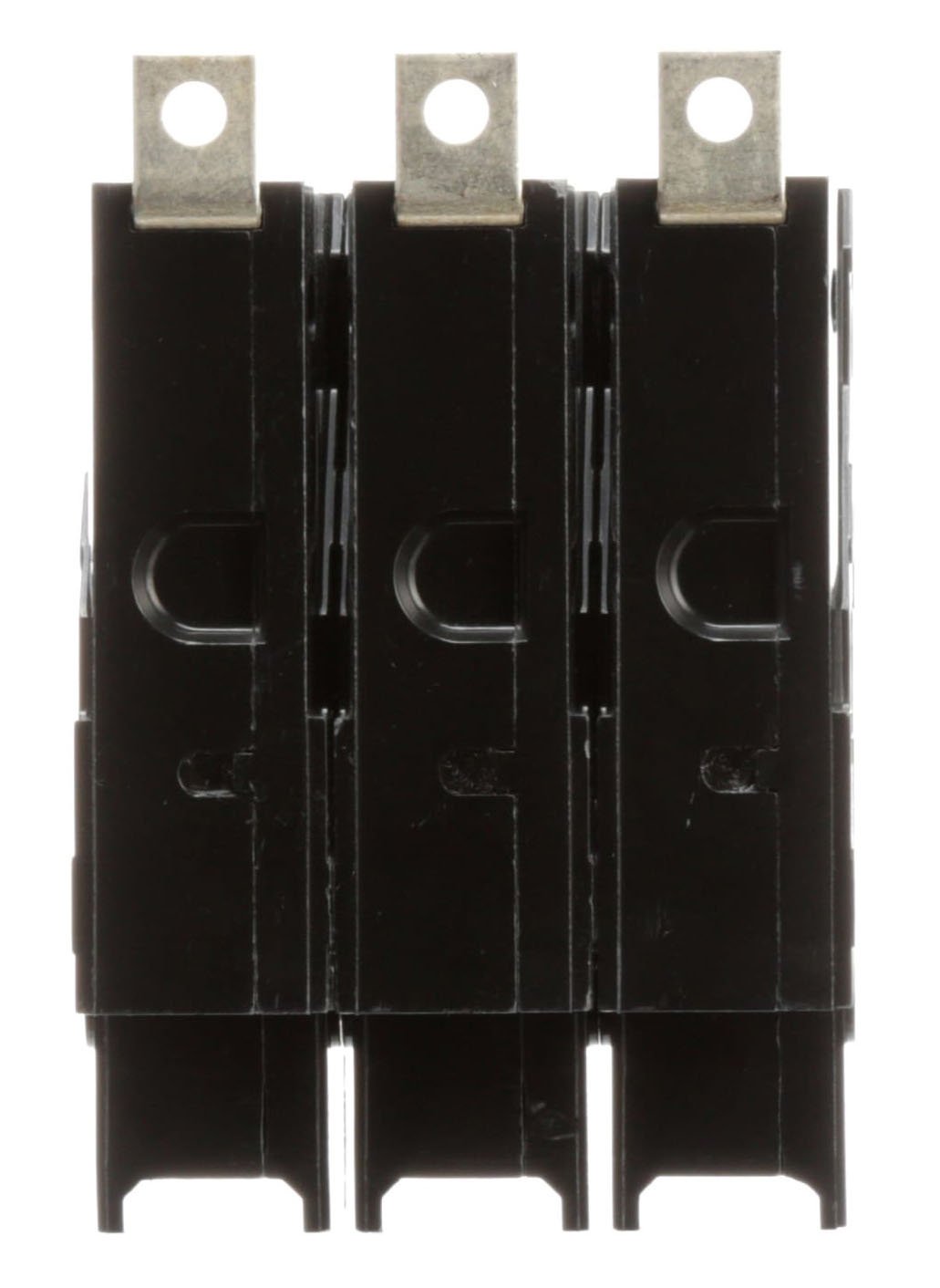

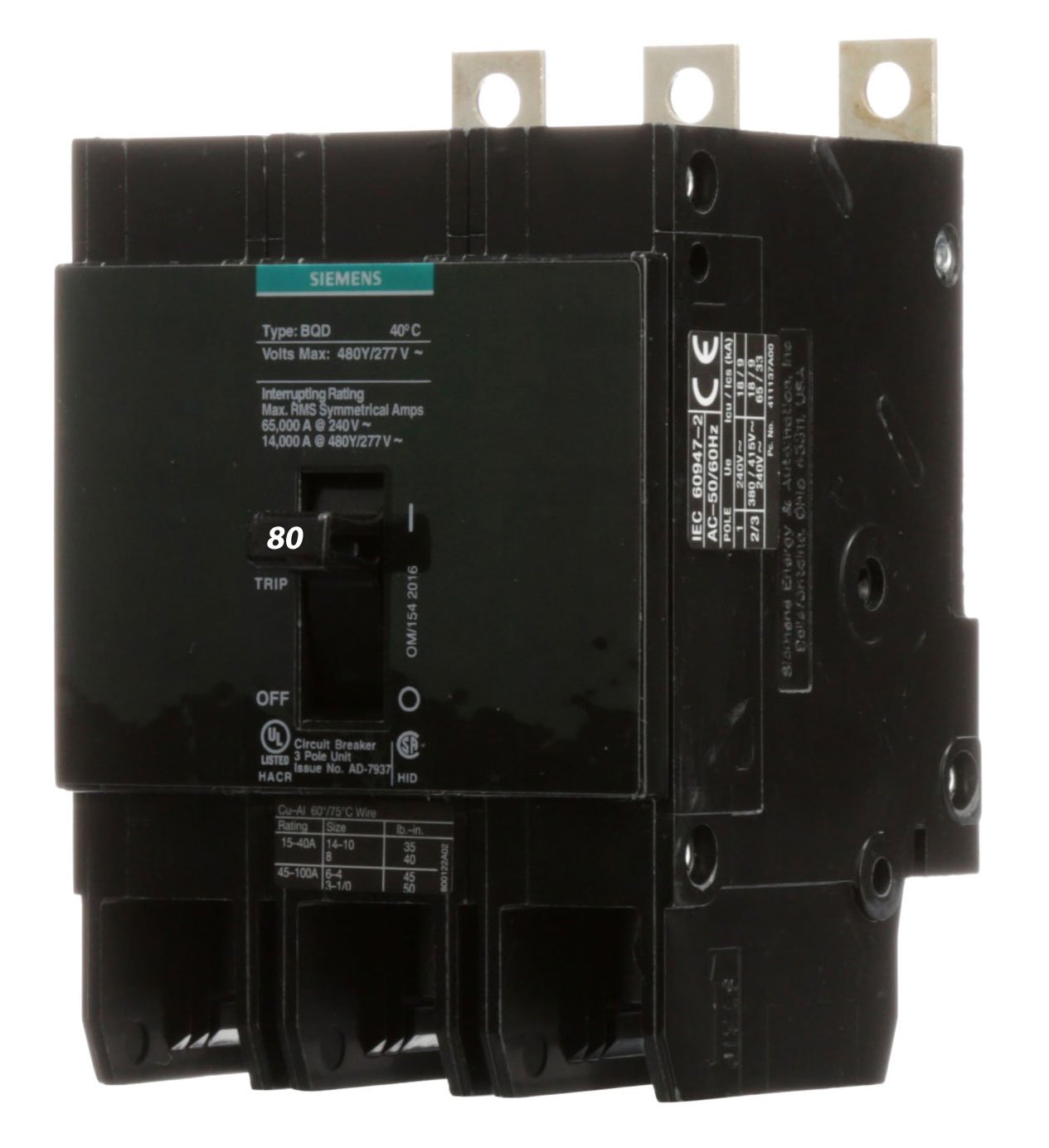

Siemens BQD380 Molded Case Circuit Breaker | 480V 80A 3P 14kA@480V Bolt-on BQD Series

Product Description:
The Siemens BQD380 is a Molded Case Circuit Breaker from the BQD Series family. It is a 3-pole, 80 amp breaker rated for 480 volts with an AIC rating of 14kA@480V. This model features bolt-on connections and provides thermal magnetic protection. It is designed for use in Siemens P1 Panelboards.

Key Features:
✔ Part Number: BQD380
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQD Series
✔ Type: BQD
✔ Voltage: 480
✔ Amperage: 80
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/BQD
✔ MCM Size: Min. Wire Size 6 AWG (Al), 8 AWG (Cu) Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643277441
✔ GTIN: 00783643277441
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 4.49 in x 4.49 in
✔ Weight: 1
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA-C22.2,UL 489
✔ Certification: CSA-C22.2,UL 489
