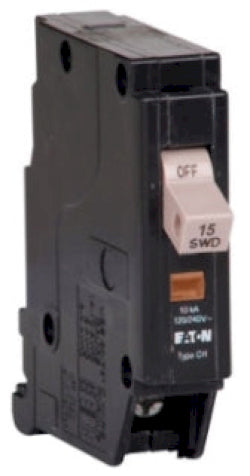

Eaton CHF115 Circuit Breaker | 240V 15A 1P 10kA@120V Plug-In CH Series

Product Description:
The Eaton CHF115 is a Molded Case Circuit Breaker from the CH Series family. It features a 1 pole, 240V, 15A rating with a 10kA@120V AIC rating and Plug-In connection. This breaker provides Thermal Magnetic protection for reliable circuit safety. It is compatible with Type CH Loadcenters and meets UL 489 and HACR standards.

Key Features:
✔ Part Number: CHF115
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: CH Series
✔ Type: CHF
✔ Voltage: 240
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ MCM Size: Min. Wire Size (1) or (2) 14 AWG Max. Wire Size (1) 8 AWG, (2) 10 AWG (Cu/Al)
✔ Breaker Type: CHF
✔ Protection: Thermal Magnetic
✔ UPC: 786685361833
✔ GTIN: 00786685361833
✔ Country of Origin: United States
✔ Dimensions: 3.2 in x 2.6 in
✔ Weight: 0.25
✔ Panel Type: Type CH Loadcenters
✔ Standards: UL 489, HACR Rated
✔ Certification: UL 489, HACR Rated
