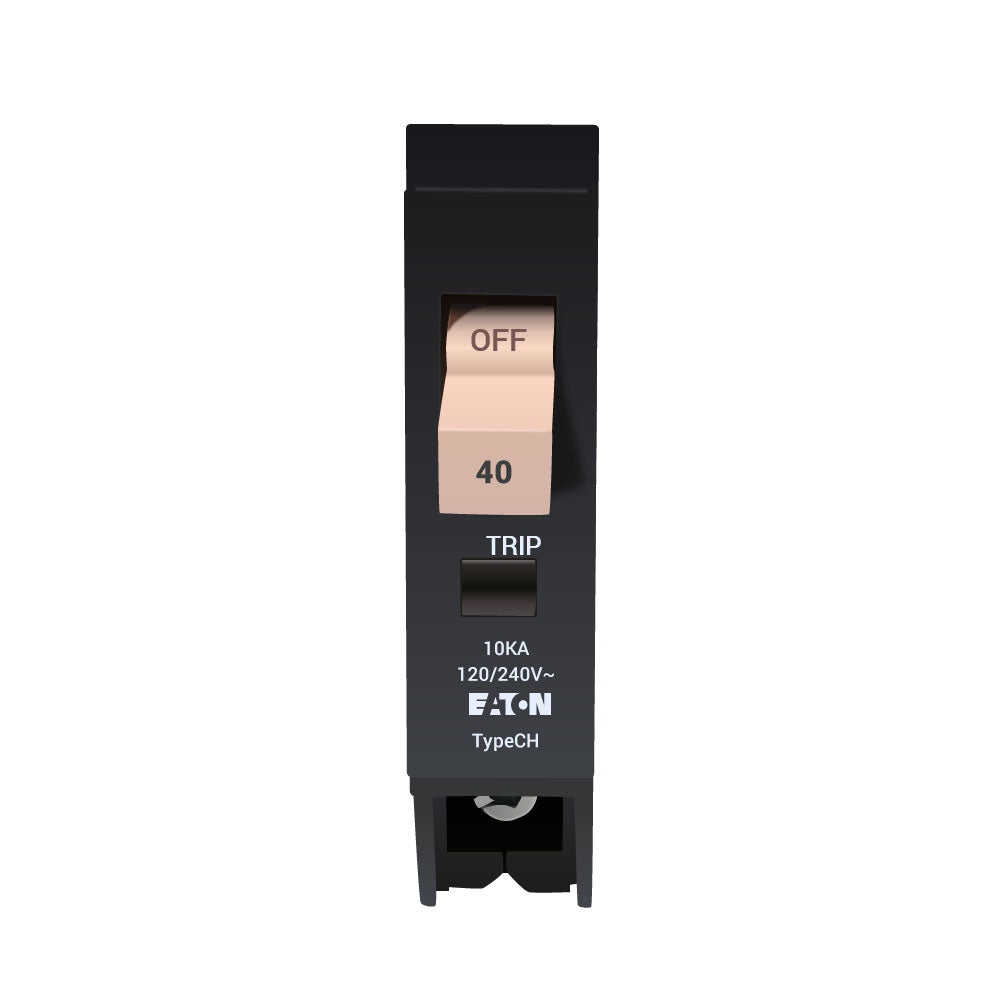

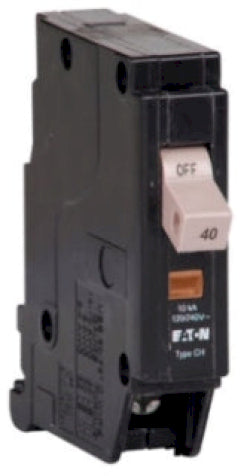

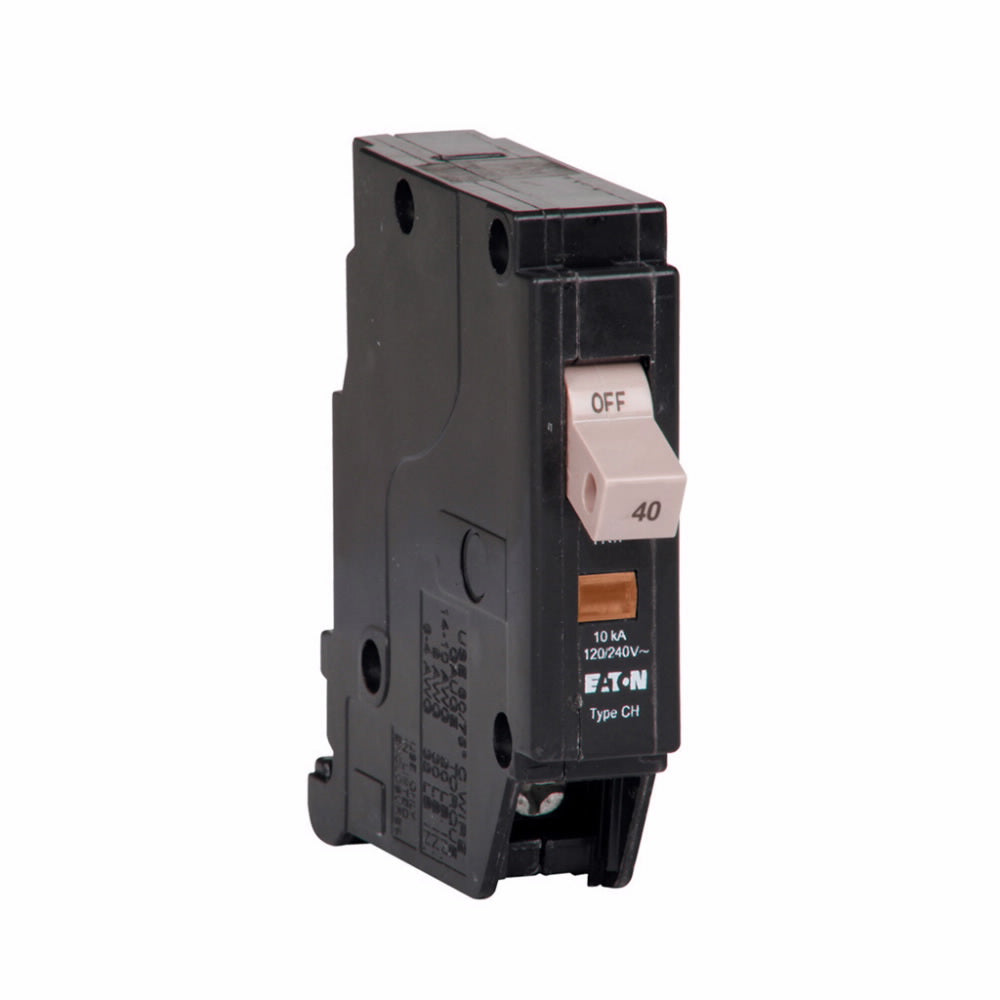

Westinghouse CHF140 Circuit Breaker | 240V 40A 1P 10kA@120V Plug-In CH Series

Product Description:
The Westinghouse CHF140 is a Molded Case Circuit Breaker from the CH Series family. It features 1 pole, 240V voltage, and 40 amp rating with a 10kA@120V AIC rating. This breaker uses a plug-in connection and offers thermal magnetic protection. It is compatible with Type CH loadcenters and meets UL 489 standards.

Key Features:
✔ Part Number: CHF140
✔ Manufacturer: Westinghouse
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: CH Series
✔ Type: CHF
✔ Voltage: 240
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2 AWG (Cu/Al)
✔ Breaker Type: CHF
✔ Protection: Thermal Magnetic
✔ UPC: 786685532134
✔ GTIN: 00786685532134
✔ Country of Origin: United States
✔ Dimensions: Length 10.76in Height 7.15in Width 6.06in
✔ Weight: 0.25
✔ Panel Type: Type CH Loadcenters
✔ Standards: UL 489, HACR Rated
