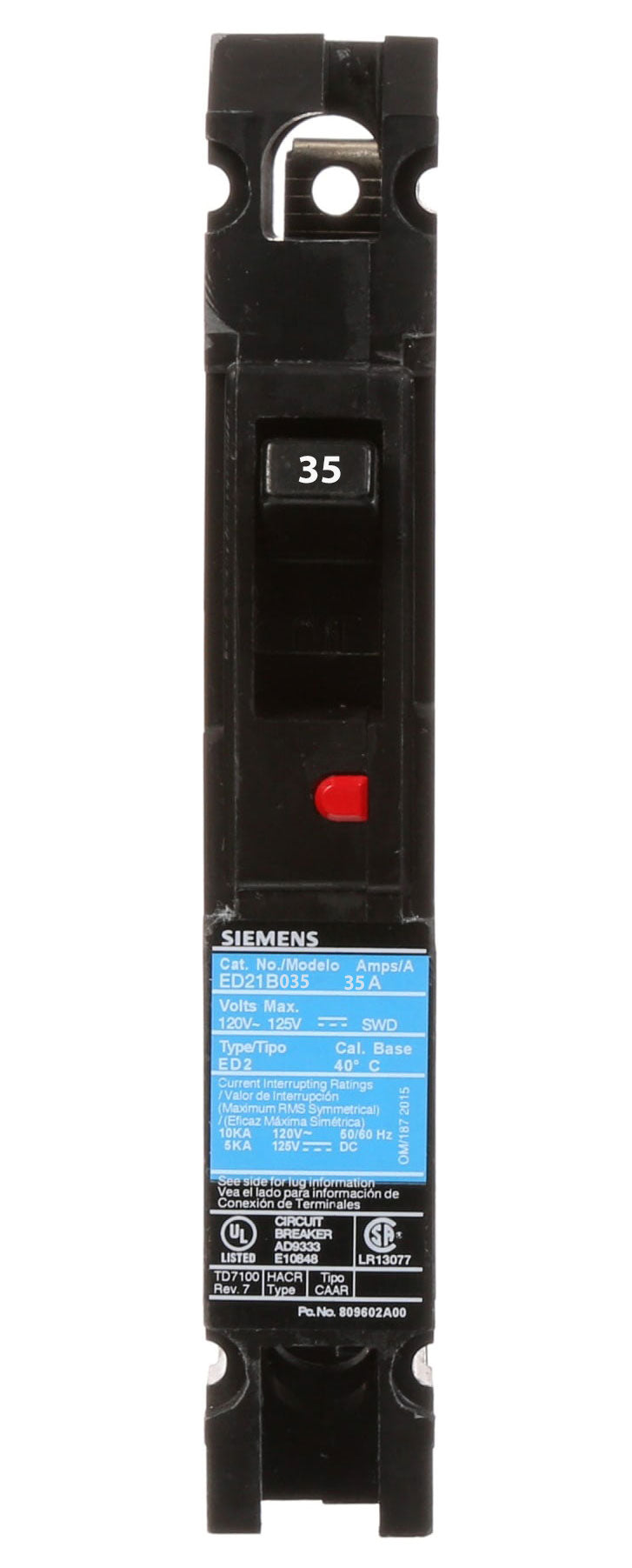

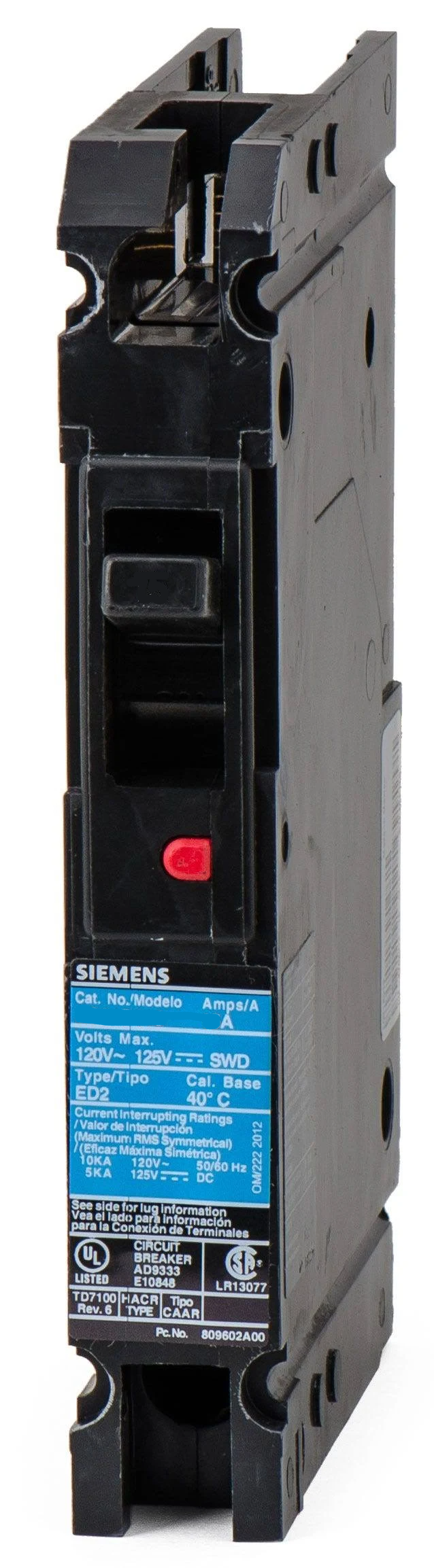

Siemens ED21B035 Circuit Breaker | 120V 35A 1P 10kA@120V Lug In Panelboard Sentron Series

Product Description:
The Siemens ED21B035 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 1-pole, 35 amp breaker rated for 120 volts with an AIC rating of 10kA@120V. This circuit breaker features thermal magnetic protection and uses a lug-in panelboard connection for reliable performance.

Key Features:
✔ Part Number: ED21B035
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 120
✔ Amperage: 35
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 10kA@120V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643208742
✔ GTIN: 00783643208742
✔ Country of Origin: Mexico
✔ Weight: 4
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
