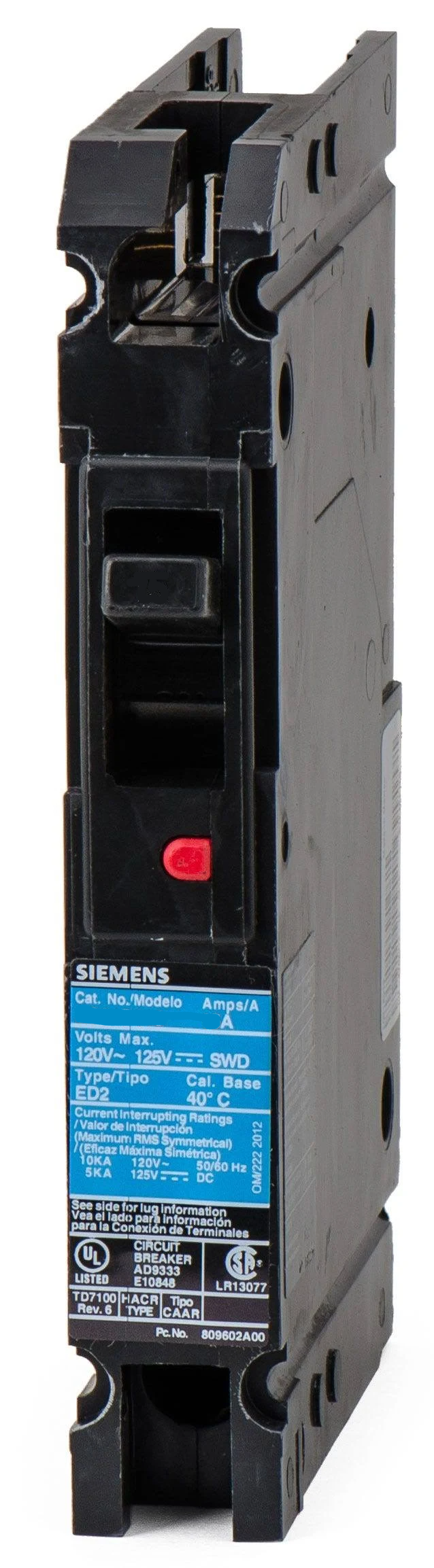

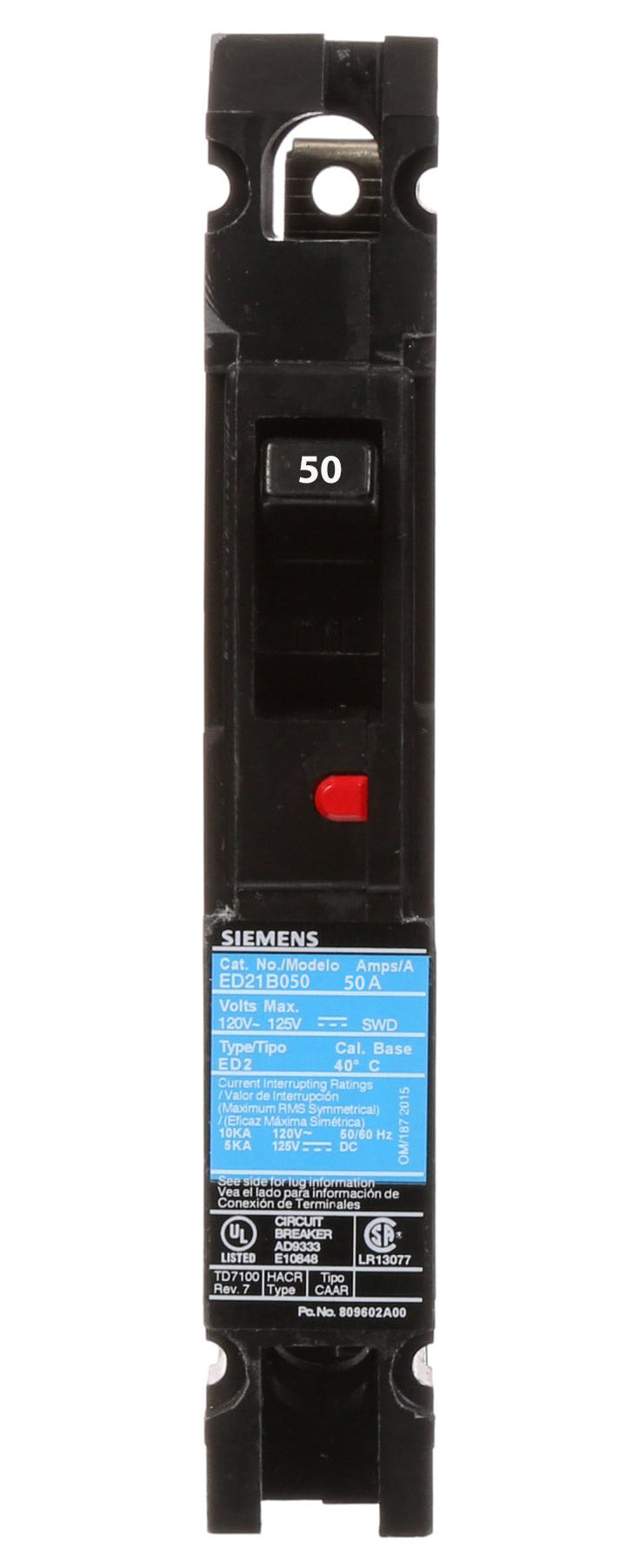

Siemens ED21B050 Circuit Breaker | 120V 50A 1P 10kA@120V Sentron Series

Product Description:
The Siemens ED21B050 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 1-pole design with a 120V, 50A rating and a 10kA@120V AIC rating. This breaker uses a Lug In Panelboard connection and is suitable for SB Switchboards and Sentron Panelboards. It is UL Listed and HACR Rated for safety compliance.

Key Features:
✔ Part Number: ED21B050
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 120
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Phase Connection: Any
✔ UPC: 783643208773
✔ GTIN: 00783643208773
✔ Country of Origin: Mexico
✔ Weight: 4
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Wire Size: 10 To 4 AWG (Aluminum/Copper)
