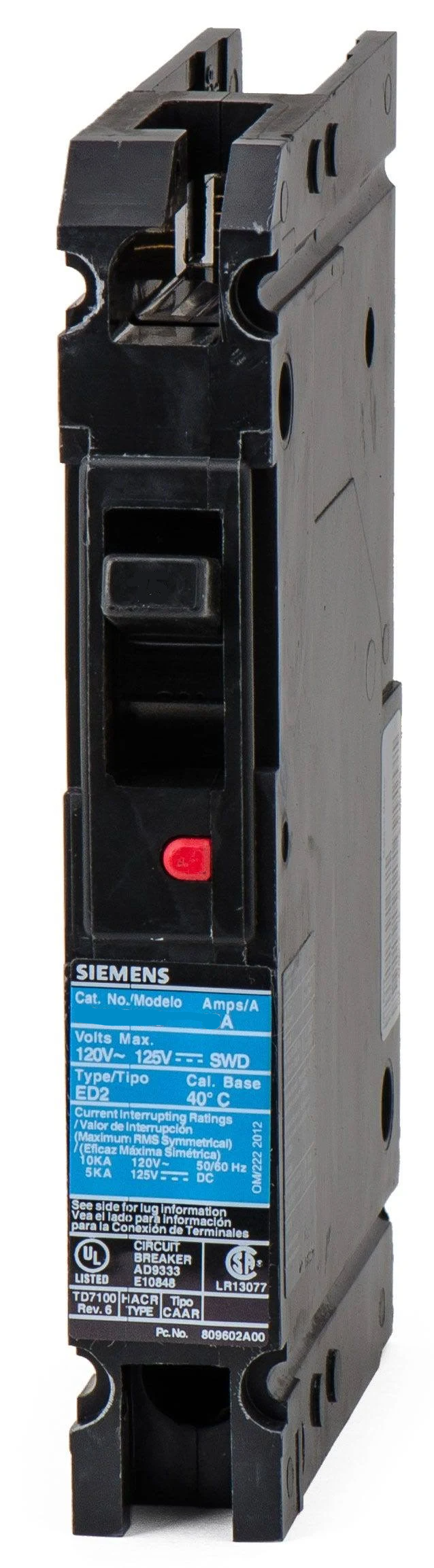

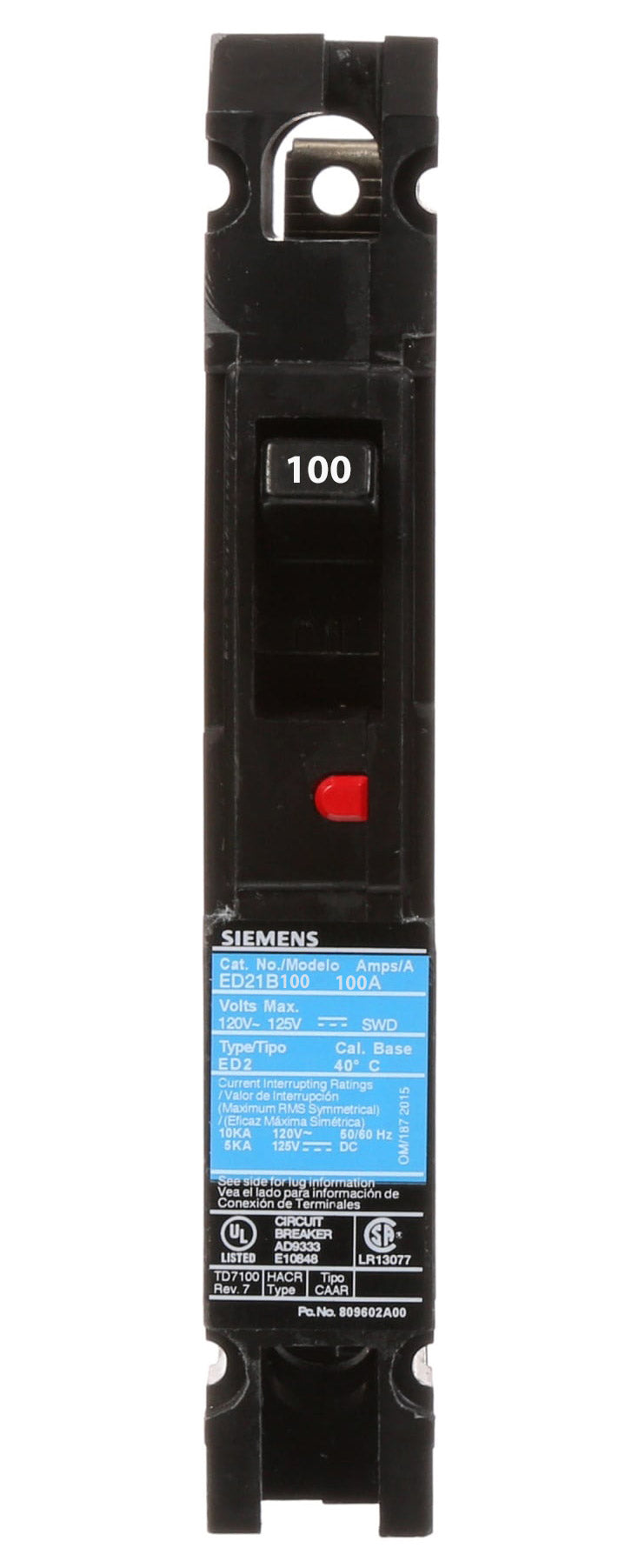

Siemens ED21B100 Circuit Breaker | 120V 100A 1P 10kA@120V Sentron Series
Siemens ED21B100 Circuit Breaker | 120V 100A 1P 10kA@120V Sentron Series
Price:
Sale
Sold out
Regular price
$59.64 USD
Regular price
$689.00 USD
Sale price
$59.64 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 3 left
Couldn't load pickup availability
Product Description:
The Siemens ED21B100 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 1-pole design with a 100 amp rating and 120V voltage, offering a 10kA@120V AIC rating. This breaker includes thermal magnetic protection and uses a lug-in panelboard connection for secure installation. Suitable for SB Switchboards and Sentron Panelboards, it meets UL standards and HACR ratings.
Key Features:
✔ Part Number: ED21B100
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 120
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@120V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643208827
✔ GTIN: 00783643208827
✔ Country of Origin: Mexico
✔ Weight: 4 lb
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: UL Listed
