Siemens

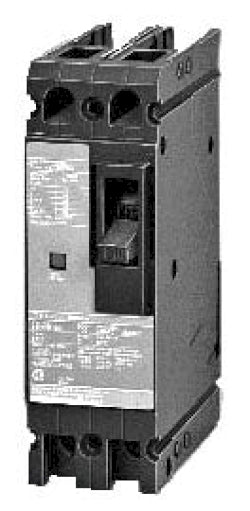

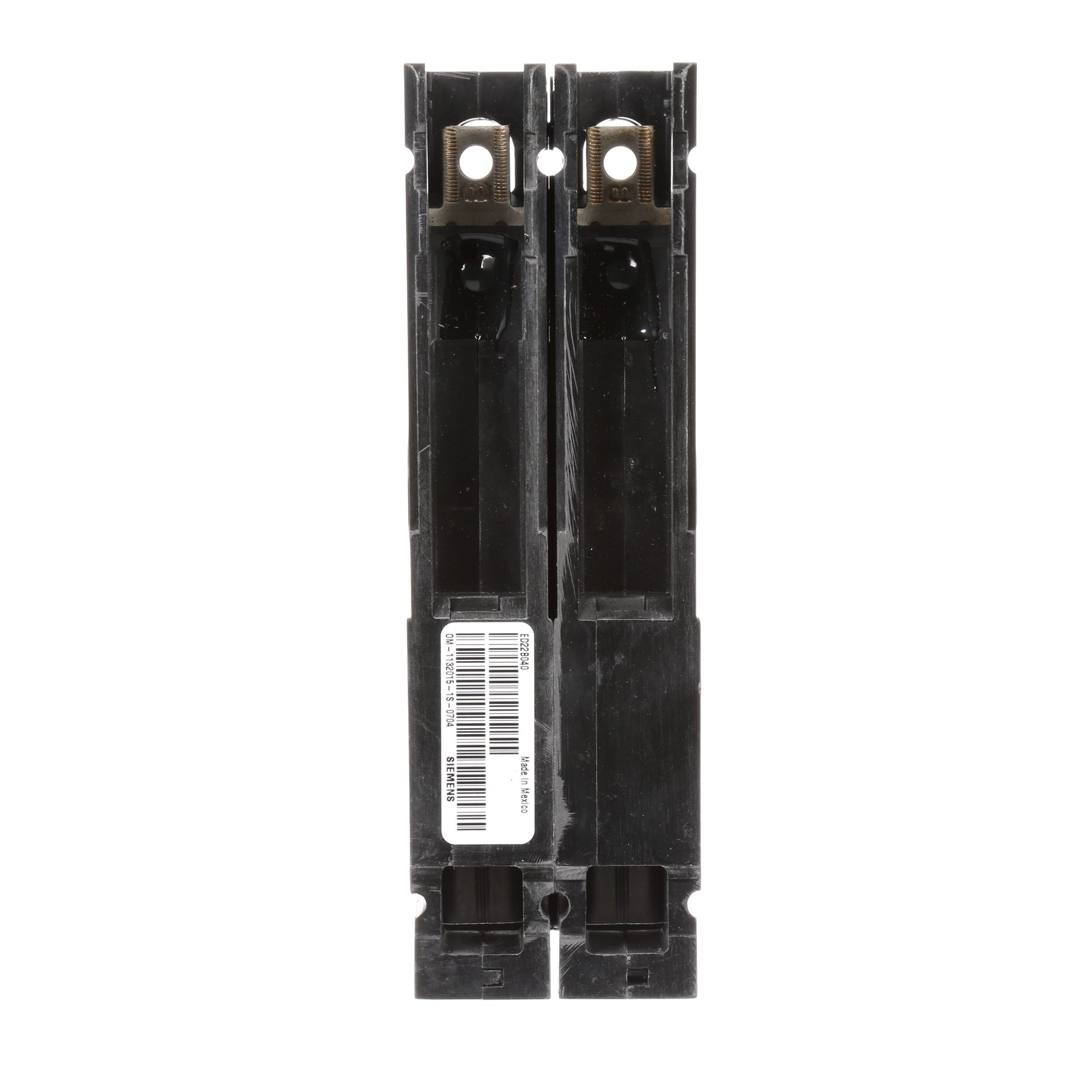

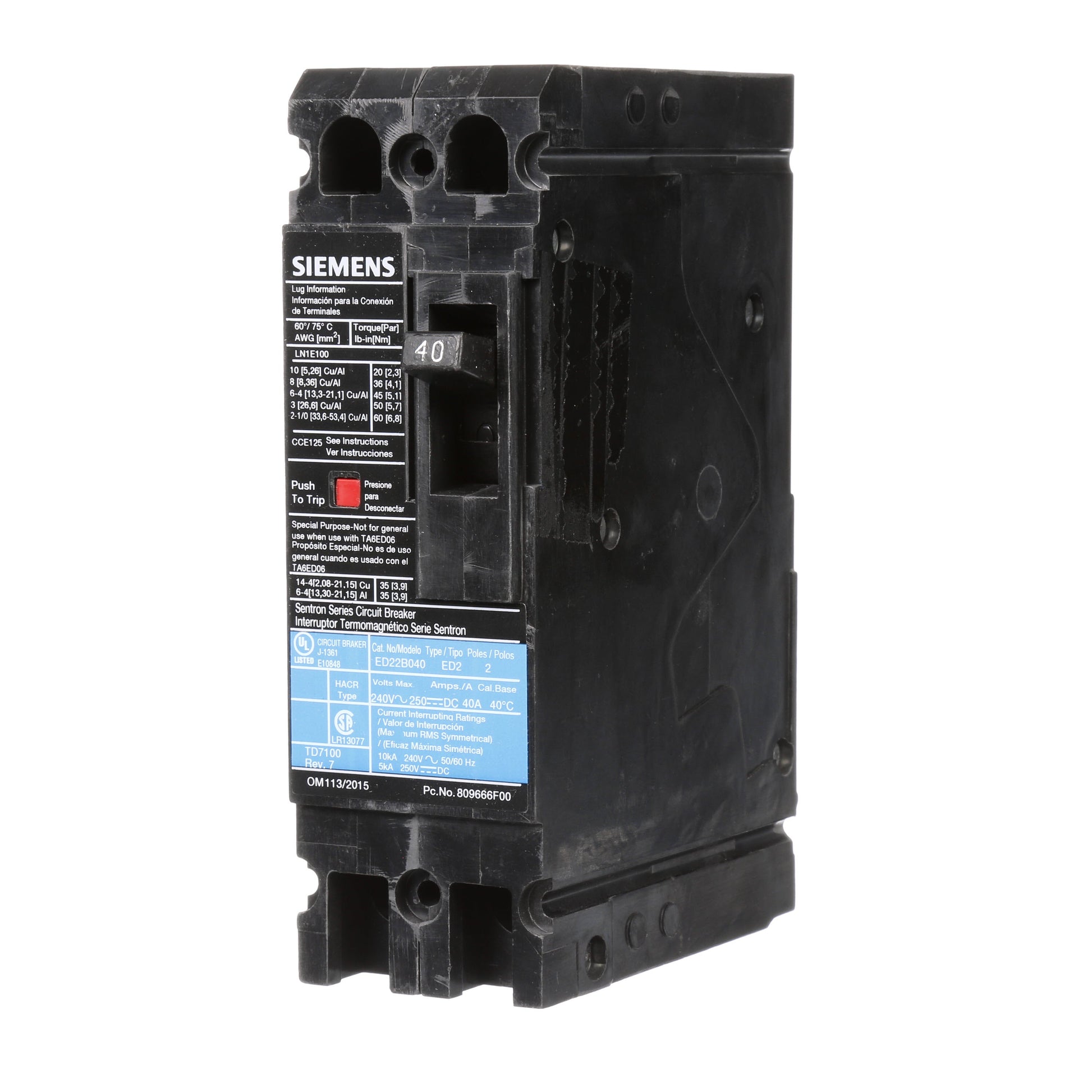

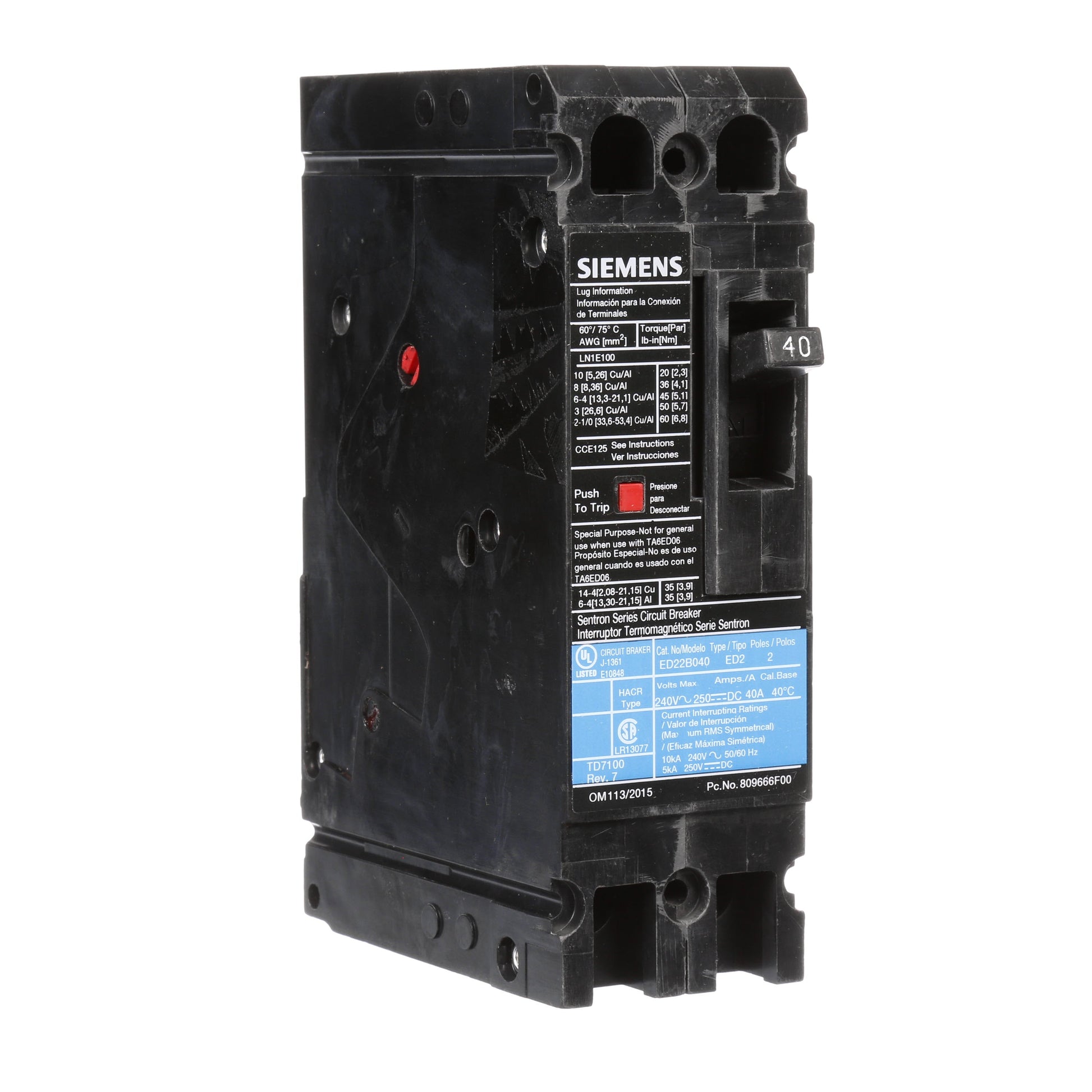

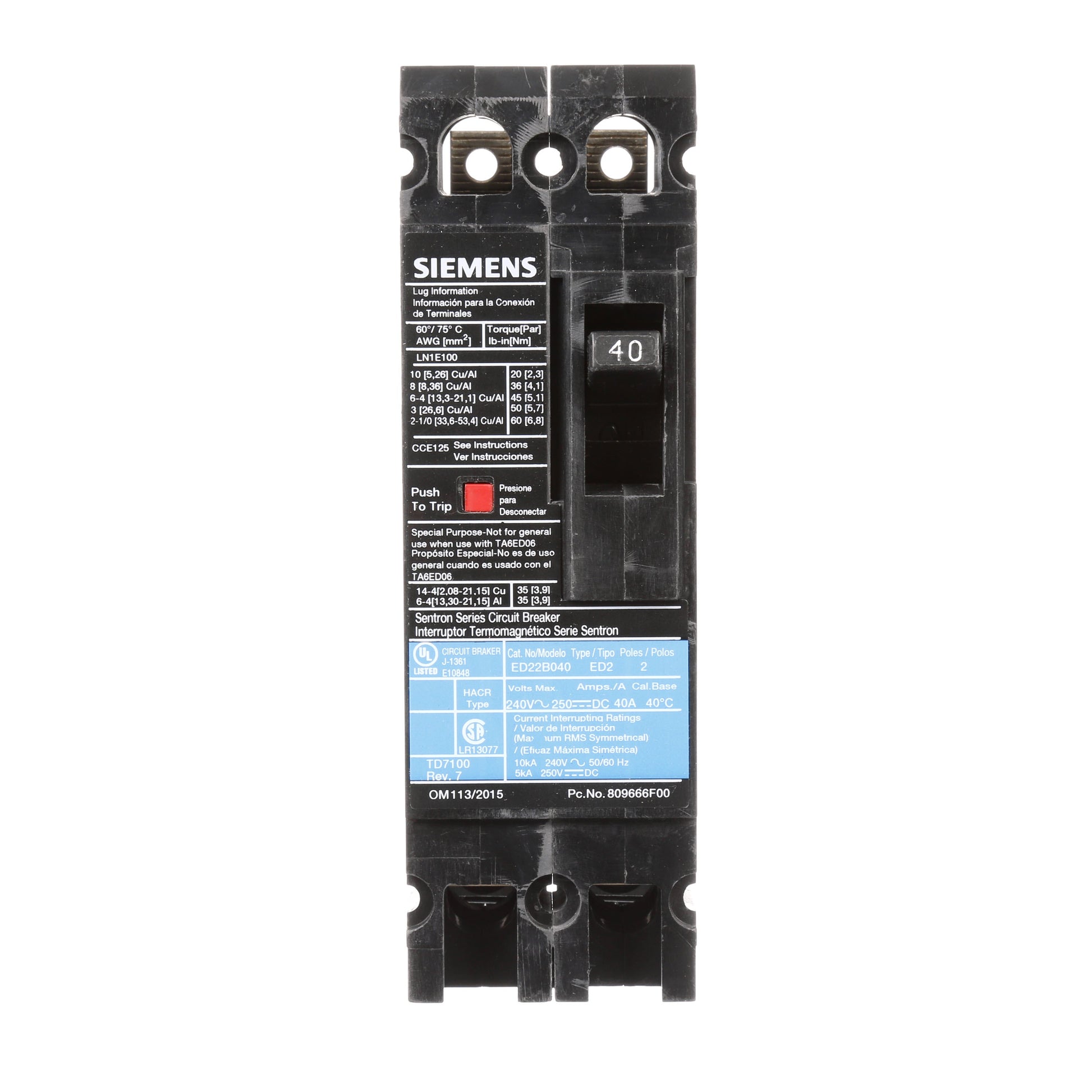

Siemens ED22B040 Circuit Breaker | 240V 40A 2P 10kA@240V Lug In Panelboard Sentron Series
Siemens ED22B040 Circuit Breaker | 240V 40A 2P 10kA@240V Lug In Panelboard Sentron Series
Price:
Sale
Sold out
Regular price
$264.43 USD
Regular price
$1,193.00 USD
Sale price
$264.43 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Siemens ED22B040 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 2-pole, 40 amp breaker rated for 240 volts with an AIC rating of 10kA@240V. This model features thermal magnetic protection and uses a lug-in panelboard connection for secure installation.
Key Features:
✔ Part Number: ED22B040
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 240
✔ Amperage: 40
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643208889
✔ GTIN: 00783643208889
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 6.34 in
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
