Siemens ED41B015 Circuit Breaker | 120V 15A 1 Pole 65kA@120V Bolt-On Sentron Series

Product Description:

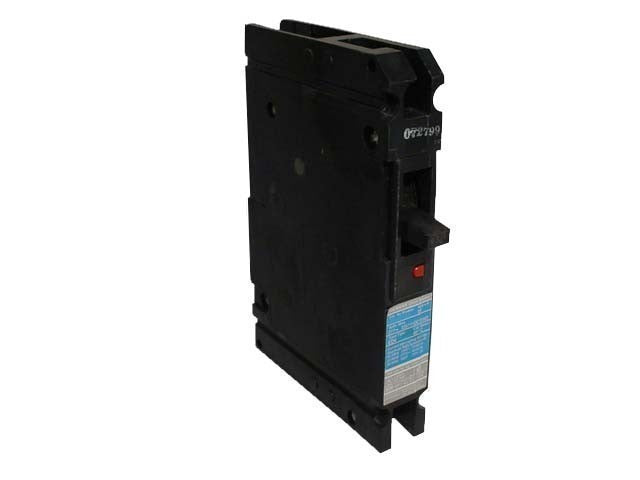

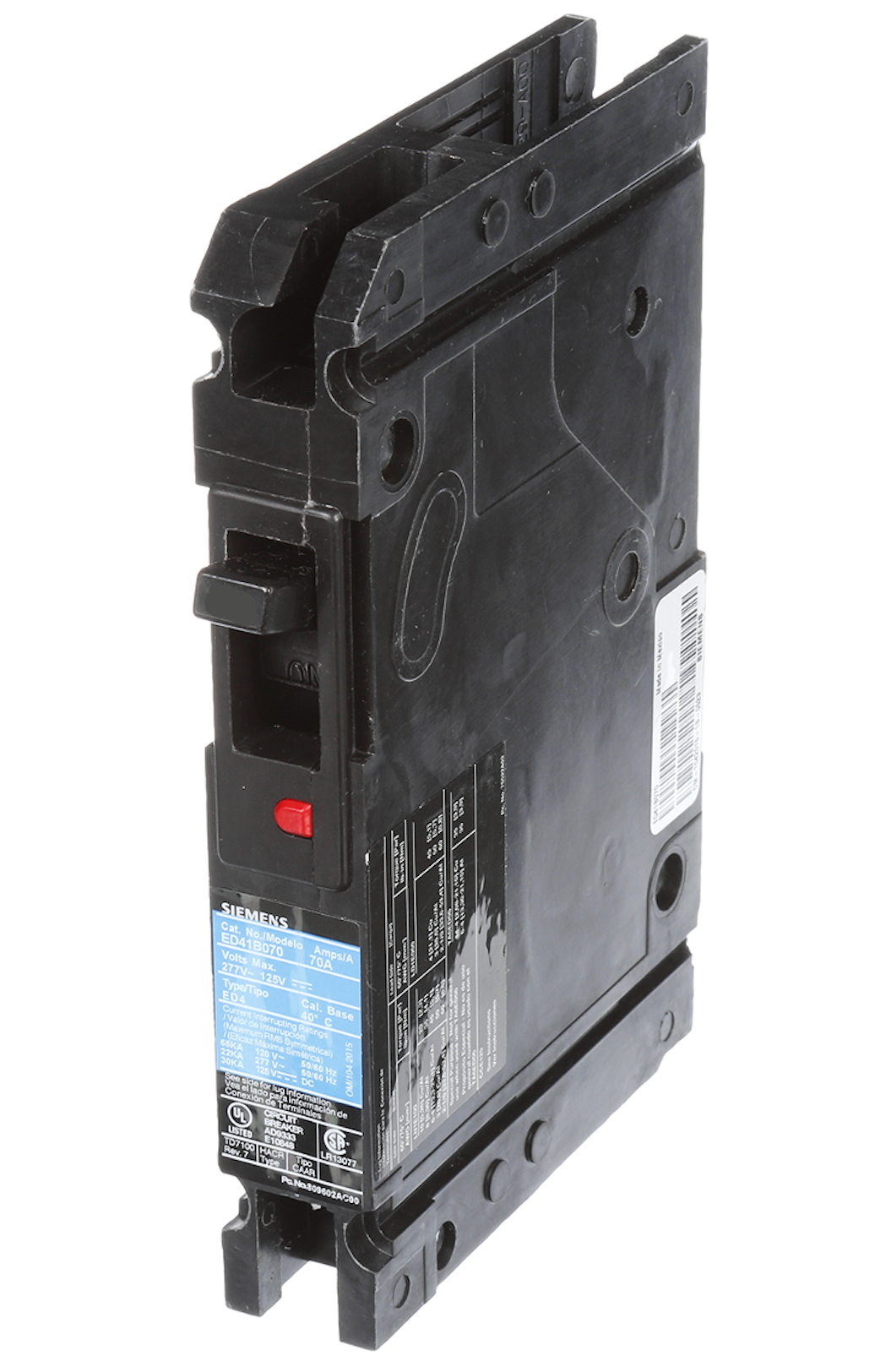

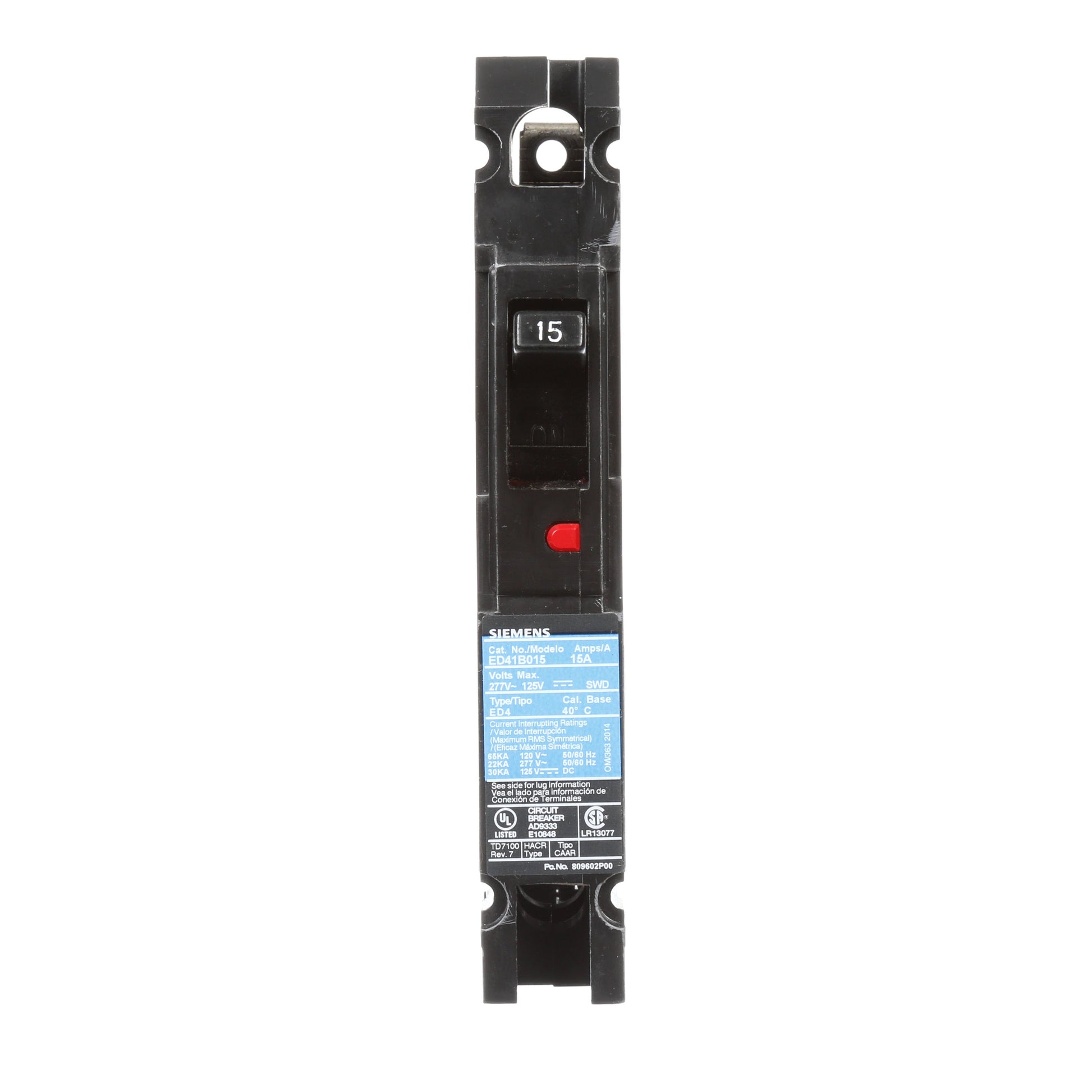

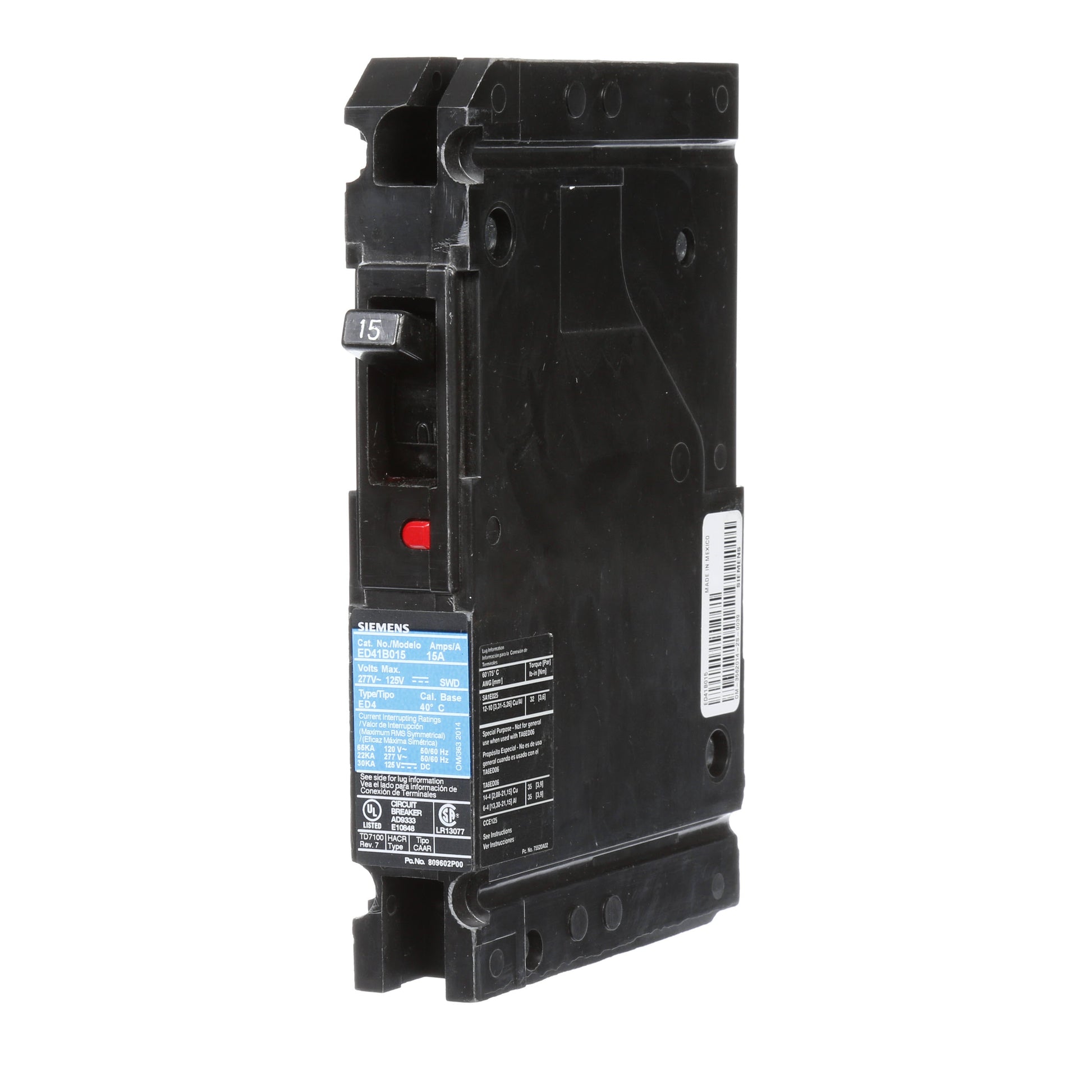

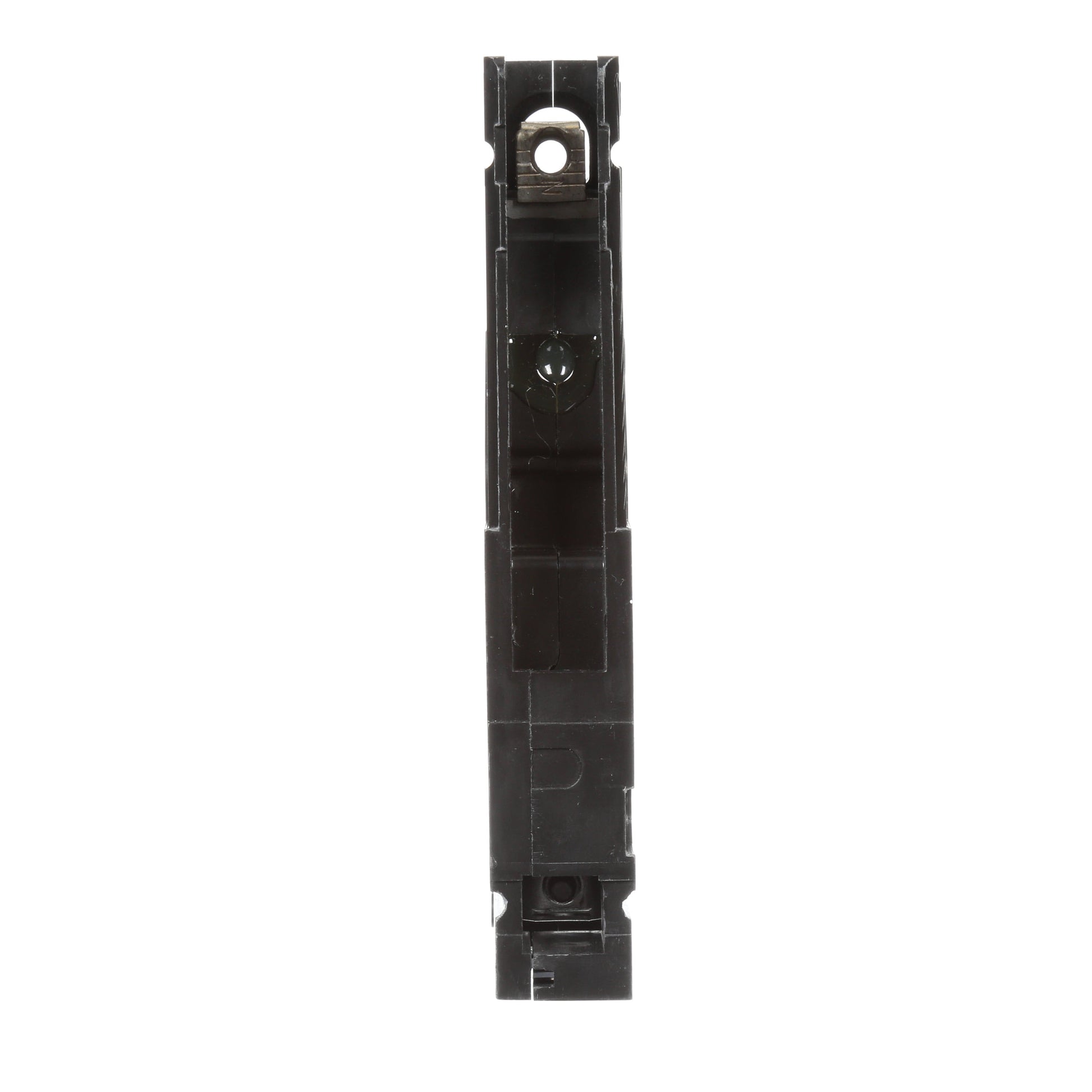

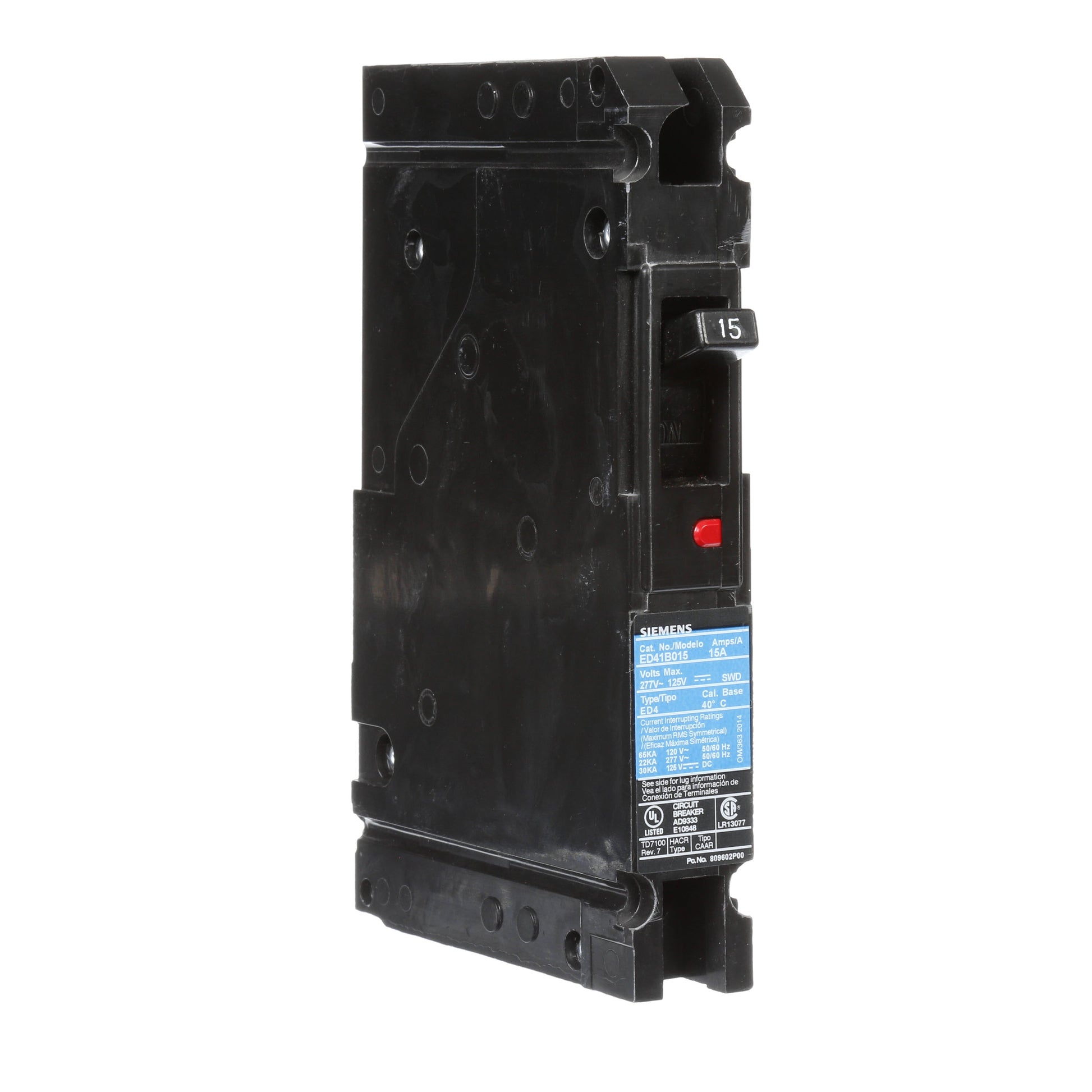

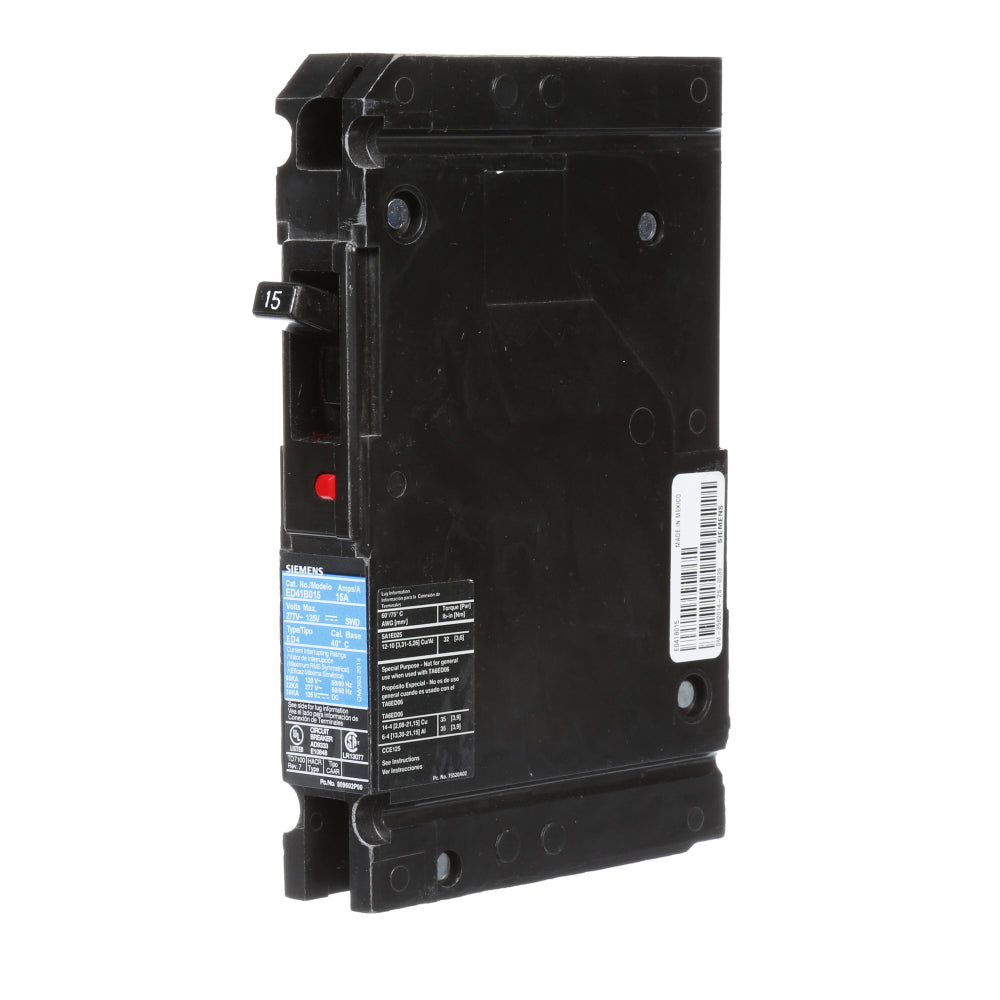

The Siemens ED41B015 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 1-pole, 15 amp breaker rated for 120 volts with an AIC rating of 65kA@120V. This model uses a bolt-on connection and provides thermal magnetic protection. It is suitable for use in SB switchboards and Sentron panelboards.

Key Features:
✔ Part Number: ED41B015
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 120
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 6 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643214668
✔ GTIN: 00783643214668
✔ Country of Origin: United States
✔ Dimensions: 1 in x 6.34 in
✔ Weight: 1.5
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: IEC Certified, UL Listed
✔ Certification: IEC Certified, UL Listed
