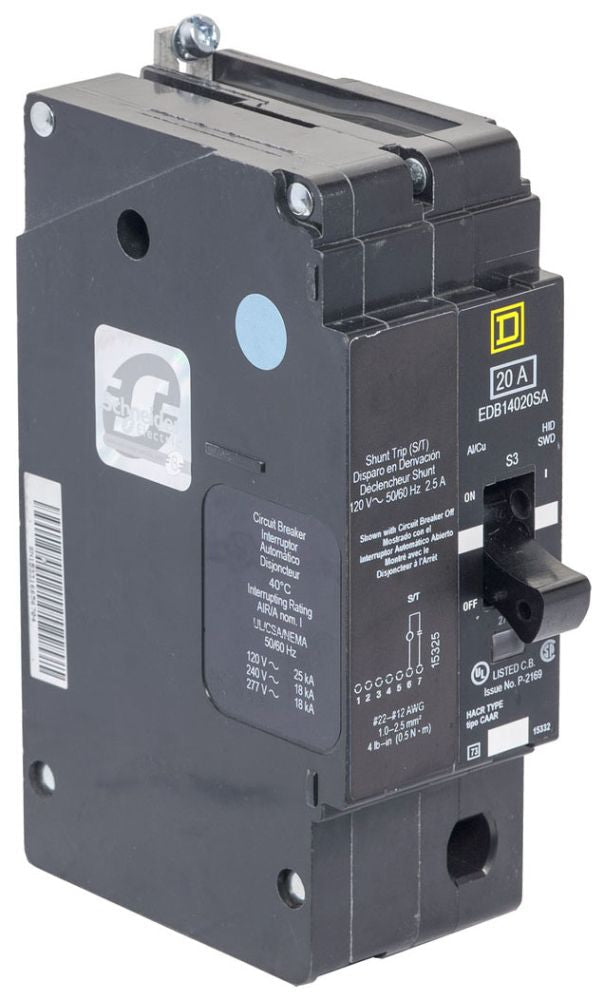

Square D EDB14020SA Circuit Breaker | 277V 20A 1P 18kA@480V Bolt-on EDB Series

Product Description:
The Square D EDB14020SA is a Molded Case Circuit Breaker from the EDB Series. It is a 1 pole, 277 Volt, 20 amp rated breaker with an AIC rating of 18kA@480V. This model uses a bolt-on connection and provides thermal magnetic protection. It is designed for use in Square D NF Panelboards.

Key Features:
✔ Part Number: EDB14020SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 277
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/EDB
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 785901335115
✔ GTIN: 00785901335115
✔ Country of Origin: Mexico
✔ Dimensions: 1.96 in x 5.66 in x 5.66 in
✔ Weight: 1
✔ Panel Type: Square D NF Panelboards
✔ Standards: cULus, IEC
✔ Certification: cULus, IEC
✔ Wire Size: AWG 12 to AWG 6 Aluminum, AWG 14 to AWG 6 Copper
